AT190R-AEPNKW (1992)

Toyota Carina E Sed/Lb(Jpp)

Production Feb 1992 - Nov 1994
Engine 4AFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9202- )AT190..JPP..RHD

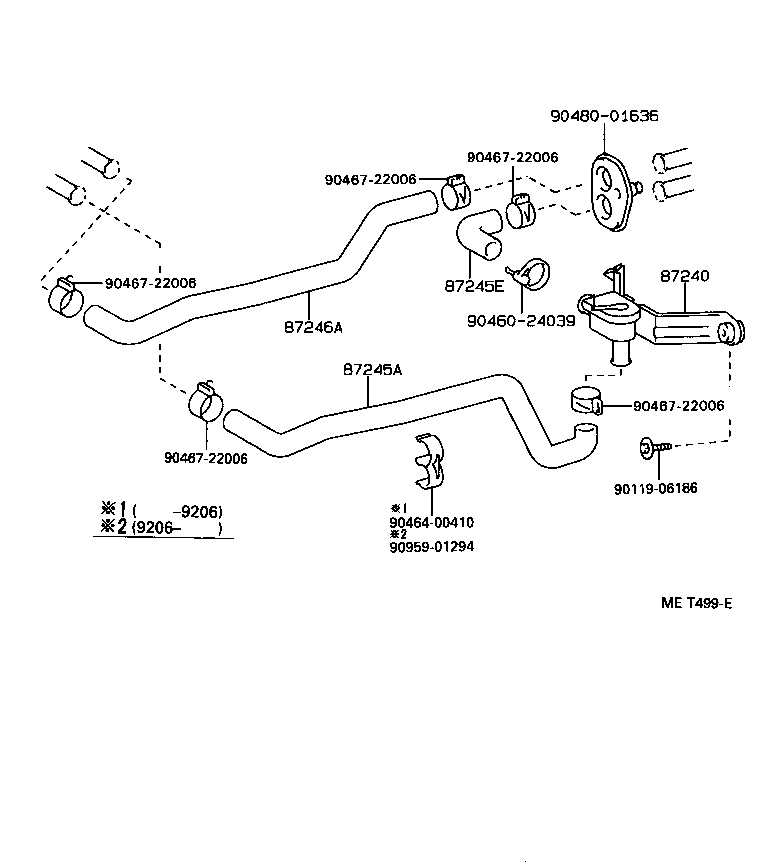

Click highlighted areas on diagram

diagram 87240 87245A 87245E 87246A 9011906186 9046024039 9046400410 9046722006 9046722006 9046722006 9046722006 9046722006 9048001636 9095901294
Part # Description Qty Price
87240 - VALVE ASSY, HEATER WATER
87240-20370

AT190,CT190,ST191..JPP..RHD

 1
87245A - HOSE, HEATER WATER, INLET A
87245-2B630

AT190..JPP..RHD

 1
87245E - HOSE, HEATER WATER, INLET E
87245-2B610

AT190,CT190,ST191..JPP..RHD

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-2B640

AT190..JPP..RHD

 1
Common parts
90119-06186
90460-24039
90464-00410
90467-22006
90480-01636
90959-01294
