AT190R-AEPNKW (1992)
Toyota Carina E Sed/Lb(Jpp)
Production
Feb 1992
-
Nov 1994
Engine
4AFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

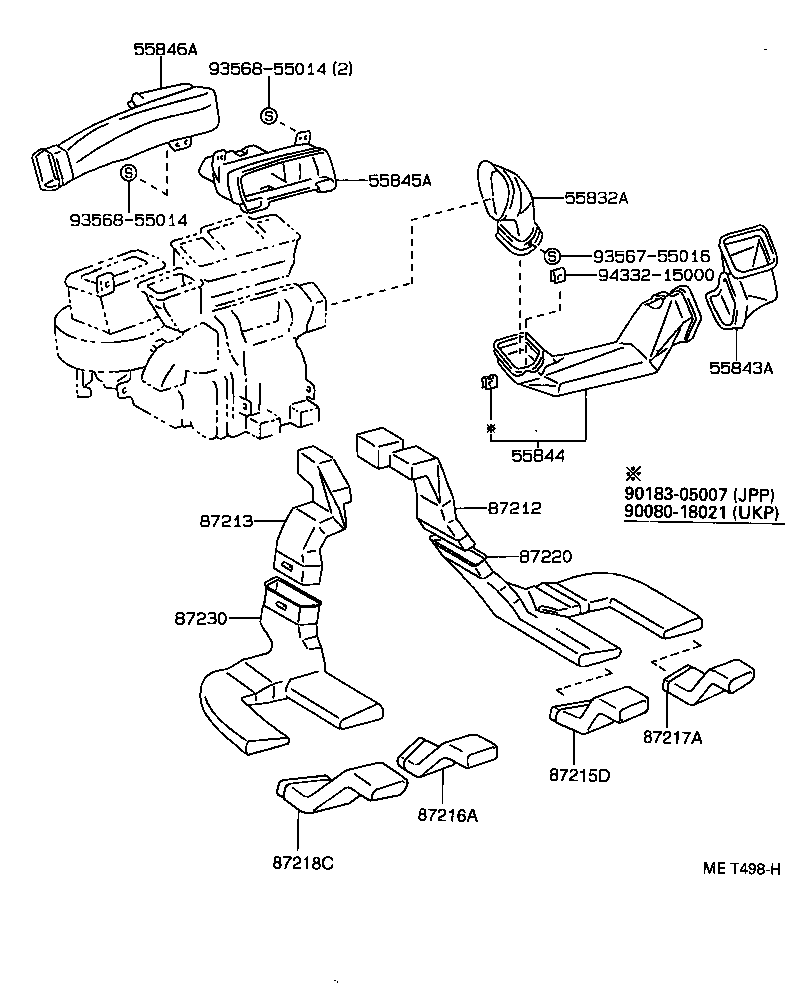

ILLUST NO. 2 OF 2(9202- )JPP
Click highlighted areas on diagram
AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55832A - CONNECTOR, INSTRUMENT PANEL REGISTER, NO.2 | ||||
| 55832-20070 |
AT190,CT190,ST191..JPP..RHD |
1 | ||
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-20260 |
AT190,CT190,ST191..JPP..RHD |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-20240 |
AT190,CT190,ST191..JPP..RHD |
1 | ||
| 55845A - DUCT, HEATER TO REGISTER, NO.3 | ||||
| 55845-20200 |
AT190,CT190,ST191..JPP..RHD |
1 | ||
| 55846A - DUCT, HEATER TO REGISTER, NO.4 | ||||
| 55846-20120 |
AT190,CT190,ST191..JPP..RHD |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-20100 |
AT190,CT190,ST191..JPP..RHD |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87213-20070 |
AT190,CT190,ST191..JPP..RHD |
1 | ||
| 87220 - DUCT ASSY, AIR | ||||
| 87220-20100 |
AT190,CT190,ST191..JPP |
1 | ||
| 87230 - DUCT ASSY, AIR, HEATER | ||||
| 87230-20070 |
AT190,CT190,ST191..JPP |
1 | ||
| Common parts | ||||
| 90080-18021 | ||||
| 90183-05007 | ||||
| 93567-55016 | ||||
| 93568-55014 | ||||
| 94332-15000 | ||||

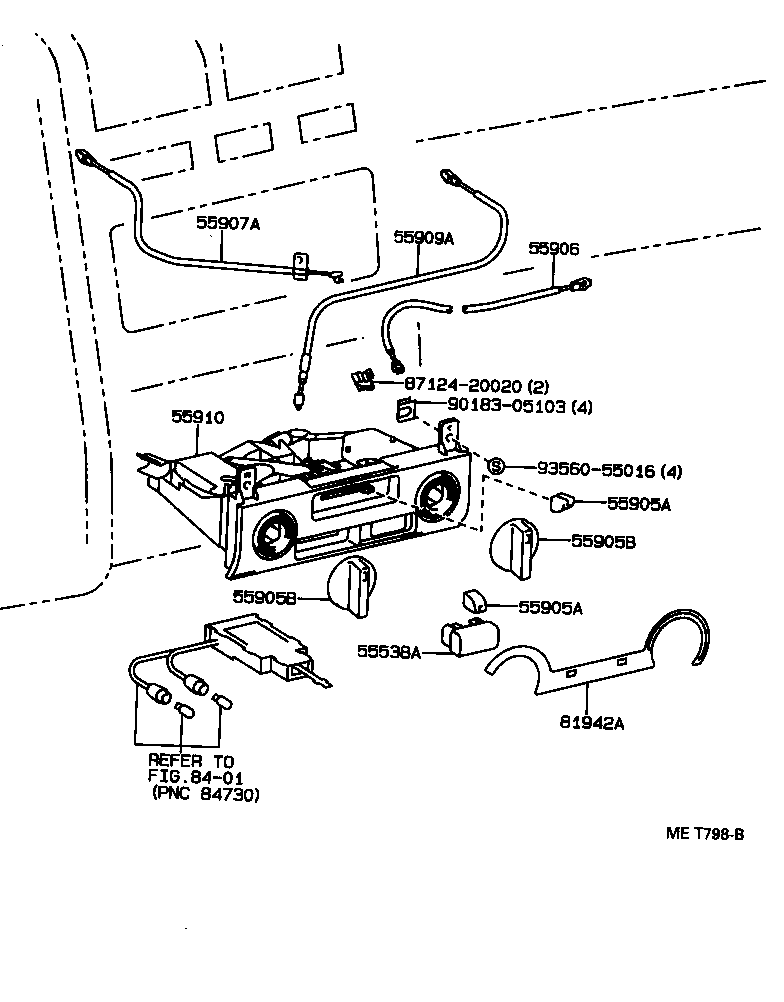

ILLUST NO. 1 OF 2(9202- )JPP
Click highlighted areas on diagram
LEVER CONTROL TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55538A - COVER, COOLER SWITCH HOLE | ||||
| 55538-20070 |
AT190,CT190,ST191..JPP |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-2B040 |
AT190,CT190,ST191..JPP W(*LHC) |
2 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-2B040 |
AT190,CT190,ST191..JPP W(*LHC) |
2 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-2B070 |
AT190,CT190,ST191..JPP |
2 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-2B070 |
AT190,CT190,ST191..JPP |
2 | ||
| 55906 - CABLE SUB-ASSY, HEATER CONTROL | ||||
| 55906-20300 |
AT190,CT190,ST191..JPP |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-20170 |
AT190,CT190,ST191..JPP..RHD |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-20600 |
AT190,CT190,ST191..JPP..RHD |
1 | ||
| 81942A - SHEET, HEATER CONTROL NAME, NO.1 | ||||
| 81942-20390 |
AT190,CT190,ST191..JPP..RHD |
1 | ||
| Common parts | ||||
| 87124-20020 | ||||
| 90183-05103 | ||||
| 93560-55016 | ||||
| Linked diagrams | ||||
| 8401 | ||||
