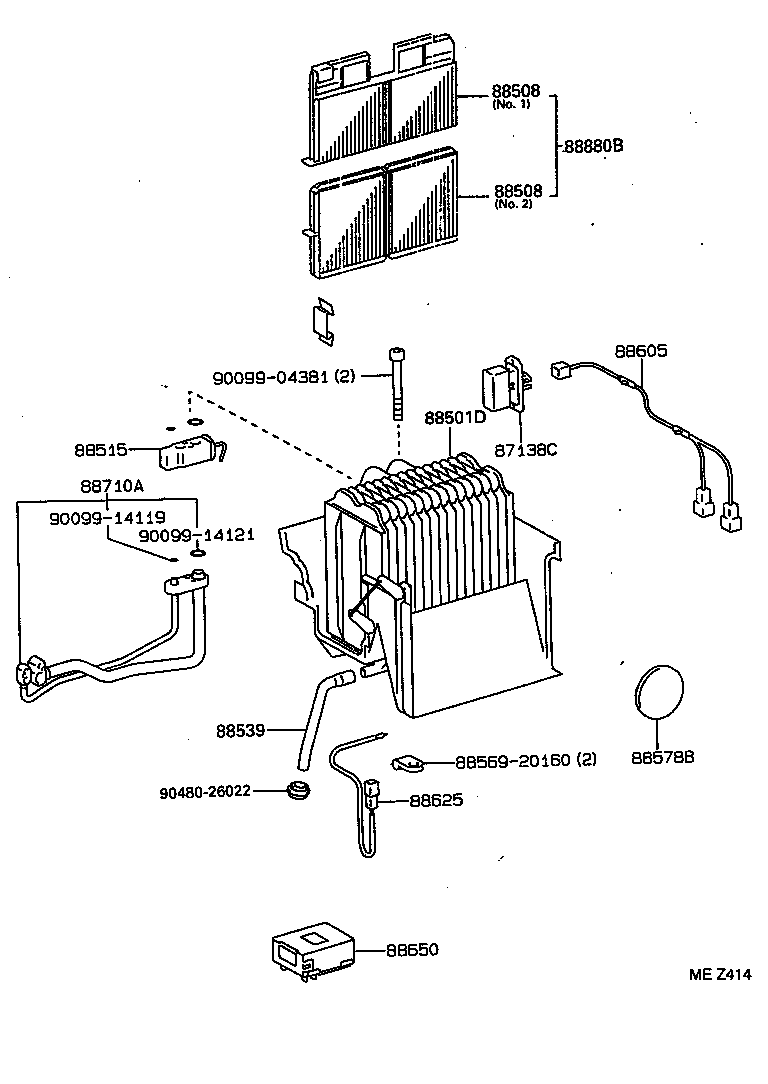

Toyota Carina e sed/lb(jpp) AT190 HEATING & AIR CONDITIONING - COOLER UNIT

Part #	Description	Period	Qty
87138C - RESISTOR, BLOWER
87138-20240	AT190,CT190,ST191..JPP	02/1992 - 01/1994	1
88501D - EVAPORATOR SUB-ASSY, COOLER, NO.2
88501-20290	AT190,CT190,ST191..JPP..RHD	02/1992 - 05/1994	1
88501-20290	ST191..JPP..RHD..GT;AT190,CT190..JPP..RHD	05/1994 - 11/1994	1
88515 - VALVE, COOLER EXPANSION
88515-20100	AT190,ST191..JPP..RHD..(GL,XL)	02/1992 - 02/1994	1
88515-20100	AT190,CT190,ST191..JPP..RHD	02/1994 - 05/1994	1
88578B - PACKING, COOLING UNIT, NO.1
88578-20490	AT190,CT190,ST191..JPP..RHD	02/1992 - 05/1994	1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-2D180	AT190,CT190,ST191..JPP..RHD	02/1992 - 01/1996	1
88625 - THERMISTOR, COOLER, NO.1
88625-20390	AT190,CT190,ST191..JPP..RHD	02/1992 - 05/1994	1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-2B200	AT190..JPP	02/1992 - 01/1996	1
88710A - TUBE ASSY, AIR CONDITIONER
88710-20210	ST191..JPP..RHD..GT;AT190,CT190..JPP..RHD	02/1992 - 04/1993	1
88710-20210	ST191..JPP..RHD..GT;AT190,CT190..JPP..RHD DEALER OPTION	04/1993 - 02/1994	1
88710-20380	ST191..JPP..RHD..GT;AT190,CT190..JPP..RHD MAKER OPTION	04/1993 - 02/1994	1
88710-20380	AT190,CT190,ST191..JPP..RHD	02/1994 - 05/1994	1
88880B - FILTER ASSY, CLEAN AIR
88880-20010	AT190,CT190,ST191..JPP..RHD	02/1994 - 06/1994	1
Common parts
88569-20160
90099-04381
90099-14119
90099-14121
90480-26022

AT190R-AEPNKW (1992)
