AT190R-AEPNKW (1992)

Toyota Carina E Sed/Lb(Jpp)

Production Feb 1992 - Nov 1994
Engine 4AFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9202- )JPP

Click highlighted areas on diagram

diagram 86160P 86160P
Part # Description Qty Price

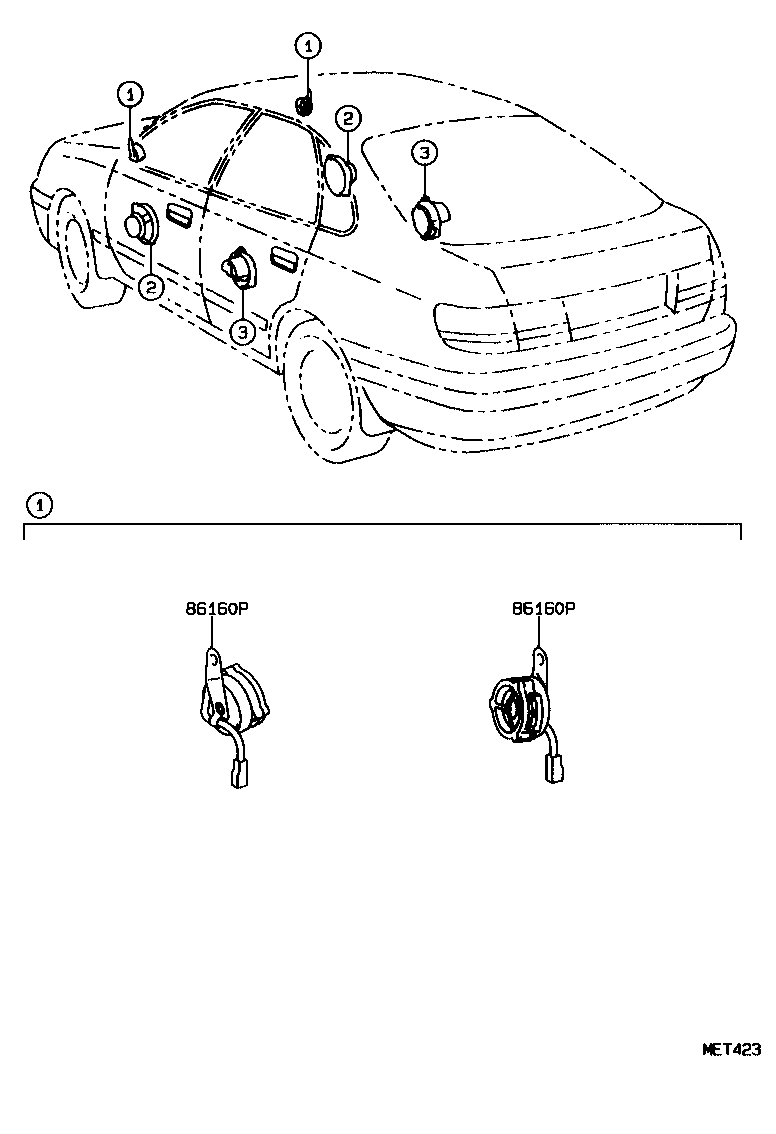

86160P - SPEAKER ASSY, FRONT NO.2
86160-20850

AT190,ST191..JPP..(GL,GT)

LH

 1
86160-20840

AT190,ST191..JPP..(GL,GT)

RH

 1
86160P - SPEAKER ASSY, FRONT NO.2
86160-20850

AT190,ST191..JPP..(GL,GT)

LH

 1
86160-20840

AT190,ST191..JPP..(GL,GT)

RH

 1

(9202- )JPP

Click highlighted areas on diagram

diagram 86160 86160 86160B 86160B 9015960303 9015960303 9018906084 9018906084 9356015016 9356015016 9356055016 9356056016
Part # Description Qty Price

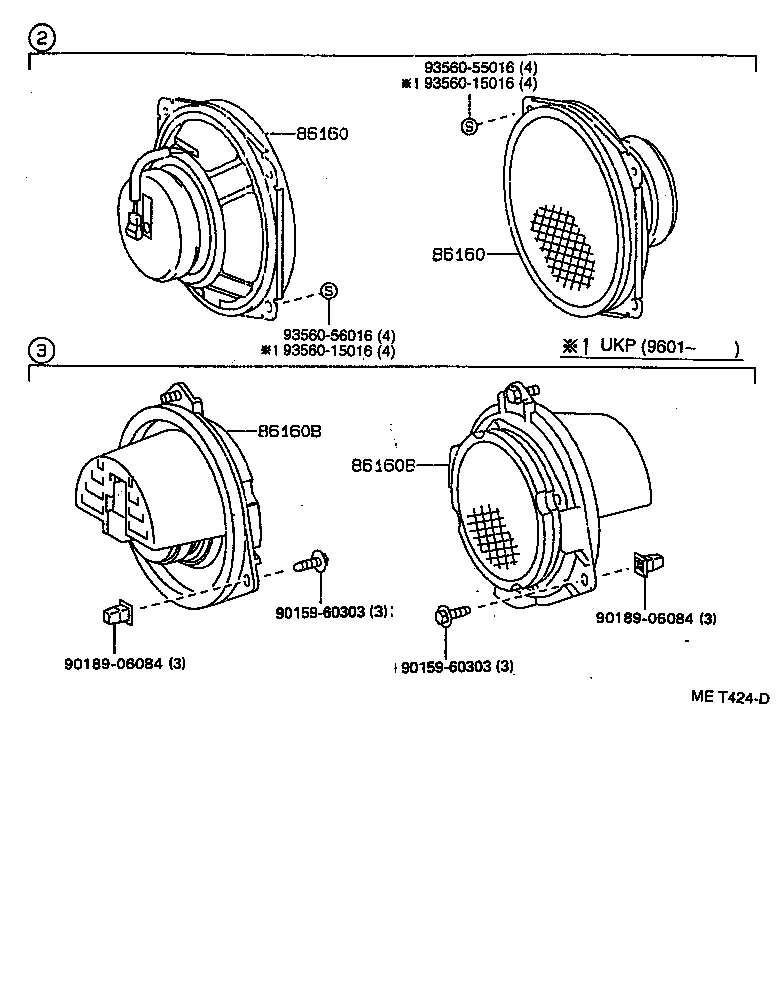

86160 - SPEAKER ASSY, FRONT NO.1
86160-20810

AT190,ST191..JPP..(GL,GT)

20W

 2
86160-2B100

AT190,ST191..JPP..(GL,GT)

10W

 2
86160-20830

AT190,CT190,ST191..JPP

10W

 2
86160-2B100

AT190..JPP..GL

10W

 2
86160 - SPEAKER ASSY, FRONT NO.1
86160-20810

AT190,ST191..JPP..(GL,GT)

20W

 2
86160-2B100

AT190,ST191..JPP..(GL,GT)

10W

 2
86160-20830

AT190,CT190,ST191..JPP

10W

 2
86160-2B100

AT190..JPP..GL

10W

 2
86160B - SPEAKER ASSY, REAR
86160-2B110

AT190,ST191..JPP..(GL,GT)

 2
86160-2B110

AT190..JPP..LHD..GL;ST191..JPP..RHD..GT;AT190,CT190..JPP..RHD

 2
86160-2B110

AT190..JPP..LHD..GL;AT190,CT190,ST191..JPP..RHD

 2
86160-20820

AT190,CT190,ST191..JPP

 2
86160B - SPEAKER ASSY, REAR
86160-2B110

AT190,ST191..JPP..(GL,GT)

 2
86160-2B110

AT190..JPP..LHD..GL;ST191..JPP..RHD..GT;AT190,CT190..JPP..RHD

 2
86160-2B110

AT190..JPP..LHD..GL;AT190,CT190,ST191..JPP..RHD

 2
86160-20820

AT190,CT190,ST191..JPP

 2
Common parts
90159-60303
90189-06084
93560-15016
93560-55016
93560-56016
