AT190R-AEPNKW (1992)
Toyota Carina E Sed/Lb(Jpp)
(9202- )JPP

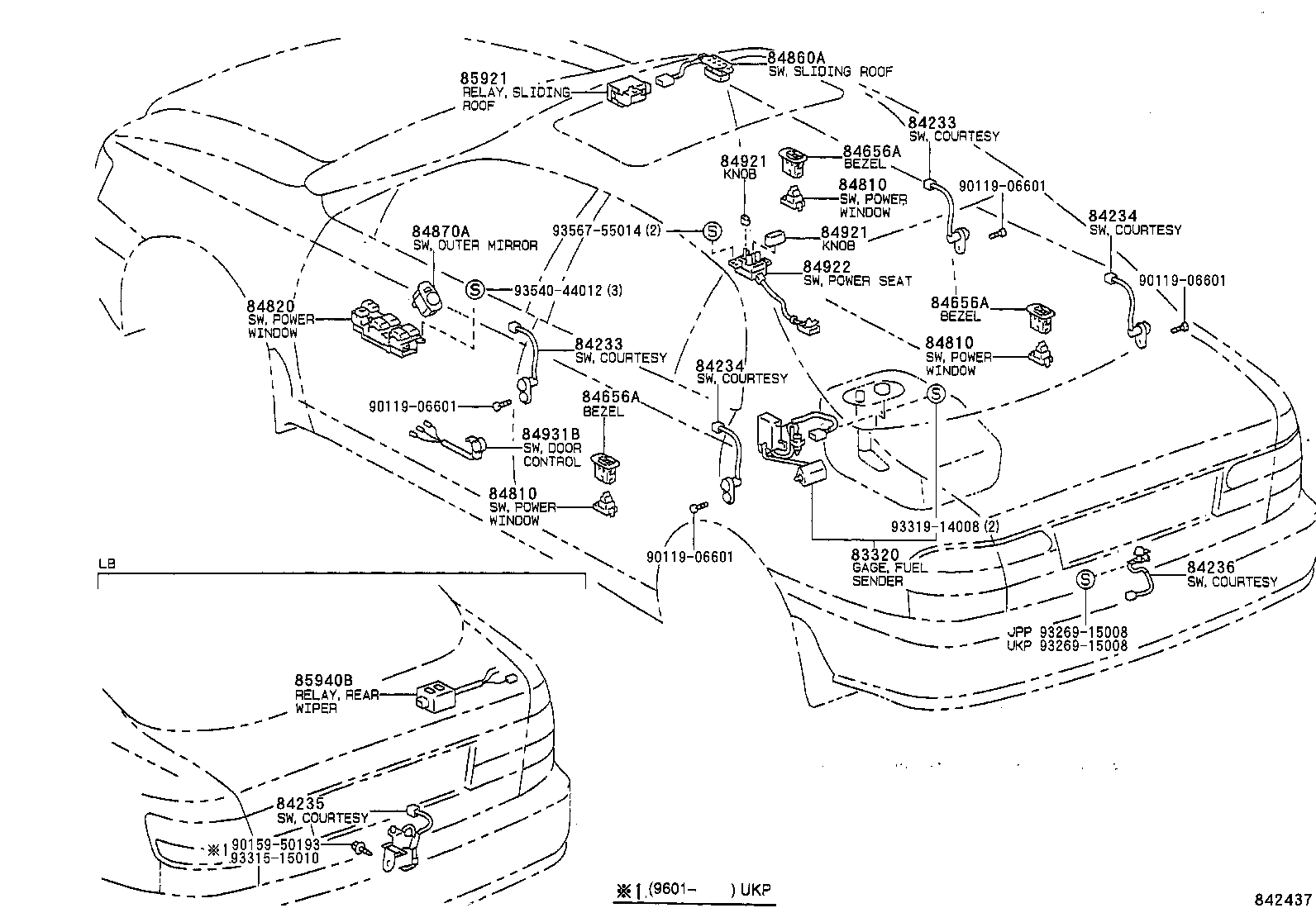

ROOF,DOOR,SEAT & LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80241 |
AT190,ST191..JPP |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-12080 |
AT190,CT190,ST191..JPP |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-12080 |
AT190,CT190,ST191..JPP |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-12080 |
AT190,CT190,ST191..JPP |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-12080 |
AT190,CT190,ST191..JPP |
2 | ||
| 84236 - SWITCH ASSY, COURTESY LAMP(FOR LUGGAGE COMPARTMENT ROOM | ||||
| 84231-20290 |
AT190,CT190,ST191..JPP..SED |
1 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-20030C0 |
AT190,CT190,ST191..JPP BLACK,TRIM2#,REAR |
2 | ||
| 84656-20010C0 |
ST191..JPP..LHD;AT190,CT190..JPP;ST191..JPP..RHD..GT BLACK,TRIM2#,FRONT ASSISTANT |
1 | ||
| 84656-20010C0 |
AT190,CT190,ST191..JPP BLACK,TRIM2#,FRONT ASSISTANT |
1 | ||
| 84656-20010J0 |
AT190,CT190,ST191..JPP..(GL,XL) DK.BLUE,TRIM8#,FRONT ASSISTANT |
1 | ||
| 84656-20030J0 |
AT190,CT190,ST191..JPP..(GL,XL) DK.BLUE,TRIM8#,REAR |
2 | ||
| 84656-20010J0 |
AT190,CT190..JPP;ST191..JPP..LHD..GL DK.BLUE,TRIM8#,FRONT ASSISTANT |
1 | ||
| 84656-20030J0 |
AT190,CT190..JPP;ST191..JPP..LHD..GL DK.BLUE,TRIM8#,REAR |
2 | ||
| 84656-20030C0 |
ST191..JPP..LHD;AT190,CT190..JPP;ST191..JPP..RHD..GT BLACK,TRIM2#,REAR |
2 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-20030C0 |
AT190,CT190,ST191..JPP BLACK,TRIM2#,REAR |
2 | ||
| 84656-20010C0 |
ST191..JPP..LHD;AT190,CT190..JPP;ST191..JPP..RHD..GT BLACK,TRIM2#,FRONT ASSISTANT |
1 | ||
| 84656-20010C0 |
AT190,CT190,ST191..JPP BLACK,TRIM2#,FRONT ASSISTANT |
1 | ||
| 84656-20010J0 |
AT190,CT190,ST191..JPP..(GL,XL) DK.BLUE,TRIM8#,FRONT ASSISTANT |
1 | ||
| 84656-20030J0 |
AT190,CT190,ST191..JPP..(GL,XL) DK.BLUE,TRIM8#,REAR |
2 | ||
| 84656-20010J0 |
AT190,CT190..JPP;ST191..JPP..LHD..GL DK.BLUE,TRIM8#,FRONT ASSISTANT |
1 | ||
| 84656-20030J0 |
AT190,CT190..JPP;ST191..JPP..LHD..GL DK.BLUE,TRIM8#,REAR |
2 | ||
| 84656-20030C0 |
ST191..JPP..LHD;AT190,CT190..JPP;ST191..JPP..RHD..GT BLACK,TRIM2#,REAR |
2 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-20030C0 |
AT190,CT190,ST191..JPP BLACK,TRIM2#,REAR |
2 | ||
| 84656-20010C0 |
ST191..JPP..LHD;AT190,CT190..JPP;ST191..JPP..RHD..GT BLACK,TRIM2#,FRONT ASSISTANT |
1 | ||
| 84656-20010C0 |
AT190,CT190,ST191..JPP BLACK,TRIM2#,FRONT ASSISTANT |
1 | ||
| 84656-20010J0 |
AT190,CT190,ST191..JPP..(GL,XL) DK.BLUE,TRIM8#,FRONT ASSISTANT |
1 | ||
| 84656-20030J0 |
AT190,CT190,ST191..JPP..(GL,XL) DK.BLUE,TRIM8#,REAR |
2 | ||
| 84656-20010J0 |
AT190,CT190..JPP;ST191..JPP..LHD..GL DK.BLUE,TRIM8#,FRONT ASSISTANT |
1 | ||
| 84656-20030J0 |
AT190,CT190..JPP;ST191..JPP..LHD..GL DK.BLUE,TRIM8#,REAR |
2 | ||
| 84656-20030C0 |
ST191..JPP..LHD;AT190,CT190..JPP;ST191..JPP..RHD..GT BLACK,TRIM2#,REAR |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-95D00 |
ST191..JPP..LHD;AT190,CT190..JPP;ST191..JPP..RHD..GT |
3 | ||
| 84810-95D00 |
AT190,CT190,ST191..JPP |
3 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-95D00 |
ST191..JPP..LHD;AT190,CT190..JPP;ST191..JPP..RHD..GT |
3 | ||
| 84810-95D00 |
AT190,CT190,ST191..JPP |
3 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-95D00 |
ST191..JPP..LHD;AT190,CT190..JPP;ST191..JPP..RHD..GT |
3 | ||
| 84810-95D00 |
AT190,CT190,ST191..JPP |
3 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-22330 |
AT190,CT190,ST191..JPP..RHD |
1 | ||
| 84820-22330 |
ST191..JPP..RHD..GT;AT190,CT190..JPP..RHD |
1 | ||
| 84860A - SWITCH ASSY, SLIDING ROOF | ||||
| 84860-20021B0 |
AT190,CT190,ST191..JPP..(GL,XL) GRAY,TRIM2#,8# |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-20110 |
AT190,ST191..JPP..(GL,GT) |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-20210 |
AT190,ST191..JPP..RHD..GL |
1 | ||
| 84931-20270 |
AT190,ST191..JPP..RHD..GL IRELAND SPEC |
1 | ||
| 84931-20270 |
AT190,CT190,ST191..JPP..RHD..(GL,XL) |
1 | ||
| 84931-20230 |
AT190,CT190,ST191..JPP..RHD..(GL,XL) |
1 | ||
| 84931-20270 |
AT190,CT190,ST191..JPP..RHD..(GL,XL) IRELAND SPEC |
1 | ||
| 84931-20230 |
AT190,CT190,ST191..JPP..RHD..(GL,XL) W(*PW) |
1 | ||
| 85921 - RELAY, SLIDING ROOF CONTROL | ||||
| 85921-20080 |
AT190,CT190,ST191..JPP |
1 | ||
| Common parts | ||||
| 90119-06601 | ||||
| 90159-50193 | ||||
| 93269-15008 | ||||
| 93315-15010 | ||||
| 93319-14008 | ||||
| 93540-44012 | ||||
| 93567-55014 | ||||
(9202- )AT190..JPP

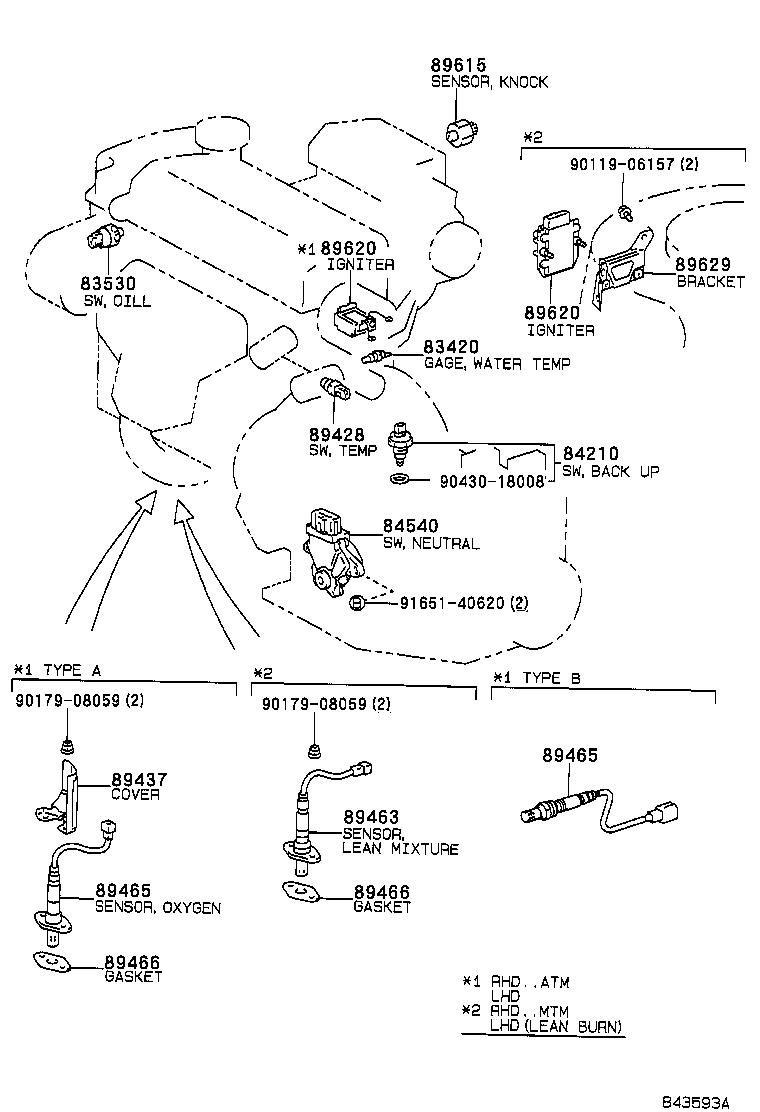

ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16020 |
AT190..JPP |
1 | ||
| 83420-20040 |
AT190..JPP |
1 | ||
| 83420-20040 |
AT190..JPP NIPPONDENSO |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30090 |
AT190..JPP |
1 | ||
| 83530-30051 |
AT190..JPP |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-12210 |
AT190..JPP..ATM MATSUSITA |
1 | ||
| 84540-16040 |
AT190,ST191..JPP..ATM |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-12160 |
AT190..JPP AISIN |
1 | ||
| 89437 - COVER, SENSOR | ||||
| 89437-20050 |
ST191..JPP;AT190..JPP..ATM;AT190..JPP..LHD..MTM |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-39435 |
ST191..JPP..GL;AT190..JPP..ATM;AT190..JPP..LHD..MTM TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-39435 |
ST191..JPP..GL;AT190..JPP..ATM;AT190..JPP..LHD..MTM TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-20020 |
AT190,ST191..JPP |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-20020 |
AT190,ST191..JPP |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-12030 |
AT190..JPP..ATM;AT190..JPP..LHD..MTM TOYOTA |
1 | ||
| 89615-22030 |
AT190..JPP..ATM;AT190..JPP..LHD..MTM MATUSITA |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89620-12440 |
AT190..JPP..ATM;AT190..JPP..LHD..MTM |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89620-12440 |
AT190..JPP..ATM;AT190..JPP..LHD..MTM |
1 | ||
| Common parts | ||||
| 90119-06157 | ||||
| 90179-08059 | ||||
| 90430-18008 | ||||
| 91651-40620 | ||||
(9202- )JPP

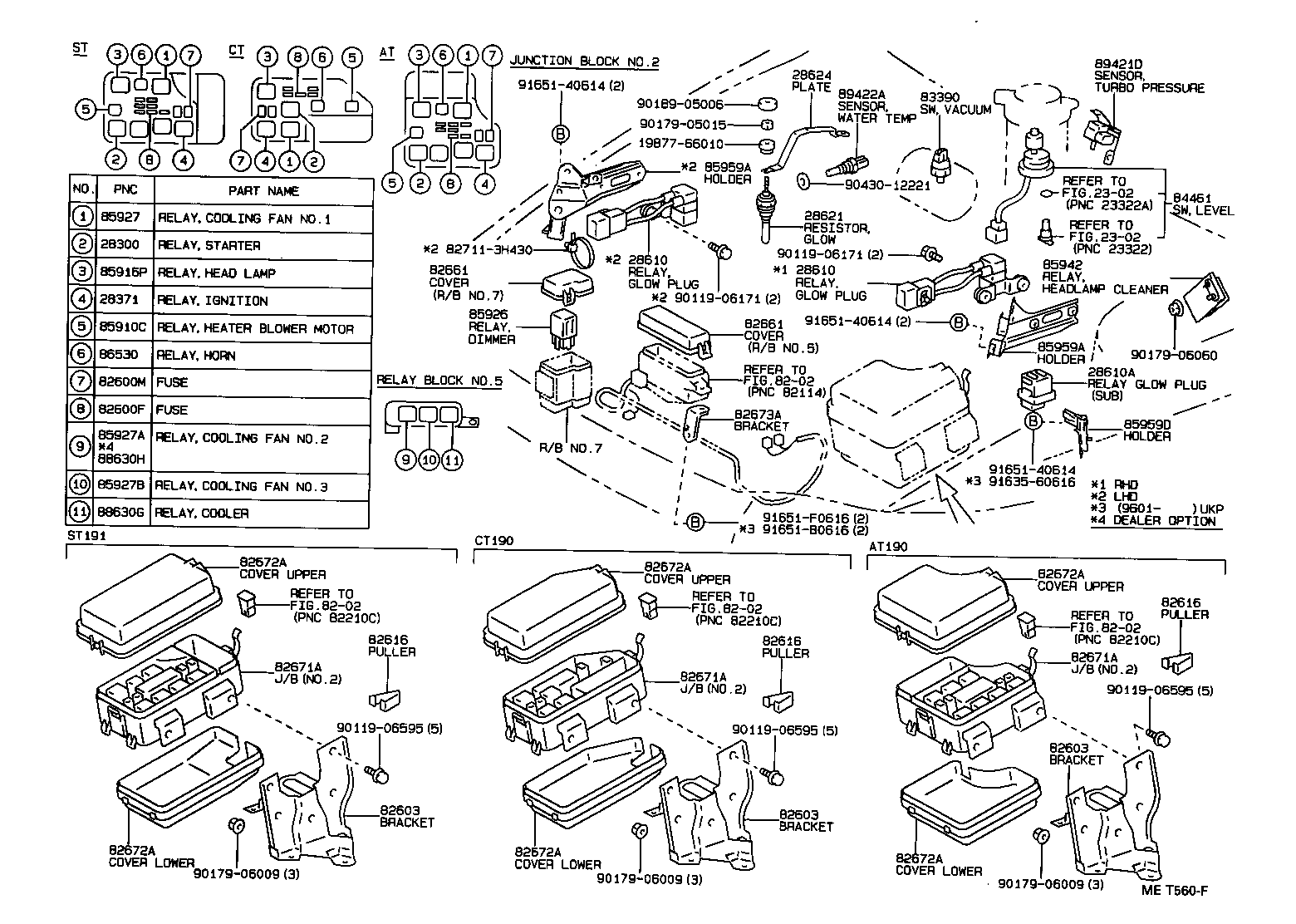

ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 90987-02009 |
4AFE,2C,3S#..AT190,CT190,ST191..JPP |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-04002 |
4AFE,2C,3S#..AT190,CT190,ST191..JPP |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
AT190,ST191..JPP..RHD 15A |
3 | ||
| 90982-09004 |
ST191..JPP..RHD;AT190,CT190..JPP;ST191..JPP..LHD..GT 20A,YELLOW |
1 | ||
| 90982-09004 |
ST191..JPP..RHD;AT190,CT190..JPP;ST191..JPP..LHD..MTM 20A,YELLOW |
1 | ||
| 90982-09003 |
AT190,CT190,ST191..JPP..RHD 15A |
4 | ||
| 90982-09003 |
CT190..JPP..LHD;AT190,ST191..JPP 15A |
5 | ||
| 90982-09002 |
AT190,CT190,ST191..JPP 10A |
2 | ||
| 90982-07011 |
AT190,CT190,ST191..JPP 30A,GREEN |
1 | ||
| 90982-09005 |
AT190,CT190,ST191..JPP..RHD 7.5A |
4 | ||
| 90982-09005 |
ST191..JPP..GT;AT190,CT190..JPP 7.5A |
1 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10001 |
AT190,CT190,ST191..JPP 30A,PINK |
1 | ||
| 90982-10002 |
AT190,CT190,ST191..JPP 40A,GREEN |
2 | ||
| 82603 - BRACKET SUB-ASSY, FUSIBLE LINK BLOCK | ||||
| 82603-20040 |
AT190..JPP |
1 | ||
| 82603-20031 |
AT190..JPP |
1 | ||
| 82603-20030 |
AT190..JPP |
1 | ||
| 82603 - BRACKET SUB-ASSY, FUSIBLE LINK BLOCK | ||||
| 82603-20040 |
AT190..JPP |
1 | ||
| 82603-20031 |
AT190..JPP |
1 | ||
| 82603-20030 |
AT190..JPP |
1 | ||
| 82603 - BRACKET SUB-ASSY, FUSIBLE LINK BLOCK | ||||
| 82603-20040 |
AT190..JPP |
1 | ||
| 82603-20031 |
AT190..JPP |
1 | ||
| 82603-20030 |
AT190..JPP |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82662-20080 |
AT190,CT190,ST191..JPP..RHD |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82662-20080 |
AT190,CT190,ST191..JPP..RHD |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82671-20310 |
AT190..JPP |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82671-20310 |
AT190..JPP |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82671-20310 |
AT190..JPP |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-20860 |
AT190..JPP..RHD UPPER |
1 | ||
| 82672-20860 |
AT190..JPP..RHD 55D23L-MF BATTERY,UPR |
1 | ||
| 82674-20020 |
AT190..JPP 55D23L-MF BATTERY,LWR |
1 | ||
| 82674-20020 |
AT190..JPP LOWER |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-20860 |
AT190..JPP..RHD UPPER |
1 | ||
| 82672-20860 |
AT190..JPP..RHD 55D23L-MF BATTERY,UPR |
1 | ||
| 82674-20020 |
AT190..JPP 55D23L-MF BATTERY,LWR |
1 | ||
| 82674-20020 |
AT190..JPP LOWER |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-20860 |
AT190..JPP..RHD UPPER |
1 | ||
| 82672-20860 |
AT190..JPP..RHD 55D23L-MF BATTERY,UPR |
1 | ||
| 82674-20020 |
AT190..JPP 55D23L-MF BATTERY,LWR |
1 | ||
| 82674-20020 |
AT190..JPP LOWER |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-20860 |
AT190..JPP..RHD UPPER |
1 | ||
| 82672-20860 |
AT190..JPP..RHD 55D23L-MF BATTERY,UPR |
1 | ||
| 82674-20020 |
AT190..JPP 55D23L-MF BATTERY,LWR |
1 | ||
| 82674-20020 |
AT190..JPP LOWER |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-20860 |
AT190..JPP..RHD UPPER |
1 | ||
| 82672-20860 |
AT190..JPP..RHD 55D23L-MF BATTERY,UPR |
1 | ||
| 82674-20020 |
AT190..JPP 55D23L-MF BATTERY,LWR |
1 | ||
| 82674-20020 |
AT190..JPP LOWER |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-20860 |
AT190..JPP..RHD UPPER |
1 | ||
| 82672-20860 |
AT190..JPP..RHD 55D23L-MF BATTERY,UPR |
1 | ||
| 82674-20020 |
AT190..JPP 55D23L-MF BATTERY,LWR |
1 | ||
| 82674-20020 |
AT190..JPP LOWER |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-20070 |
AT190,ST191..JPP..RHD |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
AT190,CT190,ST191..JPP |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02006 |
AT190,CT190,ST191..JPP |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-03003 |
AT190,CT190,ST191..JPP |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-04003 |
AT190,CT190,ST191..JPP |
1 | ||
| 85927B - RELAY, COOLING FAN, NO.3 | ||||
| 90987-02009 |
AT190,CT190,ST191..JPP |
1 | ||
| 85942 - RELAY, HEADLAMP CLEANER CONTROL | ||||
| 85942-20011 |
AT190,CT190,ST191..JPP |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 86530-20070 |
AT190,CT190,ST191..JPP |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 90987-02009 |
AT190,ST191..JPP |
2 | ||
| 90987-02009 |
AT190,ST191..JPP |
1 | ||
| 90987-02009 |
CT190..JPP..RHD;AT190,ST191..JPP |
2 | ||
| 90987-02009 |
CT190..JPP..RHD;AT190,ST191..JPP |
1 | ||
| 90987-02009 |
AT190..JPP;ST191..JPP..LHD;CT190,ST191..JPP..RHD..(GT,XL) |
2 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 90987-04003 |
CT190..JPP..RHD;AT190,ST191..JPP |
1 | ||
| 90987-04003 |
AT190..JPP;ST191..JPP..LHD;CT190,ST191..JPP..RHD..(GT,XL) |
1 | ||
| Common parts | ||||
| 19877-66010 | ||||
| 82711-3H430 | ||||
| 90119-06171 | ||||
| 90119-06595 | ||||
| 90179-05015 | ||||
| 90179-06009 | ||||
| 90179-06060 | ||||
| 90189-05006 | ||||
| 90430-12221 | ||||
| 91635-60616 | ||||
| 91651-40614 | ||||
| 91651-B0616 | ||||
| 91651-F0616 | ||||
| Linked diagrams | ||||
| 2302 | ||||
| 8202 | ||||

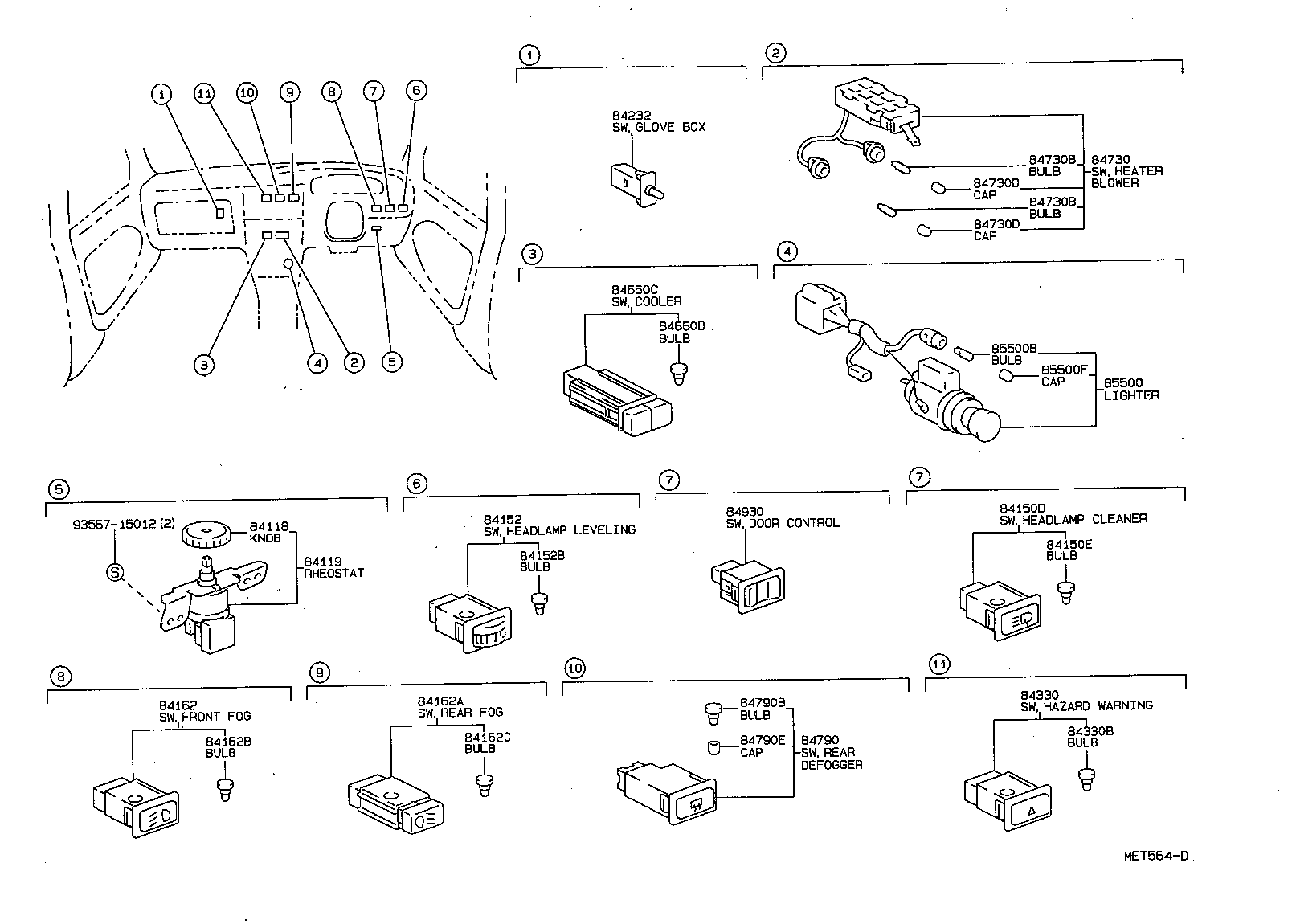

(9202- )JPP..RHD
INSTRUMENT PANEL SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-14020 |
AT190,CT190,ST191..JPP |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-20211 |
AT190,CT190,ST191..JPP..RHD |
1 | ||
| 84150D - SWITCH ASSY, HEADLAMP CLEANER | ||||
| 84150-20040 |
ST191..JPP..GL;ST191..JPP..RHD..GT;AT190,CT190..JPP..RHD |
1 | ||
| 84150-20040 |
AT190,CT190,ST191..JPP..RHD |
1 | ||
| 84150E - BULB, HEADLAMP CLEANER SWITCH | ||||
| 84999-10320 |
ST191..JPP..GL;ST191..JPP..RHD..GT;AT190,CT190..JPP..RHD 14V 0.84W |
1 | ||
| 84999-10320 |
AT190,CT190,ST191..JPP..RHD 14V 0.84W |
1 | ||
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-20020 |
AT190,CT190,ST191..JPP..RHD |
1 | ||
| 84152-20020 |
CT190..JPP..LHD..LB;AT190..JPP..LHD..LB..ATM;AT190,CT190,ST191..JPP..RHD |
1 | ||
| 84152-21010 |
CT190..JPP..LHD..LB;AT190..JPP..LHD..LB..ATM;AT190,CT190,ST191..JPP..RHD |
1 | ||
| 84152B - BULB (FOR HEADLAMP LEVELING SWITCH) | ||||
| 84999-10540 |
AT190,CT190,ST191..JPP..RHD 14V 1.19W |
1 | ||
| 84999-10540 |
CT190..JPP..LHD..LB;AT190..JPP..LHD..LB..ATM;AT190,CT190,ST191..JPP..RHD 14V 1.19W |
1 | ||
| 84162 - SWITCH, FRONT FOG LAMP | ||||
| 84160-20150 |
AT190,ST191..JPP..(GL,GT) |
1 | ||
| 84162A - SWITCH, REAR FOG LAMP | ||||
| 84165-20020 |
AT190,CT190,ST191..JPP |
1 | ||
| 84162B - BULB, FOG LAMP SWITCH | ||||
| 84999-10320 |
AT190,ST191..JPP..(GL,GT) 14V 0.84W |
1 | ||
| 84162C - BULB (FOR REAR FOG LAMP SWITCH) | ||||
| 84999-10320 |
AT190,CT190,ST191..JPP 14V 0.84W |
1 | ||
| 84232 - SWITCH ASSY, COURTESY LAMP (FOR GLOVE BOX) | ||||
| 84242-20030 |
AT190,CT190,ST191..JPP |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-20300 |
AT190,CT190,ST191..JPP |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10320 |
AT190,CT190,ST191..JPP 14V 0.84W |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-20200 |
CT190..JPP..RHD;AT190,ST191..JPP |
1 | ||
| 84660-20200 |
CT190..JPP..RHD;AT190,ST191..JPP |
1 | ||
| 84660-20200 |
AT190,CT190,ST191..JPP |
1 | ||
| 84660D - BULB(FOR COOLER SWITCH) | ||||
| 88607-10020 |
CT190..JPP..RHD;AT190,ST191..JPP 14V 0.08A |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-20310 |
AT190,CT190,ST191..JPP |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
AT190,CT190,ST191..JPP 14V 1.4W |
2 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
AT190,CT190,ST191..JPP 14V 1.4W |
2 | ||
| 84730D - CAP, HEATER BLOWER SWITCH BULB | ||||
| 90339-04023 |
AT190,CT190,ST191..JPP |
2 | ||
| 84730D - CAP, HEATER BLOWER SWITCH BULB | ||||
| 90339-04023 |
AT190,CT190,ST191..JPP |
2 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-20410 |
AT190,CT190,ST191..JPP |
1 | ||
| 84790-20420 |
AT190,ST191..JPP..(GL,GT) TINTED OR TINTED LAMINATED |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10560 |
AT190,CT190,ST191..JPP 12V 0.7W |
1 | ||
| 84999-10320 |
AT190,CT190,ST191..JPP 14V 0.84W |
1 | ||
| 84790E - CAP, BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84998-10030 |
AT190,CT190,ST191..JPP |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-20230 |
AT190,CT190,ST191..JPP |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11018 |
AT190,CT190,ST191..JPP 12V 1.2W W/O SOCKET |
1 | ||
| 85500F - CAP, CIGARETTE LIGHTER BULB | ||||
| 84998-10510 |
AT190,CT190,ST191..JPP |
1 | ||
| Common parts | ||||
| 93567-15012 | ||||

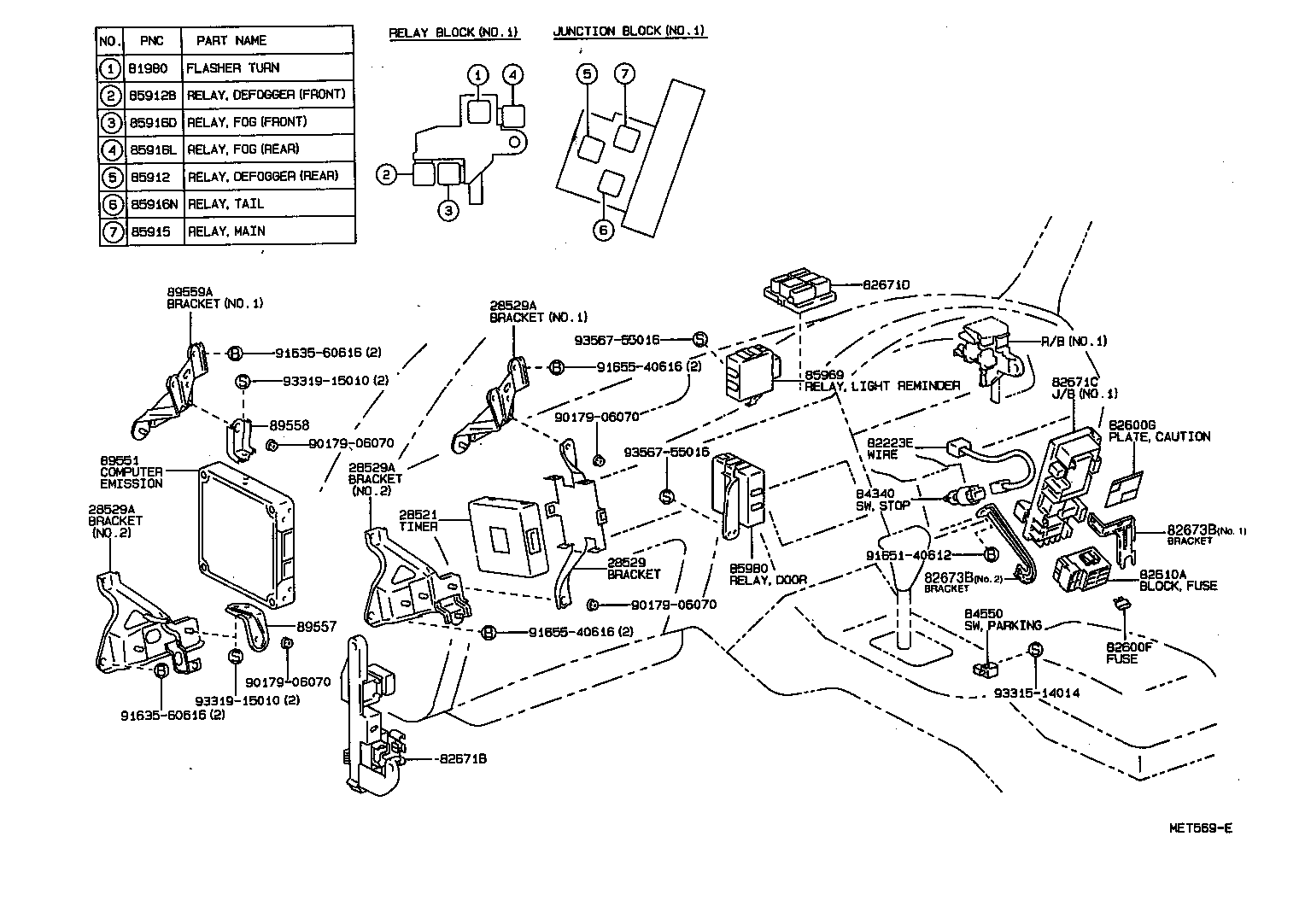

(9202- )JPP..RHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-12070 |
AT190,CT190,ST191..JPP |
1 | ||
| 82223E - WIRE, CLUTCH START SWITCH | ||||
| 82223-20130 |
AT190,CT190,ST191..JPP |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
AT190,ST191..JPP..RHD 15A |
3 | ||
| 90982-09004 |
ST191..JPP..RHD;AT190,CT190..JPP;ST191..JPP..LHD..GT 20A,YELLOW |
1 | ||
| 90982-09004 |
ST191..JPP..RHD;AT190,CT190..JPP;ST191..JPP..LHD..MTM 20A,YELLOW |
1 | ||
| 90982-09003 |
AT190,CT190,ST191..JPP..RHD 15A |
4 | ||
| 90982-09003 |
CT190..JPP..LHD;AT190,ST191..JPP 15A |
5 | ||
| 90982-09002 |
AT190,CT190,ST191..JPP 10A |
2 | ||
| 90982-07011 |
AT190,CT190,ST191..JPP 30A,GREEN |
1 | ||
| 90982-09005 |
AT190,CT190,ST191..JPP..RHD 7.5A |
4 | ||
| 90982-09005 |
ST191..JPP..GT;AT190,CT190..JPP 7.5A |
1 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-20090 |
AT190,CT190,ST191..JPP..RHD |
1 | ||
| 82610A - BLOCK ASSY, FUSE | ||||
| 82610-20070 |
AT190,CT190,ST191..JPP |
1 | ||
| 82671B - BLOCK, JUNCTION | ||||
| 82671-20250 |
AT190,CT190,ST191..JPP..RHD |
1 | ||
| 82671C - BLOCK, JUNCTION | ||||
| 82671-20290 |
AT190,CT190,ST191..JPP..RHD NO.1 J/B |
1 | ||
| 82671D - BLOCK, JUNCTION | ||||
| 82671-20270 |
AT190,CT190,ST191..JPP |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-20090 |
AT190,CT190,ST191..JPP..RHD NO.1 |
1 | ||
| 82673-20110 |
AT190,CT190,ST191..JPP..RHD NO.2 |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-20090 |
AT190,CT190,ST191..JPP..RHD NO.1 |
1 | ||
| 82673-20110 |
AT190,CT190,ST191..JPP..RHD NO.2 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32050 |
AT190,CT190,ST191..JPP |
2 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-33010 |
AT190,CT190,ST191..JPP..RHD MATUSHITA |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02009 |
AT190,CT190,ST191..JPP REAR DEFOGGER ONLY |
1 | ||
| 85912B - RELAY, DEFOGGER(FOR FRONT WINDOW) | ||||
| 90987-02009 |
AT190,ST191..JPP..(GL,GT) |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-02009 |
AT190,CT190,ST191..JPP |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02009 |
AT190,ST191..JPP..(GL,GT) |
1 | ||
| 85916L - RELAY, REAR FOG LAMP | ||||
| 90987-02009 |
AT190,CT190,ST191..JPP |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-02009 |
AT190,CT190,ST191..JPP |
1 | ||
| 85969 - RELAY, LIGHT REMINDER | ||||
| 85969-20030 |
AT190,CT190,ST191..JPP..RHD |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-20310 |
AT190,CT190,ST191..JPP..RHD..(GL,XL) W(*EL W/KEY-CONFINE PREVENTION FUNCTION) |
1 | ||
| 85980-20340 |
AT190,ST191..JPP..RHD..GL |
1 | ||
| 85980-20310 |
AT190,CT190,ST191..JPP..RHD |
1 | ||
| Common parts | ||||
| 90179-06070 | ||||
| 91635-60616 | ||||
| 91651-40612 | ||||
| 91655-40616 | ||||
| 93315-14014 | ||||
| 93319-15010 | ||||
| 93567-55016 | ||||

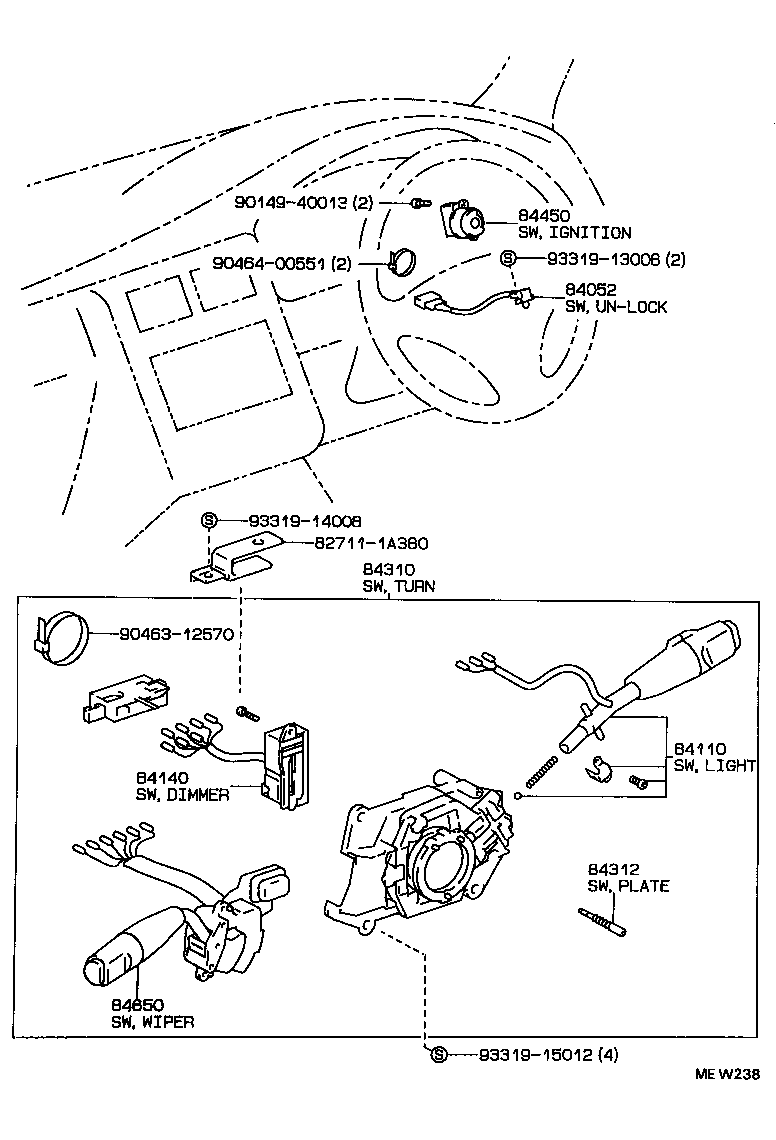

(9202-9601)JPP..RHD
COMBINATION SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-20030 |
AT190,CT190,ST191..JPP |
1 | ||
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-80107 |
AT190,CT190,ST191..JPP..RHD |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-20460 |
AT190,CT190,ST191..JPP..RHD |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-2H550 |
AT190,ST191..JPP..RHD..SED..(GL,GT) |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-12040 |
AT190,CT190,ST191..JPP |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-20260 |
AT190,CT190,ST191..JPP |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-2G090 |
AT190,ST191..JPP..RHD..SED..(GL,GT) |
1 | ||
| Common parts | ||||
| 82711-1A380 | ||||
| 90149-40013 | ||||
| 90463-12570 | ||||
| 90464-00551 | ||||
| 93319-13008 | ||||
| 93319-14008 | ||||
| 93319-15012 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
