AT190R-AEPNKW (1992)
Toyota Carina E Sed/Lb(Jpp)

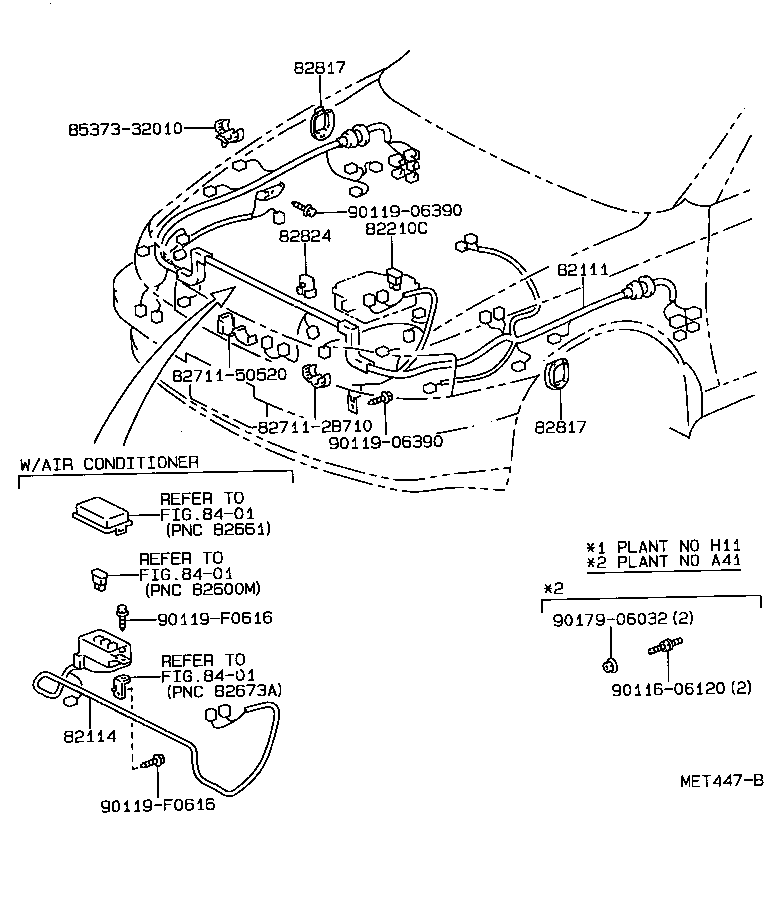

ILLUST NO. 1 OF12(9202- )JPP
ENGINE ROOM WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-2G390 |
AT190..JPP..RHD |
1 | ||
| 82111-2G391 |
AT190..JPP..RHD |
1 | ||
| 82111-2H430 |
AT190..JPP..RHD |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-20180 |
AT190,ST191..JPP |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08189 |
AT190,CT190,ST191..JPP 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08246 |
AT190,CT190,ST191..JPP 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08227 |
AT190,CT190,ST191..JPP 50A,TERM.:FEMALE,RED |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-2D040 |
AT190,CT190,ST191..JPP FENDER RH |
1 | ||
| 82817-2D090 |
AT190,CT190,ST191..JPP COWL |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-2D040 |
AT190,CT190,ST191..JPP FENDER RH |
1 | ||
| 82817-2D090 |
AT190,CT190,ST191..JPP COWL |
1 | ||
| Common parts | ||||
| 82711-2B710 | ||||
| 82711-50520 | ||||
| 85373-32010 | ||||
| 90116-06120 | ||||
| 90119-06390 | ||||
| 90119-F0616 | ||||
| 90179-06032 | ||||
| Linked diagrams | ||||
| 8401 | ||||

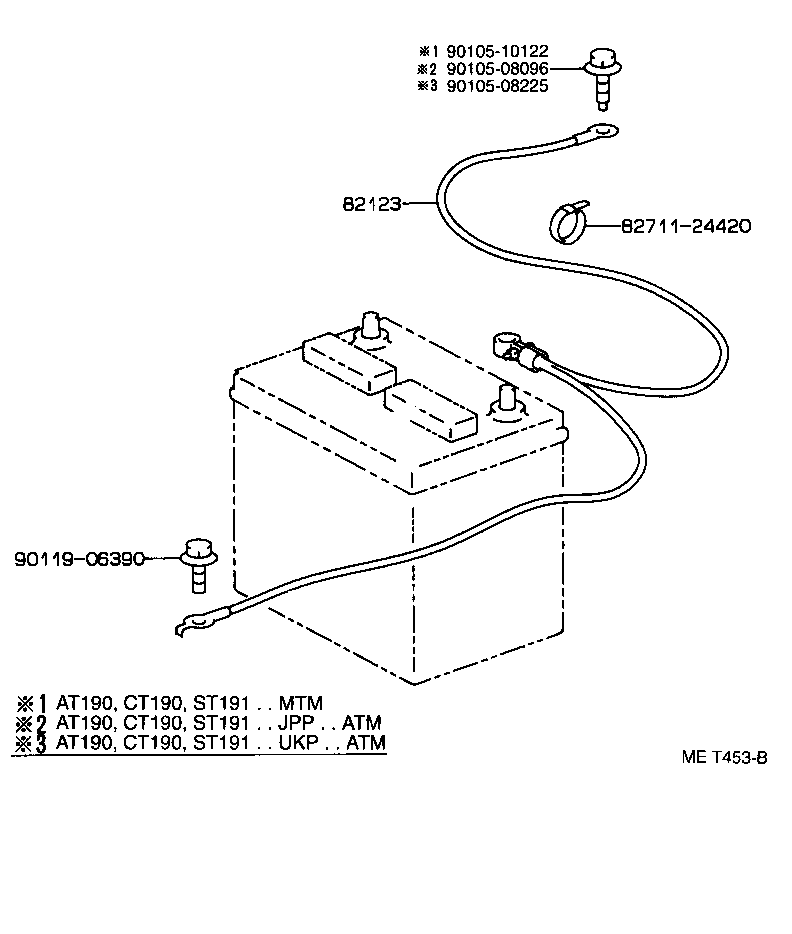

ILLUST NO. 5 OF12(9202- )JPP
BATTERY CABLE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-20230 |
AT190,ST191..JPP..ATM |
1 | ||
| Common parts | ||||
| 82711-24420 | ||||
| 90105-08096 | ||||
| 90105-08225 | ||||
| 90105-10122 | ||||
| 90119-06390 | ||||
ILLUST NO.10 OF12(9202- )JPP
CABLE BOND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07299 |
AT190..JPP ENGINE |
1 | ||
| 90980-07287 |
AT190,ST191..JPP RH FENDER |
1 | ||
| 90980-07264 |
AT190,ST191..JPP LH FENDER |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07299 |
AT190..JPP ENGINE |
1 | ||
| 90980-07287 |
AT190,ST191..JPP RH FENDER |
1 | ||
| 90980-07264 |
AT190,ST191..JPP LH FENDER |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07299 |
AT190..JPP ENGINE |
1 | ||
| 90980-07287 |
AT190,ST191..JPP RH FENDER |
1 | ||
| 90980-07264 |
AT190,ST191..JPP LH FENDER |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07299 |
AT190..JPP ENGINE |
1 | ||
| 90980-07287 |
AT190,ST191..JPP RH FENDER |
1 | ||
| 90980-07264 |
AT190,ST191..JPP LH FENDER |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07299 |
AT190..JPP ENGINE |
1 | ||
| 90980-07287 |
AT190,ST191..JPP RH FENDER |
1 | ||
| 90980-07264 |
AT190,ST191..JPP LH FENDER |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07299 |
AT190..JPP ENGINE |
1 | ||
| 90980-07287 |
AT190,ST191..JPP RH FENDER |
1 | ||
| 90980-07264 |
AT190,ST191..JPP LH FENDER |
1 | ||
| Common parts | ||||
| 82711-24420 | ||||
| 90119-06390 | ||||

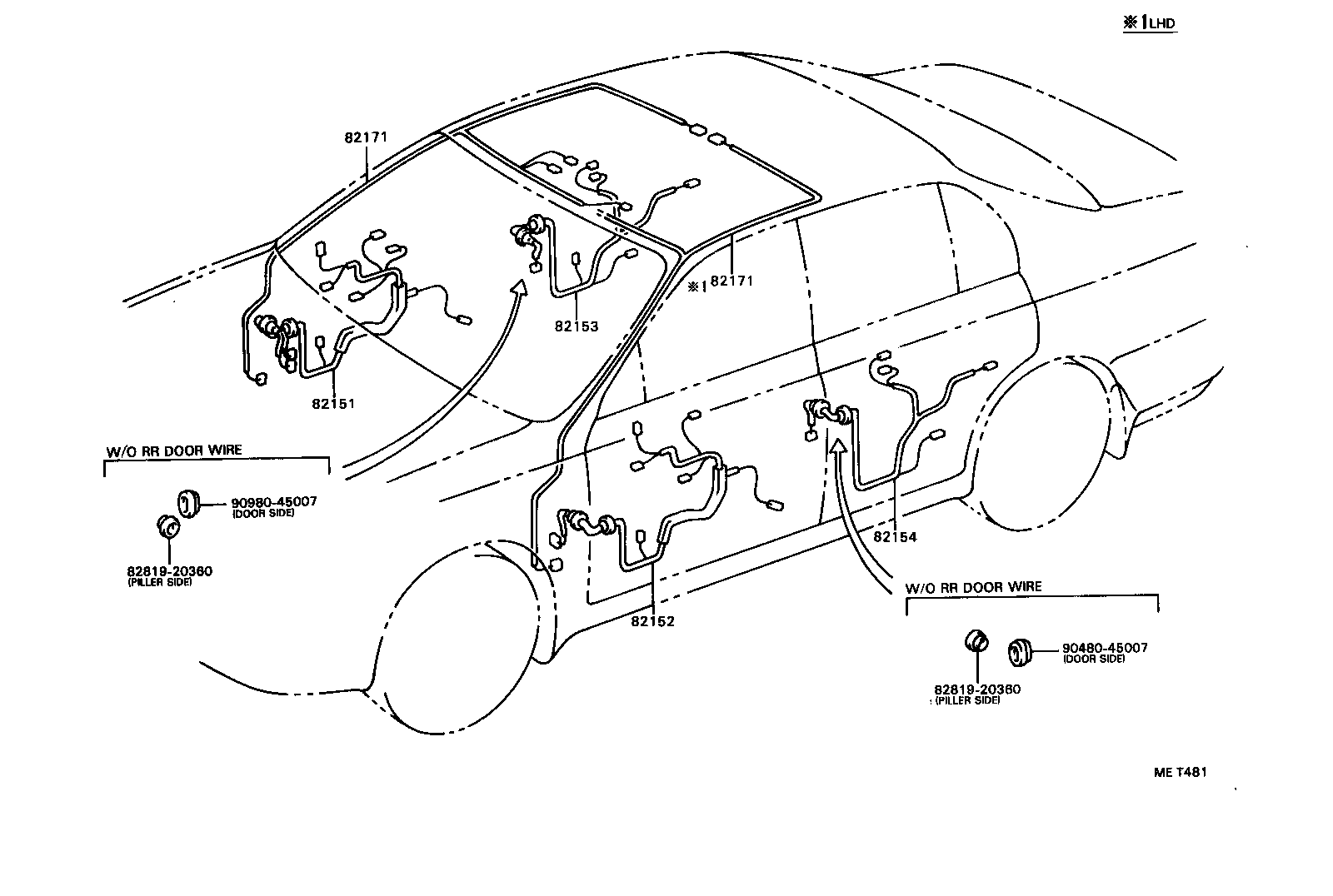

ILLUST NO. 7 OF12(9202- )JPP
DOOR,ROOF WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-2D420 |
AT190,ST191..JPP..RHD..GL |
1 | ||
| 82151-2D530 |
AT190,ST191..JPP..RHD..GL W(POWER REMOTE CONTROL MIRROR) |
1 | ||
| 82151-2D380 |
AT190,ST191..JPP..RHD..GL W(*EL) |
1 | ||
| 82151-2D540 |
ST191..JPP..RHD..GL;AT190..JPP..RHD..SED..GL W(*EL & POWER REMOTE CONTROL MIRROR) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-2D190 |
AT190,CT190,ST191..JPP..RHD..(GL,XL) W(*EL W/KEY-CONFINE PREVENTION FUNCTION) |
1 | ||
| 82152-2D250 |
AT190,ST191..JPP..RHD..GL |
1 | ||
| 82152-2D360 |
AT190,ST191..JPP..RHD..GL W(POWER REMOTE CONTROL MIRROR) |
1 | ||
| 82152-2D250 |
AT190,CT190,ST191..JPP..RHD..(GL,XL) |
1 | ||
| 82152-2D370 |
AT190,ST191..JPP..RHD..GL W(*EL & POWER REMOTE CONTROL MIRROR) |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-20340 |
AT190..JPP..GL;ST191..JPP..RHD..GL |
1 | ||
| 82153-20340 |
AT190..JPP..LHD..GL;AT190,CT190,ST191..JPP..RHD..(GL,XL) |
1 | ||
| 82153-20310 |
AT190,CT190,ST191..JPP..(GL,XL) W(*EL W/KEY-CONFINE PREVENTION FUNCTION) |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-20320 |
AT190,CT190,ST191..JPP..(GL,XL) W(*EL W/KEY-CONFINE PREVENTION FUNCTION) |
1 | ||
| 82154-20270 |
AT190..JPP..LHD..GL;AT190,CT190,ST191..JPP..RHD..(GL,XL) |
1 | ||
| 82154-20270 |
AT190..JPP..GL;ST191..JPP..RHD..GL |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-20660 |
AT190,CT190,ST191..JPP..RHD W(*MR) |
1 | ||
| 82171-20650 |
AT190,ST191..JPP..RHD..(GL,GT) |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-20660 |
AT190,CT190,ST191..JPP..RHD W(*MR) |
1 | ||
| 82171-20650 |
AT190,ST191..JPP..RHD..(GL,GT) |
1 | ||
| Common parts | ||||
| 82819-20360 | ||||
| 90480-45007 | ||||
| 90980-45007 | ||||

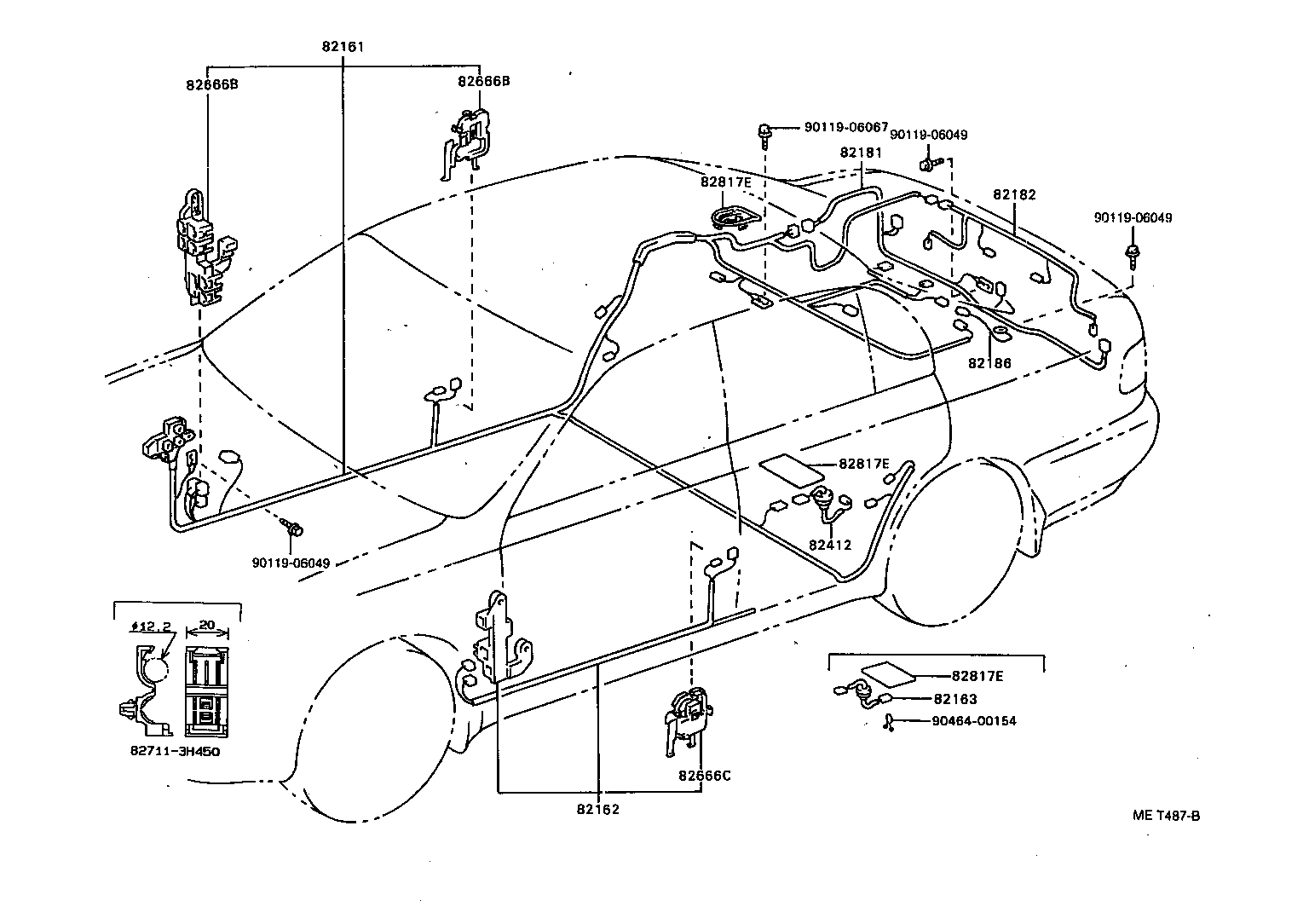

ILLUST NO. 8 OF12(9202- )JPP..RHD..SED
FLOOR,SEAT,LUGGAGE ROOM WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-2H430 |
AT190,CT190,ST191..JPP..RHD..SED |
1 | ||
| 82161-2H440 |
AT190,CT190,ST191..JPP..RHD..SED W(MOTOR ANTENNA) |
1 | ||
| 82161-2H431 |
AT190,CT190,ST191..JPP..RHD..SED |
1 | ||
| 82161-2H441 |
AT190,CT190,ST191..JPP..RHD..SED W(MOTOR ANTENNA) |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-20550 |
AT190,ST191..JPP..RHD..SED..(GL,GT) |
1 | ||
| 82162-20580 |
AT190,CT190,ST191..JPP..RHD..SED W(MOTOR ANTENNA) |
1 | ||
| 82162-20551 |
AT190,ST191..JPP..RHD..SED..(GL,GT) |
1 | ||
| 82162-20552 |
AT190,ST191..JPP..RHD..SED..(GL,GT) |
1 | ||
| 82181 - WIRE, LUGGAGE ROOM, NO.1 | ||||
| 82181-20830 |
AT190,CT190,ST191..JPP..RHD..SED |
1 | ||
| 82181-20810 |
AT190,CT190,ST191..JPP..RHD..SED |
1 | ||
| 82181-2B270 |
AT190,CT190,ST191..JPP..RHD..SED |
1 | ||
| 82182 - WIRE, LUGGAGE ROOM, NO.2 | ||||
| 82182-20290 |
AT190,CT190,ST191..JPP..RHD..SED |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-20070 |
AT190,CT190,ST191..JPP..SED |
1 | ||
| 82412 - WIRE, FUEL GAGE | ||||
| 82412-20100 |
AT190,CT190,ST191..JPP |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-20090 |
AT190,CT190,ST191..JPP..RHD..SED INSTRUMENT WIRE |
1 | ||
| 82666-20010 |
AT190,CT190,ST191..JPP..RHD..SED RH |
1 | ||
| 82666-20090 |
AT190,CT190,ST191..JPP..RHD COWL SIDE RH |
1 | ||
| 82666-20090 |
ST191..JPP..RHD;AT190..JPP..RHD..LB..GL;AT190,CT190..JPP..RHD..SED INSTRUMENT WIRE |
1 | ||
| 82666-20010 |
AT190,CT190,ST191..JPP..RHD CTR PILLER |
1 | ||
| 82666-20010 |
ST191..JPP..RHD;AT190..JPP..RHD..LB..GL;AT190,CT190..JPP..RHD..SED RH |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-20090 |
AT190,CT190,ST191..JPP..RHD..SED INSTRUMENT WIRE |
1 | ||
| 82666-20010 |
AT190,CT190,ST191..JPP..RHD..SED RH |
1 | ||
| 82666-20090 |
AT190,CT190,ST191..JPP..RHD COWL SIDE RH |
1 | ||
| 82666-20090 |
ST191..JPP..RHD;AT190..JPP..RHD..LB..GL;AT190,CT190..JPP..RHD..SED INSTRUMENT WIRE |
1 | ||
| 82666-20010 |
AT190,CT190,ST191..JPP..RHD CTR PILLER |
1 | ||
| 82666-20010 |
ST191..JPP..RHD;AT190..JPP..RHD..LB..GL;AT190,CT190..JPP..RHD..SED RH |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-20020 |
AT190,CT190,ST191..JPP..RHD |
1 | ||
| 82666-20020 |
CT190..JPP..RHD;AT190..JPP..RHD..LB..XL;AT190,ST191..JPP..RHD..SED |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-2B860 |
AT190,CT190,ST191..JPP..RHD..SED PILLAR ANTENNA |
2 | ||
| 82817-2B860 |
AT190,CT190,ST191..JPP..SED |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-2B860 |
AT190,CT190,ST191..JPP..RHD..SED PILLAR ANTENNA |
2 | ||
| 82817-2B860 |
AT190,CT190,ST191..JPP..SED |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-2B860 |
AT190,CT190,ST191..JPP..RHD..SED PILLAR ANTENNA |
2 | ||
| 82817-2B860 |
AT190,CT190,ST191..JPP..SED |
1 | ||
| Common parts | ||||
| 82711-3H450 | ||||
| 90119-06049 | ||||
| 90119-06067 | ||||
| 90464-00154 | ||||

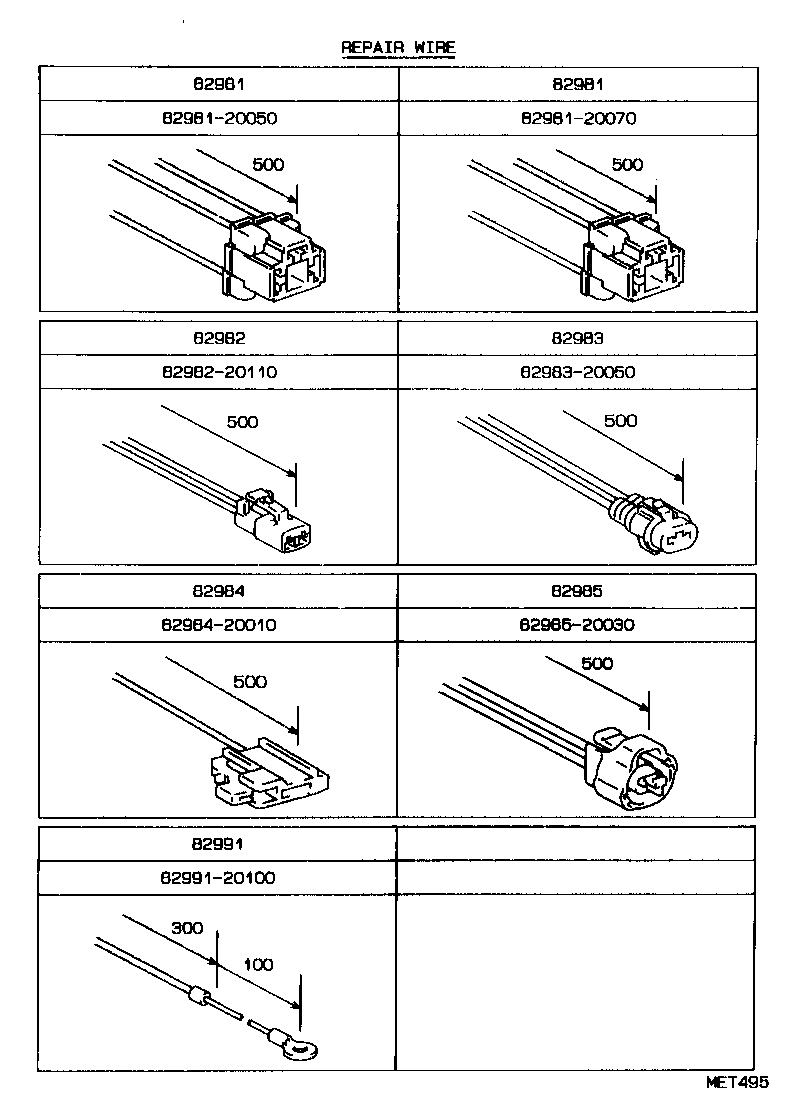

ILLUST NO.11 OF12(9202- )JPP
REPAIR WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82981 - WIRE, HEADLAMP REPAIR | ||||
| 82981-20050 |
AT190,CT190,ST191..JPP..RHD |
1 | ||
| 82981 - WIRE, HEADLAMP REPAIR | ||||
| 82981-20050 |
AT190,CT190,ST191..JPP..RHD |
1 | ||
| 82982 - WIRE, CLEARANCE LAMP REPAIR | ||||
| 82982-20110 |
AT190,CT190,ST191..JPP |
1 | ||
| 82983 - WIRE, FRONT TURN SIGNAL LAMP REPAIR | ||||
| 82983-20050 |
AT190,CT190,ST191..JPP |
1 | ||
| 82984 - WIRE, HORN REPAIR | ||||
| 82984-20010 |
AT190,CT190,ST191..JPP |
1 | ||
| 82985 - WIRE, SIDE TURN SIGNAL LAMP REPAIR | ||||
| 82985-20030 |
AT190,CT190,ST191..JPP |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-20100 |
AT190,CT190,ST191..JPP |
1 | ||
| Common parts | ||||
| 82981-20050 | ||||
| 82981-20070 | ||||
| 82982-20110 | ||||
| 82983-20050 | ||||
| 82984-20010 | ||||
| 82985-20030 | ||||
| 82991-20100 | ||||

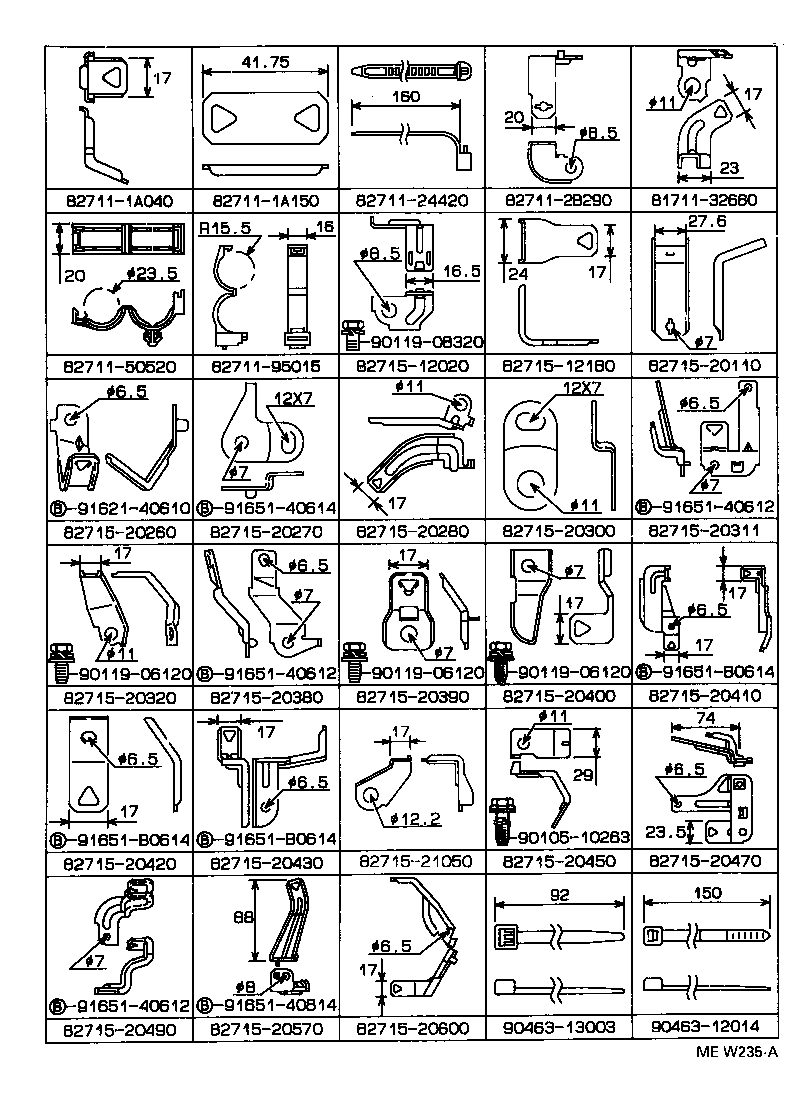

ILLUST NO. 3 OF12(9202- )JPP
ENGINE WIRE CLAMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 81711-32660 | ||||
| 82711-1A040 | ||||
| 82711-1A150 | ||||
| 82711-24420 | ||||
| 82711-2B290 | ||||
| 82711-50520 | ||||
| 82711-95015 | ||||
| 82715-12020 | ||||
| 82715-12180 | ||||
| 82715-20110 | ||||
| 82715-20260 | ||||
| 82715-20270 | ||||
| 82715-20280 | ||||
| 82715-20300 | ||||
| 82715-20311 | ||||
| 82715-20320 | ||||
| 82715-20380 | ||||
| 82715-20390 | ||||
| 82715-20400 | ||||
| 82715-20410 | ||||
| 82715-20420 | ||||
| 82715-20430 | ||||
| 82715-20450 | ||||
| 82715-20470 | ||||
| 82715-20490 | ||||
| 82715-20570 | ||||
| 82715-20600 | ||||
| 82715-21050 | ||||
| 90105-10263 | ||||
| 90119-06120 | ||||
| 90119-08320 | ||||
| 90463-12014 | ||||
| 90463-13003 | ||||
| 91621-40610 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
| 91651-40814 | ||||
| 91651-B0614 | ||||

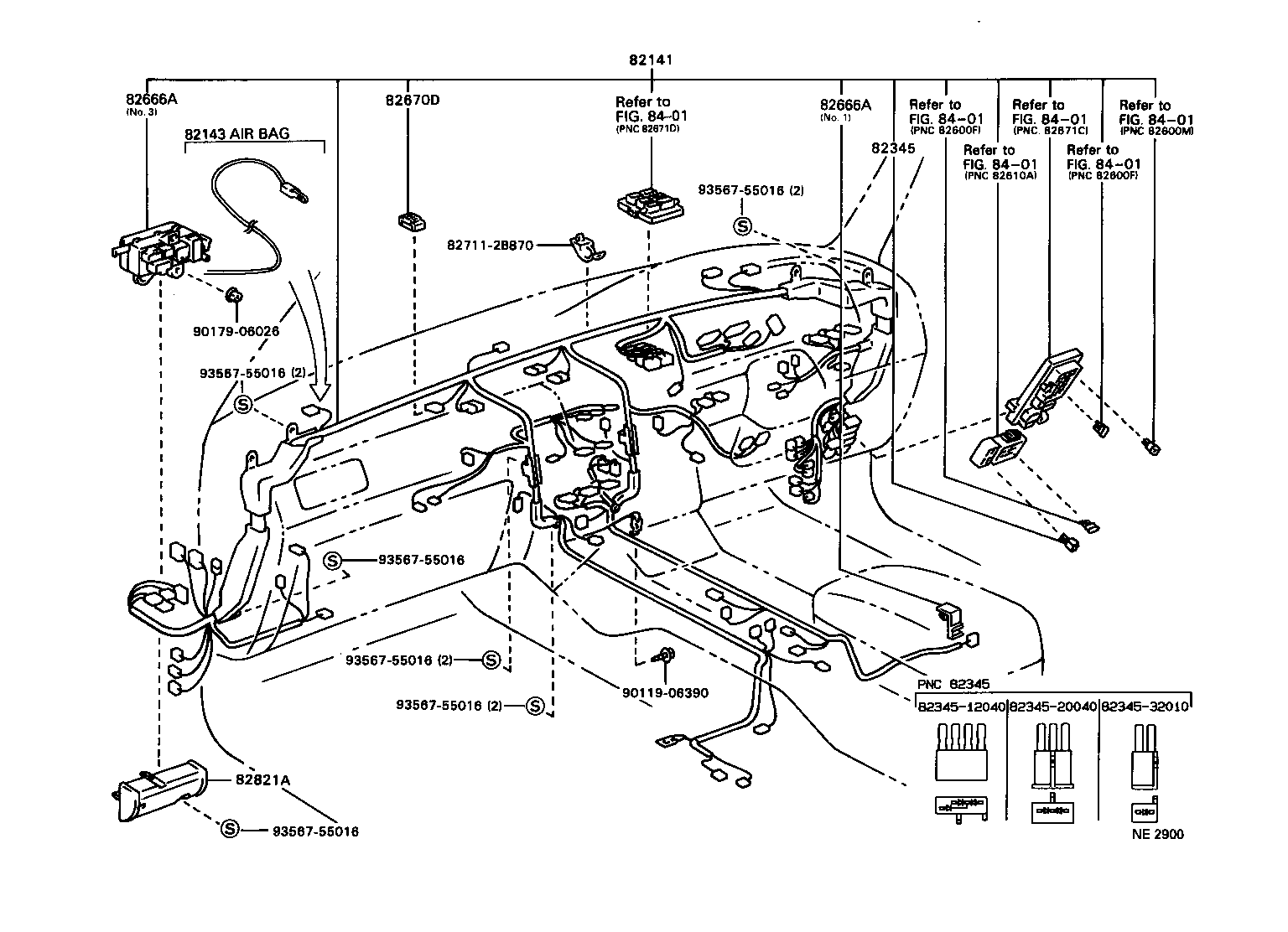

ILLUST NO.12 OF12(9305- )JPP
INST. PANEL WIRE(PNC82141)SPEC LIST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82141-2B231 | ||||
| 82141-2B311 | ||||
| 82141-2B340 | ||||
| 82141-2B360 | ||||
| 82141-2B370 | ||||
| 82141-2B400 | ||||
| 82141-2B860 | ||||
| 82141-2D010 | ||||
| 82141-2D020 | ||||
| 82141-2D030 | ||||
| 82141-2D040 | ||||
| 82141-2D050 | ||||
| 82141-2D060 | ||||
| 82141-2D070 | ||||

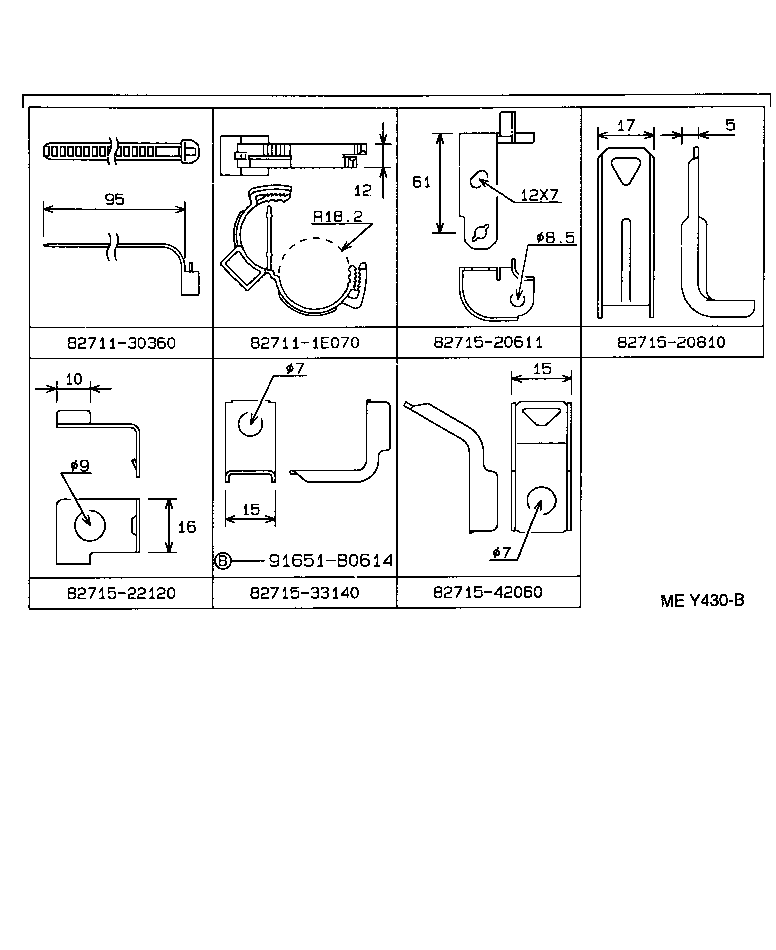

ILLUST NO. 4 OF12(9202- )JPP
ENGINE WIRE CLAMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-1E070 | ||||
| 82711-30360 | ||||
| 82715-20611 | ||||
| 82715-20810 | ||||
| 82715-22120 | ||||
| 82715-33140 | ||||
| 82715-42060 | ||||
| 91651-B0614 | ||||

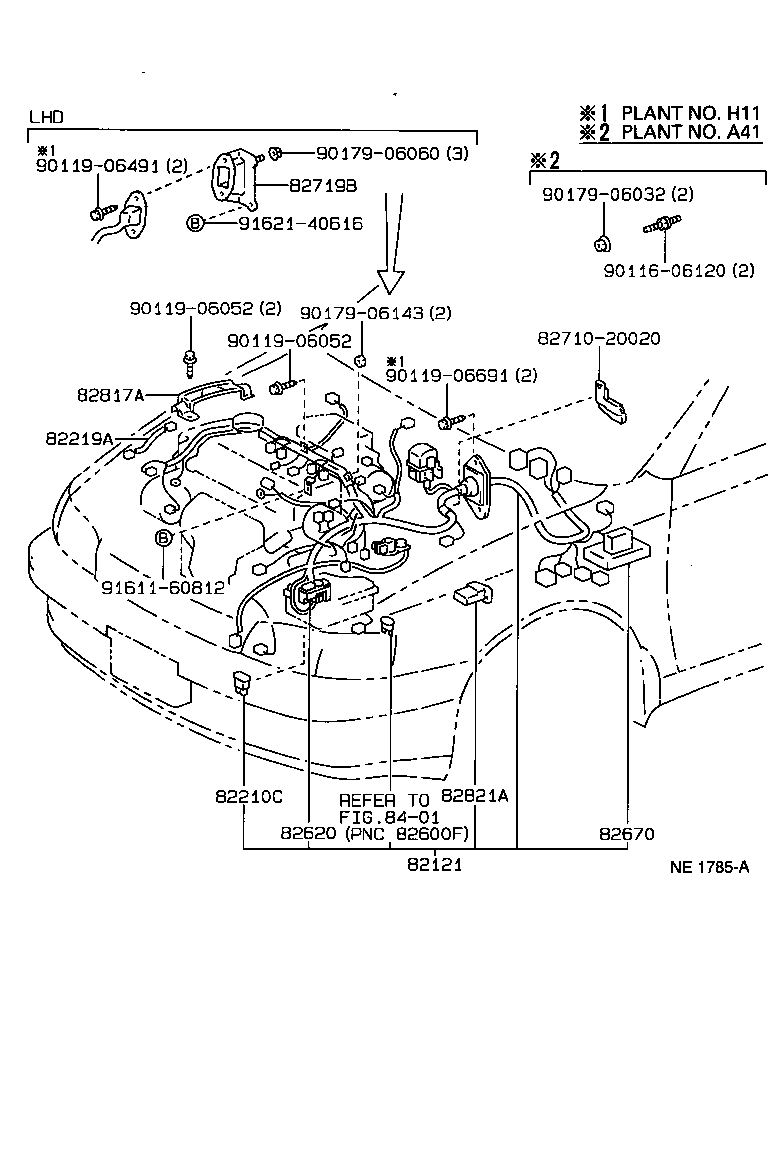

ILLUST NO. 2 OF12(9202- )AT190..JPP
ENGINE WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-2H151 |
AT190..JPP..RHD..ATM |
1 | ||
| 82121-2H152 |
AT190..JPP..RHD..ATM |
1 | ||
| 82121-2L300 |
AT190..JPP..RHD..ATM |
1 | ||
| 82121-2H153 |
AT190..JPP..RHD..ATM |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08189 |
AT190,CT190,ST191..JPP 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08246 |
AT190,CT190,ST191..JPP 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08227 |
AT190,CT190,ST191..JPP 50A,TERM.:FEMALE,RED |
1 | ||
| 82620 - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-20160 |
AT190,CT190,ST191..JPP |
1 | ||
| 82670 - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82670-2B010 |
AT190,ST191..JPP |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-1A070 |
AT190..JPP |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-20230 |
AT190,CT190,ST191..JPP..RHD |
1 | ||
| Common parts | ||||
| 82710-20020 | ||||
| 90116-06120 | ||||
| 90119-06052 | ||||
| 90119-06491 | ||||
| 90119-06691 | ||||
| 90179-06032 | ||||
| 90179-06060 | ||||
| 90179-06143 | ||||
| 91611-60812 | ||||
| 91621-40616 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 6 OF12(9202- )JPP..RHD
INSTRUMENT PANEL WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-2B320 |
AT190,ST191..JPP..RHD..ATM |
1 | ||
| 82141-2B321 |
AT190,ST191..JPP..RHD..ATM |
1 | ||
| 82345 - DIODE | ||||
| 82345-32010 |
AT190,CT190,ST191..JPP |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-20070 |
AT190,CT190,ST191..JPP NO.1 |
1 | ||
| 82666-20040 |
AT190,CT190,ST191..JPP..RHD |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-20070 |
AT190,CT190,ST191..JPP NO.1 |
1 | ||
| 82666-20040 |
AT190,CT190,ST191..JPP..RHD |
1 | ||
| 82670D - BLOCK ASSY, JUNCTION,NO.2 | ||||
| 82670-20890 |
AT190,CT190,ST191..JPP |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-20230 |
AT190,CT190,ST191..JPP..RHD |
1 | ||
| Common parts | ||||
| 82345-12040 | ||||
| 82345-20040 | ||||
| 82345-32010 | ||||
| 82711-2B870 | ||||
| 90119-06390 | ||||
| 90179-06026 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
