Toyota Carina e sed/lb(jpp) AT190 HEADLAMP

AT190R-AEPNKW (1992)

Toyota Carina E Sed/Lb(Jpp)

Production Feb 1992 - Nov 1994

Engine 4AFE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

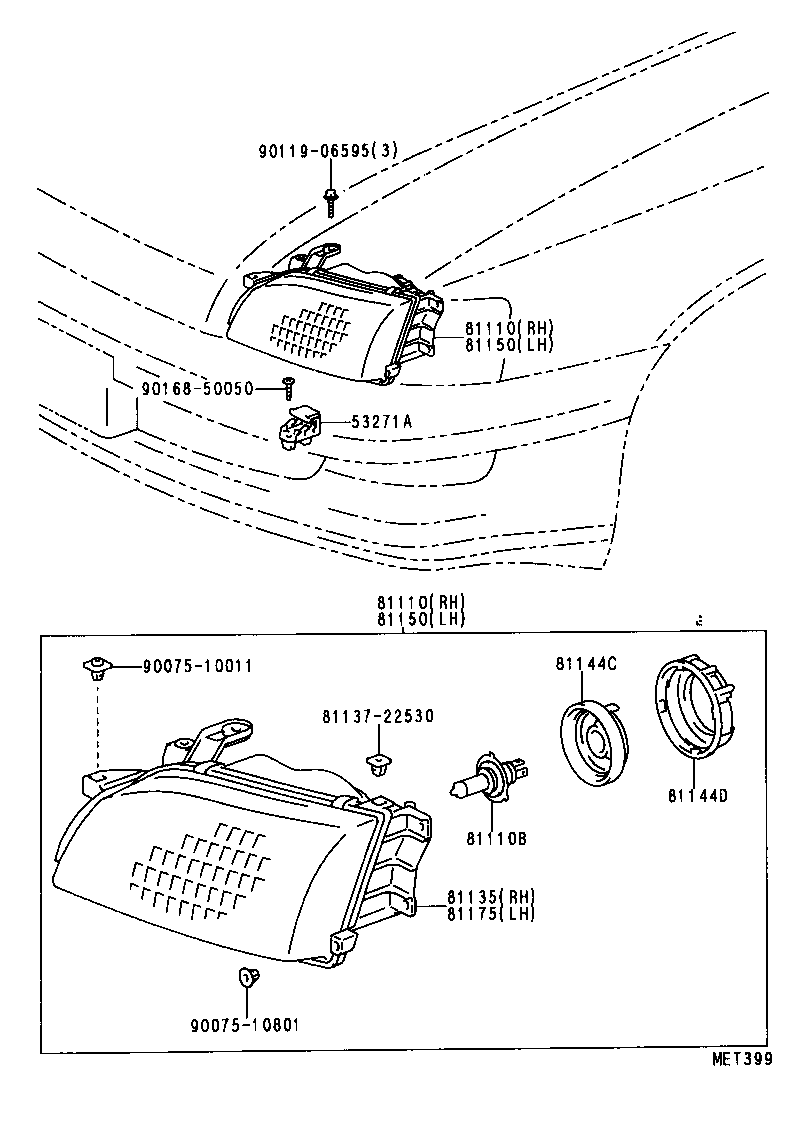

(9202- )JPP

Click highlighted areas on diagram

HONG KONG SPEC

Part #	Description	Period	Qty
53271A - BRACKET, HEADLAMP MOUNTING
53271-12040	AT190,CT190,ST191..JPP	02/1992 - 04/1994	2
81110 - HEADLAMP ASSY, RH
81110-2B700	AT190,CT190,ST191..JPP..RHD	02/1992 - 11/1994	1
81110-2B660	AT190,CT190,ST191..JPP..RHD RH TRAFFIC SPEC	02/1992 - 11/1994	1
81110 - HEADLAMP ASSY, RH
81110-2B700	AT190,CT190,ST191..JPP..RHD	02/1992 - 11/1994	1
81110-2B660	AT190,CT190,ST191..JPP..RHD RH TRAFFIC SPEC	02/1992 - 11/1994	1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13015	AT190,CT190,ST191..JPP 12V 60/55W,HAL WH	02/1992 - 01/1996	2
81135 - UNIT ASSY, HEADLAMP, RH
81130-2B660	AT190,CT190,ST191..JPP..RHD RH TRAFFIC SPEC	02/1992 - 11/1994	1
81130-2B700	AT190,CT190,ST191..JPP..RHD	02/1992 - 11/1994	1
81144C - COVER, HEADLAMP SOCKET
90075-99058	AT190,CT190,ST191..JPP	02/1992 - 01/1996	2
81144D - CAP, HEADLAMP LOCKING
90075-99057	AT190,CT190,ST191..JPP	02/1992 - 01/1996	2
81150 - HEADLAMP ASSY, LH
81150-2B620	AT190,CT190,ST191..JPP..RHD RH TRAFFIC SPEC	02/1992 - 11/1994	1
81150-2B660	AT190,CT190,ST191..JPP..RHD	02/1992 - 11/1994	1
81150 - HEADLAMP ASSY, LH
81150-2B620	AT190,CT190,ST191..JPP..RHD RH TRAFFIC SPEC	02/1992 - 11/1994	1
81150-2B660	AT190,CT190,ST191..JPP..RHD	02/1992 - 11/1994	1
81175 - UNIT ASSY, HEADLAMP, LH
81170-2B660	AT190,CT190,ST191..JPP..RHD	02/1992 - 11/1994	1
81170-2B620	AT190,CT190,ST191..JPP..RHD RH TRAFFIC SPEC	02/1992 - 11/1994	1
Common parts
81137-22530
90075-10011
90075-10801
90119-06595
90168-50050

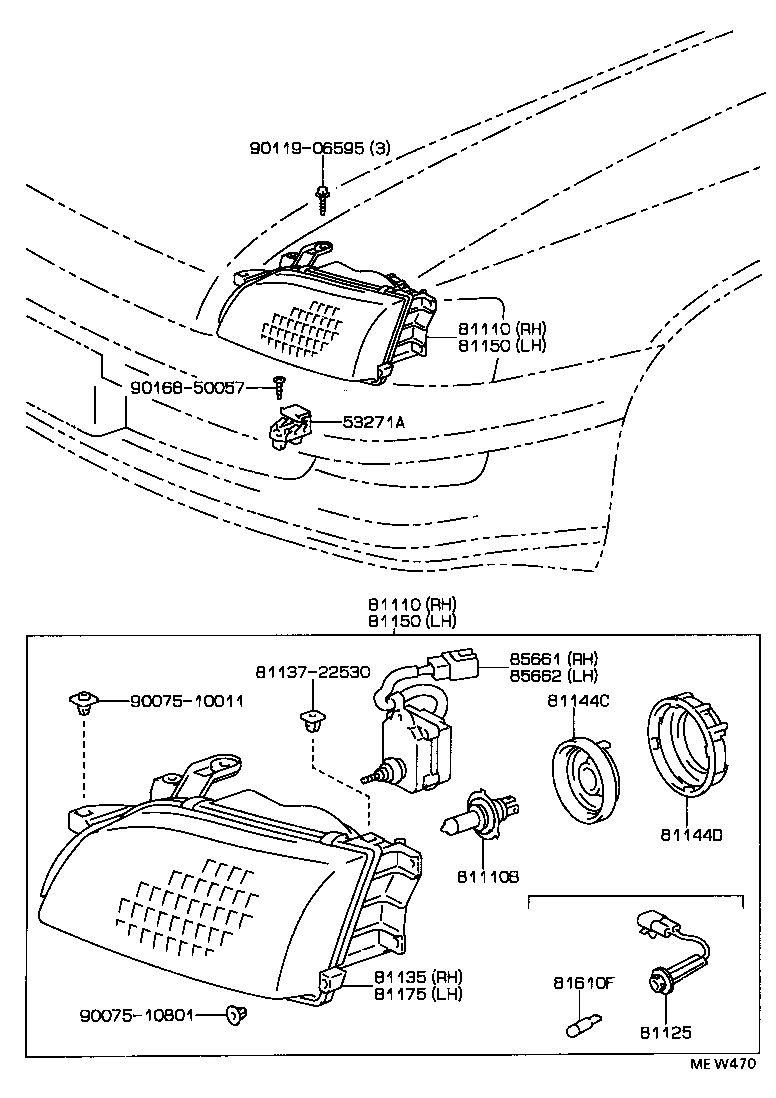

(9202- )JPP

Click highlighted areas on diagram

KOITO

Part #	Description	Period	Qty
53271A - BRACKET, HEADLAMP MOUNTING
53271-12040	AT190,CT190,ST191..JPP	02/1992 - 04/1994	2
81110 - HEADLAMP ASSY, RH
81110-2B700	AT190,CT190,ST191..JPP..RHD	02/1992 - 11/1994	1
81110-2B660	AT190,CT190,ST191..JPP..RHD RH TRAFFIC SPEC	02/1992 - 11/1994	1
81110 - HEADLAMP ASSY, RH
81110-2B700	AT190,CT190,ST191..JPP..RHD	02/1992 - 11/1994	1
81110-2B660	AT190,CT190,ST191..JPP..RHD RH TRAFFIC SPEC	02/1992 - 11/1994	1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13015	AT190,CT190,ST191..JPP 12V 60/55W,HAL WH	02/1992 - 01/1996	2
81125 - CORD, HEADLAMP
81125-2B650	AT190,CT190,ST191..JPP	02/1992 - 01/1996	2
81135 - UNIT ASSY, HEADLAMP, RH
81130-2B660	AT190,CT190,ST191..JPP..RHD RH TRAFFIC SPEC	02/1992 - 11/1994	1
81130-2B700	AT190,CT190,ST191..JPP..RHD	02/1992 - 11/1994	1
81144C - COVER, HEADLAMP SOCKET
90075-99058	AT190,CT190,ST191..JPP	02/1992 - 01/1996	2
81144D - CAP, HEADLAMP LOCKING
90075-99057	AT190,CT190,ST191..JPP	02/1992 - 01/1996	2
81150 - HEADLAMP ASSY, LH
81150-2B620	AT190,CT190,ST191..JPP..RHD RH TRAFFIC SPEC	02/1992 - 11/1994	1
81150-2B660	AT190,CT190,ST191..JPP..RHD	02/1992 - 11/1994	1
81150 - HEADLAMP ASSY, LH
81150-2B620	AT190,CT190,ST191..JPP..RHD RH TRAFFIC SPEC	02/1992 - 11/1994	1
81150-2B660	AT190,CT190,ST191..JPP..RHD	02/1992 - 11/1994	1
81175 - UNIT ASSY, HEADLAMP, LH
81170-2B660	AT190,CT190,ST191..JPP..RHD	02/1992 - 11/1994	1
81170-2B620	AT190,CT190,ST191..JPP..RHD RH TRAFFIC SPEC	02/1992 - 11/1994	1
81610F - BULB(FOR CLEARANCE LAMP)
99132-12050	AT190,CT190,ST191..JPP 12V 5W	02/1992 - 01/1996	2
85661 - MOTOR, HEADLAMP LEVELING, RH
85661-20020	AT190,CT190,ST191..JPP..RHD	02/1992 - 06/1992	1
85661-20020	CT190..JPP..LHD..LB;AT190..JPP..LHD..LB..ATM;AT190,CT190,ST191..JPP..RHD	06/1992 - 10/1992	1
85661-20020	AT190,CT190,ST191..JPP..RHD;AT190,CT190,ST191..JPP..LHD..LB	10/1992 - 11/1992	1
85661-20020	CT190..JPP..LHD..LB;AT190..JPP..LHD..LB..ATM;AT190,CT190,ST191..JPP..RHD	11/1992 - 02/1994	1
85662 - MOTOR, HEADLAMP LEVELING, LH
85661-20020	CT190..JPP..LHD..LB;AT190..JPP..LHD..LB..ATM;AT190,CT190,ST191..JPP..RHD	06/1992 - 10/1992	1
85661-20020	AT190,CT190,ST191..JPP..RHD	02/1992 - 06/1992	1
85661-20020	CT190..JPP..LHD..LB;AT190..JPP..LHD..LB..ATM;AT190,CT190,ST191..JPP..RHD	11/1992 - 02/1994	1
85661-20020	AT190,CT190,ST191..JPP..RHD;AT190,CT190,ST191..JPP..LHD..LB	10/1992 - 11/1992	1
Common parts
81137-22530
90075-10011
90075-10801
90119-06595
90168-50057

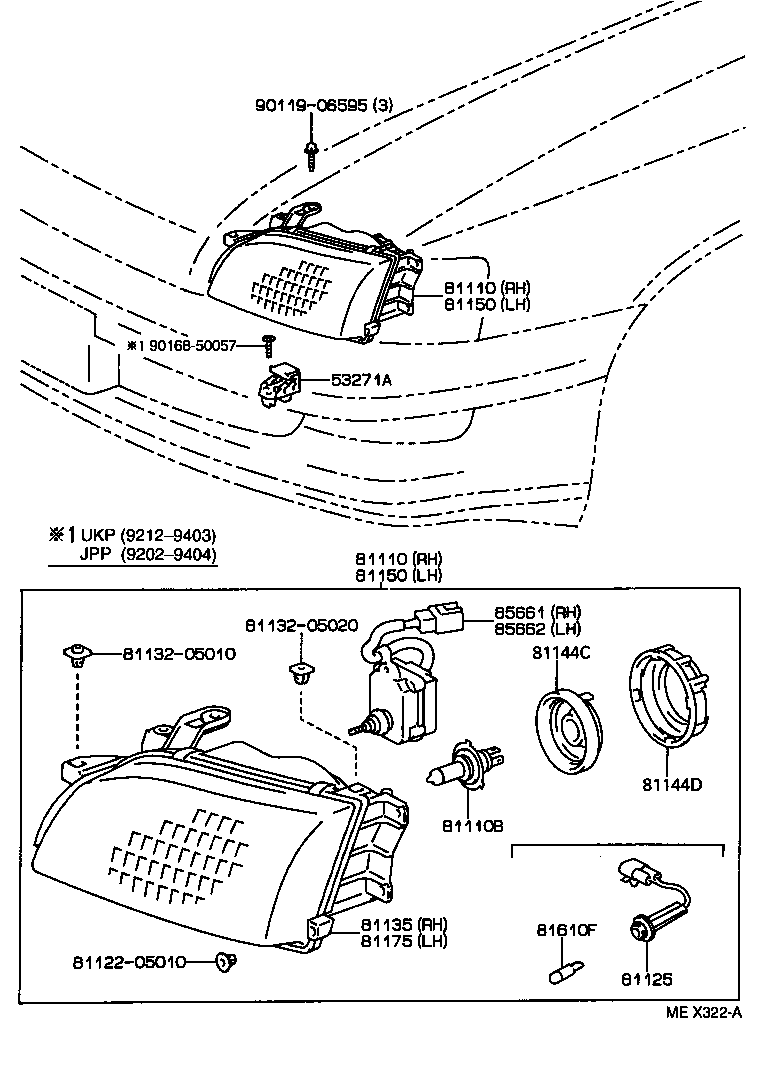

(9308- )JPP

Click highlighted areas on diagram

CARELLO

Part #	Description	Period	Qty
53271A - BRACKET, HEADLAMP MOUNTING
53271-12040	AT190,CT190,ST191..JPP	02/1992 - 04/1994	2
81110 - HEADLAMP ASSY, RH
81110-2B700	AT190,CT190,ST191..JPP..RHD	02/1992 - 11/1994	1
81110-2B660	AT190,CT190,ST191..JPP..RHD RH TRAFFIC SPEC	02/1992 - 11/1994	1
81110 - HEADLAMP ASSY, RH
81110-2B700	AT190,CT190,ST191..JPP..RHD	02/1992 - 11/1994	1
81110-2B660	AT190,CT190,ST191..JPP..RHD RH TRAFFIC SPEC	02/1992 - 11/1994	1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13015	AT190,CT190,ST191..JPP 12V 60/55W,HAL WH	02/1992 - 01/1996	2
81125 - CORD, HEADLAMP
81125-2B650	AT190,CT190,ST191..JPP	02/1992 - 01/1996	2
81135 - UNIT ASSY, HEADLAMP, RH
81130-2B660	AT190,CT190,ST191..JPP..RHD RH TRAFFIC SPEC	02/1992 - 11/1994	1
81130-2B700	AT190,CT190,ST191..JPP..RHD	02/1992 - 11/1994	1
81144C - COVER, HEADLAMP SOCKET
90075-99058	AT190,CT190,ST191..JPP	02/1992 - 01/1996	2
81144D - CAP, HEADLAMP LOCKING
90075-99057	AT190,CT190,ST191..JPP	02/1992 - 01/1996	2
81150 - HEADLAMP ASSY, LH
81150-2B620	AT190,CT190,ST191..JPP..RHD RH TRAFFIC SPEC	02/1992 - 11/1994	1
81150-2B660	AT190,CT190,ST191..JPP..RHD	02/1992 - 11/1994	1
81150 - HEADLAMP ASSY, LH
81150-2B620	AT190,CT190,ST191..JPP..RHD RH TRAFFIC SPEC	02/1992 - 11/1994	1
81150-2B660	AT190,CT190,ST191..JPP..RHD	02/1992 - 11/1994	1
81175 - UNIT ASSY, HEADLAMP, LH
81170-2B660	AT190,CT190,ST191..JPP..RHD	02/1992 - 11/1994	1
81170-2B620	AT190,CT190,ST191..JPP..RHD RH TRAFFIC SPEC	02/1992 - 11/1994	1
81610F - BULB(FOR CLEARANCE LAMP)
99132-12050	AT190,CT190,ST191..JPP 12V 5W	02/1992 - 01/1996	2
85661 - MOTOR, HEADLAMP LEVELING, RH
85661-20020	AT190,CT190,ST191..JPP..RHD	02/1992 - 06/1992	1
85661-20020	CT190..JPP..LHD..LB;AT190..JPP..LHD..LB..ATM;AT190,CT190,ST191..JPP..RHD	06/1992 - 10/1992	1
85661-20020	AT190,CT190,ST191..JPP..RHD;AT190,CT190,ST191..JPP..LHD..LB	10/1992 - 11/1992	1
85661-20020	CT190..JPP..LHD..LB;AT190..JPP..LHD..LB..ATM;AT190,CT190,ST191..JPP..RHD	11/1992 - 02/1994	1
85662 - MOTOR, HEADLAMP LEVELING, LH
85661-20020	CT190..JPP..LHD..LB;AT190..JPP..LHD..LB..ATM;AT190,CT190,ST191..JPP..RHD	06/1992 - 10/1992	1
85661-20020	AT190,CT190,ST191..JPP..RHD	02/1992 - 06/1992	1
85661-20020	CT190..JPP..LHD..LB;AT190..JPP..LHD..LB..ATM;AT190,CT190,ST191..JPP..RHD	11/1992 - 02/1994	1
85661-20020	AT190,CT190,ST191..JPP..RHD;AT190,CT190,ST191..JPP..LHD..LB	10/1992 - 11/1992	1
Common parts
81122-05010
81132-05010
81132-05020
90119-06595
90168-50057

AT190R-AEPNKW (1992)

(9202- )JPP

(9202- )JPP

(9308- )JPP
