AT190R-AEPNKW (1992)
Toyota Carina E Sed/Lb(Jpp)
Production
Feb 1992
-
Nov 1994
Engine
4AFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9202- )AT190..JPP..RHD

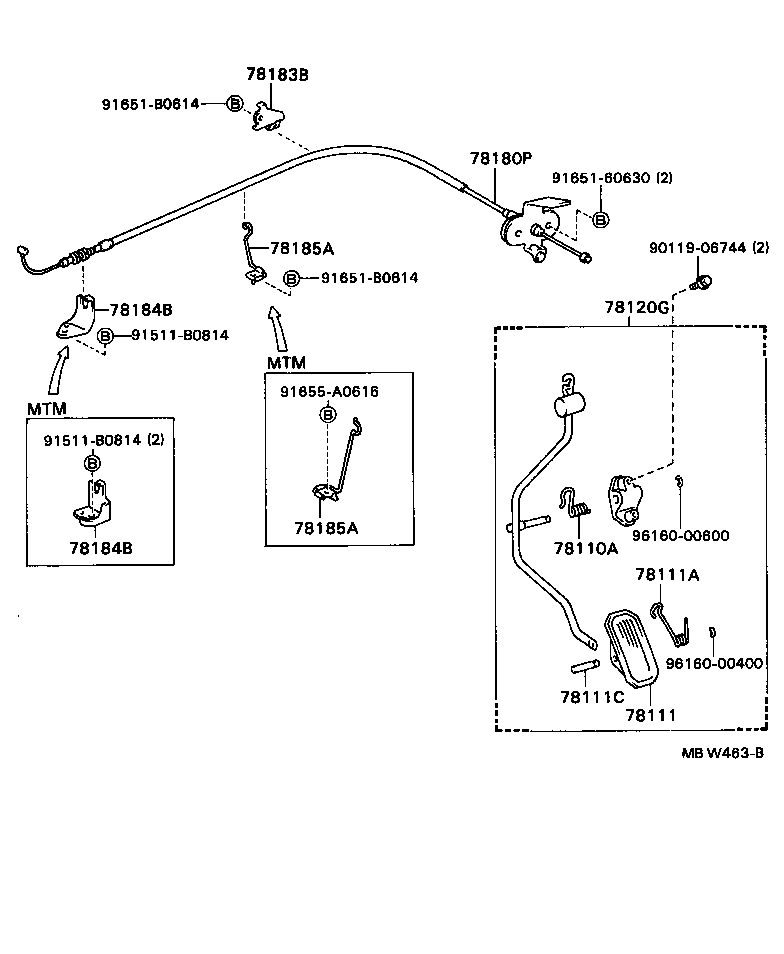

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90959-03009 |
AT190..JPP..RHD..ATM |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-32010 |
AT190,CT190,ST191..JPP |
1 | ||
| 78111A - SPRING (FOR ACCELERATOR PEDAL) | ||||
| 90508-18050 |
AT190,ST191..JPP..LHD..ATM;AT190,CT190,ST191..JPP..RHD |
1 | ||
| 78111C - PIN (FOR ACCELERATOR PEDAL) | ||||
| 90249-05001 |
AT190,CT190,ST191..JPP |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-20570 |
AT190..JPP..RHD..ATM |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-2B850 |
AT190..JPP..RHD..ATM |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-20170 |
AT190,CT190,ST191..JPP..RHD |
1 | ||
| 78184B - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78184-12280 |
AT190..JPP..RHD..ATM |
1 | ||
| 78184B - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78184-12280 |
AT190..JPP..RHD..ATM |
1 | ||
| 78185A - CLAMP, ACCELERATOR CONTROL CABLE, NO.2 | ||||
| 78183-20200 |
AT190..JPP..RHD..ATM |
1 | ||
| 78185A - CLAMP, ACCELERATOR CONTROL CABLE, NO.2 | ||||
| 78183-20200 |
AT190..JPP..RHD..ATM |
1 | ||
| Common parts | ||||
| 90119-06744 | ||||
| 91511-B0814 | ||||
| 91651-60630 | ||||
| 91651-B0614 | ||||
| 91655-A0616 | ||||
| 96160-00400 | ||||
| 96160-00600 | ||||
