AT190R-AEPNKW (1992)

Toyota Carina E Sed/Lb(Jpp)

Production Feb 1992 - Nov 1994
Engine 4AFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9202- )JPP..SED

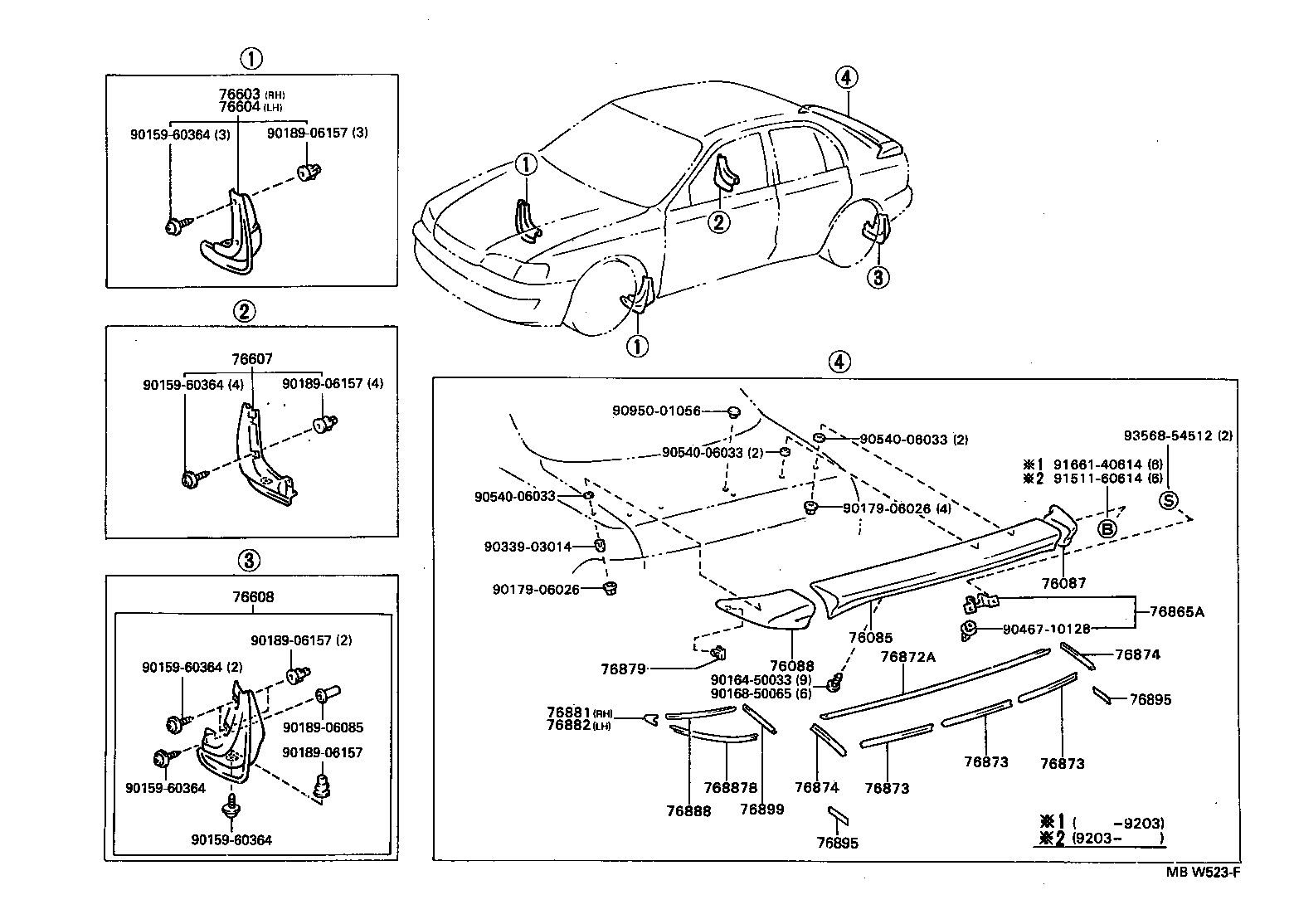

Click highlighted areas on diagram

diagram 76085 76087 76088 76603 76604 76607 76608 76865A 76872A 76873 76873 76873 76874 76874 76879 76881 76882 76887B 76888 76895 76895 76899 9015960364 9015960364 9015960364 9015960364 9015960364 9016450033 9016850065 9017906026 9017906026 9018906085 9018906157 9018906157 9018906157 9018906157 9033903014 9046710128 9054006033 9054006033 9054006033 9095001056 9151160614 9166140614 9356854512
Part # Description Qty Price
76085 - SPOILER SUB-ASSY, REAR
76085-20910

AT190,ST191..JPP..SED..(GL,GT)

 1
76087 - SPOILER SUB-ASSY, REAR NO.1
76087-20915

AT190,ST191..JPP..SED..(GL,GT)

 1
76088 - SPOILER SUB-ASSY, REAR NO.2
76088-20913

AT190,ST191..JPP..SED..(GL,GT)

 1
76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH
76621-29125

CT190..JPP;AT190..JPP..RHD;AT190..JPP..LHD..ATM

 1
76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH
76622-29125

CT190..JPP;AT190..JPP..RHD;AT190..JPP..LHD..ATM

 1
76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76625-29115

CT190..JPP;AT190..JPP..RHD;AT190..JPP..LHD..ATM

 1
76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76626-29115

CT190..JPP;AT190..JPP..RHD;AT190..JPP..LHD..ATM

 1
76865A - RETAINER, SIDE MUDGUARD
76865-20100

AT190,ST191..JPP..SED..(GL,GT)

 1
76872A - PROTECTOR, REAR SPOILER, NO.1
76872-20130

AT190,ST191..JPP..SED..(GL,GT)

 1
76873 - PROTECTOR, REAR SPOILER, NO.2
76873-20110

AT190,ST191..JPP..SED..(GL,GT)

 3
76873 - PROTECTOR, REAR SPOILER, NO.2
76873-20110

AT190,ST191..JPP..SED..(GL,GT)

 3
76873 - PROTECTOR, REAR SPOILER, NO.2
76873-20110

AT190,ST191..JPP..SED..(GL,GT)

 3
76874 - PROTECTOR, REAR SPOILER, NO.3
76874-20100

AT190,ST191..JPP..SED..(GL,GT)

 2
76874 - PROTECTOR, REAR SPOILER, NO.3
76874-20100

AT190,ST191..JPP..SED..(GL,GT)

 2
76879 - CLIP, REAR SPOILER, NO.1
76879-20040

ST191..JPP;AT190..JPP..SED..GL;AT190..JPP..LHD..LB..GL

 2
76881 - PROTECTOR, REAR SPOILER SIDE, NO.1 RH
76881-20070

AT190,ST191..JPP..SED..(GL,GT)

 1
76882 - PROTECTOR, REAR SPOILER SIDE, NO.1 LH
76882-20070

AT190,ST191..JPP..SED..(GL,GT)

 1
76887B - PROTECTOR, REAR SPOILER SIDE, NO.2
76887-20070

AT190,ST191..JPP..SED..(GL,GT)

 2
76888 - PROTECTOR, REAR SPOILER SIDE, NO.3
76888-20070

AT190,ST191..JPP..SED..(GL,GT)

 2
76899 - PROTECTOR, REAR SPOILER, SIDE NO.6
76899-20050

AT190,ST191..JPP..SED..(GL,GT)

 2
Common parts
90159-60364
90164-50033
90168-50065
90179-06026
90189-06085
90189-06157
90339-03014
90467-10128
90540-06033
90950-01056
91511-60614
91661-40614
93568-54512
