AT190R-AEPNKW (1992)

Toyota Carina E Sed/Lb(Jpp)

Production Feb 1992 - Nov 1994
Engine 4AFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9202- )JPP

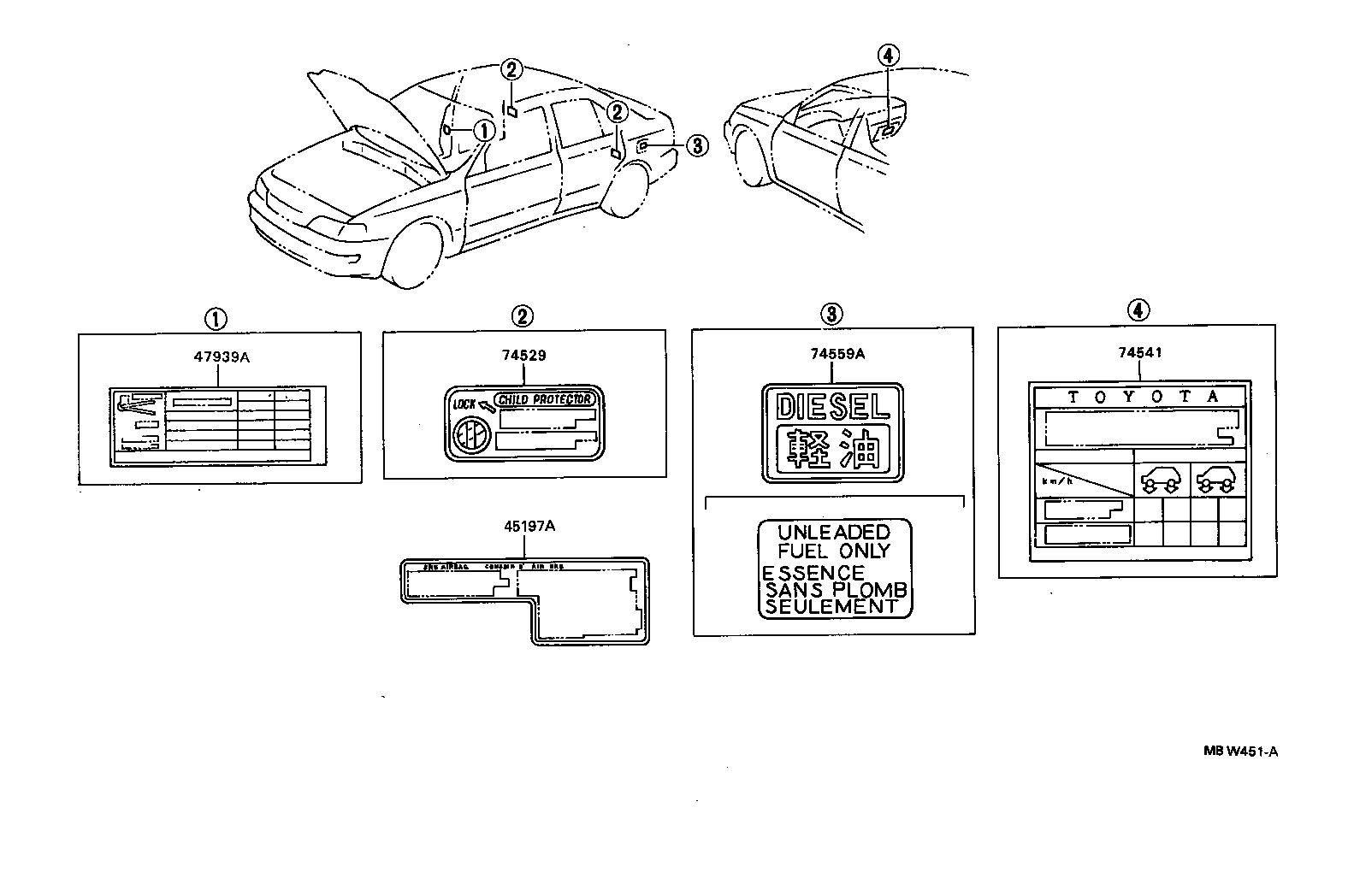

Click highlighted areas on diagram

diagram 45197A 47939A 74529 74541 74559A
Part # Description Qty Price
45197A - LABEL, AIR BAG CAUTION
45197-20050

AT190,CT190,ST191..JPP

 1
45197-12070

AT190,CT190,ST191..JPP

 1
47939A - PLATE, LOAD SENSING VALVE MARKING
47939-20030

AT190,CT190,ST191..JPP..(GL,XL)

 1
74529 - PLATE, CHILD PROOF OR CHILD PROTECTOR LOCK CAUTION
69339-32010

AT190,CT190,ST191..JPP

RH

 1
69349-32010

AT190,CT190,ST191..JPP

LH

 1
74541 - PLATE, TIRE PRESSURE CAUTION
42661-2B130

AT190..JPP

 1
74559A - PLATE, FUEL CAUTION
74559-14050

AT190,ST191..JPP

 1
