AT190R-AEPNKW (1992)
Toyota Carina E Sed/Lb(Jpp)
Production
Feb 1992
-
Nov 1994
Engine
4AFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9202- )JPP..SED

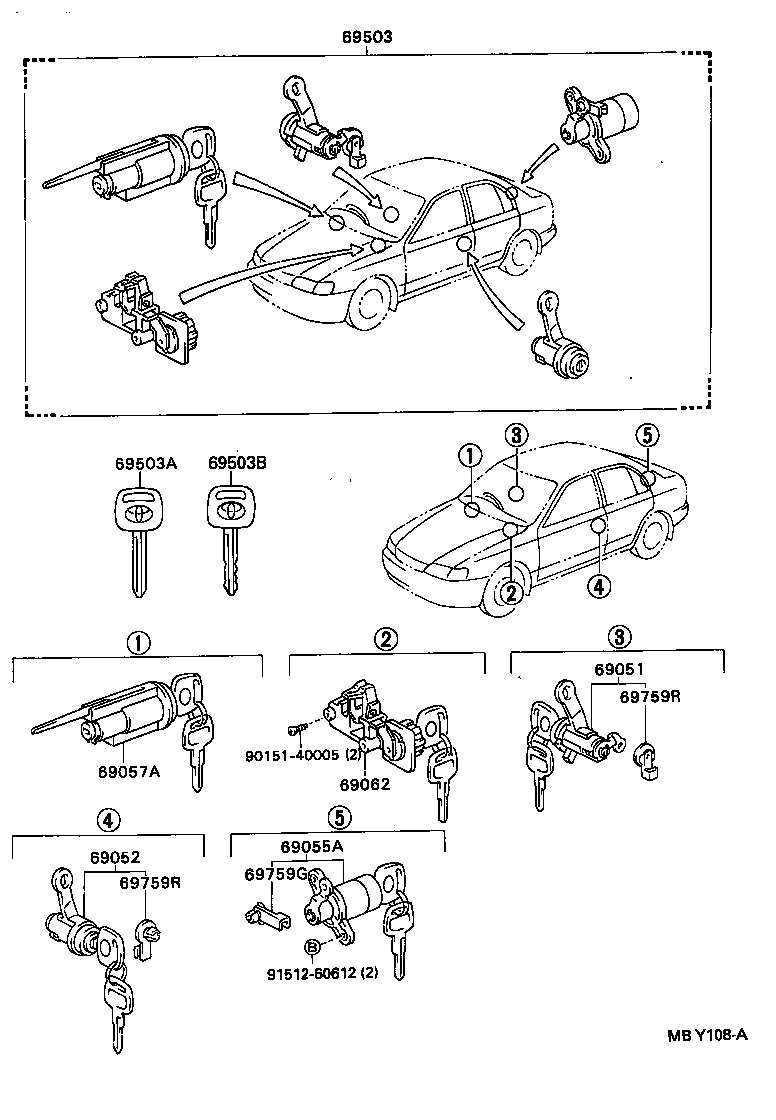

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69051 - CYLINDER & KEY SET, DOOR LOCK, RH | ||||
| 69051-20330 |
AT190,CT190,ST191..JPP |
1 | ||
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-20330 |
AT190,CT190,ST191..JPP |
1 | ||
| 69055A - CYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK | ||||
| 69055-20540 |
AT190,CT190,ST191..JPP..SED |
1 | ||
| 69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-20320 |
AT190,CT190,ST191..JPP |
1 | ||
| 69062 - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK | ||||
| 69056-20260 |
AT190,CT190,ST191..JPP |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-2B210 |
AT190,CT190,ST191..JPP..SED |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00199 |
AT190,CT190,ST191..JPP MASTER KEY,W(*68) |
2 | ||
| 90999-00200 |
AT190,CT190,ST191..JPP SUB KEY,W(*68) |
1 | ||
| 69759G - SNAP, LUGGAGE DOOR LOCK CYLINDER | ||||
| 69759-20080 |
AT190,CT190,ST191..JPP..SED |
1 | ||
| 69759R - SNAP, FRONT DOOR LOCK CYLINDER | ||||
| 69759-12080 |
AT190,CT190,ST191..JPP RH |
1 | ||
| 69759-12090 |
AT190,CT190,ST191..JPP LH |
1 | ||
| 69759R - SNAP, FRONT DOOR LOCK CYLINDER | ||||
| 69759-12080 |
AT190,CT190,ST191..JPP RH |
1 | ||
| 69759-12090 |
AT190,CT190,ST191..JPP LH |
1 | ||
| Common parts | ||||
| 90151-40005 | ||||
| 91512-60612 | ||||
