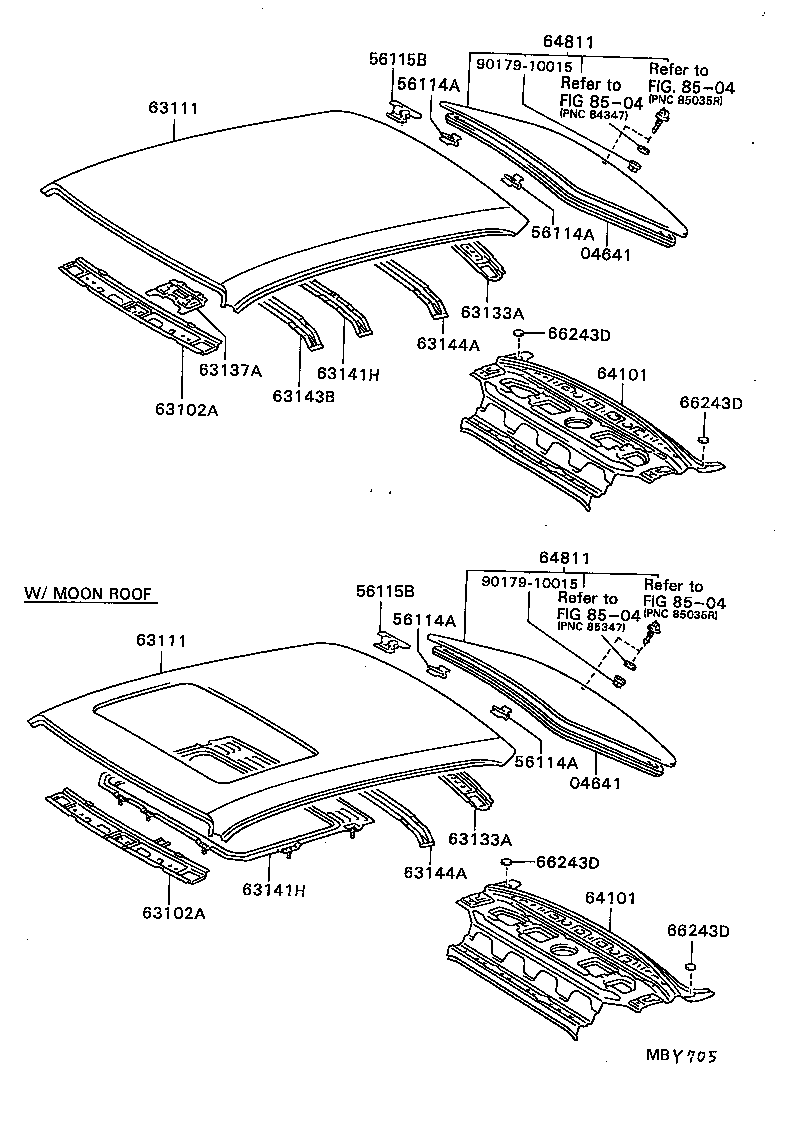

AT190R-AEPNKW (1992)
Toyota Carina E Sed/Lb(Jpp)
(9202- )JPP..SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04641 - DAM KIT, BACK WINDOW GLASS | ||||
| 04562-12010 |
AT190,CT190,ST191..JPP..SED |
1 | ||
| 04641 - DAM KIT, BACK WINDOW GLASS | ||||
| 04562-12010 |
AT190,CT190,ST191..JPP..SED |
1 | ||
| 56114A - RETAINER, BACK WINDOW GLASS | ||||
| 56114-20010 |
AT190,CT190,ST191..JPP..SED |
2 | ||
| 56114A - RETAINER, BACK WINDOW GLASS | ||||
| 56114-20010 |
AT190,CT190,ST191..JPP..SED |
2 | ||
| 56114A - RETAINER, BACK WINDOW GLASS | ||||
| 56114-20010 |
AT190,CT190,ST191..JPP..SED |
2 | ||
| 56114A - RETAINER, BACK WINDOW GLASS | ||||
| 56114-20010 |
AT190,CT190,ST191..JPP..SED |
2 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-20240 |
AT190,CT190,ST191..JPP W(MOON ROOF) |
1 | ||
| 63102-20230 |
AT190,CT190,ST191..JPP |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-20240 |
AT190,CT190,ST191..JPP W(MOON ROOF) |
1 | ||
| 63102-20230 |
AT190,CT190,ST191..JPP |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-20380 |
AT190,CT190,ST191..JPP..SED W(MOON ROOF) |
1 | ||
| 63111-20460 |
AT190,CT190,ST191..JPP..SED |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-20380 |
AT190,CT190,ST191..JPP..SED W(MOON ROOF) |
1 | ||
| 63111-20460 |
AT190,CT190,ST191..JPP..SED |
1 | ||
| 63133A - FRAME, BACK WINDOW, UPPER | ||||
| 63133-20200 |
AT190,CT190,ST191..JPP..SED |
1 | ||
| 63133A - FRAME, BACK WINDOW, UPPER | ||||
| 63133-20200 |
AT190,CT190,ST191..JPP..SED |
1 | ||
| 63137A - BRACKET, DOME LAMP, NO.1 | ||||
| 63137-20090 |
AT190,ST191..JPP..(GL,GT) |
1 | ||
| 63141H - REINFORCEMENT, ROOF PANEL, CENTER | ||||
| 63141-20150 |
AT190,CT190,ST191..JPP |
1 | ||
| 63103-20140 |
AT190,CT190,ST191..JPP W(MOON ROOF) |
1 | ||
| 63141H - REINFORCEMENT, ROOF PANEL, CENTER | ||||
| 63141-20150 |
AT190,CT190,ST191..JPP |
1 | ||
| 63103-20140 |
AT190,CT190,ST191..JPP W(MOON ROOF) |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-20100 |
AT190,CT190,ST191..JPP |
1 | ||
| 63144A - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-20040 |
AT190,CT190,ST191..JPP |
1 | ||
| 63144A - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-20040 |
AT190,CT190,ST191..JPP |
1 | ||
| 64101 - PANEL SUB-ASSY, UPPER BACK | ||||
| 64101-20670 |
AT190,CT190,ST191..JPP..SED |
1 | ||
| 64101 - PANEL SUB-ASSY, UPPER BACK | ||||
| 64101-20670 |
AT190,CT190,ST191..JPP..SED |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64811-2B480 |
AT190,CT190,ST191..JPP..SED *EHT,T=3.5,BLUE |
1 | ||
| 64811-05011 |
AT190,CT190,ST191..JPP..SED *EHT,T=4.0,GREEN |
1 | ||
| 64811-05010 |
AT190,CT190,ST191..JPP..SED *EHT,T=4.0,GREEN |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64811-2B480 |
AT190,CT190,ST191..JPP..SED *EHT,T=3.5,BLUE |
1 | ||
| 64811-05011 |
AT190,CT190,ST191..JPP..SED *EHT,T=4.0,GREEN |
1 | ||
| 64811-05010 |
AT190,CT190,ST191..JPP..SED *EHT,T=4.0,GREEN |
1 | ||
| 66243D - PROTECTOR, REAR BODY, NO.1 | ||||
| 66243-20010 |
AT190,CT190,ST191..JPP..SED |
2 | ||
| 66243D - PROTECTOR, REAR BODY, NO.1 | ||||
| 66243-20010 |
AT190,CT190,ST191..JPP..SED |
2 | ||
| 66243D - PROTECTOR, REAR BODY, NO.1 | ||||
| 66243-20010 |
AT190,CT190,ST191..JPP..SED |
2 | ||
| 66243D - PROTECTOR, REAR BODY, NO.1 | ||||
| 66243-20010 |
AT190,CT190,ST191..JPP..SED |
2 | ||
| Common parts | ||||
| 90179-10015 | ||||
| Linked diagrams | ||||
| 8504 | ||||
(9202- )JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63169B - PLATE, ROOF PANEL REINFORCEMENT, RH | ||||
| 63169-20010 |
AT190,CT190,ST191..JPP |
1 | ||
| 63179 - PLATE, ROOF PANEL REINFORCEMENT, LH | ||||
| 63179-20010 |
AT190,CT190,ST191..JPP |
1 | ||
| 63201G - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63201-0W010 |
AT190,CT190,ST191..JPP *SERT,T=4.0,BRONZE |
1 | ||
| 63206G - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-0W010 |
AT190,CT190,ST191..JPP |
1 | ||
| 63207G - RAIL SUB-ASSY, SLIDING ROOF GUIDE | ||||
| 63207-0W010 |
AT190,CT190,ST191..JPP |
1 | ||
| 63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR | ||||
| 63209-0W010 |
AT190,CT190,ST191..JPP |
1 | ||
| 63214F - CHANNEL, ROOF DRIP, REAR | ||||
| 63214-0W010 |
AT190,CT190,ST191..JPP |
1 | ||
| 63217G - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-0W010 |
AT190,CT190,ST191..JPP |
1 | ||
| 63218G - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63218-0W010 |
AT190,CT190,ST191..JPP |
1 | ||
| 63218H - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-20220 |
AT190,CT190,ST191..JPP REAR-LH |
1 | ||
| 63249-20210 |
AT190,CT190,ST191..JPP FRONT |
2 | ||
| 63249-20240 |
AT190,CT190,ST191..JPP..SED REAR-RH |
1 | ||
| 63218H - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-20220 |
AT190,CT190,ST191..JPP REAR-LH |
1 | ||
| 63249-20210 |
AT190,CT190,ST191..JPP FRONT |
2 | ||
| 63249-20240 |
AT190,CT190,ST191..JPP..SED REAR-RH |
1 | ||
| 63223 - CABLE, SLIDING ROOF DRIVE, RH | ||||
| 63223-0W010 |
AT190,CT190,ST191..JPP |
1 | ||
| 63224 - CABLE, SLIDING ROOF DRIVE, LH | ||||
| 63224-0W010 |
AT190,CT190,ST191..JPP |
1 | ||
| 63228D - CLIP, ROOF WINDOW DEFLECTOR PANEL GUIDE | ||||
| 63228-0W010 |
AT190,CT190,ST191..JPP |
2 | ||
| 63228D - CLIP, ROOF WINDOW DEFLECTOR PANEL GUIDE | ||||
| 63228-0W010 |
AT190,CT190,ST191..JPP |
2 | ||
| 63229A - STOPPER, SLIDING ROOF SUNSHADE | ||||
| 63229-05010 |
AT190,CT190,ST191..JPP |
2 | ||
| 63233B - FRAME, SLIDING ROOF HOUSING, RH | ||||
| 63233-05010 |
AT190,CT190,ST191..JPP |
1 | ||
| 63234B - FRAME, SLIDING ROOF HOUSING, LH | ||||
| 63234-05010 |
AT190,CT190,ST191..JPP |
1 | ||
| 63241A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH | ||||
| 63241-0W010 |
AT190,CT190,ST191..JPP |
2 | ||
| 63245F - BRACKET, SLIDING REAR MOUNTING | ||||
| 63245-0W010 |
AT190,CT190,ST191..JPP |
2 | ||
| 63252D - WEATHERSTRIP, SLIDING ROOF HOUSING | ||||
| 63252-0W010 |
AT190,CT190,ST191..JPP |
2 | ||
| 63252D - WEATHERSTRIP, SLIDING ROOF HOUSING | ||||
| 63252-0W010 |
AT190,CT190,ST191..JPP |
2 | ||
| 63255 - COVER, SLIDING ROOF GUIDE RAIL, RH | ||||
| 63255-05010 |
AT190,CT190,ST191..JPP |
1 | ||
| 63255F - COVER, SLIDE ROOF MOTOR | ||||
| 63255-0W010 |
AT190,CT190,ST191..JPP |
1 | ||
| 63256 - COVER, SLIDING ROOF GUIDE RAIL, LH | ||||
| 63256-05010 |
AT190,CT190,ST191..JPP |
1 | ||
| 63257E - HOLDER, SLIDING ROOF GUIDE RAIL, RH | ||||
| 63257-05010 |
AT190,CT190,ST191..JPP |
1 | ||
| 63258G - HOLDER, SLIDING ROOF GUIDE RAIL, LH | ||||
| 63258-05010 |
AT190,CT190,ST191..JPP |
1 | ||
| 63259D - SEAL, SLIDING ROOF, NO.2 | ||||
| 63259-0W010 |
AT190,CT190,ST191..JPP |
1 | ||
| 63261C - SHOE, SLIDING ROOF, FRONT RH | ||||
| 63261-05010 |
AT190,CT190,ST191..JPP |
1 | ||
| 63262 - SHOE, SLIDING ROOF, FRONT LH | ||||
| 63262-05010 |
AT190,CT190,ST191..JPP |
1 | ||
| 63275C - BOX, SLIDING ROOF DRIVE GEAR | ||||
| 63275-0W010 |
AT190,CT190,ST191..JPP |
1 | ||
| 63297D - PIN, SLIDING ROOF HOUSING | ||||
| 63297-05010 |
AT190,CT190,ST191..JPP |
2 | ||
| 63297D - PIN, SLIDING ROOF HOUSING | ||||
| 63297-05010 |
AT190,CT190,ST191..JPP |
2 | ||
| 63633A - BUSH, SLIDING ROOF HOUSING, NO.1 | ||||
| 63633-05010 |
AT190,CT190,ST191..JPP |
1 | ||
| 63634A - BUSH, SLIDING ROOF HOUSING, NO.2 | ||||
| 63634-05010 |
AT190,CT190,ST191..JPP |
1 | ||
| Common parts | ||||
| 90080-10039 | ||||
| 90080-11098 | ||||
| 90080-14005 | ||||
| 90080-14006 | ||||
| 90080-15030 | ||||
| 90080-15031 | ||||
| 90080-18018 | ||||
| 90080-24033 | ||||
| 90080-24040 | ||||
| 90080-38041 | ||||
| 90080-38063 | ||||
| 90080-52045 | ||||
| 90105-06063 | ||||
| 90119-06033 | ||||
| 90119-06098 | ||||
| 90119-06186 | ||||
| 90179-06069 | ||||
| 90179-06276 | ||||
| 90467-14001 | ||||
| 90480-08002 | ||||
| 90480-26022 | ||||
| 90530-20014 | ||||
| 90950-01060 | ||||
| 90950-01866 | ||||
