AT190R-AEPNKW (1992)

Toyota Carina E Sed/Lb(Jpp)

Production Feb 1992 - Nov 1994
Engine 4AFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9202-9601)JPP..RHD

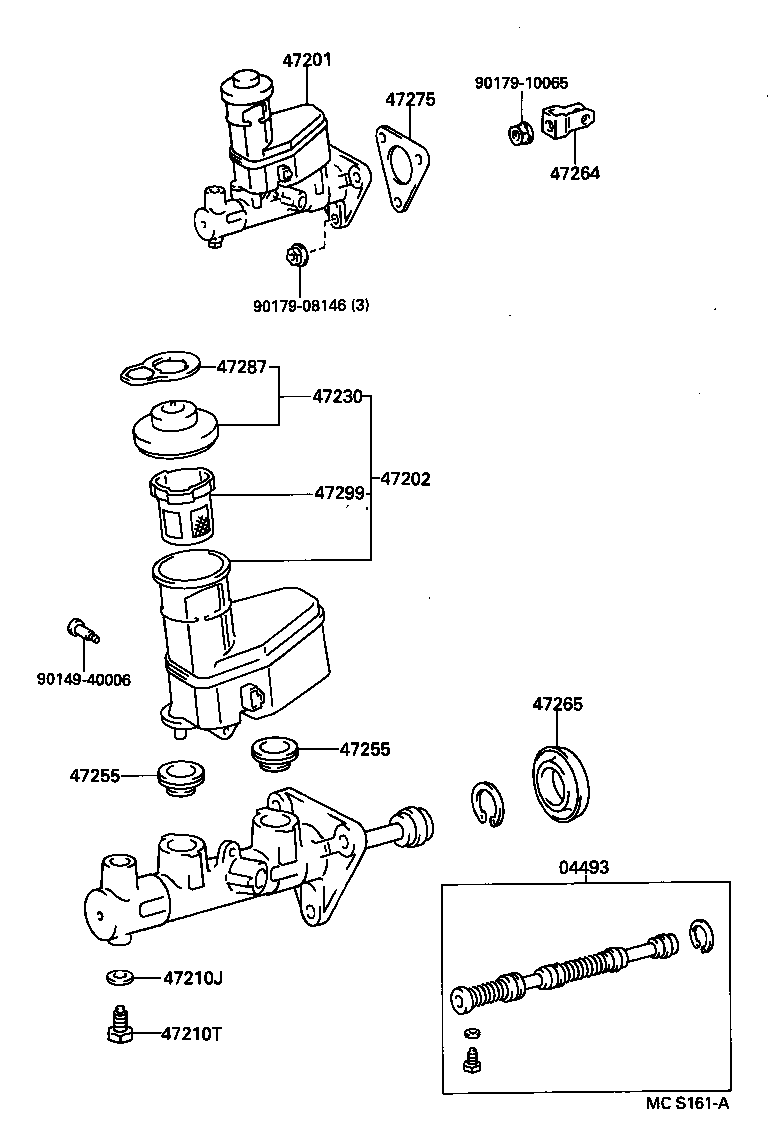

Click highlighted areas on diagram

AISIN OR JKC

diagram 04493 47201 47202 47210J 47210T 47230 47255 47255 47264 47265 47275 47287 47299 9014940006 9017908146 9017910065
Part # Description Qty Price
04493 - CYLINDER KIT, BRAKE MASTER
04493-33030

AT190,CT190,ST191..JPP..(GL,XL)

 1
04493-33040

AT190,CT190,ST191..JPP..(GL,XL)

W(*66)

 1
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-20830

AT190,CT190,ST191..JPP..RHD..(GL,XL)

 1
47201-20840

AT190,CT190,ST191..JPP..RHD..(GL,XL)

W(*66)

 1
47201-2B040

AT190,CT190,ST191..JPP..RHD..(GL,XL)

W(*66)

 1
47201-20831

AT190,CT190,ST191..JPP..RHD..(GL,XL)

 1
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47202-20410

AT190,CT190,ST191..JPP..RHD..(GL,XL)

W(*66)

 1
47202-20450

AT190,CT190,ST191..JPP..RHD..(GL,XL)

W(*66)

 1
47202-20400

AT190,CT190,ST191..JPP..RHD..(GL,XL)

 1
47202-20440

AT190,CT190,ST191..JPP..RHD..(GL,XL)

 1
47202-20500

AT190,CT190,ST191..JPP..RHD..(GL,XL)

W(*66)

 1
47210J - GASKET(FOR MASTER CYLINDER)
90430-06104

AT190,CT190,ST191..JPP

 1
47210T - BOLT(FOR BRAKE MASTER CYLINDER)
90109-06077

AT190,CT190,ST191..JPP

 1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-20100

AT190,CT190,ST191..JPP..(GL,XL)

 1
47230-20140

AT190,CT190,ST191..JPP..(GL,XL)

W(*66)

 1
47230-20100

AT190,CT190,ST191..JPP

 1
47230-12040

AT190,CT190,ST191..JPP

 1
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-16010

AT190,CT190,ST191..JPP

 2
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-16010

AT190,CT190,ST191..JPP

 2
47264 - CLEVIS, MASTER CYLINDER PUSH ROD
47264-20060

AT190,CT190,ST191..JPP..RHD

 1
47265 - BOOT, MASTER CYLINDER
47265-20050

AT190,CT190,ST191..JPP

 1
47275 - GASKET, BRAKE MASTER CYLINDER
47275-32010

AT190,CT190,ST191..JPP

 1
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-24010

AT190,CT190,ST191..JPP

 1
Common parts
90149-40006
90179-08146
90179-10065
