AT190R-AEPNKW (1992)

Toyota Carina E Sed/Lb(Jpp)

Production Feb 1992 - Nov 1994
Engine 4AFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9202- )AT190..JPP..RHD

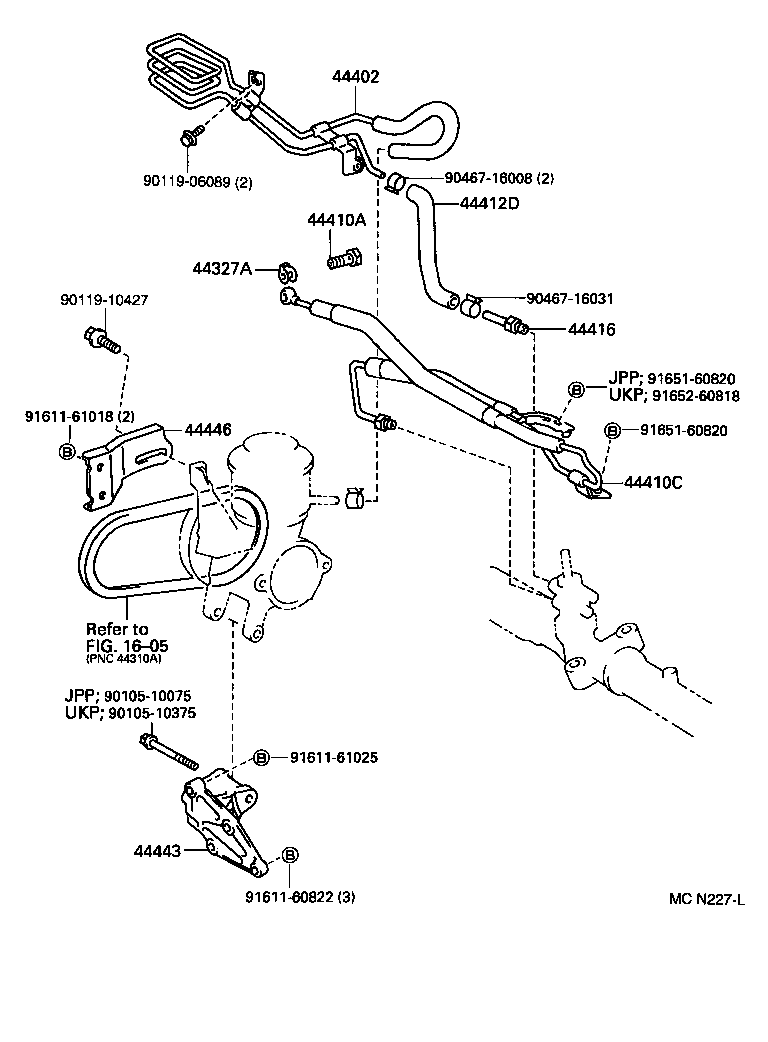

Click highlighted areas on diagram

diagram 1605 44327A 44402 44410A 44410C 44412D 44416 44443 44446 9010510075 9010510375 9011906089 9011910427 9046716008 9046716031 9161160822 9161161018 9161161025 9165160820 9165160820 9165260818
Part # Description Qty Price
44327A - GASKET, PRESSURE PORT, NO.1
44327-12010

AT190,CT190,ST191..JPP..RHD

 1
44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1
44402-20400

AT190..JPP

 1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
90401-16008

AT190,CT190,ST191..JPP

 1
44410C - TUBE ASSY, PRESSURE FEED, NO.1
44410-20680

AT190..JPP..RHD

 1
44410-2B060

AT190..JPP..RHD

 1
44412D - HOSE, RETURN, NO.1
44412-20201

AT190..JPP..RHD

 1
44412-20200

AT190..JPP..RHD

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-20220

AT190,CT190,ST191..JPP..RHD

 1
44443 - BRACKET, PUMP
44443-12050

AT190..JPP

 1
44446 - STRUT, ADJUSTING
44446-12060

AT190..JPP

 1
Common parts
90105-10075
90105-10375
90119-06089
90119-10427
90467-16008
90467-16031
91611-60822
91611-61018
91611-61025
91651-60820
91652-60818
Linked diagrams
1605
