AT190R-AEPNKW (1992)
Toyota Carina E Sed/Lb(Jpp)

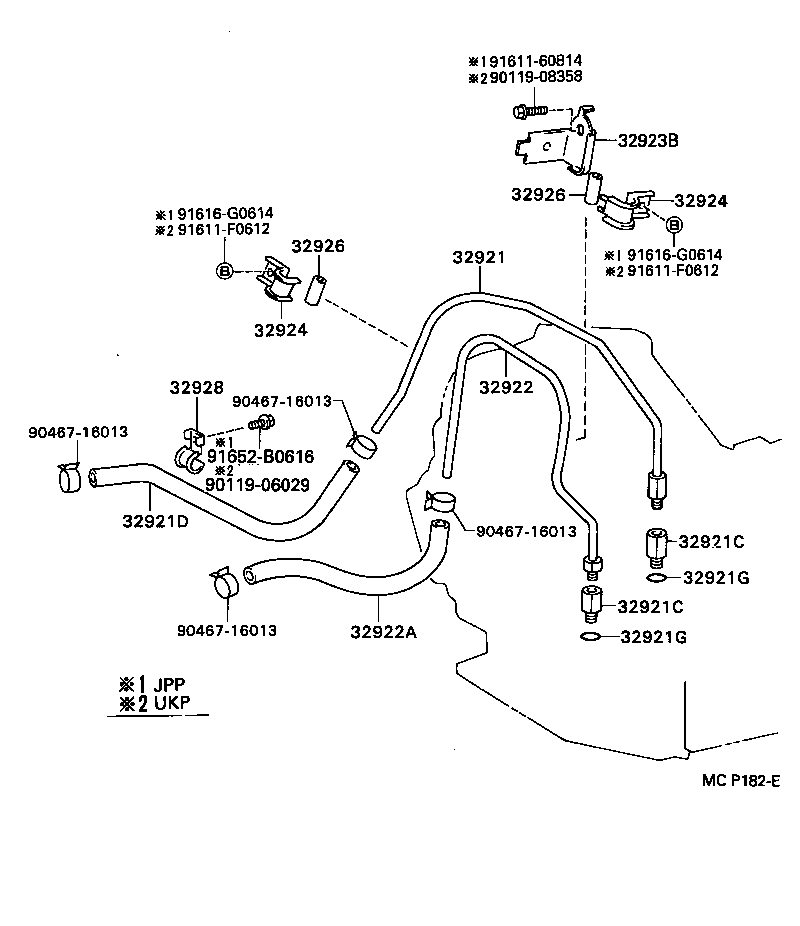

(9202-9305)AT190..JPP..ATM ; (9202- )ST191..JPP..ATM
A240E,A241E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-20350 |
AT190..JPP..ATM |
1 | ||
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-20350 |
AT190..JPP..ATM |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-16031 |
AT190,ST191..JPP..ATM |
2 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-16031 |
AT190,ST191..JPP..ATM |
2 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-16031 |
AT190,ST191..JPP..ATM |
2 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-16031 |
AT190,ST191..JPP..ATM |
2 | ||
| 32921D - HOSE(FOR OIL COOLER INLET) | ||||
| 32943-20010 |
AT190..JPP..ATM |
1 | ||
| 32943-20070 |
AT190..JPP..ATM |
1 | ||
| 32921D - HOSE(FOR OIL COOLER INLET) | ||||
| 32943-20010 |
AT190..JPP..ATM |
1 | ||
| 32943-20070 |
AT190..JPP..ATM |
1 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
AT190,ST191..JPP..ATM |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
AT190,ST191..JPP..ATM |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
AT190,ST191..JPP..ATM |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
AT190,ST191..JPP..ATM |
2 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-20350 |
AT190..JPP..ATM |
1 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-20350 |
AT190..JPP..ATM |
1 | ||
| 32922A - HOSE(FOR OIL COOLER OUTLET) | ||||
| 90445-17097 |
AT190..JPP..ATM |
1 | ||
| 32922A - HOSE(FOR OIL COOLER OUTLET) | ||||
| 90445-17097 |
AT190..JPP..ATM |
1 | ||
| 32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1 | ||||
| 32923-20150 |
AT190..JPP..ATM |
1 | ||
| 32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1 | ||||
| 32923-20150 |
AT190..JPP..ATM |
1 | ||
| 32924 - CLAMP, OIL COOLER TUBE, NO.2 | ||||
| 32924-20080 |
AT190,ST191..JPP..ATM |
2 | ||
| 32924 - CLAMP, OIL COOLER TUBE, NO.2 | ||||
| 32924-20080 |
AT190,ST191..JPP..ATM |
2 | ||
| 32924 - CLAMP, OIL COOLER TUBE, NO.2 | ||||
| 32924-20080 |
AT190,ST191..JPP..ATM |
2 | ||
| 32924 - CLAMP, OIL COOLER TUBE, NO.2 | ||||
| 32924-20080 |
AT190,ST191..JPP..ATM |
2 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-20010 |
AT190,ST191..JPP..ATM L=25,ID=10 |
2 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-20010 |
AT190,ST191..JPP..ATM L=25,ID=10 |
2 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-20010 |
AT190,ST191..JPP..ATM L=25,ID=10 |
2 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-20010 |
AT190,ST191..JPP..ATM L=25,ID=10 |
2 | ||
| 32928 - CLAMP, FLEXIBLE HOSE, NO.1 | ||||
| 32928-20100 |
AT190..JPP..ATM |
1 | ||
| Common parts | ||||
| 90467-16013 | ||||
| 91611-F0612 | ||||
| 91616-G0614 | ||||
| 91651-F0616 | ||||

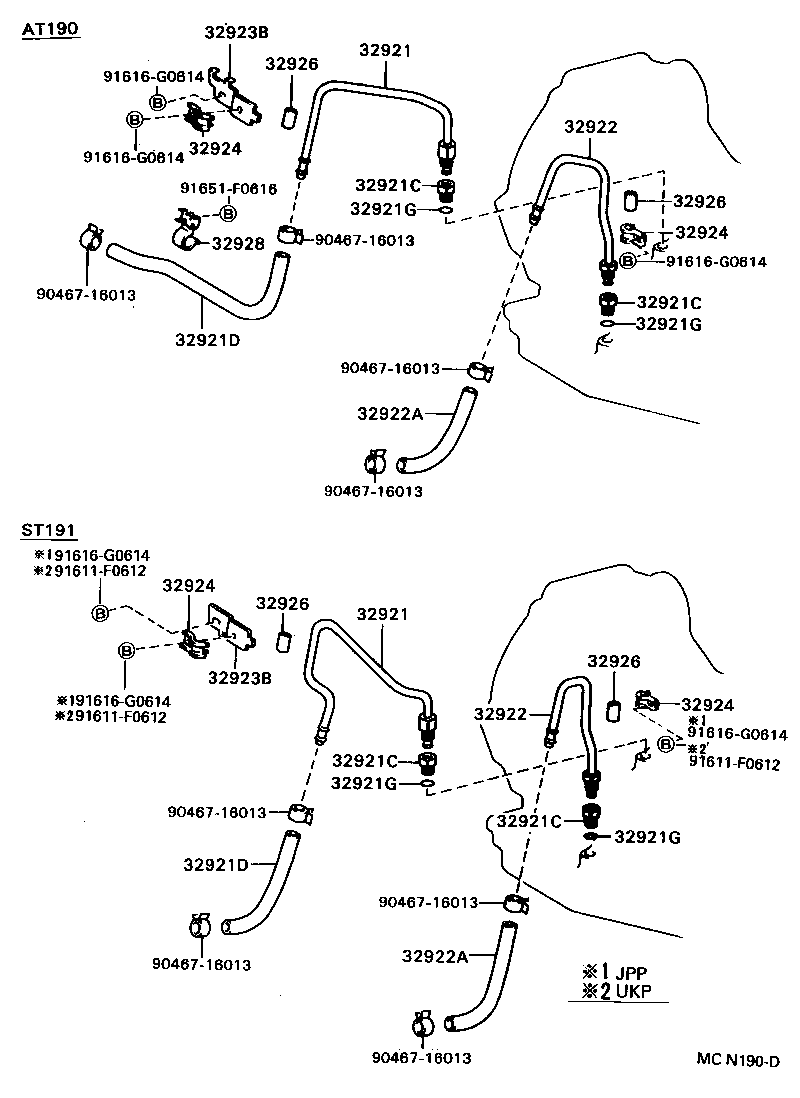

(9305- )AT190..JPP..ATM
A245E,A246E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-20350 |
AT190..JPP..ATM |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-16031 |
AT190,ST191..JPP..ATM |
2 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-16031 |
AT190,ST191..JPP..ATM |
2 | ||
| 32921D - HOSE(FOR OIL COOLER INLET) | ||||
| 32943-20010 |
AT190..JPP..ATM |
1 | ||
| 32943-20070 |
AT190..JPP..ATM |
1 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
AT190,ST191..JPP..ATM |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
AT190,ST191..JPP..ATM |
2 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-20350 |
AT190..JPP..ATM |
1 | ||
| 32922A - HOSE(FOR OIL COOLER OUTLET) | ||||
| 90445-17097 |
AT190..JPP..ATM |
1 | ||
| 32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1 | ||||
| 32923-20150 |
AT190..JPP..ATM |
1 | ||
| 32924 - CLAMP, OIL COOLER TUBE, NO.2 | ||||
| 32924-20080 |
AT190,ST191..JPP..ATM |
2 | ||
| 32924 - CLAMP, OIL COOLER TUBE, NO.2 | ||||
| 32924-20080 |
AT190,ST191..JPP..ATM |
2 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-20010 |
AT190,ST191..JPP..ATM L=25,ID=10 |
2 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-20010 |
AT190,ST191..JPP..ATM L=25,ID=10 |
2 | ||
| 32928 - CLAMP, FLEXIBLE HOSE, NO.1 | ||||
| 32928-20100 |
AT190..JPP..ATM |
1 | ||
| Common parts | ||||
| 90119-06029 | ||||
| 90119-08358 | ||||
| 90467-16013 | ||||
| 91611-60814 | ||||
| 91611-F0612 | ||||
| 91616-G0614 | ||||
| 91652-B0616 | ||||
