AT190R-AEPNKW (1992)

Toyota Carina E Sed/Lb(Jpp)

Production Feb 1992 - Nov 1994
Engine 4AFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9202- )JPP

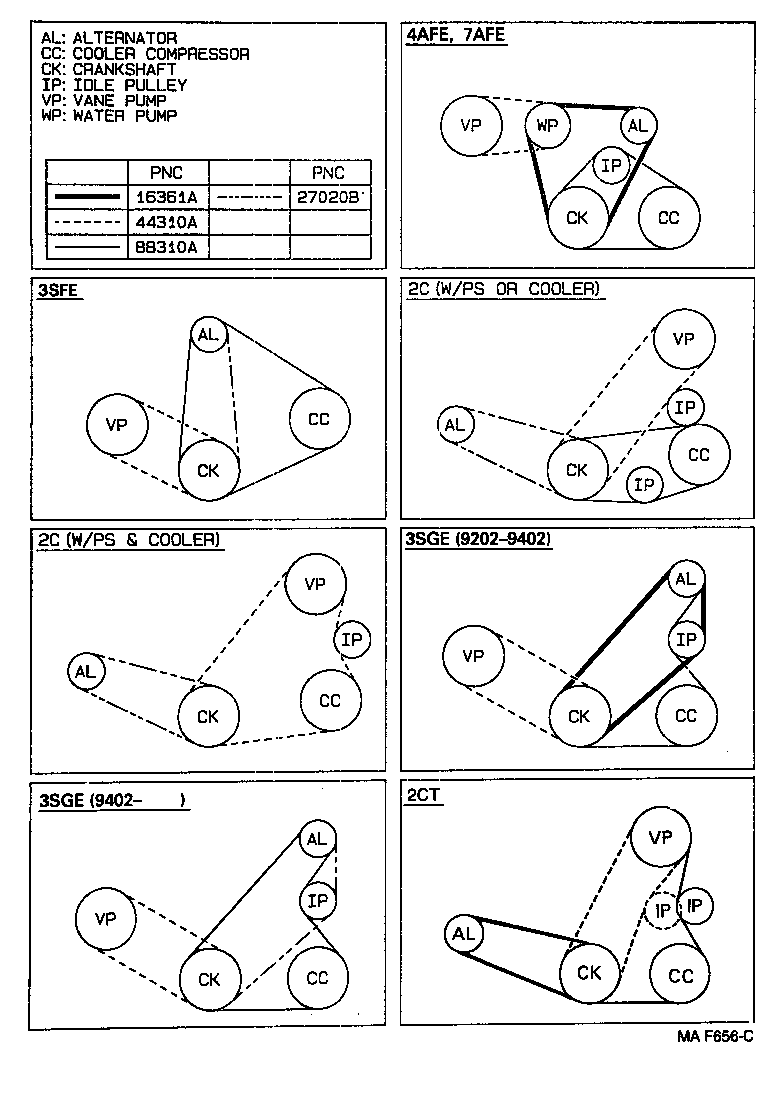

Click highlighted areas on diagram

diagram 16361A 27020B 44310A 88310A
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
99365-20970

4AFE..AT190..JPP

 1
44310A - BELT, V(FOR VANE PUMP)
99363-80630

AT190..JPP

L=630

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99364-20850

AT190..JPP

L=850,W(AIR CONDITIONER)

 1
99364-20870

AT190..JPP

L=870,W(AIR CONDITIONER=DOP)

 1
99364-20850

AT190..JPP..RHD

L=850,BANDO

 1
