AT190R-AEPNKW (1992)

Toyota Carina E Sed/Lb(Jpp)

Production Feb 1992 - Nov 1994
Engine 4AFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9202- )4AFE..JPP..ATM

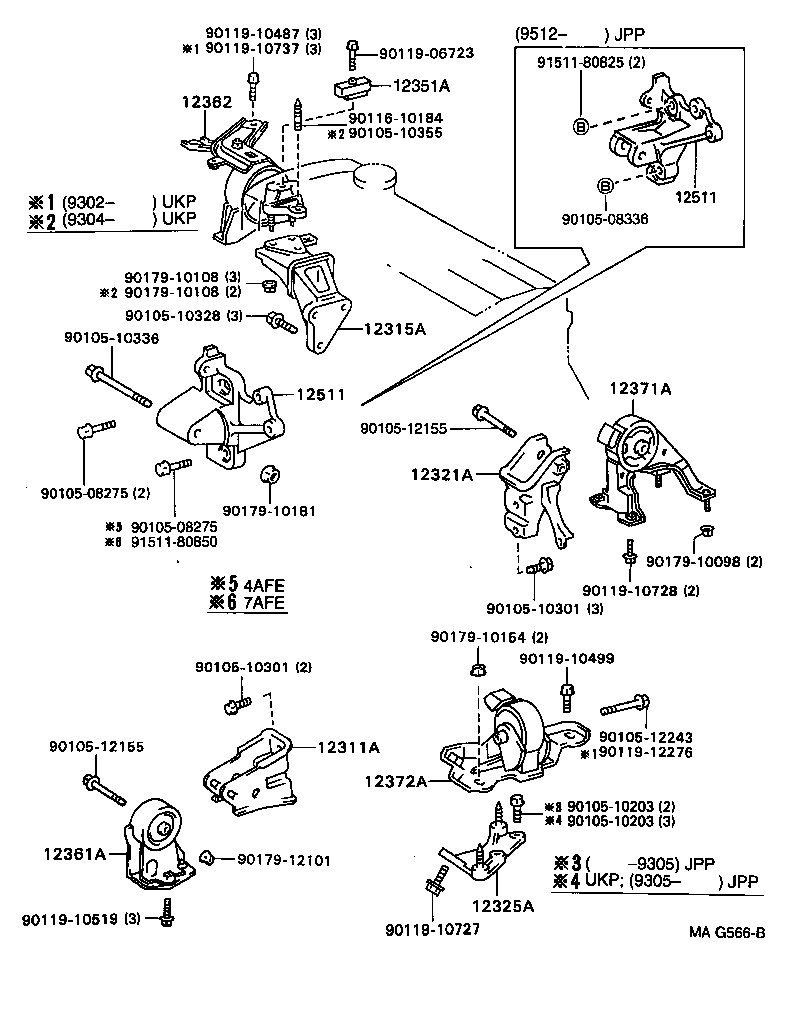

Click highlighted areas on diagram

diagram 12311A 12315A 12321A 12325A 12351A 12361A 12362 12371A 12372A 12511 12511 9010508275 9010508275 9010508336 9010510203 9010510203 9010510301 9010510301 9010510328 9010510336 9010510355 9010512155 9010512155 9010512243 9011610184 9011906723 9011910487 9011910499 9011910519 9011910727 9011910728 9011910737 9011912276 9017910098 9017910108 9017910108 9017910154 9017910181 9017912101 9151180825 9151180850
Part # Description Qty Price
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-16120

4AFE..AT190..JPP

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-16060

4AFE..AT190..JPP

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-16270

4AFE..AT190..JPP..ATM

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-16190

4AFE..AT190..JPP..ATM

 1
12351A - DAMPER, ENGINE MOUNTING(FOR INSULATOR)
12351-16040

4AFE..AT190..JPP

 1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-16220

4AFE..AT190..JPP..ATM

 1
12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12305-16040

4AFE..AT190..JPP

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-16290

4AFE..AT190..JPP..ATM

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-16280

4AFE..AT190..JPP..ATM

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-15050

4AFE..AT190..JPP

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-15050

4AFE..AT190..JPP

 1
Common parts
90105-08275
90105-08336
90105-10203
90105-10301
90105-10328
90105-10336
90105-10355
90105-12155
90105-12243
90116-10184
90119-06723
90119-10487
90119-10499
90119-10519
90119-10727
90119-10728
90119-10737
90119-12276
90179-10098
90179-10108
90179-10154
90179-10181
90179-12101
91511-80825
91511-80850
