AT190R-AEMNKW (1992)
Toyota Carina E Sed/Lb(Jpp)
Production
Feb 1992
-
Nov 1994
Engine
4AFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9202- )JPP

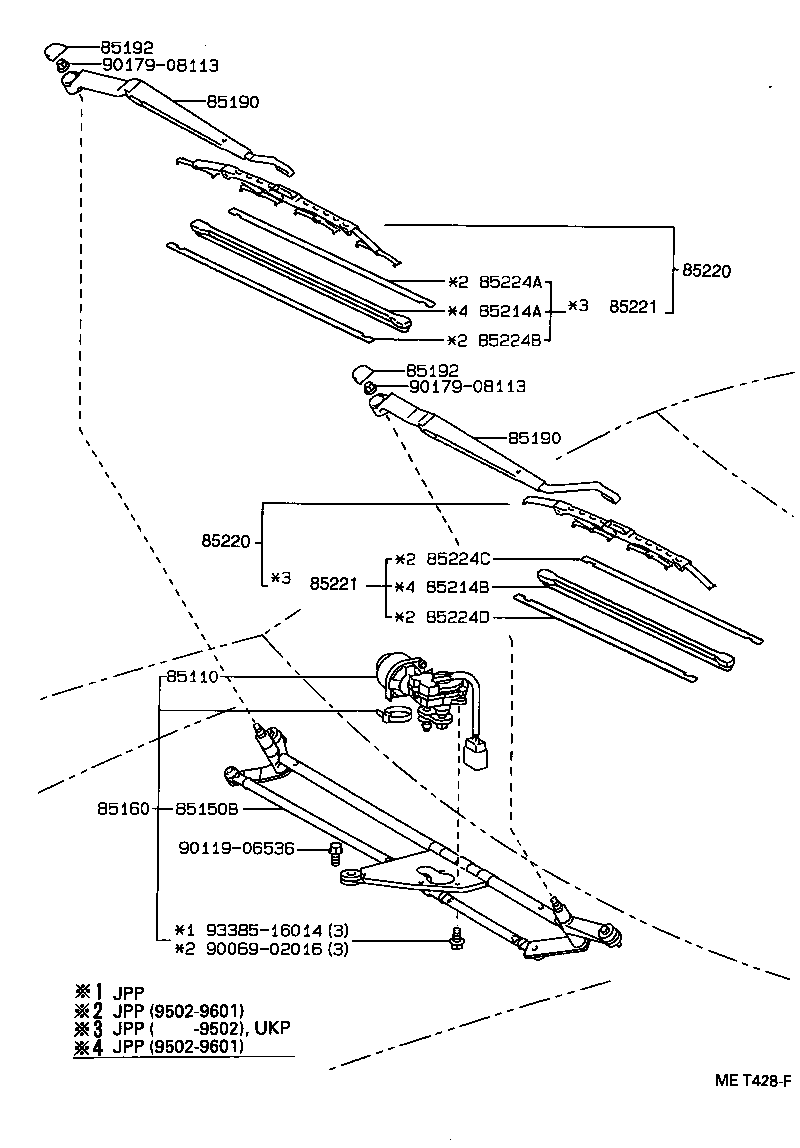

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85110 - MOTOR ASSY, WINDSHIELD WIPER | ||||
| 85110-20720 |
AT190,CT190,ST191..JPP..RHD |
1 | ||
| 85150B - LINK ASSY, WIPER | ||||
| 85150-20770 |
AT190,CT190,ST191..JPP..RHD |
1 | ||
| 85160 - LINK ASSY, WINDSHIELD WIPER | ||||
| 85010-20190 |
AT190,CT190,ST191..JPP..RHD |
1 | ||
| 85190 - ARM ASSY, WINDSHIELD WIPER | ||||
| 85211-20340 |
AT190,ST191..JPP..RHD RH |
1 | ||
| 85221-20320 |
AT190,CT190,ST191..JPP..RHD LH |
1 | ||
| 85190 - ARM ASSY, WINDSHIELD WIPER | ||||
| 85211-20340 |
AT190,ST191..JPP..RHD RH |
1 | ||
| 85221-20320 |
AT190,CT190,ST191..JPP..RHD LH |
1 | ||
| 85192 - COVER, WINDSHIELD WIPER ARM | ||||
| 85192-12800 |
AT190,CT190,ST191..JPP |
2 | ||
| 85192 - COVER, WINDSHIELD WIPER ARM | ||||
| 85192-12800 |
AT190,CT190,ST191..JPP |
2 | ||
| 85220 - BLADE ASSY, WINDSHIELD WIPER | ||||
| 85222-20310 |
AT190,CT190,ST191..JPP..RHD LH |
1 | ||
| 85212-20320 |
AT190,ST191..JPP..RHD RH |
1 | ||
| 85220 - BLADE ASSY, WINDSHIELD WIPER | ||||
| 85222-20310 |
AT190,CT190,ST191..JPP..RHD LH |
1 | ||
| 85212-20320 |
AT190,ST191..JPP..RHD RH |
1 | ||
| 85221 - BLADE, WINDSHIELD WIPER | ||||
| 85223-33022 |
AT190,CT190,ST191..JPP LH |
1 | ||
| 85223-20290 |
AT190,CT190,ST191..JPP LH |
1 | ||
| 85223-20320 |
AT190,CT190,ST191..JPP RH |
1 | ||
| 85221 - BLADE, WINDSHIELD WIPER | ||||
| 85223-33022 |
AT190,CT190,ST191..JPP LH |
1 | ||
| 85223-20290 |
AT190,CT190,ST191..JPP LH |
1 | ||
| 85223-20320 |
AT190,CT190,ST191..JPP RH |
1 | ||
| Common parts | ||||
| 90069-02016 | ||||
| 90119-06536 | ||||
| 90179-08113 | ||||
| 93385-16014 | ||||
