AT190R-AEMNKW (1992)
Toyota Carina E Sed/Lb(Jpp)
(9202- )JPP

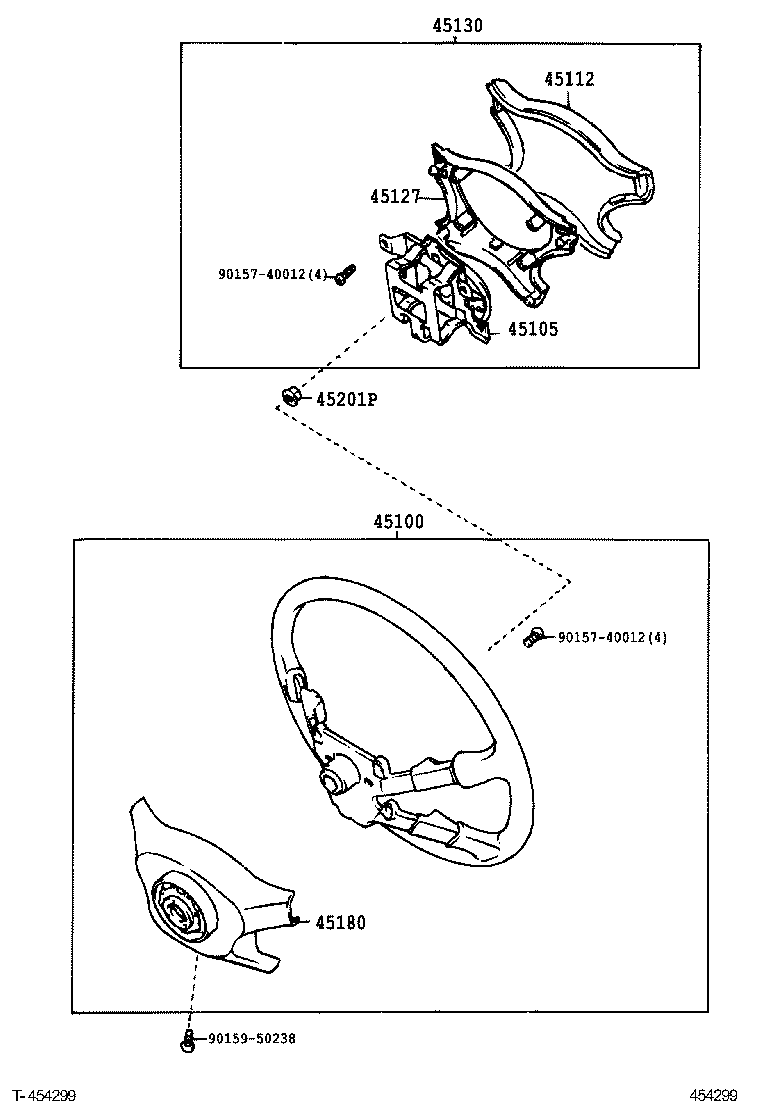

4-SPOKE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-2B230C0 |
AT190,CT190,ST191..JPP..(GL,XL) 4-SPOKE,URETHANE,4-SPOKE,URETHAN,W(*80),BLACK,BLACK,TRIM2#,8# |
1 | ||
| 45100-2B211C0 |
AT190,CT190,ST191..JPP..(GL,XL) 4-SPOKE,LEATHER,4-SPOKE,LEATHER,W(*80),BLACK,BLACK,TRIM2#,8# |
1 | ||
| 45100-2B210C0 |
AT190,CT190,ST191..JPP..(GL,XL) 4-SPOKE,4-SPOKE,LEATHER,W(*80),BLACK,TRIM2#,8# |
1 | ||
| 45100-2B231C0 |
AT190,CT190,ST191..JPP..(GL,XL) 4-SPOKE,URETHANE,4-SPOKE,URETHAN,W(*80),BLACK,BLACK,TRIM2#,8# |
1 | ||
| 45100-2B210C0 |
AT190,ST191..JPP..GL 4-SPOKE,4-SPOKE,LEATHER,W(*80),BLACK,TRIM2#,8# |
1 | ||
| 45100-2B200C0 |
AT190,ST191..JPP..GL 4-SPOKE,LEATHER,4-SPOKE,LEATHER,BLACK,BLACK,TRIM2#,8# |
1 | ||
| 45100-2B231C0 |
AT190,CT190,ST191..JPP..(GL,XL) 4-SPOKE,URETHANE,SRS AIR BAG SYSTEM(DEALER OPTION),BLACK,TRIM1#,8# |
1 | ||
| 45100-2B190C0 |
AT190,ST191..JPP..GL 4-SPOKE,URETHANE,BLACK,TRIM2#,8# |
1 | ||
| 45100-2B212C0 |
AT190,CT190,ST191..JPP..(GL,XL) 4-SPOKE,LEATHER,4-SPOKE,LEATHER,W(*80),BLACK,BLACK,TRIM2#,8# |
1 | ||
| 45100-2B420C0 |
AT190,CT190,ST191..JPP..(GL,XL) 4-SPOKE,URETHANE,SRS AIR BAG SYSTEM(DEALER OPTION),BLACK,TRIM1#,8# |
1 | ||
| 45100-2B212C0 |
AT190,CT190,ST191..JPP..(GL,XL) 4-SPOKE,LEATHER,4-SPOKE,LEATHER,W(*80),BLACK,BLACK,TRIM1#,8# |
1 | ||
| 45100-2B420C0 |
CT190..JPP;AT190,ST191..JPP..GL 4-SPOKE,URETHANE,4-SPOKE,URETHAN,W(*80),BLACK,BLACK,TRIM1#,8# |
1 | ||
| 45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1 | ||||
| 45105-20420 |
AT190,ST191..JPP..(GL,GT) |
1 | ||
| 45112 - PAD, STEERING WHEEL | ||||
| 45112-20610C0 |
AT190,ST191..JPP..GL BLACK,TRIM2#,8# |
1 | ||
| 45127 - INSERT, HORN BUTTON, UPPER NO.1 | ||||
| 45127-20020 |
AT190,ST191..JPP..(GL,GT) |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-2B340C0 |
AT190,CT190,ST191..JPP..(GL,XL) BLACK,TRIM1#,8# |
1 | ||
| 45130-2B171C0 |
AT190,CT190,ST191..JPP..(GL,XL) 4-SPOKE,W(MECHANICAL TYPE *80),BLACK,BLACK,TRIM2#,8# |
1 | ||
| 45130-2B170C0 |
AT190,ST191..JPP..GL 4-SPOKE,W(MECHANICAL TYPE *80),BLACK,BLACK,TRIM2#,8# |
1 | ||
| 45130-2B170C0 |
AT190,CT190,ST191..JPP..(GL,XL) 4-SPOKE,W(MECHANICAL TYPE *80),BLACK,BLACK,TRIM2#,8# |
1 | ||
| 45130-2B321C0 |
AT190,CT190,ST191..JPP..(GL,XL) W(MECHANICAL TYPE *80),BLACK,BLACK,TRIM2#,8# |
1 | ||
| 45130-2B160C0 |
AT190,ST191..JPP..GL BLACK,TRIM2#,8# |
1 | ||
| 45130-2B170C0 |
AT190,CT190,ST191..JPP..(GL,XL) 4-SPOKE,W(MECHANICAL TYPE *80),BLACK,BLACK,TRIM2#,8# |
1 | ||
| 45130-2B321C0 |
AT190,CT190,ST191..JPP..(GL,XL) W(MECHANICAL TYPE *80),BLACK,BLACK,TRIM1#,8# |
1 | ||
| 45180 - COVER SUB-ASSY, STEERING WHEEL | ||||
| 45180-20210C0 |
AT190,ST191..JPP..GL BLACK,TRIM2#,8# |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12086 |
AT190,CT190,ST191..JPP |
1 | ||
| 90179-12086 |
AT190,CT190,ST191..JPP |
1 | ||
| 90179-12071 |
AT190,CT190,ST191..JPP |
1 | ||
| Common parts | ||||
| 90157-40012 | ||||
| 90159-50238 | ||||
(9202- )JPP

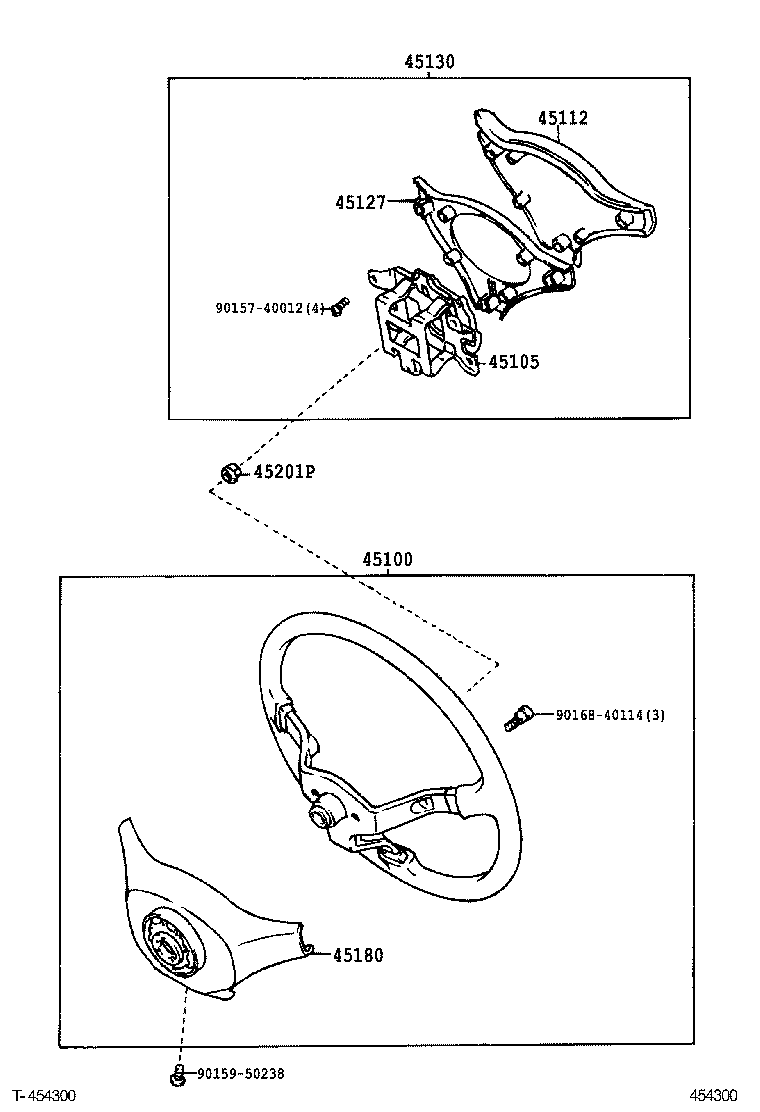

3-SPOKE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-2B230C0 |
AT190,CT190,ST191..JPP..(GL,XL) 4-SPOKE,URETHANE,4-SPOKE,URETHAN,W(*80),BLACK,BLACK,TRIM2#,8# |
1 | ||
| 45100-2B211C0 |
AT190,CT190,ST191..JPP..(GL,XL) 4-SPOKE,LEATHER,4-SPOKE,LEATHER,W(*80),BLACK,BLACK,TRIM2#,8# |
1 | ||
| 45100-2B210C0 |
AT190,CT190,ST191..JPP..(GL,XL) 4-SPOKE,4-SPOKE,LEATHER,W(*80),BLACK,TRIM2#,8# |
1 | ||
| 45100-2B231C0 |
AT190,CT190,ST191..JPP..(GL,XL) 4-SPOKE,URETHANE,4-SPOKE,URETHAN,W(*80),BLACK,BLACK,TRIM2#,8# |
1 | ||
| 45100-2B210C0 |
AT190,ST191..JPP..GL 4-SPOKE,4-SPOKE,LEATHER,W(*80),BLACK,TRIM2#,8# |
1 | ||
| 45100-2B200C0 |
AT190,ST191..JPP..GL 4-SPOKE,LEATHER,4-SPOKE,LEATHER,BLACK,BLACK,TRIM2#,8# |
1 | ||
| 45100-2B231C0 |
AT190,CT190,ST191..JPP..(GL,XL) 4-SPOKE,URETHANE,SRS AIR BAG SYSTEM(DEALER OPTION),BLACK,TRIM1#,8# |
1 | ||
| 45100-2B190C0 |
AT190,ST191..JPP..GL 4-SPOKE,URETHANE,BLACK,TRIM2#,8# |
1 | ||
| 45100-2B212C0 |
AT190,CT190,ST191..JPP..(GL,XL) 4-SPOKE,LEATHER,4-SPOKE,LEATHER,W(*80),BLACK,BLACK,TRIM2#,8# |
1 | ||
| 45100-2B420C0 |
AT190,CT190,ST191..JPP..(GL,XL) 4-SPOKE,URETHANE,SRS AIR BAG SYSTEM(DEALER OPTION),BLACK,TRIM1#,8# |
1 | ||
| 45100-2B212C0 |
AT190,CT190,ST191..JPP..(GL,XL) 4-SPOKE,LEATHER,4-SPOKE,LEATHER,W(*80),BLACK,BLACK,TRIM1#,8# |
1 | ||
| 45100-2B420C0 |
CT190..JPP;AT190,ST191..JPP..GL 4-SPOKE,URETHANE,4-SPOKE,URETHAN,W(*80),BLACK,BLACK,TRIM1#,8# |
1 | ||
| 45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1 | ||||
| 45105-20420 |
AT190,ST191..JPP..(GL,GT) |
1 | ||
| 45112 - PAD, STEERING WHEEL | ||||
| 45112-20610C0 |
AT190,ST191..JPP..GL BLACK,TRIM2#,8# |
1 | ||
| 45127 - INSERT, HORN BUTTON, UPPER NO.1 | ||||
| 45127-20020 |
AT190,ST191..JPP..(GL,GT) |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-2B171C0 |
AT190,CT190,ST191..JPP..(GL,XL) 4-SPOKE,W(MECHANICAL TYPE *80),BLACK,BLACK,TRIM2#,8# |
1 | ||
| 45130-2B170C0 |
AT190,ST191..JPP..GL 4-SPOKE,W(MECHANICAL TYPE *80),BLACK,BLACK,TRIM2#,8# |
1 | ||
| 45130-2B170C0 |
AT190,CT190,ST191..JPP..(GL,XL) 4-SPOKE,W(MECHANICAL TYPE *80),BLACK,BLACK,TRIM2#,8# |
1 | ||
| 45130-2B340C0 |
AT190,CT190,ST191..JPP..(GL,XL) BLACK,TRIM1#,8# |
1 | ||
| 45130-2B321C0 |
AT190,CT190,ST191..JPP..(GL,XL) W(MECHANICAL TYPE *80),BLACK,BLACK,TRIM2#,8# |
1 | ||
| 45130-2B160C0 |
AT190,ST191..JPP..GL BLACK,TRIM2#,8# |
1 | ||
| 45130-2B170C0 |
AT190,CT190,ST191..JPP..(GL,XL) 4-SPOKE,W(MECHANICAL TYPE *80),BLACK,BLACK,TRIM2#,8# |
1 | ||
| 45130-2B321C0 |
AT190,CT190,ST191..JPP..(GL,XL) W(MECHANICAL TYPE *80),BLACK,BLACK,TRIM1#,8# |
1 | ||
| 45180 - COVER SUB-ASSY, STEERING WHEEL | ||||
| 45180-20210C0 |
AT190,ST191..JPP..GL BLACK,TRIM2#,8# |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12086 |
AT190,CT190,ST191..JPP |
1 | ||
| 90179-12086 |
AT190,CT190,ST191..JPP |
1 | ||
| 90179-12071 |
AT190,CT190,ST191..JPP |
1 | ||
| Common parts | ||||
| 90157-40012 | ||||
| 90159-50238 | ||||
| 90168-40114 | ||||

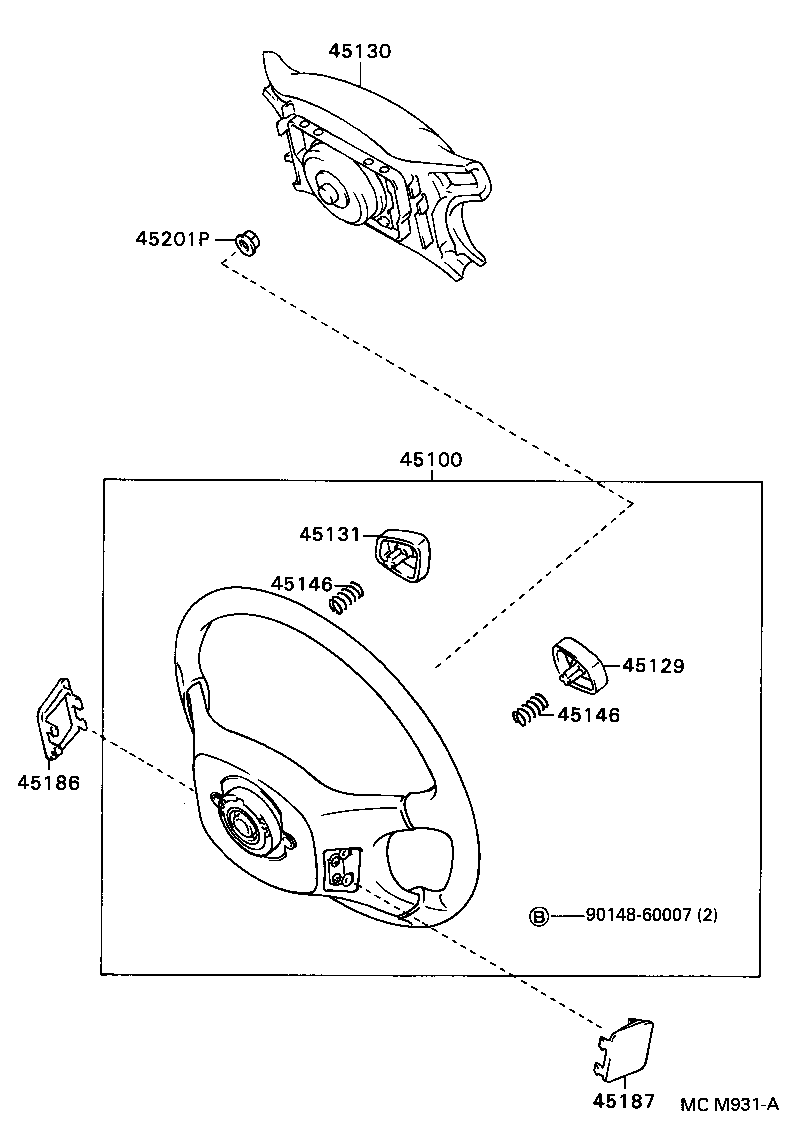

(9202-9412)JPP
SRS AIR BAG SYSTEM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-2B230C0 |
AT190,CT190,ST191..JPP..(GL,XL) 4-SPOKE,URETHANE,4-SPOKE,URETHAN,W(*80),BLACK,BLACK,TRIM2#,8# |
1 | ||
| 45100-2B211C0 |
AT190,CT190,ST191..JPP..(GL,XL) 4-SPOKE,LEATHER,4-SPOKE,LEATHER,W(*80),BLACK,BLACK,TRIM2#,8# |
1 | ||
| 45100-2B210C0 |
AT190,CT190,ST191..JPP..(GL,XL) 4-SPOKE,4-SPOKE,LEATHER,W(*80),BLACK,TRIM2#,8# |
1 | ||
| 45100-2B231C0 |
AT190,CT190,ST191..JPP..(GL,XL) 4-SPOKE,URETHANE,4-SPOKE,URETHAN,W(*80),BLACK,BLACK,TRIM2#,8# |
1 | ||
| 45100-2B210C0 |
AT190,ST191..JPP..GL 4-SPOKE,4-SPOKE,LEATHER,W(*80),BLACK,TRIM2#,8# |
1 | ||
| 45100-2B200C0 |
AT190,ST191..JPP..GL 4-SPOKE,LEATHER,4-SPOKE,LEATHER,BLACK,BLACK,TRIM2#,8# |
1 | ||
| 45100-2B231C0 |
AT190,CT190,ST191..JPP..(GL,XL) 4-SPOKE,URETHANE,SRS AIR BAG SYSTEM(DEALER OPTION),BLACK,TRIM1#,8# |
1 | ||
| 45100-2B190C0 |
AT190,ST191..JPP..GL 4-SPOKE,URETHANE,BLACK,TRIM2#,8# |
1 | ||
| 45100-2B212C0 |
AT190,CT190,ST191..JPP..(GL,XL) 4-SPOKE,LEATHER,4-SPOKE,LEATHER,W(*80),BLACK,BLACK,TRIM2#,8# |
1 | ||
| 45100-2B420C0 |
AT190,CT190,ST191..JPP..(GL,XL) 4-SPOKE,URETHANE,SRS AIR BAG SYSTEM(DEALER OPTION),BLACK,TRIM1#,8# |
1 | ||
| 45100-2B212C0 |
AT190,CT190,ST191..JPP..(GL,XL) 4-SPOKE,LEATHER,4-SPOKE,LEATHER,W(*80),BLACK,BLACK,TRIM1#,8# |
1 | ||
| 45100-2B420C0 |
CT190..JPP;AT190,ST191..JPP..GL 4-SPOKE,URETHANE,4-SPOKE,URETHAN,W(*80),BLACK,BLACK,TRIM1#,8# |
1 | ||
| 45129 - BUTTON, HORN, NO.2 | ||||
| 45129-33010C0 |
AT190,CT190,ST191..JPP..(GL,XL) BLACK,TRIM2#,8# |
1 | ||
| 45129-33010C0 |
AT190,ST191..JPP..GL BLACK,TRIM2#,8# |
1 | ||
| 45129-33010C0 |
AT190,CT190,ST191..JPP..(GL,XL) BLACK,TRIM1#,8# |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-2B340C0 |
AT190,CT190,ST191..JPP..(GL,XL) BLACK,TRIM1#,8# |
1 | ||
| 45130-2B171C0 |
AT190,CT190,ST191..JPP..(GL,XL) 4-SPOKE,W(MECHANICAL TYPE *80),BLACK,BLACK,TRIM2#,8# |
1 | ||
| 45130-2B170C0 |
AT190,ST191..JPP..GL 4-SPOKE,W(MECHANICAL TYPE *80),BLACK,BLACK,TRIM2#,8# |
1 | ||
| 45130-2B170C0 |
AT190,CT190,ST191..JPP..(GL,XL) 4-SPOKE,W(MECHANICAL TYPE *80),BLACK,BLACK,TRIM2#,8# |
1 | ||
| 45130-2B321C0 |
AT190,CT190,ST191..JPP..(GL,XL) W(MECHANICAL TYPE *80),BLACK,BLACK,TRIM2#,8# |
1 | ||
| 45130-2B160C0 |
AT190,ST191..JPP..GL BLACK,TRIM2#,8# |
1 | ||
| 45130-2B170C0 |
AT190,CT190,ST191..JPP..(GL,XL) 4-SPOKE,W(MECHANICAL TYPE *80),BLACK,BLACK,TRIM2#,8# |
1 | ||
| 45130-2B321C0 |
AT190,CT190,ST191..JPP..(GL,XL) W(MECHANICAL TYPE *80),BLACK,BLACK,TRIM1#,8# |
1 | ||
| 45131 - BUTTON, HORN, NO.1 | ||||
| 45131-33010C0 |
AT190,CT190,ST191..JPP..(GL,XL) BLACK,TRIM1#,8# |
1 | ||
| 45131-33010C0 |
AT190,ST191..JPP..GL BLACK,TRIM2#,8# |
1 | ||
| 45131-33010C0 |
AT190,CT190,ST191..JPP..(GL,XL) BLACK,TRIM2#,8# |
1 | ||
| 45146 - SPRING, HORN BUTTON CONTACT | ||||
| 45146-20230 |
AT190,ST191..JPP..(GL,GT) |
2 | ||
| 45146-32070 |
AT190,CT190,ST191..JPP 4-SPOKE,LEATHER,W(*80) |
1 | ||
| 45146-20230 |
AT190,CT190,ST191..JPP |
2 | ||
| 45146 - SPRING, HORN BUTTON CONTACT | ||||
| 45146-20230 |
AT190,ST191..JPP..(GL,GT) |
2 | ||
| 45146-32070 |
AT190,CT190,ST191..JPP 4-SPOKE,LEATHER,W(*80) |
1 | ||
| 45146-20230 |
AT190,CT190,ST191..JPP |
2 | ||
| 45186 - COVER, STEERING WHEEL, LOWER NO.2 | ||||
| 45186-2002022 |
AT190,ST191..JPP..GL BLACK,TRIM2#,8# |
1 | ||
| 45186-2002022 |
AT190,CT190,ST191..JPP..(GL,XL) BLACK,TRIM1#,8# |
1 | ||
| 45186-2002022 |
AT190,CT190,ST191..JPP..(GL,XL) BLACK,TRIM2#,8# |
1 | ||
| 45187 - COVER, STEERING WHEEL, LOWER NO.3 | ||||
| 45187-20030C0 |
AT190,CT190,ST191..JPP..(GL,XL) BLACK,TRIM1#,8# |
1 | ||
| 45187-20030C0 |
AT190,ST191..JPP..GL BLACK,TRIM2#,8# |
1 | ||
| 45187-20030C0 |
AT190,CT190,ST191..JPP..(GL,XL) BLACK,TRIM2#,8# |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12086 |
AT190,CT190,ST191..JPP |
1 | ||
| 90179-12086 |
AT190,CT190,ST191..JPP |
1 | ||
| 90179-12071 |
AT190,CT190,ST191..JPP |
1 | ||
| Common parts | ||||
| 90148-60007 | ||||
(9309- )JPP
SRS AIR BAG SYSTEM(DEALER OPTION)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45001 - AIR BAG KIT, STTERING WHEEL | ||||
| 45001-20010C0 |
AT190,CT190,ST191..JPP..(GL,XL) BLACK,TRIM2#,8# |
1 | ||
| 45001-20010C0 |
AT190,CT190,ST191..JPP..(GL,XL) BLACK,TRIM1#,8# |
1 | ||
| 45001-20020C0 |
AT190,CT190,ST191..JPP..(GL,XL) BLACK,TRIM1#,8# |
1 | ||
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-2B230C0 |
AT190,CT190,ST191..JPP..(GL,XL) 4-SPOKE,URETHANE,4-SPOKE,URETHAN,W(*80),BLACK,BLACK,TRIM2#,8# |
1 | ||
| 45100-2B211C0 |
AT190,CT190,ST191..JPP..(GL,XL) 4-SPOKE,LEATHER,4-SPOKE,LEATHER,W(*80),BLACK,BLACK,TRIM2#,8# |
1 | ||
| 45100-2B210C0 |
AT190,CT190,ST191..JPP..(GL,XL) 4-SPOKE,4-SPOKE,LEATHER,W(*80),BLACK,TRIM2#,8# |
1 | ||
| 45100-2B231C0 |
AT190,CT190,ST191..JPP..(GL,XL) 4-SPOKE,URETHANE,4-SPOKE,URETHAN,W(*80),BLACK,BLACK,TRIM2#,8# |
1 | ||
| 45100-2B210C0 |
AT190,ST191..JPP..GL 4-SPOKE,4-SPOKE,LEATHER,W(*80),BLACK,TRIM2#,8# |
1 | ||
| 45100-2B200C0 |
AT190,ST191..JPP..GL 4-SPOKE,LEATHER,4-SPOKE,LEATHER,BLACK,BLACK,TRIM2#,8# |
1 | ||
| 45100-2B231C0 |
AT190,CT190,ST191..JPP..(GL,XL) 4-SPOKE,URETHANE,SRS AIR BAG SYSTEM(DEALER OPTION),BLACK,TRIM1#,8# |
1 | ||
| 45100-2B190C0 |
AT190,ST191..JPP..GL 4-SPOKE,URETHANE,BLACK,TRIM2#,8# |
1 | ||
| 45100-2B212C0 |
AT190,CT190,ST191..JPP..(GL,XL) 4-SPOKE,LEATHER,4-SPOKE,LEATHER,W(*80),BLACK,BLACK,TRIM2#,8# |
1 | ||
| 45100-2B420C0 |
AT190,CT190,ST191..JPP..(GL,XL) 4-SPOKE,URETHANE,SRS AIR BAG SYSTEM(DEALER OPTION),BLACK,TRIM1#,8# |
1 | ||
| 45100-2B212C0 |
AT190,CT190,ST191..JPP..(GL,XL) 4-SPOKE,LEATHER,4-SPOKE,LEATHER,W(*80),BLACK,BLACK,TRIM1#,8# |
1 | ||
| 45100-2B420C0 |
CT190..JPP;AT190,ST191..JPP..GL 4-SPOKE,URETHANE,4-SPOKE,URETHAN,W(*80),BLACK,BLACK,TRIM1#,8# |
1 | ||
| 45129 - BUTTON, HORN, NO.2 | ||||
| 45129-33010C0 |
AT190,CT190,ST191..JPP..(GL,XL) BLACK,TRIM2#,8# |
1 | ||
| 45129-33010C0 |
AT190,ST191..JPP..GL BLACK,TRIM2#,8# |
1 | ||
| 45129-33010C0 |
AT190,CT190,ST191..JPP..(GL,XL) BLACK,TRIM1#,8# |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-2B171C0 |
AT190,CT190,ST191..JPP..(GL,XL) 4-SPOKE,W(MECHANICAL TYPE *80),BLACK,BLACK,TRIM2#,8# |
1 | ||
| 45130-2B170C0 |
AT190,ST191..JPP..GL 4-SPOKE,W(MECHANICAL TYPE *80),BLACK,BLACK,TRIM2#,8# |
1 | ||
| 45130-2B170C0 |
AT190,CT190,ST191..JPP..(GL,XL) 4-SPOKE,W(MECHANICAL TYPE *80),BLACK,BLACK,TRIM2#,8# |
1 | ||
| 45130-2B340C0 |
AT190,CT190,ST191..JPP..(GL,XL) BLACK,TRIM1#,8# |
1 | ||
| 45130-2B321C0 |
AT190,CT190,ST191..JPP..(GL,XL) W(MECHANICAL TYPE *80),BLACK,BLACK,TRIM2#,8# |
1 | ||
| 45130-2B160C0 |
AT190,ST191..JPP..GL BLACK,TRIM2#,8# |
1 | ||
| 45130-2B170C0 |
AT190,CT190,ST191..JPP..(GL,XL) 4-SPOKE,W(MECHANICAL TYPE *80),BLACK,BLACK,TRIM2#,8# |
1 | ||
| 45130-2B321C0 |
AT190,CT190,ST191..JPP..(GL,XL) W(MECHANICAL TYPE *80),BLACK,BLACK,TRIM1#,8# |
1 | ||
| 45131 - BUTTON, HORN, NO.1 | ||||
| 45131-33010C0 |
AT190,CT190,ST191..JPP..(GL,XL) BLACK,TRIM1#,8# |
1 | ||
| 45131-33010C0 |
AT190,ST191..JPP..GL BLACK,TRIM2#,8# |
1 | ||
| 45131-33010C0 |
AT190,CT190,ST191..JPP..(GL,XL) BLACK,TRIM2#,8# |
1 | ||
| 45146 - SPRING, HORN BUTTON CONTACT | ||||
| 45146-20230 |
AT190,ST191..JPP..(GL,GT) |
2 | ||
| 45146-32070 |
AT190,CT190,ST191..JPP 4-SPOKE,LEATHER,W(*80) |
1 | ||
| 45146-20230 |
AT190,CT190,ST191..JPP |
2 | ||
| 45146 - SPRING, HORN BUTTON CONTACT | ||||
| 45146-20230 |
AT190,ST191..JPP..(GL,GT) |
2 | ||
| 45146-32070 |
AT190,CT190,ST191..JPP 4-SPOKE,LEATHER,W(*80) |
1 | ||
| 45146-20230 |
AT190,CT190,ST191..JPP |
2 | ||
| 45186 - COVER, STEERING WHEEL, LOWER NO.2 | ||||
| 45186-2002022 |
AT190,ST191..JPP..GL BLACK,TRIM2#,8# |
1 | ||
| 45186-2002022 |
AT190,CT190,ST191..JPP..(GL,XL) BLACK,TRIM1#,8# |
1 | ||
| 45186-2002022 |
AT190,CT190,ST191..JPP..(GL,XL) BLACK,TRIM2#,8# |
1 | ||
| 45187 - COVER, STEERING WHEEL, LOWER NO.3 | ||||
| 45187-20030C0 |
AT190,CT190,ST191..JPP..(GL,XL) BLACK,TRIM1#,8# |
1 | ||
| 45187-20030C0 |
AT190,ST191..JPP..GL BLACK,TRIM2#,8# |
1 | ||
| 45187-20030C0 |
AT190,CT190,ST191..JPP..(GL,XL) BLACK,TRIM2#,8# |
1 | ||
| Common parts | ||||
| 90148-60007 | ||||
| 90159-50265 | ||||
| Linked diagrams | ||||
| 7403 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
