AT190R-AEMDKW (1992)

Toyota Carina E Sed/Lb(Jpp)

Production Feb 1992 - Nov 1994
Engine 4AFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9202- )4AFE..JPP

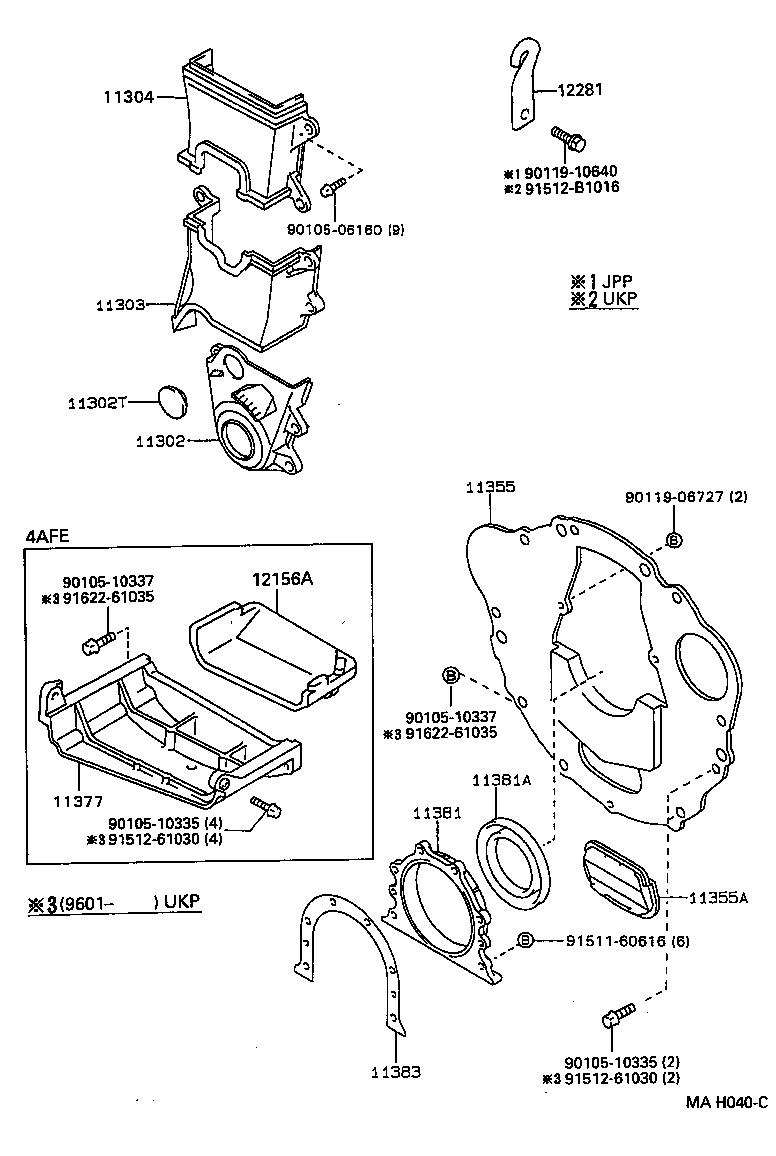

Click highlighted areas on diagram

diagram 11302 11302T 11303 11304 11355 11355A 11377 11381 11381A 11383 12156A 12281 9010506160 9010510335 9010510335 9010510337 9010510337 9011906727 9011910640 9151160616 9151261030 9151261030 91512B1016 9162261035 9162261035
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11302-15050

4AFE..AT190..JPP

 1
11302T - PLUG, HOLE
90950-01783

4AFE..AT190..JPP

 1
11303 - COVER SUB-ASSY, CRANKSHAFT GEAR OR PULLEY
11303-15050

4AFE..AT190..JPP

 1
11304 - COVER, TIMING CHAIN OR BELT, NO.2
11304-15030

4AFE..AT190..JPP

 1
11355 - PLATE, REAR END
11355-15070

4AFE..AT190..JPP..MTM

 1
11377 - STIFFENER, REAR END PLATE
11377-15010

4AFE..AT190..JPP

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-15010

4AFE..AT190..JPP

 1
11381A - SEAL, ENGINE REAR OIL
90311-70007

4AFE..AT190..JPP

 1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-15011

4AFE..AT190..JPP

 1
Common parts
90105-06160
90105-10335
90105-10337
90119-06727
90119-10640
91511-60616
91512-61030
91512-B1016
91622-61035
