AT190L-ALMNKW (1992)
Toyota Carina E Sed/Lb(Jpp)

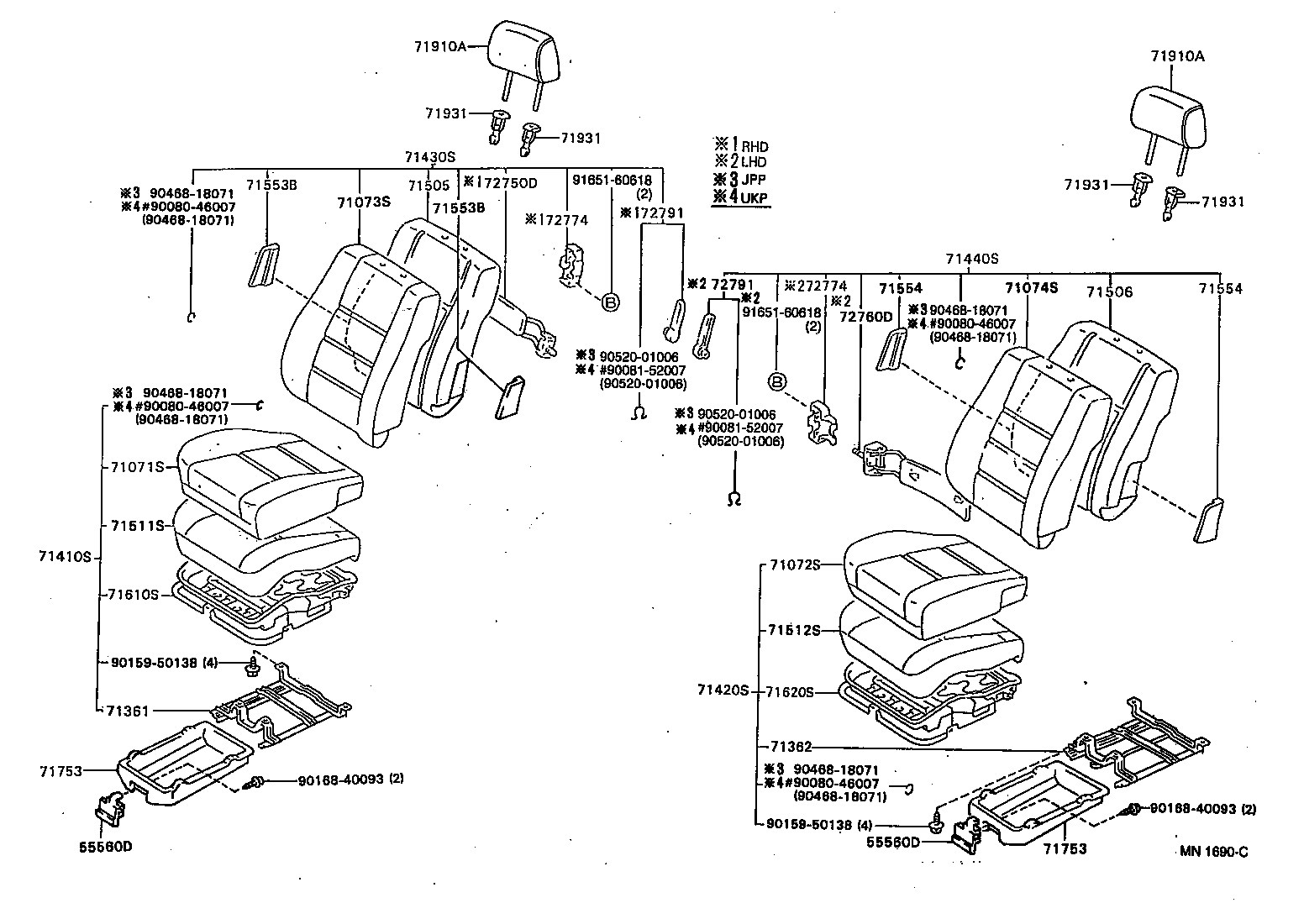

ILLUST NO. 1 OF 2(9202- )JPP..GL,GT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55560D - LOCK ASSY, SEAT UNDER TRAY | ||||
| 55560-95J00C0 |
AT190,ST191..JPP..GL BLACK,TRIM2#,8# |
2 | ||
| 55560-95J00C0 |
AT190,ST191..JPP..GL BLACK,TRIM1#,8# |
2 | ||
| 55560D - LOCK ASSY, SEAT UNDER TRAY | ||||
| 55560-95J00C0 |
AT190,ST191..JPP..GL BLACK,TRIM2#,8# |
2 | ||
| 55560-95J00C0 |
AT190,ST191..JPP..GL BLACK,TRIM1#,8# |
2 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-2G080B0 |
AT190,ST191..JPP..LHD..GL GRAY,TRIM2# |
1 | ||
| 71071-2G100J0 |
AT190,ST191..JPP..LHD..GL W(SEAT HEATER),DK. BLUE,TRIM8# |
1 | ||
| 71071-2G080J0 |
AT190,ST191..JPP..LHD..GL DK. BLUE,TRIM8# |
1 | ||
| 71071-2G100B0 |
AT190,ST191..JPP..LHD..GL W(SEAT HEATER),GRAY,TRIM2# |
1 | ||
| 71071-2G140C2 |
AT190,ST191..JPP..LHD..LB..GL W(SPORTS SEAT & SEAT HEATER),BLACK,TRIM2# |
1 | ||
| 71071-2G120C2 |
AT190,ST191..JPP..LHD..LB..GL W(SPORTS SEAT),BLACK,TRIM2# |
1 | ||
| 71071-2G100B3 |
AT190,ST191..JPP..LHD..GL W(SEAT HEATER),GRAY,TRIM2# |
1 | ||
| 71071-2G100J2 |
AT190,ST191..JPP..LHD..GL W(SEAT HEATER),DK. BLUE,TRIM8# |
1 | ||
| 71071-2G140C3 |
AT190,ST191..JPP..LHD..LB..GL W(SPORTS SEAT & SEAT HEATER),BLACK,TRIM2# |
1 | ||
| 71071-2G120C3 |
AT190,ST191..JPP..LHD..LB..GL W(SPORTS SEAT),BLACK,TRIM2# |
1 | ||
| 71071-2G080B3 |
AT190,ST191..JPP..LHD..GL GRAY,TRIM2# |
1 | ||
| 71071-2G080J2 |
AT190,ST191..JPP..LHD..GL DK. BLUE,TRIM8# |
1 | ||
| 71071-2G101B6 |
AT190,ST191..JPP..LHD..GL W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71071-2G101J5 |
AT190,ST191..JPP..LHD..GL W(SEAT HEATER),DK. BLUE,TRIM8# |
1 | ||
| 71071-2G081B6 |
AT190,ST191..JPP..LHD..GL SHADOW GRAY,TRIM1# |
1 | ||
| 71071-2G121C6 |
AT190,ST191..JPP..LHD..LB..GL W(SPORTS SEAT),BLACK,TRIM1# |
1 | ||
| 71071-2G081J5 |
AT190,ST191..JPP..LHD..GL DK. BLUE,TRIM8# |
1 | ||
| 71071-2G141C6 |
AT190,ST191..JPP..LHD..LB..GL W(SPORTS SEAT & SEAT HEATER),BLACK,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-2D510B0 |
AT190,ST191..JPP..LHD..GL GRAY,TRIM2# |
1 | ||
| 71072-2D520J0 |
AT190,ST191..JPP..LHD..GL W(SEAT HEATER),DK. BLUE,TRIM8# |
1 | ||
| 71072-2D550C2 |
AT190,ST191..JPP..LHD..LB..GL W(SPORTS SEAT & SEAT HEATER),BLACK,TRIM2# |
1 | ||
| 71072-2D540C2 |
AT190,ST191..JPP..LHD..LB..GL W(SPORTS SEAT),BLACK,TRIM2# |
1 | ||
| 71072-2D520B0 |
AT190,ST191..JPP..LHD..GL W(SEAT HEATER),GRAY,TRIM2# |
1 | ||
| 71072-2D510J0 |
AT190,ST191..JPP..LHD..GL DK. BLUE,TRIM8# |
1 | ||
| 71072-2D510B3 |
AT190,ST191..JPP..LHD..GL GRAY,TRIM2# |
1 | ||
| 71072-2D510J2 |
AT190,ST191..JPP..LHD..GL DK. BLUE,TRIM8# |
1 | ||
| 71072-2D520B3 |
AT190,ST191..JPP..LHD..GL W(SEAT HEATER),GRAY,TRIM2# |
1 | ||
| 71072-2D550C3 |
AT190,ST191..JPP..LHD..LB..GL W(SPORTS SEAT & SEAT HEATER),BLACK,TRIM2# |
1 | ||
| 71072-2D540C3 |
AT190,ST191..JPP..LHD..LB..GL W(SPORTS SEAT),BLACK,TRIM2# |
1 | ||
| 71072-2D520J2 |
AT190,ST191..JPP..LHD..GL W(SEAT HEATER),DK. BLUE,TRIM8# |
1 | ||
| 71072-2D521B5 |
AT190,ST191..JPP..LHD..GL W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71072-2D511J4 |
AT190,ST191..JPP..LHD..GL DK. BLUE,TRIM8# |
1 | ||
| 71072-2D521J4 |
AT190,ST191..JPP..LHD..GL W(SEAT HEATER),DK. BLUE,TRIM8# |
1 | ||
| 71072-2D541C6 |
AT190,ST191..JPP..LHD..LB..GL W(SPORTS SEAT),BLACK,TRIM1# |
1 | ||
| 71072-2D511B5 |
AT190,ST191..JPP..LHD..GL SHADOW GRAY,TRIM1# |
1 | ||
| 71072-2D551C6 |
AT190,ST191..JPP..LHD..LB..GL W(SPORTS SEAT & SEAT HEATER),BLACK,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-2D850B0 |
AT190,ST191..JPP..LHD..GL GRAY,TRIM2# |
1 | ||
| 71073-2D850J0 |
AT190,ST191..JPP..LHD..GL DK. BLUE,TRIM8# |
1 | ||
| 71073-2G030B0 |
AT190,ST191..JPP..LHD..GL W(SEAT HEATER),GRAY,TRIM2# |
1 | ||
| 71073-2D860C1 |
AT190,ST191..JPP..LHD..LB..GL W(SPORTS SEAT),BLACK,TRIM2# |
1 | ||
| 71073-2G050C1 |
AT190,ST191..JPP..LHD..LB..GL W(SPORTS SEAT & SEAT HEATER),BLACK,TRIM2# |
1 | ||
| 71073-2D850B4 |
AT190,ST191..JPP..LHD..GL GRAY,TRIM2# |
1 | ||
| 71073-2G030J0 |
AT190,ST191..JPP..LHD..GL W(SEAT HEATER),DK. BLUE,TRIM8# |
1 | ||
| 71073-2D850J3 |
AT190,ST191..JPP..LHD..GL DK. BLUE,TRIM8# |
1 | ||
| 71073-2D860C3 |
AT190,ST191..JPP..LHD..LB..GL W(SPORTS SEAT),BLACK,TRIM2# |
1 | ||
| 71073-2G030B4 |
AT190,ST191..JPP..LHD..GL W(SEAT HEATER),GRAY,TRIM2# |
1 | ||
| 71073-2G030J3 |
AT190,ST191..JPP..LHD..GL W(SEAT HEATER),DK. BLUE,TRIM8# |
1 | ||
| 71073-2D851P0 |
AT190,ST191..JPP..LHD..GL SHADOW GRAY,TRIM1# |
1 | ||
| 71073-2D861C6 |
AT190,ST191..JPP..LHD..LB..GL W(SPORTS SEAT),BLACK,TRIM1# |
1 | ||
| 71073-2D851J8 |
AT190,ST191..JPP..LHD..GL DK.BLUE,TRIM8# |
1 | ||
| 71073-2G031J8 |
AT190,ST191..JPP..LHD..GL W(SEAT HEATER),DK.BLUE,TRIM8# |
1 | ||
| 71073-2G050C3 |
AT190,ST191..JPP..LHD..LB..GL W(SPORTS SEAT & SEAT HEATER),BLACK,TRIM2# |
1 | ||
| 71073-2G031P0 |
AT190,ST191..JPP..LHD..GL W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71073-2G051C6 |
AT190,ST191..JPP..LHD..LB..GL W(SPORTS SEAT & SEAT HEATER),BLACK,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-2D520J0 |
AT190,ST191..JPP..LHD..GL W(SEAT HEATER),DK. BLUE,TRIM8# |
1 | ||
| 71074-2D530J0 |
AT190,ST191..JPP..LHD..GL DK. BLUE,TRIM8# |
1 | ||
| 71074-2D530B0 |
AT190,ST191..JPP..LHD..GL GRAY,TRIM2# |
1 | ||
| 71074-2D550C1 |
AT190,ST191..JPP..LHD..LB..GL W(SPORTS SEAT),BLACK,TRIM2# |
1 | ||
| 71074-2D540C1 |
AT190,ST191..JPP..LHD..LB..GL W(SPORTS SEAT & SEAT HEATER),BLACK,TRIM2# |
1 | ||
| 71074-2D520B0 |
AT190,ST191..JPP..LHD..GL W(SEAT HEATER),GRAY,TRIM2# |
1 | ||
| 71074-2D520B4 |
AT190,ST191..JPP..LHD..GL W(SEAT HEATER),GRAY,TRIM2# |
1 | ||
| 71074-2D530B3 |
AT190,ST191..JPP..LHD..GL GRAY,TRIM2# |
1 | ||
| 71074-2D520J3 |
AT190,ST191..JPP..LHD..GL W(SEAT HEATER),DK. BLUE,TRIM8# |
1 | ||
| 71074-2D550C2 |
AT190,ST191..JPP..LHD..LB..GL W(SPORTS SEAT),BLACK,TRIM2# |
1 | ||
| 71074-2D540C3 |
AT190,ST191..JPP..LHD..LB..GL W(SPORTS SEAT & SEAT HEATER),BLACK,TRIM2# |
1 | ||
| 71074-2D530J2 |
AT190,ST191..JPP..LHD..GL DK. BLUE,TRIM8# |
1 | ||
| 71074-2D521J7 |
AT190,ST191..JPP..LHD..GL W(SEAT HEATER),DK.BLUE,TRIM8# |
1 | ||
| 71074-2D531J4 |
AT190,ST191..JPP..LHD..GL DK. BLUE,TRIM8# |
1 | ||
| 71074-2D551C4 |
AT190,ST191..JPP..LHD..LB..GL W(SPORTS SEAT),BLACK,TRIM1# |
1 | ||
| 71074-2D541C6 |
AT190,ST191..JPP..LHD..LB..GL W(SPORTS SEAT & SEAT HEATER),BLACK,TRIM1# |
1 | ||
| 71074-2D531B5 |
AT190,ST191..JPP..LHD..GL SHADOW GRAY,TRIM1# |
1 | ||
| 71074-2D521B9 |
AT190,ST191..JPP..LHD..GL W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71361 - BRACKET, FRONT SEAT SET, NO.1 | ||||
| 71361-20120 |
AT190,ST191..JPP..(GL,GT) |
1 | ||
| 71362 - BRACKET, FRONT SEAT SET, NO.2 | ||||
| 71362-20120 |
AT190,ST191..JPP..(GL,GT) |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-2G660C0 |
AT190,ST191..JPP..LHD..LB..GL W(SPORTS SEAT),BLACK,TRIM2# |
1 | ||
| 71410-2G650C0 |
AT190,ST191..JPP..LHD..GL BLACK,TRIM2# |
1 | ||
| 71410-2G650J0 |
AT190,ST191..JPP..LHD..GL DK.BLUE,TRIM8# |
1 | ||
| 71410-2G670J0 |
AT190,ST191..JPP..LHD..GL W(SEAT HEATER),DK.BLUE,TRIM8# |
1 | ||
| 71410-2G670C0 |
AT190,ST191..JPP..LHD..GL W(SEAT HEATER),BLACK,TRIM2# |
1 | ||
| 71410-2G680C0 |
AT190,ST191..JPP..LHD..LB..GL W(SPORTS SEAT & SEAT HEATER),BLACK,TRIM2# |
1 | ||
| 71410-2G650C3 |
AT190,ST191..JPP..LHD..GL BLACK,TRIM2# |
1 | ||
| 71410-2G650J3 |
AT190,ST191..JPP..LHD..GL DK.BLUE,TRIM8# |
1 | ||
| 71410-2G660C2 |
AT190,ST191..JPP..LHD..LB..GL W(SPORTS SEAT),BLACK,TRIM2# |
1 | ||
| 71410-2G670J3 |
AT190,ST191..JPP..LHD..GL W(SEAT HEATER),DK.BLUE,TRIM8# |
1 | ||
| 71410-2G670C3 |
AT190,ST191..JPP..LHD..GL W(SEAT HEATER),BLACK,TRIM2# |
1 | ||
| 71410-2G680C2 |
AT190,ST191..JPP..LHD..LB..GL W(SPORTS SEAT & SEAT HEATER),BLACK,TRIM2# |
1 | ||
| 71410-2G661B0 |
AT190,ST191..JPP..LHD..LB..GL W(SPORTS SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71410-2G651B0 |
AT190,ST191..JPP..LHD..GL SHADOW GRAY,TRIM1# |
1 | ||
| 71410-2G651J0 |
AT190,ST191..JPP..LHD..GL DK.BLUE,TRIM8# |
1 | ||
| 71410-2G681B0 |
AT190,ST191..JPP..LHD..LB..GL W(SPORTS SEAT & SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71410-2G671J0 |
AT190,ST191..JPP..LHD..GL W(SEAT HEATER),DK.BLUE,TRIM8# |
1 | ||
| 71410-2G671B0 |
AT190,ST191..JPP..LHD..GL W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71410-2G652J0 |
AT190,ST191..JPP..LHD..GL DK. GRAY,TRIM8# |
1 | ||
| 71410-2G652B0 |
AT190,ST191..JPP..LHD..GL SHADOW GRAY,TRIM1# |
1 | ||
| 71410-2G662B0 |
AT190,ST191..JPP..LHD..LB..GL W(SPORTS SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71410-2G672J0 |
AT190,ST191..JPP..LHD..GL W(SEAT HEATER),DK. GRAY,TRIM8# |
1 | ||
| 71410-2G682B0 |
AT190,ST191..JPP..LHD..LB..GL W(SPORTS SEAT & SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71410-2G672B0 |
AT190,ST191..JPP..LHD..GL W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-2G280C0 |
AT190,ST191..JPP..LHD..GL BLACK,TRIM2# |
1 | ||
| 71420-2G290C0 |
AT190,ST191..JPP..LHD..LB..GL W(SPORTS SEAT),BLACK,TRIM2# |
1 | ||
| 71420-2G300J0 |
AT190,ST191..JPP..LHD..GL W(SEAT HEATER),DK.BLUE,TRIM8# |
1 | ||
| 71420-2G280J0 |
AT190,ST191..JPP..LHD..GL DK.BLUE,TRIM8# |
1 | ||
| 71420-2G300C0 |
AT190,ST191..JPP..LHD..GL W(SEAT HEATER),BLACK,TRIM2# |
1 | ||
| 71420-2G310C0 |
AT190,ST191..JPP..LHD..LB..GL W(SPORTS SEAT & SEAT HEATER),BLACK,TRIM2# |
1 | ||
| 71420-2G280C3 |
AT190,ST191..JPP..LHD..GL BLACK,TRIM2# |
1 | ||
| 71420-2G290C2 |
AT190,ST191..JPP..LHD..LB..GL W(SPORTS SEAT),BLACK,TRIM2# |
1 | ||
| 71420-2G300C3 |
AT190,ST191..JPP..LHD..GL W(SEAT HEATER),BLACK,TRIM2# |
1 | ||
| 71420-2G280J3 |
AT190,ST191..JPP..LHD..GL DK.BLUE,TRIM8# |
1 | ||
| 71420-2G310C2 |
AT190,ST191..JPP..LHD..LB..GL W(SPORTS SEAT & SEAT HEATER),BLACK,TRIM2# |
1 | ||
| 71420-2G300J3 |
AT190,ST191..JPP..LHD..GL W(SEAT HEATER),DK.BLUE,TRIM8# |
1 | ||
| 71420-2G291B0 |
AT190,ST191..JPP..LHD..LB..GL W(SPORTS SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71420-2G301B0 |
AT190,ST191..JPP..LHD..GL W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71420-2G311B0 |
AT190,ST191..JPP..LHD..LB..GL W(SPORTS SEAT & SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71420-2G301J0 |
AT190,ST191..JPP..LHD..GL W(SEAT HEATER),DK.BLUE,TRIM8# |
1 | ||
| 71420-2G281B0 |
AT190,ST191..JPP..LHD..GL SHADOW GRAY,TRIM1# |
1 | ||
| 71420-2G281J0 |
AT190,ST191..JPP..LHD..GL DK.BLUE,TRIM8# |
1 | ||
| 71420-2G282B0 |
AT190,ST191..JPP..LHD..GL SHADOW GRAY,TRIM1# |
1 | ||
| 71420-2G292B0 |
AT190,ST191..JPP..LHD..LB..GL W(SPORTS SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71420-2G302B0 |
AT190,ST191..JPP..LHD..GL W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71420-2G282J0 |
AT190,ST191..JPP..LHD..GL DK. GRAY,TRIM8# |
1 | ||
| 71420-2G302J0 |
AT190,ST191..JPP..LHD..GL W(SEAT HEATER),DK. GRAY,TRIM8# |
1 | ||
| 71420-2G312B0 |
AT190,ST191..JPP..LHD..LB..GL W(SPORTS SEAT & SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-2G530C0 |
AT190,ST191..JPP..LHD..GL BLACK,TRIM2# |
1 | ||
| 71430-2G530J0 |
AT190,ST191..JPP..LHD..GL DK. BLUE,TRIM8# |
1 | ||
| 71430-2G560C0 |
AT190,ST191..JPP..LHD..LB..GL W(SPORTS SEAT),BLACK,TRIM2# |
1 | ||
| 71430-2G550C0 |
AT190,ST191..JPP..LHD..GL W(SEAT HEATER),BLACK,TRIM2# |
1 | ||
| 71430-2G550J0 |
AT190,ST191..JPP..LHD..GL W(SEAT HEATER),DK. BLUE,TRIM8# |
1 | ||
| 71430-2G440C0 |
AT190,ST191..JPP..LHD..LB..GL W(SPORTS SEAT & SEAT HEATER),BLACK,TRIM2# |
1 | ||
| 71430-2G440C3 |
AT190,ST191..JPP..LHD..LB..GL W(SPORTS SEAT & SEAT HEATER),BLACK,TRIM2# |
1 | ||
| 71430-2G530C3 |
AT190,ST191..JPP..LHD..GL BLACK,TRIM2# |
1 | ||
| 71430-2G560C3 |
AT190,ST191..JPP..LHD..LB..GL W(SPORTS SEAT),BLACK,TRIM2# |
1 | ||
| 71430-2G550J3 |
AT190,ST191..JPP..LHD..GL W(SEAT HEATER),DK.BLUE,TRIM8# |
1 | ||
| 71430-2G550C3 |
AT190,ST191..JPP..LHD..GL W(SEAT HEATER),BLACK,TRIM2# |
1 | ||
| 71430-2G530J3 |
AT190,ST191..JPP..LHD..GL DK.BLUE,TRIM8# |
1 | ||
| 71430-2G441B0 |
AT190,ST191..JPP..LHD..LB..GL W(SPORTS SEAT & SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71430-2G531B0 |
AT190,ST191..JPP..LHD..GL SHADOW GRAY,TRIM1# |
1 | ||
| 71430-2G561B0 |
AT190,ST191..JPP..LHD..LB..GL W(SPORTS SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71430-2G551B0 |
AT190,ST191..JPP..LHD..GL W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71430-2G551J0 |
AT190,ST191..JPP..LHD..GL W(SEAT HEATER),DK.BLUE,TRIM8# |
1 | ||
| 71430-2G531J0 |
AT190,ST191..JPP..LHD..GL DK.BLUE,TRIM8# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-2G180J0 |
AT190,ST191..JPP..LHD..GL DK. BLUE,TRIM8# |
1 | ||
| 71440-2G190J0 |
AT190,ST191..JPP..LHD..GL W(SEAT HEATER),DK. BLUE,TRIM8# |
1 | ||
| 71440-2G190C0 |
AT190,ST191..JPP..LHD..GL W(SEAT HEATER),BLACK,TRIM2# |
1 | ||
| 71440-2G180C0 |
AT190,ST191..JPP..LHD..GL BLACK,TRIM2# |
1 | ||
| 71440-2G210C0 |
AT190,ST191..JPP..LHD..LB..GL W(SPORTS SEAT & SEAT HEATER),BLACK,TRIM2# |
1 | ||
| 71440-2G200C0 |
AT190,ST191..JPP..LHD..LB..GL W(SPORTS SEAT),BLACK,TRIM2# |
1 | ||
| 71440-2G180C3 |
AT190,ST191..JPP..LHD..GL BLACK,TRIM2# |
1 | ||
| 71440-2G210C3 |
AT190,ST191..JPP..LHD..LB..GL W(SPORTS SEAT & SEAT HEATER),BLACK,TRIM2# |
1 | ||
| 71440-2G200C3 |
AT190,ST191..JPP..LHD..LB..GL W(SPORTS SEAT),BLACK,TRIM2# |
1 | ||
| 71440-2G190C3 |
AT190,ST191..JPP..LHD..GL W(SEAT HEATER),BLACK,TRIM2# |
1 | ||
| 71440-2G180J3 |
AT190,ST191..JPP..LHD..GL DK.BLUE,TRIM8# |
1 | ||
| 71440-2G190J3 |
AT190,ST191..JPP..LHD..GL W(SEAT HEATER),DK.BLUE,TRIM8# |
1 | ||
| 71440-2G191B0 |
AT190,ST191..JPP..LHD..GL W(SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71440-2G181B0 |
AT190,ST191..JPP..LHD..GL SHADOW GRAY,TRIM1# |
1 | ||
| 71440-2G181J0 |
AT190,ST191..JPP..LHD..GL DK.BLUE,TRIM8# |
1 | ||
| 71440-2G211B0 |
AT190,ST191..JPP..LHD..LB..GL W(SPORTS SEAT & SEAT HEATER),SHADOW GRAY,TRIM1# |
1 | ||
| 71440-2G201B0 |
AT190,ST191..JPP..LHD..LB..GL W(SPORTS SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71440-2G191J0 |
AT190,ST191..JPP..LHD..GL W(SEAT HEATER),DK.BLUE,TRIM8# |
1 | ||
| 71505 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, RH | ||||
| 71505-20230 |
AT190,ST191..JPP..LHD..LB..GL W(SPORTS SEAT) |
1 | ||
| 71505-20210 |
AT190,CT190..JPP..XL;AT190,ST191..JPP..LHD..GL |
1 | ||
| 71506 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, LH | ||||
| 71506-20180 |
AT190,ST191..JPP..LHD..GL |
1 | ||
| 71506-20190 |
AT190,ST191..JPP..LHD..LB..GL W(SPORTS SEAT) |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-20620 |
AT190,CT190,ST191..JPP..(GL,XL) |
1 | ||
| 71511-20630 |
AT190,ST191..JPP..LB..GL W(SPORTS SEAT) |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-20620 |
AT190,CT190,ST191..JPP..(GL,XL) |
1 | ||
| 71511-20630 |
AT190,ST191..JPP..LB..GL W(SPORTS SEAT) |
1 | ||
| 71553B - PAD, FRONT SEAT BACK, B | ||||
| 71554-20190 |
AT190,ST191..JPP..LHD..LB..GL W(SPORTS SEAT),LH |
1 | ||
| 71553-20230 |
AT190,CT190,ST191..JPP..(GL,XL) RH |
1 | ||
| 71553-20220 |
AT190,ST191..JPP..LB..GL W(SPORTS SEAT),RH |
1 | ||
| 71554-20200 |
AT190,CT190..JPP..XL;AT190,ST191..JPP..LHD..GL LH |
1 | ||
| 71553-20220 |
AT190,ST191..JPP..LB..GL W(SPORTS SEAT) |
1 | ||
| 71553B - PAD, FRONT SEAT BACK, B | ||||
| 71554-20190 |
AT190,ST191..JPP..LHD..LB..GL W(SPORTS SEAT),LH |
1 | ||
| 71553-20230 |
AT190,CT190,ST191..JPP..(GL,XL) RH |
1 | ||
| 71553-20220 |
AT190,ST191..JPP..LB..GL W(SPORTS SEAT),RH |
1 | ||
| 71554-20200 |
AT190,CT190..JPP..XL;AT190,ST191..JPP..LHD..GL LH |
1 | ||
| 71553-20220 |
AT190,ST191..JPP..LB..GL W(SPORTS SEAT) |
1 | ||
| 71554 - PAD, FRONT SEAT BACK, C | ||||
| 71553-20240 |
AT190,ST191..JPP..LHD..GL RH |
1 | ||
| 71554-20200 |
AT190,CT190,ST191..JPP..(GL,XL) LH |
1 | ||
| 71554-20190 |
AT190,ST191..JPP..LB..GL W(SPORTS SEAT),LH |
1 | ||
| 71553-20250 |
AT190,ST191..JPP..LHD..LB..GL W(SPORTS SEAT),RH |
1 | ||
| 71554 - PAD, FRONT SEAT BACK, C | ||||
| 71553-20240 |
AT190,ST191..JPP..LHD..GL RH |
1 | ||
| 71554-20200 |
AT190,CT190,ST191..JPP..(GL,XL) LH |
1 | ||
| 71554-20190 |
AT190,ST191..JPP..LB..GL W(SPORTS SEAT),LH |
1 | ||
| 71553-20250 |
AT190,ST191..JPP..LHD..LB..GL W(SPORTS SEAT),RH |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-20510 |
AT190,CT190..JPP..XL;AT190,ST191..JPP..LHD..(GL,GT) |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-20300 |
AT190,ST191..JPP..LHD..(GL,GT) |
1 | ||
| 71753 - TRAY, FRONT SEAT UNDER | ||||
| 71753-20080 |
AT190,ST191..JPP..(GL,GT) |
2 | ||
| 71753 - TRAY, FRONT SEAT UNDER | ||||
| 71753-20080 |
AT190,ST191..JPP..(GL,GT) |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2B560B1 |
AT190,ST191..JPP..GL GRAY,TRIM2# |
2 | ||
| 71910-2B550C0 |
AT190,ST191..JPP..LB..GL W(SPORTS SEAT),BLACK,TRIM2# |
2 | ||
| 71910-2B560J2 |
AT190,ST191..JPP..GL DK. BLUE,TRIM8# |
2 | ||
| 71910-2B550C2 |
AT190,ST191..JPP..LB..GL W(SPORTS SEAT),BLACK,TRIM2# |
2 | ||
| 71910-2B560B3 |
AT190,ST191..JPP..GL GRAY,TRIM2# |
2 | ||
| 71910-2B561J2 |
AT190,ST191..JPP..GL DK. BLUE,TRIM8# |
2 | ||
| 71910-2B560J1 |
AT190,ST191..JPP..GL DK.BLUE,TRIM8# |
2 | ||
| 71910-2B561B3 |
AT190,ST191..JPP..GL GRAY,TRIM2# |
2 | ||
| 71910-2B551B1 |
AT190,ST191..JPP..LB..GL W(SPORTS SEAT),SHADOW GRAY,TRIM1# |
2 | ||
| 71910-2B561B6 |
AT190,ST191..JPP..GL SHADOW GRAY,TRIM1# |
2 | ||
| 71910-2B551C2 |
AT190,ST191..JPP..LB..GL W(SPORTS SEAT),BLACK,TRIM2# |
2 | ||
| 71910-2B561J4 |
AT190,ST191..JPP..GL DK. BLUE,TRIM8# |
2 | ||
| 71910-2D010B0 |
AT190,ST191..JPP..GL GRAY,TRIM1# |
2 | ||
| 71910-2D010J0 |
AT190,ST191..JPP..GL DK. BLUE,TRIM8# |
2 | ||
| 71910-2D020B0 |
AT190,ST191..JPP..LB..GL W(SPORTS SEAT),DK. GRAY,TRIM1# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2B560B1 |
AT190,ST191..JPP..GL GRAY,TRIM2# |
2 | ||
| 71910-2B550C0 |
AT190,ST191..JPP..LB..GL W(SPORTS SEAT),BLACK,TRIM2# |
2 | ||
| 71910-2B560J2 |
AT190,ST191..JPP..GL DK. BLUE,TRIM8# |
2 | ||
| 71910-2B550C2 |
AT190,ST191..JPP..LB..GL W(SPORTS SEAT),BLACK,TRIM2# |
2 | ||
| 71910-2B560B3 |
AT190,ST191..JPP..GL GRAY,TRIM2# |
2 | ||
| 71910-2B561J2 |
AT190,ST191..JPP..GL DK. BLUE,TRIM8# |
2 | ||
| 71910-2B560J1 |
AT190,ST191..JPP..GL DK.BLUE,TRIM8# |
2 | ||
| 71910-2B561B3 |
AT190,ST191..JPP..GL GRAY,TRIM2# |
2 | ||
| 71910-2B551B1 |
AT190,ST191..JPP..LB..GL W(SPORTS SEAT),SHADOW GRAY,TRIM1# |
2 | ||
| 71910-2B561B6 |
AT190,ST191..JPP..GL SHADOW GRAY,TRIM1# |
2 | ||
| 71910-2B551C2 |
AT190,ST191..JPP..LB..GL W(SPORTS SEAT),BLACK,TRIM2# |
2 | ||
| 71910-2B561J4 |
AT190,ST191..JPP..GL DK. BLUE,TRIM8# |
2 | ||
| 71910-2D010B0 |
AT190,ST191..JPP..GL GRAY,TRIM1# |
2 | ||
| 71910-2D010J0 |
AT190,ST191..JPP..GL DK. BLUE,TRIM8# |
2 | ||
| 71910-2D020B0 |
AT190,ST191..JPP..LB..GL W(SPORTS SEAT),DK. GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-12070J0 |
AT190,CT190,ST191..JPP..(GL,XL) W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1007022 |
AT190,CT190,ST191..JPP W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-10020P0 |
AT190,CT190,ST191..JPP W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-12070C0 |
AT190,CT190,ST191..JPP W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-10070J0 |
AT190,CT190,ST191..JPP..(GL,XL) W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-12040C0 |
AT190,CT190,ST191..JPP W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-10070P0 |
AT190,CT190,ST191..JPP W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1002022 |
AT190,CT190,ST191..JPP W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-10020J0 |
AT190,CT190,ST191..JPP..(GL,XL) W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-32020B0 |
AT190,CT190,ST191..JPP W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-32020J0 |
AT190,CT190,ST191..JPP..(GL,XL) W(LOCK),DK.BLUE,TRIM8# |
2 | ||
| 71931-32020B0 |
AT190,CT190,ST191..JPP W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-12040J0 |
AT190,CT190,ST191..JPP..(GL,XL) W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-32020J0 |
AT190,CT190,ST191..JPP..(GL,XL) W/O(LOCK),DK.BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-12070J0 |
AT190,CT190,ST191..JPP..(GL,XL) W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1007022 |
AT190,CT190,ST191..JPP W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-10020P0 |
AT190,CT190,ST191..JPP W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-12070C0 |
AT190,CT190,ST191..JPP W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-10070J0 |
AT190,CT190,ST191..JPP..(GL,XL) W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-12040C0 |
AT190,CT190,ST191..JPP W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-10070P0 |
AT190,CT190,ST191..JPP W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1002022 |
AT190,CT190,ST191..JPP W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-10020J0 |
AT190,CT190,ST191..JPP..(GL,XL) W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-32020B0 |
AT190,CT190,ST191..JPP W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-32020J0 |
AT190,CT190,ST191..JPP..(GL,XL) W(LOCK),DK.BLUE,TRIM8# |
2 | ||
| 71931-32020B0 |
AT190,CT190,ST191..JPP W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-12040J0 |
AT190,CT190,ST191..JPP..(GL,XL) W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-32020J0 |
AT190,CT190,ST191..JPP..(GL,XL) W/O(LOCK),DK.BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-12070J0 |
AT190,CT190,ST191..JPP..(GL,XL) W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1007022 |
AT190,CT190,ST191..JPP W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-10020P0 |
AT190,CT190,ST191..JPP W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-12070C0 |
AT190,CT190,ST191..JPP W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-10070J0 |
AT190,CT190,ST191..JPP..(GL,XL) W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-12040C0 |
AT190,CT190,ST191..JPP W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-10070P0 |
AT190,CT190,ST191..JPP W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1002022 |
AT190,CT190,ST191..JPP W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-10020J0 |
AT190,CT190,ST191..JPP..(GL,XL) W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-32020B0 |
AT190,CT190,ST191..JPP W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-32020J0 |
AT190,CT190,ST191..JPP..(GL,XL) W(LOCK),DK.BLUE,TRIM8# |
2 | ||
| 71931-32020B0 |
AT190,CT190,ST191..JPP W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-12040J0 |
AT190,CT190,ST191..JPP..(GL,XL) W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-32020J0 |
AT190,CT190,ST191..JPP..(GL,XL) W/O(LOCK),DK.BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-12070J0 |
AT190,CT190,ST191..JPP..(GL,XL) W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1007022 |
AT190,CT190,ST191..JPP W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-10020P0 |
AT190,CT190,ST191..JPP W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-12070C0 |
AT190,CT190,ST191..JPP W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-10070J0 |
AT190,CT190,ST191..JPP..(GL,XL) W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-12040C0 |
AT190,CT190,ST191..JPP W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-10070P0 |
AT190,CT190,ST191..JPP W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1002022 |
AT190,CT190,ST191..JPP W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-10020J0 |
AT190,CT190,ST191..JPP..(GL,XL) W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-32020B0 |
AT190,CT190,ST191..JPP W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-32020J0 |
AT190,CT190,ST191..JPP..(GL,XL) W(LOCK),DK.BLUE,TRIM8# |
2 | ||
| 71931-32020B0 |
AT190,CT190,ST191..JPP W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-12040J0 |
AT190,CT190,ST191..JPP..(GL,XL) W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-32020J0 |
AT190,CT190,ST191..JPP..(GL,XL) W/O(LOCK),DK.BLUE,TRIM8# |
2 | ||
| 72760D - ADJUSTER ASSY, LUMBAR SUPPORT, LH | ||||
| 72760-12100 |
AT190,CT190,ST191..JPP..LHD |
1 | ||
| 72760-12100 |
AT190,ST191..JPP..LHD |
1 | ||
| 72774 - PROTECTOR, LUMBAR SUPPORT SPRING | ||||
| 72775-20020 |
AT190,ST191..JPP..LHD..LB..GL W(SPORTS SEAT) |
1 | ||
| 72775-20030 |
AT190,CT190,ST191..JPP..LHD..(GL,XL) |
1 | ||
| 72775-20030 |
AT190,ST191..JPP..LHD..(GL,XL) |
1 | ||
| 72774 - PROTECTOR, LUMBAR SUPPORT SPRING | ||||
| 72775-20020 |
AT190,ST191..JPP..LHD..LB..GL W(SPORTS SEAT) |
1 | ||
| 72775-20030 |
AT190,CT190,ST191..JPP..LHD..(GL,XL) |
1 | ||
| 72775-20030 |
AT190,ST191..JPP..LHD..(GL,XL) |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-20050J0 |
AT190,ST191..JPP..(GL,XL) DK. BLUE,TRIM8# |
1 | ||
| 72791-20050J0 |
AT190,CT190,ST191..JPP..(GL,XL) DK. BLUE,TRIM8# |
1 | ||
| 72791-20050B2 |
AT190,ST191..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 72791-20050C0 |
AT190,CT190,ST191..JPP BLACK,TRIM2# |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-20050J0 |
AT190,ST191..JPP..(GL,XL) DK. BLUE,TRIM8# |
1 | ||
| 72791-20050J0 |
AT190,CT190,ST191..JPP..(GL,XL) DK. BLUE,TRIM8# |
1 | ||
| 72791-20050B2 |
AT190,ST191..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 72791-20050C0 |
AT190,CT190,ST191..JPP BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90080-46007 | ||||
| 90081-52007 | ||||
| 90159-50138 | ||||
| 90168-40093 | ||||
| 90468-18071 | ||||
| 90520-01006 | ||||
| 91651-60618 | ||||

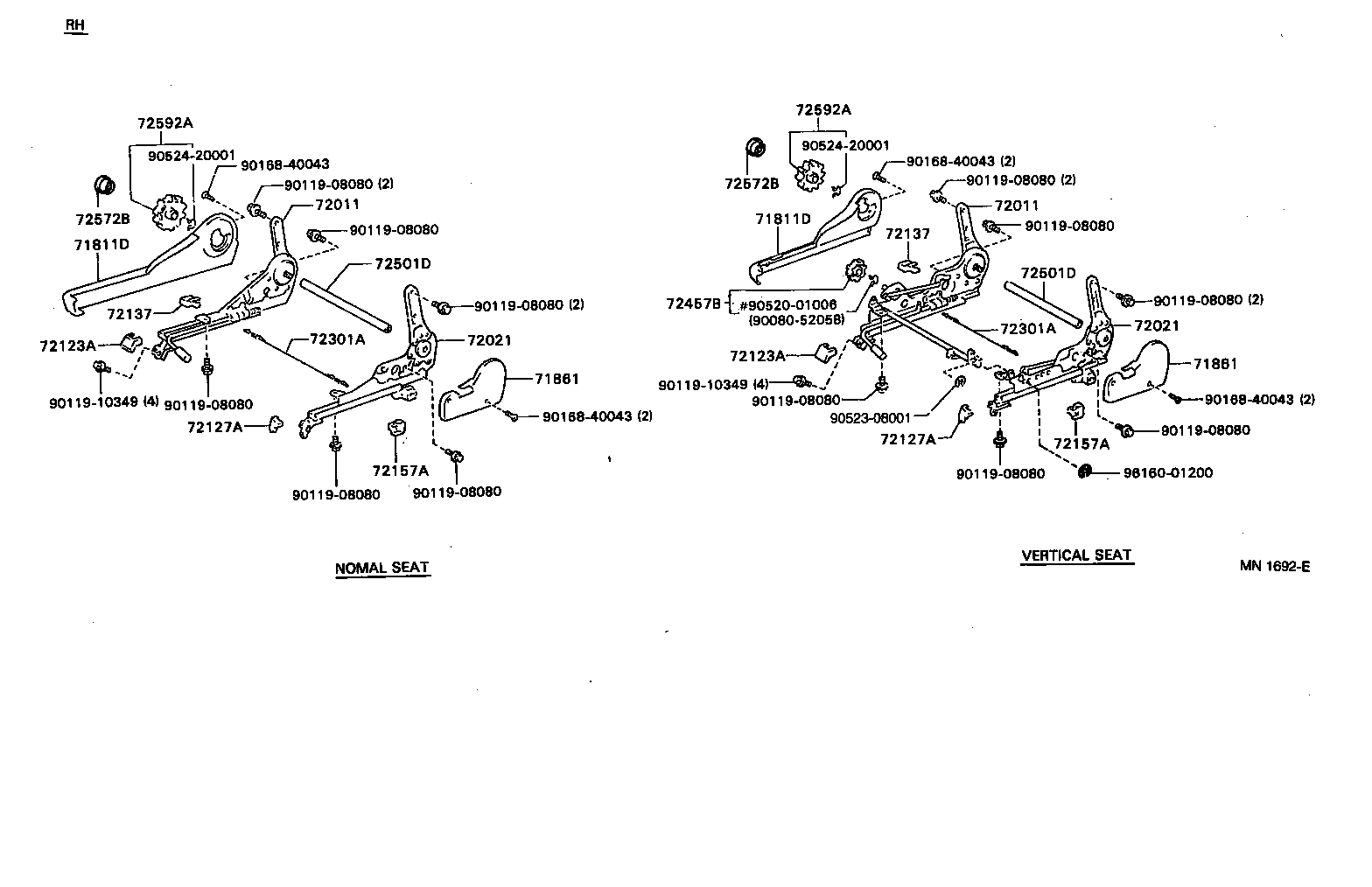

ILLUST NO. 2 OF 3(9202- )JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-20250C0 |
AT190,CT190..JPP..XL;AT190,ST191..JPP..LHD..(GL,GT) BLACK,TRIM2# |
1 | ||
| 71811-20250J0 |
AT190,CT190..JPP..XL;AT190,ST191..JPP..LHD..GL DK.BLUE,TRIM8# |
1 | ||
| 71811-20250B0 |
AT190,CT190..JPP..XL;AT190,ST191..JPP..LHD..(GL,GT) SHADOW GRAY,TRIM1# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-20250C0 |
AT190,CT190..JPP..XL;AT190,ST191..JPP..LHD..(GL,GT) BLACK,TRIM2# |
1 | ||
| 71811-20250J0 |
AT190,CT190..JPP..XL;AT190,ST191..JPP..LHD..GL DK.BLUE,TRIM8# |
1 | ||
| 71811-20250B0 |
AT190,CT190..JPP..XL;AT190,ST191..JPP..LHD..(GL,GT) SHADOW GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-20110J0 |
AT190,CT190,ST191..JPP..(GL,XL) DK.BLUE,TRIM8# |
1 | ||
| 71861-20110C0 |
AT190,CT190,ST191..JPP BLACK,TRIM2# |
1 | ||
| 71861-20110B0 |
AT190,CT190,ST191..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-20110J0 |
AT190,CT190,ST191..JPP..(GL,XL) DK.BLUE,TRIM8# |
1 | ||
| 71861-20110C0 |
AT190,CT190,ST191..JPP BLACK,TRIM2# |
1 | ||
| 71861-20110B0 |
AT190,CT190,ST191..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72011-20171 |
ST191..JPP..LHD;AT190,CT190..JPP |
1 | ||
| 72011-20170 |
AT190,CT190..JPP..XL;AT190,ST191..JPP..LHD..(GL,GT) |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72011-20171 |
ST191..JPP..LHD;AT190,CT190..JPP |
1 | ||
| 72011-20170 |
AT190,CT190..JPP..XL;AT190,ST191..JPP..LHD..(GL,GT) |
1 | ||
| 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH | ||||
| 72021-20130 |
AT190,CT190..JPP..XL;AT190,ST191..JPP..LHD..(GL,GT) |
1 | ||
| 72021-20131 |
ST191..JPP..LHD;AT190,CT190..JPP |
1 | ||
| 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH | ||||
| 72021-20130 |
AT190,CT190..JPP..XL;AT190,ST191..JPP..LHD..(GL,GT) |
1 | ||
| 72021-20131 |
ST191..JPP..LHD;AT190,CT190..JPP |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-20130B0 |
AT190,CT190,ST191..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 72123-20130C0 |
AT190,CT190,ST191..JPP BLACK,TRIM2# |
1 | ||
| 72123-20130J0 |
AT190,CT190,ST191..JPP..(GL,XL) DK.BLUE,TRIM8# |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-20130B0 |
AT190,CT190,ST191..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 72123-20130C0 |
AT190,CT190,ST191..JPP BLACK,TRIM2# |
1 | ||
| 72123-20130J0 |
AT190,CT190,ST191..JPP..(GL,XL) DK.BLUE,TRIM8# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-20060C0 |
AT190,CT190,ST191..JPP BLACK,TRIM2# |
1 | ||
| 72127-20060J0 |
AT190,CT190,ST191..JPP..(GL,XL) DK.BLUE,TRIM8# |
1 | ||
| 72127-20060B2 |
AT190,CT190,ST191..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-20060C0 |
AT190,CT190,ST191..JPP BLACK,TRIM2# |
1 | ||
| 72127-20060J0 |
AT190,CT190,ST191..JPP..(GL,XL) DK.BLUE,TRIM8# |
1 | ||
| 72127-20060B2 |
AT190,CT190,ST191..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-20060C0 |
AT190,CT190,ST191..JPP BLACK,TRIM2# |
1 | ||
| 72137-20060C0 |
AT190,CT190,ST191..JPP..LB..(GL,XL) BLACK,TRIM8# |
1 | ||
| 72137-20060J0 |
AT190,CT190,ST191..JPP..(GL,XL) DK.BLUE,TRIM8# |
1 | ||
| 72137-20060B0 |
AT190,CT190,ST191..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-20060C0 |
AT190,CT190,ST191..JPP BLACK,TRIM2# |
1 | ||
| 72137-20060C0 |
AT190,CT190,ST191..JPP..LB..(GL,XL) BLACK,TRIM8# |
1 | ||
| 72137-20060J0 |
AT190,CT190,ST191..JPP..(GL,XL) DK.BLUE,TRIM8# |
1 | ||
| 72137-20060B0 |
AT190,CT190,ST191..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-20030J0 |
AT190,CT190,ST191..JPP..(GL,XL) DK.BLUE,TRIM8# |
1 | ||
| 72157-20030C0 |
AT190,CT190,ST191..JPP BLACK,TRIM2# |
1 | ||
| 72157-20030B2 |
AT190,CT190,ST191..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 72157-20030C0 |
AT190,CT190,ST191..JPP..(GL,XL) BLACK,TRIM1#,8# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-20030J0 |
AT190,CT190,ST191..JPP..(GL,XL) DK.BLUE,TRIM8# |
1 | ||
| 72157-20030C0 |
AT190,CT190,ST191..JPP BLACK,TRIM2# |
1 | ||
| 72157-20030B2 |
AT190,CT190,ST191..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 72157-20030C0 |
AT190,CT190,ST191..JPP..(GL,XL) BLACK,TRIM1#,8# |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-12090 |
AT190,CT190,ST191..JPP |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-12090 |
AT190,CT190,ST191..JPP |
1 | ||
| 72501D - PIPE SUB-ASSY, RECLINING CONNECTING, RH | ||||
| 72345-20010 |
AT190,CT190,ST191..JPP |
1 | ||
| 72501D - PIPE SUB-ASSY, RECLINING CONNECTING, RH | ||||
| 72345-20010 |
AT190,CT190,ST191..JPP |
1 | ||
| 72592A - KNOB,RECLINING ADJUSTER, RH | ||||
| 72592-20060C0 |
AT190,CT190,ST191..JPP BLACK,TRIM2# |
1 | ||
| 72592-20060B0 |
AT190,CT190,ST191..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 72592-20060J0 |
AT190,CT190,ST191..JPP..(GL,XL) DK.BLUE,TRIM8# |
1 | ||
| 72592A - KNOB,RECLINING ADJUSTER, RH | ||||
| 72592-20060C0 |
AT190,CT190,ST191..JPP BLACK,TRIM2# |
1 | ||
| 72592-20060B0 |
AT190,CT190,ST191..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 72592-20060J0 |
AT190,CT190,ST191..JPP..(GL,XL) DK.BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 90080-52058 | ||||
| 90119-08080 | ||||
| 90119-10349 | ||||
| 90168-40043 | ||||
| 90520-01006 | ||||
| 90523-08001 | ||||
| 90524-20001 | ||||
| 96160-01200 | ||||

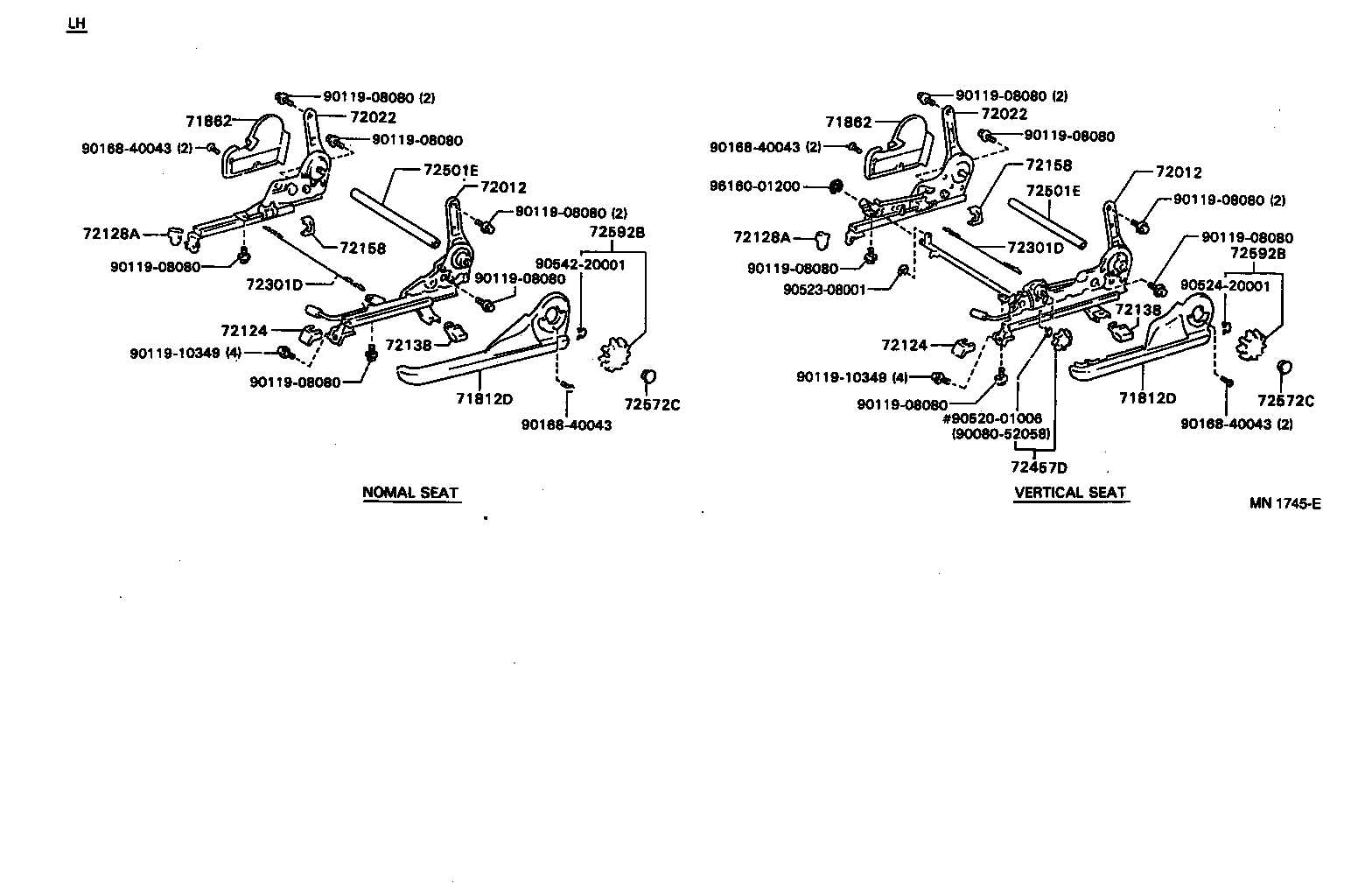

ILLUST NO. 3 OF 3(9202- )JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-20230C0 |
AT190,ST191..JPP..LHD..(GL,GT) BLACK,TRIM2# |
1 | ||
| 71812-20230B0 |
AT190,ST191..JPP..LHD..(GL,GT) SHADOW GRAY,TRIM1# |
1 | ||
| 71812-20230J0 |
AT190,ST191..JPP..LHD..GL DK.BLUE,TRIM8# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-20230C0 |
AT190,ST191..JPP..LHD..(GL,GT) BLACK,TRIM2# |
1 | ||
| 71812-20230B0 |
AT190,ST191..JPP..LHD..(GL,GT) SHADOW GRAY,TRIM1# |
1 | ||
| 71812-20230J0 |
AT190,ST191..JPP..LHD..GL DK.BLUE,TRIM8# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-20110C0 |
AT190,CT190,ST191..JPP BLACK,TRIM2# |
1 | ||
| 71862-20110B0 |
AT190,CT190,ST191..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 71862-20110J0 |
AT190,CT190,ST191..JPP..(GL,XL) DK.BLUE,TRIM8# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-20110C0 |
AT190,CT190,ST191..JPP BLACK,TRIM2# |
1 | ||
| 71862-20110B0 |
AT190,CT190,ST191..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 71862-20110J0 |
AT190,CT190,ST191..JPP..(GL,XL) DK.BLUE,TRIM8# |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-20230 |
AT190,ST191..JPP..LHD..(GL,GT) |
1 | ||
| 72012-20231 |
AT190,ST191..JPP..LHD..(GL,GT) |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-20230 |
AT190,ST191..JPP..LHD..(GL,GT) |
1 | ||
| 72012-20231 |
AT190,ST191..JPP..LHD..(GL,GT) |
1 | ||
| 72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH | ||||
| 72022-20181 |
AT190,ST191..JPP..LHD..(GL,GT) |
1 | ||
| 72022-20180 |
AT190,ST191..JPP..LHD..(GL,GT) |
1 | ||
| 72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH | ||||
| 72022-20181 |
AT190,ST191..JPP..LHD..(GL,GT) |
1 | ||
| 72022-20180 |
AT190,ST191..JPP..LHD..(GL,GT) |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72123-20130C0 |
AT190,CT190,ST191..JPP BLACK,TRIM2# |
1 | ||
| 72123-20130J0 |
AT190,CT190,ST191..JPP..(GL,XL) DK.BLUE,TRIM8# |
1 | ||
| 72123-20130B0 |
AT190,CT190,ST191..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72123-20130C0 |
AT190,CT190,ST191..JPP BLACK,TRIM2# |
1 | ||
| 72123-20130J0 |
AT190,CT190,ST191..JPP..(GL,XL) DK.BLUE,TRIM8# |
1 | ||
| 72123-20130B0 |
AT190,CT190,ST191..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72128-20050B2 |
AT190,CT190,ST191..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 72128-20050J0 |
AT190,CT190,ST191..JPP..(GL,XL) DK.BLUE,TRIM8# |
1 | ||
| 72128-20050C0 |
AT190,CT190,ST191..JPP BLACK,TRIM2# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72128-20050B2 |
AT190,CT190,ST191..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 72128-20050J0 |
AT190,CT190,ST191..JPP..(GL,XL) DK.BLUE,TRIM8# |
1 | ||
| 72128-20050C0 |
AT190,CT190,ST191..JPP BLACK,TRIM2# |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-20030C0 |
AT190,CT190,ST191..JPP BLACK,TRIM2# |
1 | ||
| 72138-20030J0 |
AT190,CT190,ST191..JPP..(GL,XL) DK.BLUE,TRIM8# |
1 | ||
| 72138-20030C0 |
AT190,CT190,ST191..JPP..(GL,XL) BLACK,TRIM1#,8# |
1 | ||
| 72138-20030B0 |
AT190,CT190,ST191..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-20030C0 |
AT190,CT190,ST191..JPP BLACK,TRIM2# |
1 | ||
| 72138-20030J0 |
AT190,CT190,ST191..JPP..(GL,XL) DK.BLUE,TRIM8# |
1 | ||
| 72138-20030C0 |
AT190,CT190,ST191..JPP..(GL,XL) BLACK,TRIM1#,8# |
1 | ||
| 72138-20030B0 |
AT190,CT190,ST191..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-20020J0 |
AT190,CT190,ST191..JPP..(GL,XL) DK.BLUE,TRIM8# |
1 | ||
| 72158-20020B2 |
AT190,CT190,ST191..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 72158-20020C0 |
AT190,CT190,ST191..JPP BLACK,TRIM2# |
1 | ||
| 72158-20020C0 |
AT190,CT190,ST191..JPP..(GL,XL) BLACK,TRIM1#,8# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-20020J0 |
AT190,CT190,ST191..JPP..(GL,XL) DK.BLUE,TRIM8# |
1 | ||
| 72158-20020B2 |
AT190,CT190,ST191..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 72158-20020C0 |
AT190,CT190,ST191..JPP BLACK,TRIM2# |
1 | ||
| 72158-20020C0 |
AT190,CT190,ST191..JPP..(GL,XL) BLACK,TRIM1#,8# |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-12090 |
AT190,CT190,ST191..JPP |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-12090 |
AT190,CT190,ST191..JPP |
1 | ||
| 72457D - KNOB, VERTICAL SEAT ADJUSTER, LH | ||||
| 72457-18010J0 |
AT190,CT190,ST191..JPP..LHD..(GL,XL) DK. BLUE,TRIM8# |
1 | ||
| 72457-18010B3 |
AT190,CT190,ST191..JPP..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 72457-18010C0 |
AT190,CT190,ST191..JPP..LHD BLACK,TRIM2# |
1 | ||
| 72501E - PIPE SUB-ASSY, RECLINING CONNECTING, LH | ||||
| 72345-20010 |
AT190,CT190,ST191..JPP |
1 | ||
| 72501E - PIPE SUB-ASSY, RECLINING CONNECTING, LH | ||||
| 72345-20010 |
AT190,CT190,ST191..JPP |
1 | ||
| 72592B - KNOB,RECLINING ADJUSTER, LH | ||||
| 72592-20060C0 |
AT190,CT190,ST191..JPP BLACK,TRIM2# |
1 | ||
| 72592-20060B0 |
AT190,CT190,ST191..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 72592-20060J0 |
AT190,CT190,ST191..JPP..(GL,XL) DK.BLUE,TRIM8# |
1 | ||
| 72592B - KNOB,RECLINING ADJUSTER, LH | ||||
| 72592-20060C0 |
AT190,CT190,ST191..JPP BLACK,TRIM2# |
1 | ||
| 72592-20060B0 |
AT190,CT190,ST191..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 72592-20060J0 |
AT190,CT190,ST191..JPP..(GL,XL) DK.BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 90080-52058 | ||||
| 90119-08080 | ||||
| 90119-10349 | ||||
| 90168-40043 | ||||
| 90520-01006 | ||||
| 90523-08001 | ||||
| 90524-20001 | ||||
| 90542-20001 | ||||
| 96160-01200 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
