AT190L-ALMNKW (1992)

Toyota Carina E Sed/Lb(Jpp)

Production Feb 1992 - Jan 1996
Engine 4AFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9202- )4AFE..JPP

Click highlighted areas on diagram

diagram 9099992002 9099992002 9099992003 9099992004 9099992006 9099992007 9099992008
Part # Description Qty Price
Common parts
90999-92002
90999-92003
90999-92004
90999-92006
90999-92007
90999-92008

(9202- )4AFE..JPP

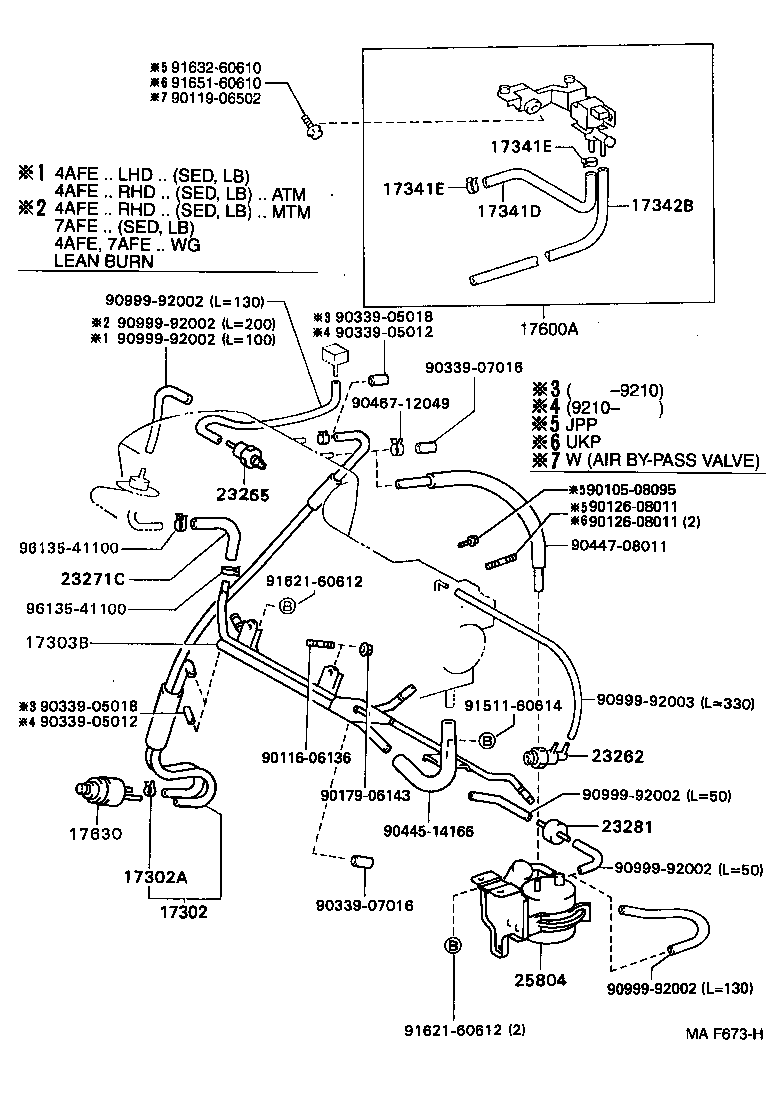

Click highlighted areas on diagram

diagram 17302 17302A 17303B 17341D 17341E 17341E 17342B 17600A 17630 23262 23265 23271C 23281 25804 9010508095 9011606136 9011906502 9012608011 9012608011 9017906143 9033905012 9033905012 9033905018 9033905018 9033907016 9033907016 9044514166 9044708011 9046712049 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992003 9151160614 9162160612 9162160612 9163260610 9165160610 9613541100 9613541100
Part # Description Qty Price
17302 - HOSE SUB-ASSY, AIR
17302-15010

4AFE..AT190..JPP

 1
17302A - CLIP, HOSE
90467-10099

4AFE..AT190..JPP..RHD;4AFE..AT190..JPP..LHD..GL

 2
96132-51000

4AFE..AT190..JPP..RHD;4AFE..AT190..JPP..LHD..GL

 2
96132-51000

4AFE..AT190..JPP

 2
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-15080

4AFE..AT190..JPP

 1
17341D - HOSE, NO.1(FOR IDLE-UP)
17341-16210

4AFE..AT190..JPP

 1
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
96132-30600

4AFE..AT190..JPP

 2
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
96132-30600

4AFE..AT190..JPP

 2
17342B - HOSE, NO.2(FOR IDLE-UP)
17342-16120

4AFE..AT190..JPP

 1
17600A - VALVE ASSY, AIR BY-PASS W/HOSE
17600-16010

4AFE..AT190..JPP

 1
17630 - VALVE ASSY, AIR CONTROL
17630-15080

4AFE..AT190..JPP

 1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
90925-05068

4AFE..AT190..JPP

 1
23265 - FILTER, GAS, NO.1
90917-11022

4AFE..AT190..JPP

 1
23271C - HOSE, FUEL
95334-06022

4AFE..AT190..JPP..LHD..MTM

LEAN BURN

 1
95333-06030

4AFE..AT190..JPP..LHD..MTM

LEAN BURN

 1
90910-05214

4AFE..AT190..JPP..ATM;4AFE..AT190..JPP..LHD..MTM

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01015

4AFE..AT190..JPP..MTM

 1
25804 - VALVE SET, VACUUM CONTROL
25804-16050

4AFE..AT190..JPP..MTM

 1
Common parts
90105-08095
90116-06136
90119-06502
90126-08011
90179-06143
90339-05012
90339-05018
90339-07016
90445-14166
90447-08011
90467-12049
90999-92002
90999-92003
91511-60614
91621-60612
91632-60610
91651-60610
96135-41100
