AT190L-AEPDKW (1992)
Toyota Carina E Sed/Lb(Jpp)
(9202- )JPP..LHD

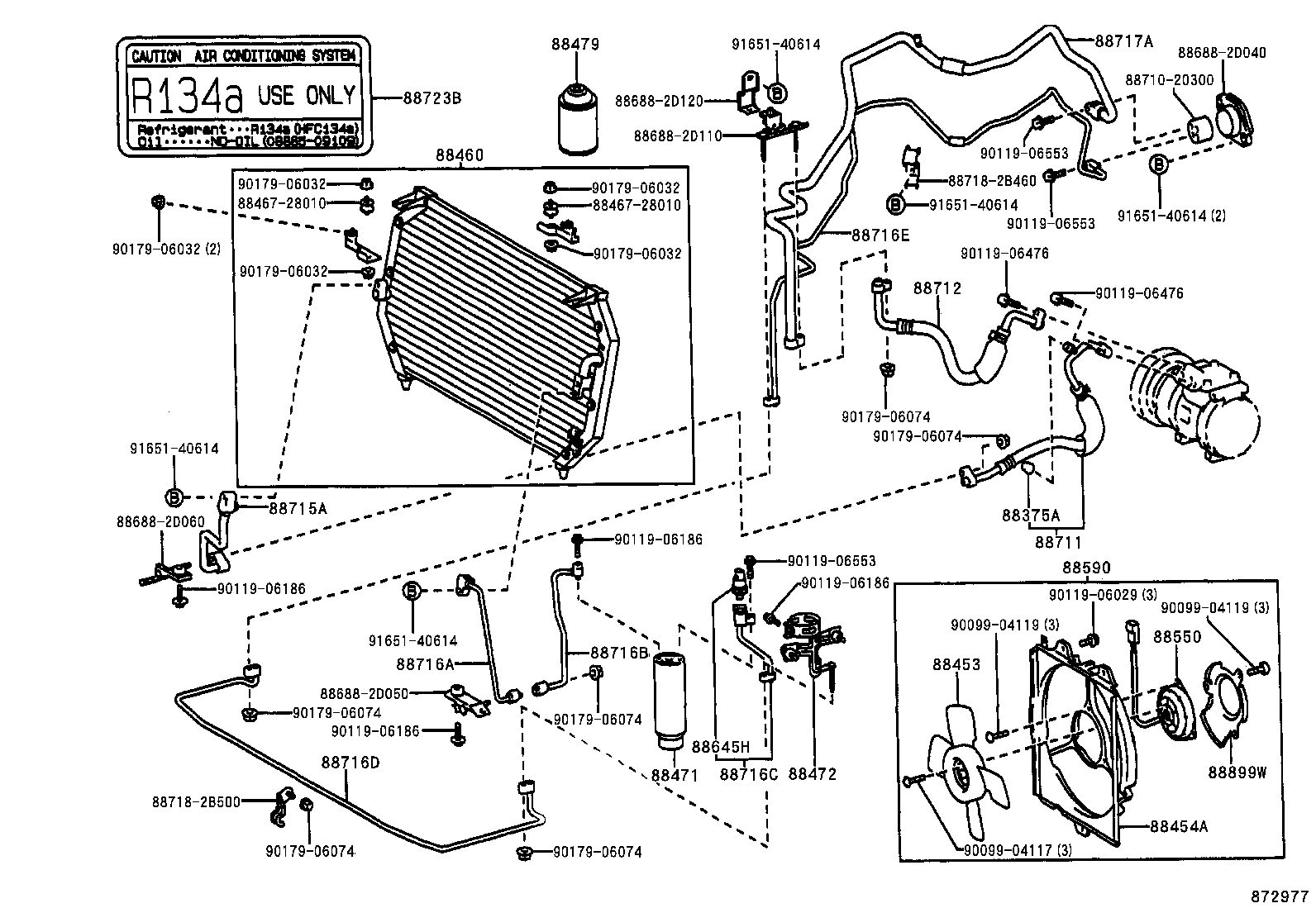

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30280 |
AT190,ST191..JPP |
1 | ||
| 88375-30280 |
CT190..JPP..RHD;AT190,ST191..JPP |
1 | ||
| 88375-30280 |
AT190..JPP;CT190..JPP..RHD NO.1 |
1 | ||
| 88375-30280 |
AT190..JPP;CT190,ST191..JPP..RHD NO.1 |
1 | ||
| 88375-30290 |
AT190..JPP;CT190..JPP..RHD;ST191..JPP..LHD..GT NO.2 |
1 | ||
| 88375-30290 |
AT190..JPP..LHD;ST191..JPP..LHD..GT;CT190,ST191..JPP..RHD..(GL,XL) NO.2 |
1 | ||
| 88375-30290 |
AT190..JPP..LHD;ST191..JPP..LHD..GT;CT190,ST191..JPP..RHD NO.2 |
1 | ||
| 88375-30280 |
CT190..JPP;AT190,ST191..JPP..LHD |
1 | ||
| 88375-30280 |
AT190..JPP..LHD;CT190,ST191..JPP..RHD NO.1 |
1 | ||
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-20080 |
AT190,CT190,ST191..JPP..(GL,XL) MAKER OPT OR DEALER OPT |
1 | ||
| 88453-20080 |
AT190..JPP;CT190..JPP..RHD;ST191..JPP..LHD..GL |
1 | ||
| 88453-20040 |
AT190,CT190,ST191..JPP..(GL,XL) DEALER OPT |
1 | ||
| 88453-20080 |
CT190..JPP..RHD;AT190,ST191..JPP..(GL,XL) |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-20020 |
AT190..JPP;ST191..JPP..LHD;ST191..JPP..RHD..GT |
1 | ||
| 88454-20020 |
AT190,ST191..JPP |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-20370 |
AT190,ST191..JPP |
1 | ||
| 88460-20370 |
AT190..JPP;ST191..JPP..LHD;ST191..JPP..RHD..GT |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-20050 |
CT190..JPP..RHD;AT190,ST191..JPP |
1 | ||
| 88471-20050 |
AT190..JPP;ST191..JPP..LHD;CT190,ST191..JPP..RHD..(GT,XL) |
1 | ||
| 88471-20050 |
AT190,ST191..JPP..(GL,XL) |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-20150 |
AT190,ST191..JPP..LHD |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02007 |
AT190,ST191..JPP..LHD 250G |
3 | ||
| 90986-02007 |
AT190,ST191..JPP..LHD;CT190,ST191..JPP..RHD..(GT,XL) 250G |
3 | ||
| 90986-02007 |
CT190..JPP..RHD;AT190,ST191..JPP 250G |
3 | ||
| 90986-02007 |
AT190,ST191..JPP..LHD 250G |
3 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-12130 |
AT190,ST191..JPP |
1 | ||
| 16363-46030 |
ST191..JPP;AT190..JPP..LHD |
1 | ||
| 88550-12130 |
ST191..JPP;AT190..JPP..LHD DEALER OPTION |
1 | ||
| 88550-12130 |
AT190..JPP;ST191..JPP..LHD;ST191..JPP..RHD..GT |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-20270 |
AT190..JPP;ST191..JPP..LHD..GL |
1 | ||
| 88590-20270 |
AT190,ST191..JPP..(GL,XL) |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-20050 |
CT190..JPP..RHD;AT190,ST191..JPP |
1 | ||
| 88645-20050 |
AT190..JPP;ST191..JPP..LHD;CT190,ST191..JPP..RHD..(GT,XL) |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-2B120 |
AT190..JPP MAKER OPTION |
1 | ||
| 88711-20860 |
AT190..JPP |
1 | ||
| 88711-2B121 |
AT190..JPP |
1 | ||
| 88711-20860 |
AT190..JPP DEALER OPTION |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-2B250 |
AT190..JPP..LHD |
1 | ||
| 88712-2B251 |
AT190..JPP..LHD |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-20120 |
CT190..JPP..RHD;AT190,ST191..JPP |
1 | ||
| 88715-20120 |
AT190..JPP;ST191..JPP..LHD;CT190,ST191..JPP..RHD..(GT,XL) |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-2D140 |
AT190..JPP;ST191..JPP..LHD;CT190,ST191..JPP..RHD..(GT,XL) |
1 | ||
| 88716-2D140 |
CT190..JPP..RHD;AT190,ST191..JPP |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-2D151 |
AT190,ST191..JPP..LHD;CT190,ST191..JPP..RHD..(GT,XL) |
1 | ||
| 88716-2D150 |
ST191..JPP;CT190..JPP..RHD;AT190..JPP..LHD |
1 | ||
| 88716-2D151 |
ST191..JPP;CT190..JPP..RHD;AT190..JPP..LHD |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-2D160 |
AT190,ST191..JPP..LHD |
1 | ||
| 88716D - PIPE, COOLER REFRIGERANT LIQUID, D | ||||
| 88716-2D130 |
AT190,ST191..JPP..LHD |
1 | ||
| 88716-2D132 |
AT190,ST191..JPP..LHD |
1 | ||
| 88716-2D131 |
AT190,ST191..JPP..LHD |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-2D200 |
AT190..JPP..LHD |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-2B260 |
AT190..JPP..LHD |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-20040 |
CT190..JPP..RHD;AT190,ST191..JPP |
1 | ||
| 88723-20040 |
AT190..JPP;ST191..JPP..LHD;CT190,ST191..JPP..RHD..(GT,XL) |
1 | ||
| 88899W - SUPPORT SUB-ASSY, B | ||||
| 88899-20270 |
AT190,ST191..JPP..(GL,XL) |
1 | ||
| Common parts | ||||
| 88467-28010 | ||||
| 88688-2D040 | ||||
| 88688-2D050 | ||||
| 88688-2D060 | ||||
| 88688-2D110 | ||||
| 88688-2D120 | ||||
| 88710-20300 | ||||
| 88718-2B460 | ||||
| 88718-2B500 | ||||
| 90099-04117 | ||||
| 90099-04119 | ||||
| 90119-06029 | ||||
| 90119-06186 | ||||
| 90119-06476 | ||||
| 90119-06553 | ||||
| 90179-06032 | ||||
| 90179-06074 | ||||
| 91651-40614 | ||||
