AT190L-AEPDKW (1992)
Toyota Carina E Sed/Lb(Jpp)
ILLUST NO. 1 OF 3(9202- )JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

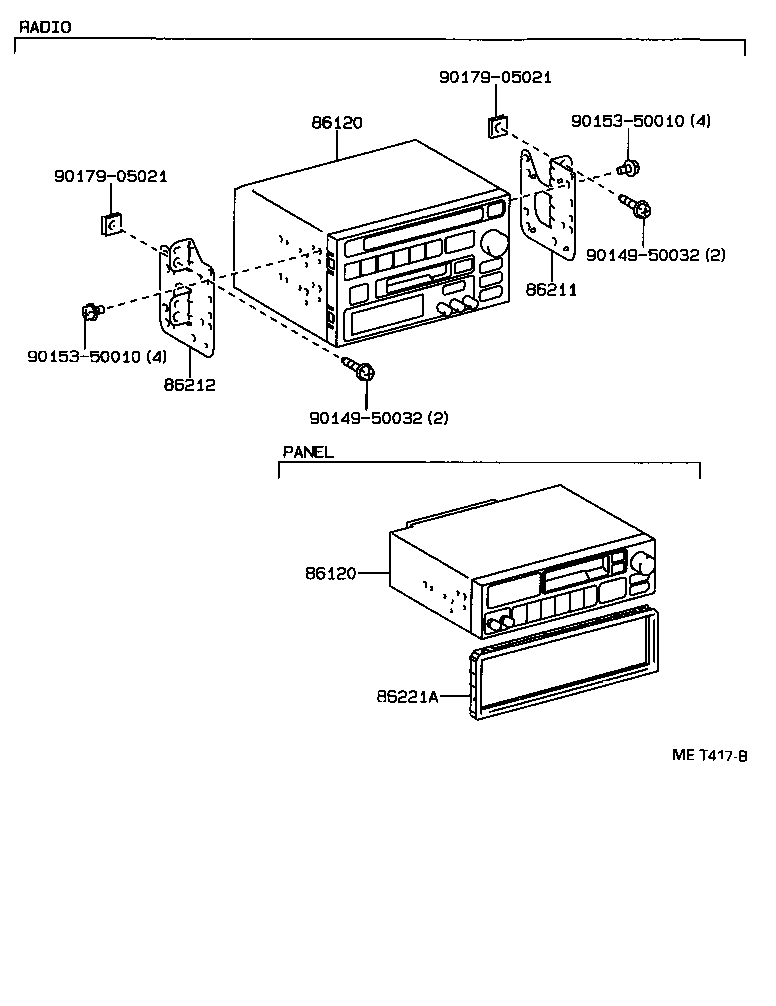

| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-10440 |
CT190..JPP..SED;AT190..JPP..RHD..XL;AT190..JPP..LHD..SED..XL MATSUSHITA,W(2 SPEAKERS) |
1 | ||
| 86120-2B450 |
CT190..JPP..SED;AT190..JPP..RHD..XL;AT190..JPP..LHD..SED..XL MATSUSHITA,ID=58405,W(4 SPEAKERS) |
1 | ||
| 86120-2B180 |
CT190..JPP..SED;AT190..JPP..RHD..XL;AT190..JPP..LHD..SED..XL MATSUSHITA,W(4 SPEAKERS) |
1 | ||
| 86120-2B440 |
CT190..JPP..SED;AT190..JPP..RHD..XL;AT190..JPP..LHD..SED..XL MATSUSHITA,ID=58406,W(2 SPEAKERS) |
1 | ||
| 86120-2B450 |
AT190,CT190..JPP..XL MATSUSHITA,ID=58405,W(4 SPEAKERS) |
1 | ||
| 86120-2B440 |
AT190,CT190..JPP..XL MATSUSHITA,ID=58406,W(2 SPEAKERS) |
1 | ||
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-10440 |
CT190..JPP..SED;AT190..JPP..RHD..XL;AT190..JPP..LHD..SED..XL MATSUSHITA,W(2 SPEAKERS) |
1 | ||
| 86120-2B450 |
CT190..JPP..SED;AT190..JPP..RHD..XL;AT190..JPP..LHD..SED..XL MATSUSHITA,ID=58405,W(4 SPEAKERS) |
1 | ||
| 86120-2B180 |
CT190..JPP..SED;AT190..JPP..RHD..XL;AT190..JPP..LHD..SED..XL MATSUSHITA,W(4 SPEAKERS) |
1 | ||
| 86120-2B440 |
CT190..JPP..SED;AT190..JPP..RHD..XL;AT190..JPP..LHD..SED..XL MATSUSHITA,ID=58406,W(2 SPEAKERS) |
1 | ||
| 86120-2B450 |
AT190,CT190..JPP..XL MATSUSHITA,ID=58405,W(4 SPEAKERS) |
1 | ||
| 86120-2B440 |
AT190,CT190..JPP..XL MATSUSHITA,ID=58406,W(2 SPEAKERS) |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-20330 |
AT190,CT190,ST191..JPP..LHD W/O (RADIO) |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-20320 |
AT190,CT190,ST191..JPP..LHD W/O (RADIO) |
1 | ||
| 86221A - PANEL, RADIO RECEIVER | ||||
| 86220-12010 |
CT190..JPP;ST191..JPP..SED;AT190..JPP..RHD;AT190..JPP..LHD..SED;AT190..JPP..LHD..LB..XL |
1 | ||
| 86220-12010 |
AT190,CT190,ST191..JPP |
1 | ||
| Common parts | ||||
| 90149-50032 | ||||
| 90153-50010 | ||||
| 90179-05021 | ||||
ILLUST NO. 2 OF 3(9202- )JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

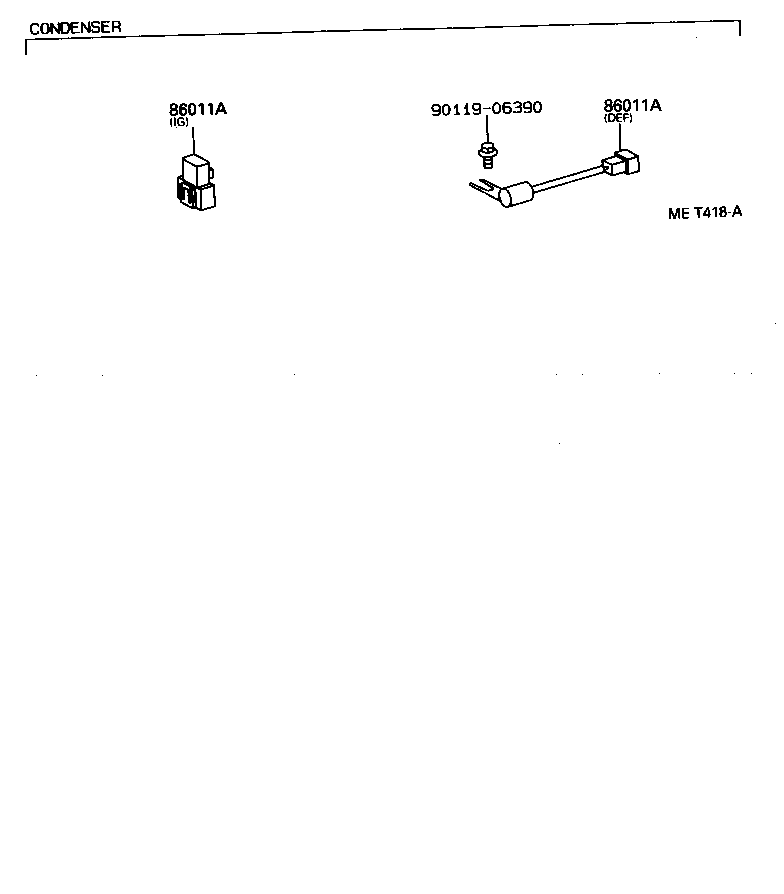

| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04112 |
CT190..JPP;AT190..JPP..ATM;AT190..JPP..LHD..MTM |
1 | ||
| 90980-04119 |
CT190..JPP;AT190..JPP..ATM;AT190..JPP..LHD..MTM |
1 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04112 |
CT190..JPP;AT190..JPP..ATM;AT190..JPP..LHD..MTM |
1 | ||
| 90980-04119 |
CT190..JPP;AT190..JPP..ATM;AT190..JPP..LHD..MTM |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
ILLUST NO. 3 OF 3(9202- )JPP
KNOB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

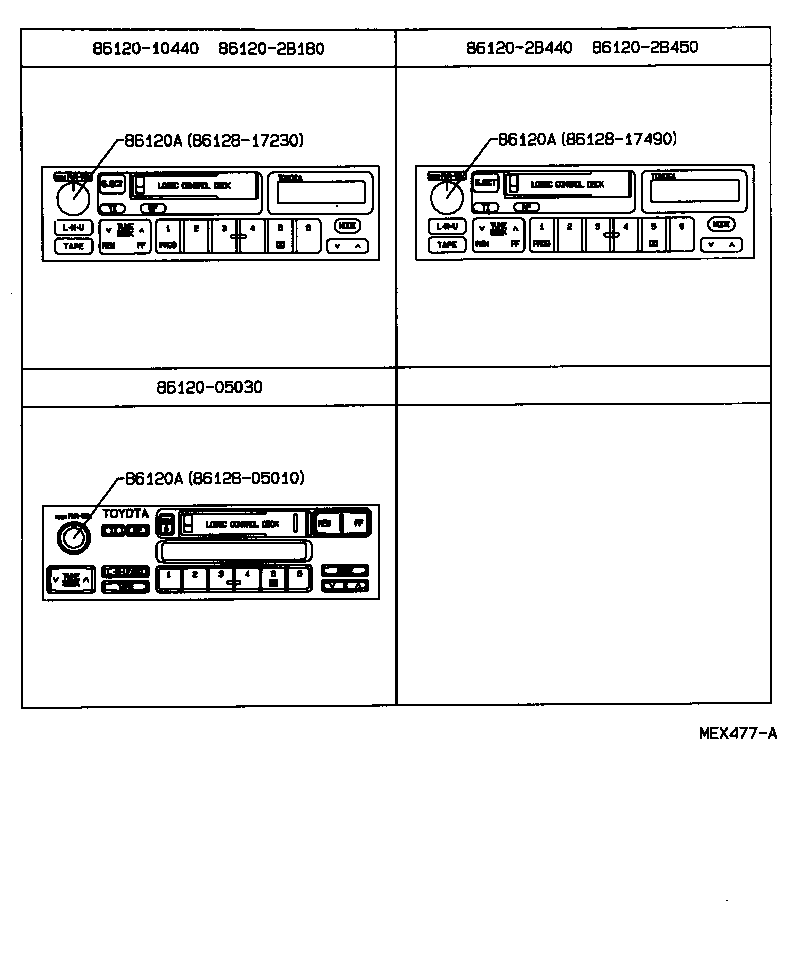

| 86120A - KNOB, RADIO RECEIVER SWITCH | ||||
| 86128-17230 |
CT190..JPP;ST191..JPP..SED;AT190..JPP..RHD;AT190..JPP..LHD..SED;AT190..JPP..LHD..LB..XL |
1 | ||
| 86128-17490 |
AT190,CT190,ST191..JPP |
1 | ||
| 86128-17490 |
CT190..JPP;ST191..JPP..SED;AT190..JPP..RHD;AT190..JPP..LHD..SED;AT190..JPP..LHD..LB..XL |
1 | ||
| 86120A - KNOB, RADIO RECEIVER SWITCH | ||||
| 86128-17230 |
CT190..JPP;ST191..JPP..SED;AT190..JPP..RHD;AT190..JPP..LHD..SED;AT190..JPP..LHD..LB..XL |
1 | ||
| 86128-17490 |
AT190,CT190,ST191..JPP |
1 | ||
| 86128-17490 |
CT190..JPP;ST191..JPP..SED;AT190..JPP..RHD;AT190..JPP..LHD..SED;AT190..JPP..LHD..LB..XL |
1 | ||
| 86120A - KNOB, RADIO RECEIVER SWITCH | ||||
| 86128-17230 |
CT190..JPP;ST191..JPP..SED;AT190..JPP..RHD;AT190..JPP..LHD..SED;AT190..JPP..LHD..LB..XL |
1 | ||
| 86128-17490 |
AT190,CT190,ST191..JPP |
1 | ||
| 86128-17490 |
CT190..JPP;ST191..JPP..SED;AT190..JPP..RHD;AT190..JPP..LHD..SED;AT190..JPP..LHD..LB..XL |
1 | ||
| Common parts | ||||
| 86120-05030 | ||||
| 86120-10440 | ||||
| 86120-2B180 | ||||
| 86120-2B440 | ||||
| 86120-2B450 | ||||
| 86128-05010 | ||||
| 86128-17230 | ||||
| 86128-17490 | ||||
