AT190L-AEPDKW (1992)

Toyota Carina E Sed/Lb(Jpp)

Production Feb 1992 - Jan 1996
Engine 4AFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9202- )JPP

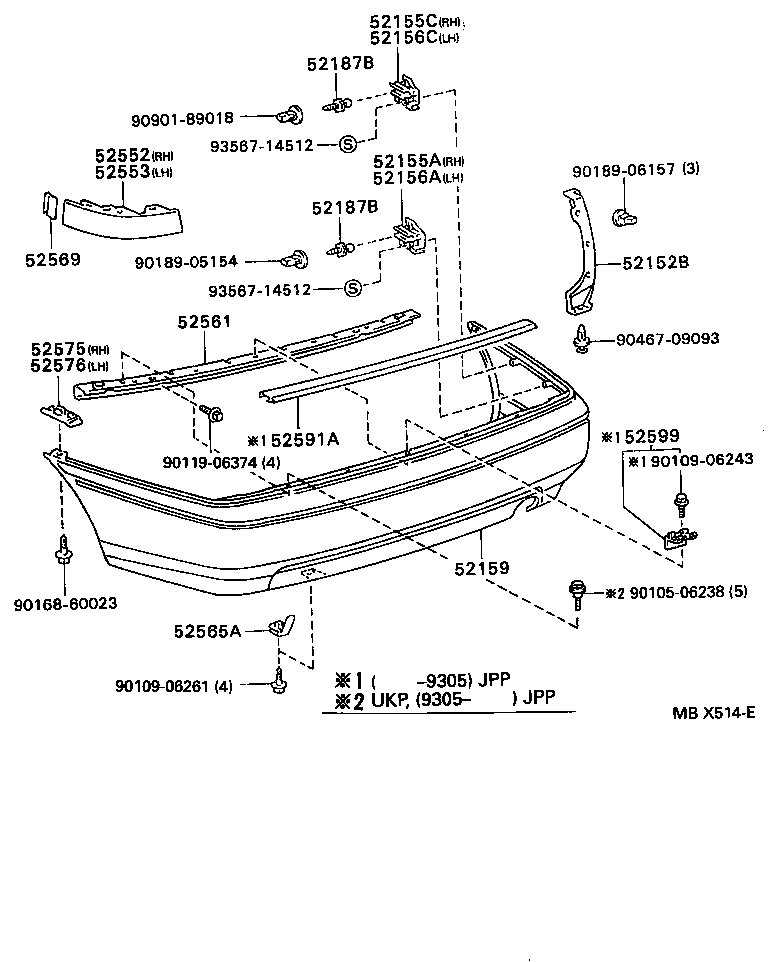

Click highlighted areas on diagram

W(LICENSE PLATE SPACE(550 X 130))

diagram 52152B 52155A 52155C 52156A 52156C 52159 52187B 52187B 52552 52553 52561 52565A 52569 52575 52576 52591A 52599 9010506238 9010906243 9010906261 9011906374 9016860023 9018905154 9018906157 9046709093 9090189018 9356714512 9356714512
Part # Description Qty Price
52152B - EXTENSION, REAR BUMPER, RH
52152-20180

AT190,CT190,ST191..JPP

 1
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-20270

AT190,CT190,ST191..JPP

 1
52155C - SUPPORT, REAR BUMPER SIDE, NO.1 RH
52155-20280

AT190,CT190,ST191..JPP

 1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52155-20270

AT190,CT190,ST191..JPP

 1
52156C - SUPPORT, REAR BUMPER SIDE, NO.1 LH
52155-20280

AT190,CT190,ST191..JPP

 1
52159 - COVER, REAR BUMPER
52159-20700

AT190,CT190,ST191..JPP..(GL,XL)

 1
52187B - GUIDE, REAR BUMPER LOCATION
52187-12140

AT190,CT190,ST191..JPP

 4
52187B - GUIDE, REAR BUMPER LOCATION
52187-12140

AT190,CT190,ST191..JPP

 4
52552 - FILLER, REAR BUMPER, RH
52552-20020

AT190,CT190,ST191..JPP..SED

 1
52553 - FILLER, REAR BUMPER, LH
52553-20020

AT190,CT190,ST191..JPP..SED

 1
52561 - RETAINER, REAR BUMPER, UPPER CENTER
52561-20180

AT190,CT190,ST191..JPP

 1
52565A - RETAINER, REAR BUMPER, LOWER
90467-11028

AT190,CT190,ST191..JPP

 4
52565-20170

AT190,CT190,ST191..JPP

 4
52569 - PAD, REAR BUMPER FILLER
52569-20020

AT190,CT190,ST191..JPP..SED

 2
52575 - RETAINER, REAR BUMPER SIDE, RH
52575-20030

AT190,CT190,ST191..JPP

 1
52576 - RETAINER, REAR BUMPER SIDE, LH
52576-20030

AT190,CT190,ST191..JPP

 1
52591A - SEAL, REAR BUMPER
52591-20030

AT190,CT190,ST191..JPP

 1
52599 - STOPPER, REAR BUMPER, UPPER
52599-20010

AT190,CT190,ST191..JPP

 5
Common parts
90105-06238
90109-06243
90109-06261
90119-06374
90168-60023
90189-05154
90189-06157
90467-09093
90901-89018
93567-14512
