AT190L-AEPDKW (1992)

Toyota Carina E Sed/Lb(Jpp)

Production Feb 1992 - Jan 1996
Engine 4AFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

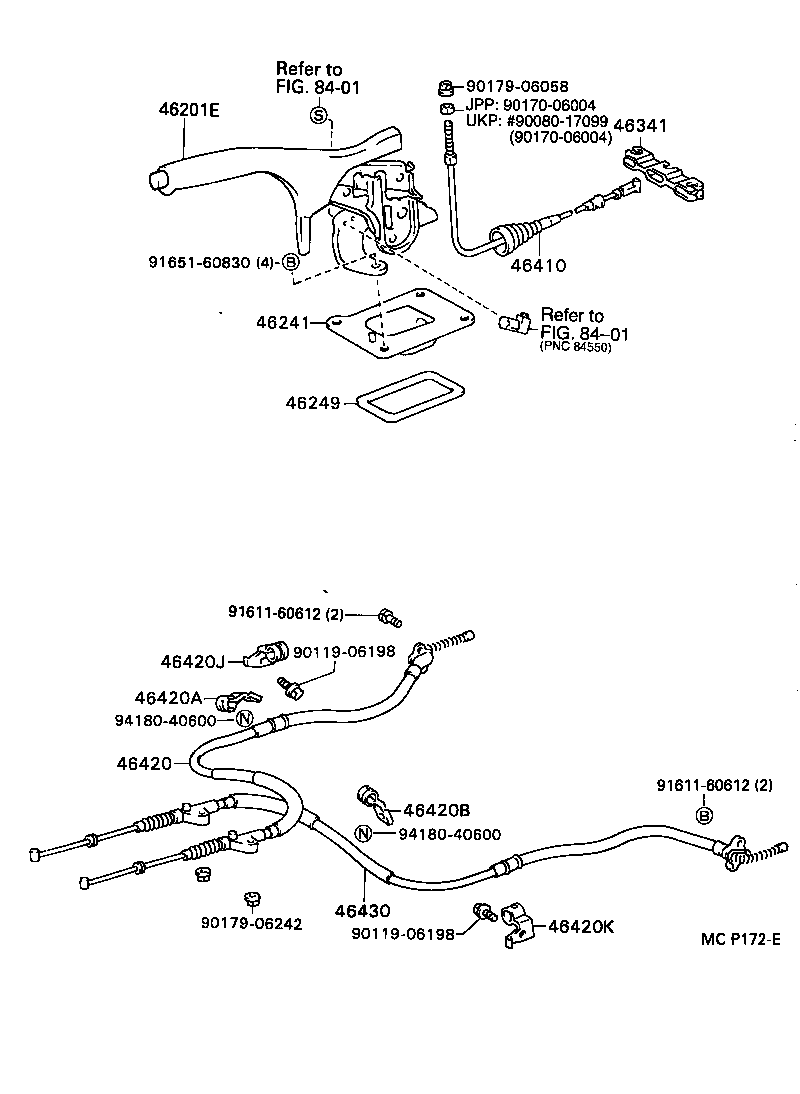

ILLUST NO. 1 OF 2(9202- )JPP

Click highlighted areas on diagram

diagram 46201E 46241 46249 46341 46410 46420 46420A 46420B 46420J 46420K 46430 8401 8401 9008017099 9011906198 9011906198 9017006004 9017006004 9017906058 9017906242 9161160612 9161160612 9165160830 9418040600 9418040600
Part # Description Qty Price
46201E - LEVER SUB-ASSY, PARKING BRAKE
46201-20270C0

AT190,CT190,ST191..JPP..LHD..(GL,XL)

BLACK,TRIM2#,8#

 1
46201-20270C0

AT190,CT190,ST191..JPP..LHD..(GL,XL)

BLACK,TRIM1#,8#

 1
46241 - BOOT, PARKING BRAKE LEVER
46241-20130

AT190,CT190,ST191..JPP..LHD

 1
46249 - SHIELD, PARKING BRAKE HOLE
46249-20050

AT190,CT190,ST191..JPP

 1
46341 - EQUALIZER, PARKING BRAKE
46341-12020

AT190,CT190,ST191..JPP

 1
46341-20090

AT190,CT190,ST191..JPP

 1
46341-12020

AT190,CT190,ST191..JPP

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-20380

AT190,CT190,ST191..JPP

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-20350

AT190,CT190,ST191..JPP..(GL,XL)

 1
46420-20351

AT190,CT190,ST191..JPP..(GL,XL)

 1
46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE)
90949-01771

AT190,CT190,ST191..JPP

 1
46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE)
90949-01772

AT190,CT190,ST191..JPP

 1
46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE)
90949-01709

AT190,CT190,ST191..JPP

 1
46451-20020

AT190,CT190,ST191..JPP

 1
46420K - CLAMP, NO.4(FOR PARKING BRAKE CABLE)
46451-20030

AT190,CT190,ST191..JPP

 1
90949-01711

AT190,CT190,ST191..JPP

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-20361

AT190,CT190,ST191..JPP..(GL,XL)

 1
46430-20360

AT190,CT190,ST191..JPP..(GL,XL)

 1
Common parts
90080-17099
90119-06198
90170-06004
90179-06058
90179-06242
91611-60612
91651-60830
94180-40600
Linked diagrams
8401
