AT190L-AEMDKW (1992)

Toyota Carina E Sed/Lb(Jpp)

Production Feb 1992 - Jan 1996
Engine 4AFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9202- )AT190..JPP..MTM

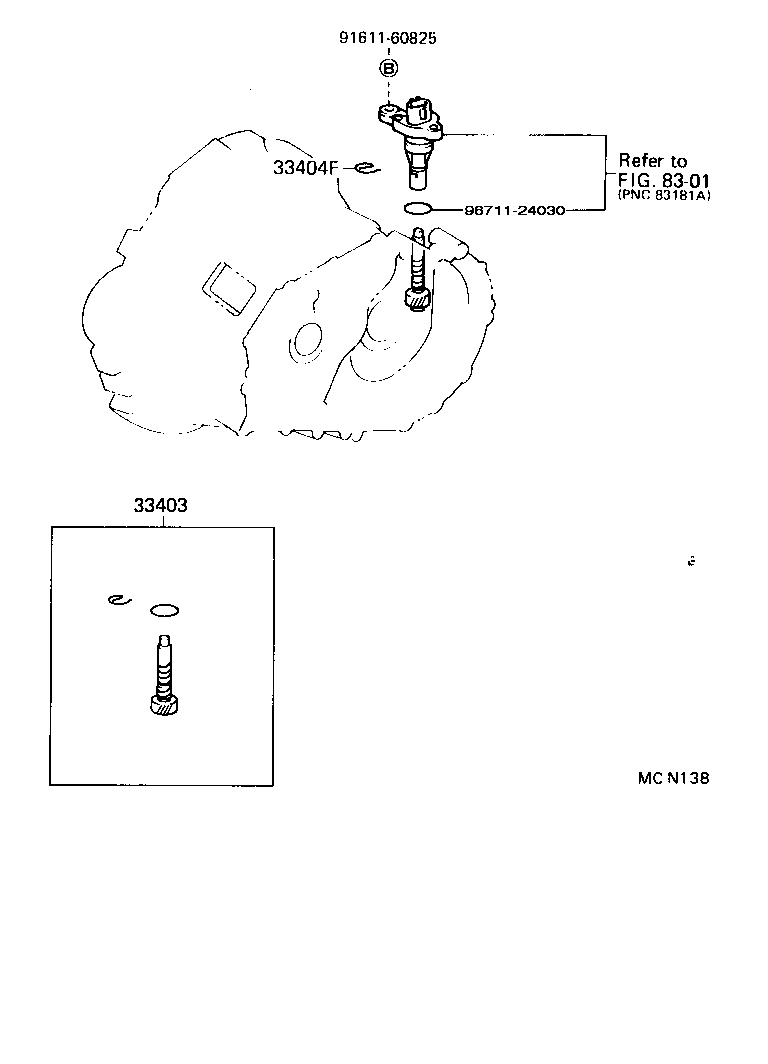

Click highlighted areas on diagram

C51,C52,C57

diagram 33403 33404F 8301 9161160825 9671124030
Part # Description Qty Price
33403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)
33403-19455

AT190..JPP..MTM

N=30,MARK 30:35

 1
33404F - CLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90468-12005

AT190,CT190,ST191..JPP..MTM

 1
Common parts
91611-60825
96711-24030
Linked diagrams
8301
