AT190L-AEMDKW (1992)

Toyota Carina E Sed/Lb(Jpp)

Production Feb 1992 - Jan 1996
Engine 4AFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9202- )4AFE..JPP

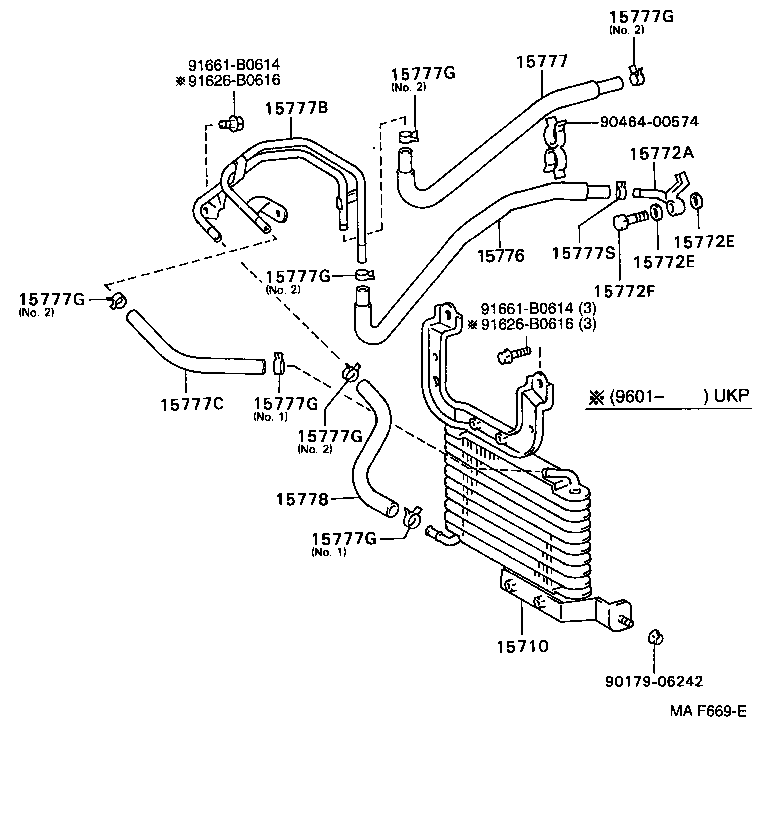

Click highlighted areas on diagram

diagram 15710 15772A 15772E 15772E 15772F 15776 15777 15777B 15777C 15777G 15777G 15777G 15777G 15777G 15777G 15777G 15777S 15778 9017906242 9046400574 91626B0616 91626B0616 91661B0614 91661B0614
Part # Description Qty Price
15710 - COOLER ASSY, OIL
15710-16050

4AFE..AT190..JPP

 1
15772A - UNION(FOR OIL PIPE)
90405-10030

4AFE..AT190..JPP

 1
15772E - GASKET(FOR OIL PIPE)
90430-12031

4AFE..AT190..JPP

 2
90430-12027

4AFE..AT190..JPP

 2
15772E - GASKET(FOR OIL PIPE)
90430-12031

4AFE..AT190..JPP

 2
90430-12027

4AFE..AT190..JPP

 2
15772F - BOLT, UNION(FOR OIL PIPE)
90401-12009

4AFE..AT190..JPP

 1
15776 - HOSE, OIL COOLER, NO.4
15777-16100

4AFE..AT190..JPP

 1
15777 - HOSE, OIL COOLER
15777-16100

4AFE..AT190..JPP

 1
15777B - PIPE, OIL COOLER
15767-16110

4AFE..AT190..JPP

 1
15777C - HOSE, OIL COOLER
15779-16040

4AFE..AT190..JPP

 1
15777G - CLAMP OR CRIP, HOSE
90467-15018

4AFE..AT190..JPP

NO.1

 2
90467-15025

4AFE..AT190..JPP

NO.2

 5
15777G - CLAMP OR CRIP, HOSE
90467-15018

4AFE..AT190..JPP

NO.1

 2
90467-15025

4AFE..AT190..JPP

NO.2

 5
15777G - CLAMP OR CRIP, HOSE
90467-15018

4AFE..AT190..JPP

NO.1

 2
90467-15025

4AFE..AT190..JPP

NO.2

 5
15777G - CLAMP OR CRIP, HOSE
90467-15018

4AFE..AT190..JPP

NO.1

 2
90467-15025

4AFE..AT190..JPP

NO.2

 5
15777G - CLAMP OR CRIP, HOSE
90467-15018

4AFE..AT190..JPP

NO.1

 2
90467-15025

4AFE..AT190..JPP

NO.2

 5
15777G - CLAMP OR CRIP, HOSE
90467-15018

4AFE..AT190..JPP

NO.1

 2
90467-15025

4AFE..AT190..JPP

NO.2

 5
15777G - CLAMP OR CRIP, HOSE
90467-15018

4AFE..AT190..JPP

NO.1

 2
90467-15025

4AFE..AT190..JPP

NO.2

 5
15777S - CLAMP OR CLIP, HOSE
90467-15025

4AFE..AT190..JPP

 1
15778 - HOSE, OIL COOLER, NO.2
15778-16070

4AFE..AT190..JPP

 1
Common parts
90179-06242
90464-00574
91626-B0616
91661-B0614
