ST191R-BLMNKW (1993)

Toyota Carina E (Ukp)

Production Dec 1993 - Oct 1997
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9212-9402)UKP

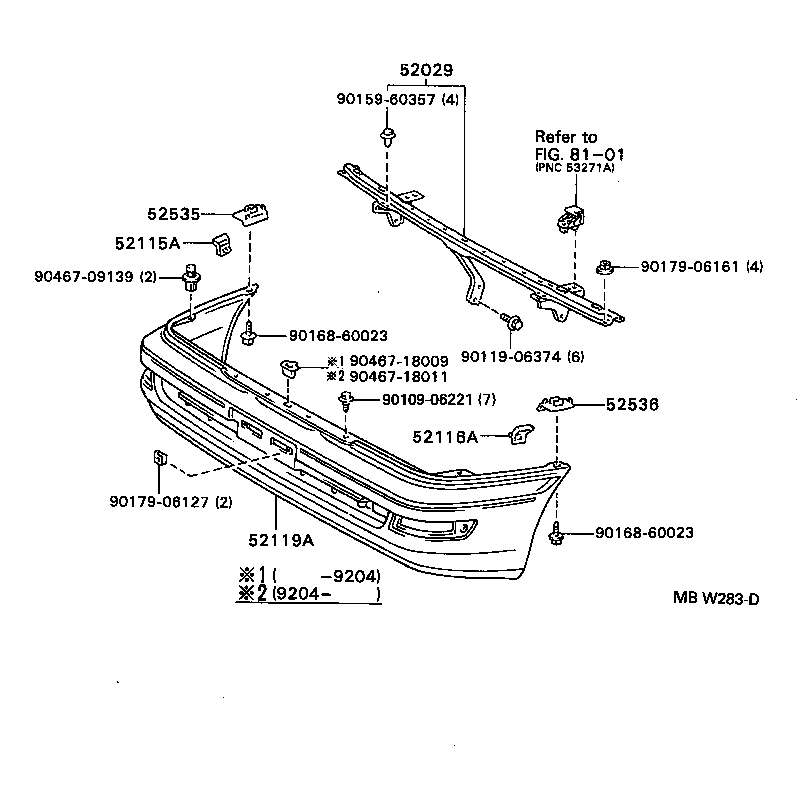

Click highlighted areas on diagram

W(LICENSE PLATE SPACE(390 X 170))

diagram 52029 52115A 52116A 52119A 52535 52536 8101 9010906221 9011906374 9015960357 9016860023 9016860023 9017906127 9017906161 9046709139 9046718009 9046718011
Part # Description Qty Price
52029 - REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER
52029-20030

AT190,ST191..UKP

(J)

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-20300

AT19#,CT190,ST191..UKP

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-20210

AT19#,CT190,ST191..UKP

 1
52119A - COVER, FRONT BUMPER
52119-05040

AT19#,CT190,ST191..UKP

W(HEADLAMP CLEANER)

 1
52119-05020

AT19#,CT190,ST191..UKP

 1
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-20050

AT190,ST191..UKP

(J)

 1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-20050

AT190,ST191..UKP

(J)

 1
Common parts
90109-06221
90119-06374
90159-60357
90168-60023
90179-06127
90179-06161
90467-09139
90467-18009
90467-18011
Linked diagrams
8101
