ST191R-BEMNKW (1992)
Toyota Carina E (Ukp)

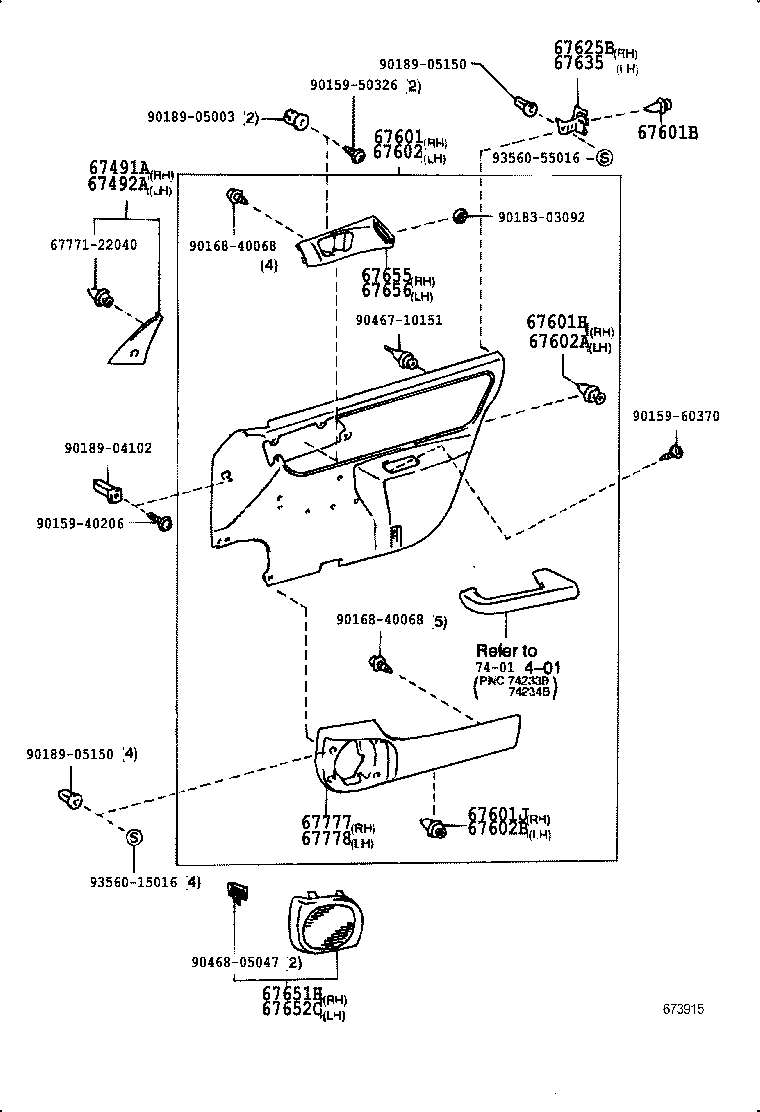

ILLUST NO. 1 OF 3(9601- )UKP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-20270C0 |
AT190,ST191..UKP..GL W(SPEAKER),BLACK,TRIM2#,8# |
1 | ||
| 67491-20270C0 |
AT19#,CT190,ST191..UKP..GL W(SPEAKER),BLACK,TRIM1#,8# |
1 | ||
| 67491-05010 |
AT19#,CT190,ST191..UKP..GL |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-20290C0 |
AT190,ST191..UKP..GL W(SPEAKER),BLACK,TRIM2#,8# |
1 | ||
| 67492-05010 |
AT19#,CT190,ST191..UKP..GL |
1 | ||
| 67492-20290C0 |
AT19#,CT190,ST191..UKP..GL W(SPEAKER),BLACK,TRIM1#,8# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-05010J1 |
AT190,ST191..UKP..RHD..GL W(POWER WINDOW);DOOR TRIM=TYPE B-*104,DK. BLUE,TRIM8# |
1 | ||
| 67610-05010C1 |
AT190,ST191..UKP..RHD..GL W(POWER WINDOW);DOOR TRIM=TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 67610-05060C2 |
AT190,ST191..UKP..RHD..GL W(POWER WINDOW & SPORTS SEAT);DOOR TRIM=TYPE C-*104,BLACK,TRIM2# |
1 | ||
| 67610-05060C2 |
AT190,ST191..UKP..RHD..SED..GL W(POWER WINDOW & SPORTS SEAT);DOOR TRIM=TYPE C-*104,BLACK,TRIM2# |
1 | ||
| 67610-05020J1 |
AT190,ST191..UKP..GL DOOR TRIM=TYPE B-*104,DK. BLUE,TRIM8# |
1 | ||
| 67610-05020C1 |
AT190,ST191..UKP..GL DOOR TRIM=TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 67610-05120J0 |
ST191..UKP;AT190..UKP..RHD..GL DOOR TRIM=TYPE B-*104,DK. BLUE,TRIM8# |
1 | ||
| 67610-05120B0 |
ST191..UKP;AT190..UKP..RHD..GL DOOR TRIM=TYPE B-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67610-05110J0 |
AT19#,ST191..UKP..RHD..GL W(POWER WINDOW);DOOR TRIM=TYPE B-*104,DK. BLUE,TRIM8# |
1 | ||
| 67610-05110B0 |
AT19#,ST191..UKP..RHD..GL W(POWER WINDOW);DOOR TRIM=TYPE B-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67610-05060B0 |
AT19#,ST191..UKP..RHD..SED..GL W(POWER WINDOW & SPORTS SEAT);DOOR TRIM=TYPE C-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67610-05120J0 |
AT191..UKP..WG;AT191..UKP..RHD;AT190,ST191..UKP..GL DOOR TRIM=TYPE B-*104,DK. BLUE,TRIM8# |
1 | ||
| 67610-05120B0 |
AT191..UKP..WG;AT191..UKP..RHD;AT190,ST191..UKP..GL DOOR TRIM=TYPE B-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67610-05230B0 |
AT19#,CT190,ST191..UKP..RHD..GL DOOR TRIM=TYPE D-*104;'97 SPRING CAMPAIGN 0R '97 AUTUMN CAMPAIGN FABRIC,SHADOW GRAY,TRIM1# |
1 | ||
| 67610-05170J1 |
AT19#,CT190,ST191..UKP..RHD..GL W(POWER WINDOW);DOOR TRIM=TYPE B-*104,DK. BLUE,TRIM8# |
1 | ||
| 67610-05170B1 |
AT19#,CT190,ST191..UKP..RHD..GL W(POWER WINDOW);DOOR TRIM=TYPE B-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67610-05280B0 |
AT19#,CT190,ST191..UKP..RHD..SED..GL W(SPORTS SEAT);DOOR TRIM=TYPE C-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67610-05230B0 |
AT19#,CT190,ST191..UKP..RHD..SED..GL DOOR TRIM=TYPE D-*104;'97 AUTUMN CAMPAIGN FABRIC,SHADOW GRAY,TRIM1# |
1 | ||
| 67610-05320B0 |
AT19#,CT190,ST191..UKP..RHD..SED..GL DOOR TRIM=TYPE E-*104;'97 AUTUMN CAMPAIGN FABRIC,SHADOW GRAY,TRIM1# |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-0707122 |
AT19#,CT190,ST191..UKP BLACK,TRIM1#,8# |
2 | ||
| 90467-0707122 |
AT190,ST191..UKP BLACK,TRIM2#,8# |
4 | ||
| 90467-0707122 |
AT19#,CT190,ST191..UKP BLACK,TRIM1#,8# |
4 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-20110 |
AT19#,CT190,ST191..UKP |
5 | ||
| 67771-20110 |
AT19#,CT190,ST191..UKP MOSS GREEN |
3 | ||
| 67771-28030 |
AT19#,CT190,ST191..UKP YELLOW |
2 | ||
| 67771-28030 |
AT19#,CT190,ST191..UKP YELLOW |
3 | ||
| 67771-20110 |
AT19#,CT190,ST191..UKP MOSS GREEN |
2 | ||
| 67601J - RETAINER, DOOR TRIM, NO.2 RH | ||||
| 67771-28030 |
AT19#,CT190,ST191..UKP |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-05010C1 |
AT190,ST191..UKP..RHD..GL W(POWER WINDOW);DOOR TRIM=TYPE C-*104,BLACK,TRIM2# |
1 | ||
| 67620-05020C1 |
AT190,ST191..UKP..GL DOOR TRIM=TYPE C-*104,BLACK,TRIM2# |
1 | ||
| 67620-05020J1 |
AT190,ST191..UKP..GL DOOR TRIM=TYPE C-*104,DK. BLUE,TRIM8# |
1 | ||
| 67620-05060C2 |
AT190,ST191..UKP..RHD..GL W(POWER WINDOW & SPORTS SEAT);DOOR TRIM=TYPE C-*104,BLACK,TRIM2# |
1 | ||
| 67620-05010J1 |
AT190,ST191..UKP..RHD..GL W(POWER WINDOW);DOOR TRIM=TYPE C-*104,DK. BLUE,TRIM8# |
1 | ||
| 67620-05060C2 |
AT190,ST191..UKP..RHD..SED..GL W(POWER WINDOW & SPORTS SEAT);DOOR TRIM=TYPE C-*104,BLACK,TRIM2# |
1 | ||
| 67620-05120B0 |
ST191..UKP;AT190..UKP..RHD..GL DOOR TRIM=TYPE B-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-05060B0 |
AT19#,ST191..UKP..RHD..SED..GL W(POWER WINDOW & SPORTS SEAT);DOOR TRIM=TYPE C-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-05120J0 |
ST191..UKP;AT190..UKP..RHD..GL DOOR TRIM=TYPE B-*104,DK. BLUE,TRIM8# |
1 | ||
| 67620-05120J0 |
AT191..UKP..WG;AT191..UKP..RHD;AT190,ST191..UKP..GL DOOR TRIM=TYPE B-*104,DK. BLUE,TRIM8# |
1 | ||
| 67620-05110B0 |
AT19#,ST191..UKP..RHD..GL W(POWER WINDOW);DOOR TRIM=TYPE B-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-05110J0 |
AT19#,ST191..UKP..RHD..GL W(POWER WINDOW);DOOR TRIM=TYPE B-*104,DK. BLUE,TRIM8# |
1 | ||
| 67620-05120B0 |
AT191..UKP..WG;AT191..UKP..RHD;AT190,ST191..UKP..GL DOOR TRIM=TYPE B-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-05170B1 |
AT19#,CT190,ST191..UKP..RHD..GL W(POWER WINDOW);DOOR TRIM=TYPE B-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-05230B0 |
AT19#,CT190,ST191..UKP..RHD..GL DOOR TRIM=TYPE D-*104;'97 SPRING CAMPAIGN 0R '97 AUTUMN CAMPAIGN FABRIC,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-05170J1 |
AT19#,CT190,ST191..UKP..RHD..GL DOOR TRIM=TYPE A-*104;W(POWER WINDOW),DK. BLUE,TRIM8# |
1 | ||
| 67620-05280B0 |
AT19#,CT190,ST191..UKP..RHD..SED..GL W(SPORTS SEAT);DOOR TRIM=TYPE C-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-05230B0 |
AT19#,CT190,ST191..UKP..RHD..SED..GL DOOR TRIM=TYPE D-*104;'97 AUTUMN CAMPAIGN FABRIC,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-05320B0 |
AT19#,CT190,ST191..UKP..RHD..SED..GL '97 AUTUMN CAMPAIGN FABRIC & W(POWER WINDOW);DOOR TRIM=TYPE E-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-28030 |
AT19#,CT190,ST191..UKP YELLOW |
2 | ||
| 67771-28030 |
AT19#,CT190,ST191..UKP YELLOW |
3 | ||
| 67771-20110 |
AT19#,CT190,ST191..UKP MOSS GREEN |
3 | ||
| 67771-20110 |
AT19#,CT190,ST191..UKP MOSS GREEN |
2 | ||
| 67771-20110 |
AT19#,CT190,ST191..UKP |
5 | ||
| 67602B - RETAINER, DOOR TRIM, NO.2 LH | ||||
| 67771-28030 |
AT19#,CT190,ST191..UKP |
1 | ||
| 67625B - BRACKET, DOOR TRIM, NO.1 RH | ||||
| 67625-20100 |
AT19#,CT190,ST191..UKP |
1 | ||
| 67635 - BRACKET, DOOR TRIM, NO.1 LH | ||||
| 67635-20040 |
AT19#,CT190,ST191..UKP |
1 | ||
| 67651H - GRILLE, SPEAKER DOOR, RH | ||||
| 67651-20060C1 |
AT190,ST191..UKP BLACK,TRIM2# |
1 | ||
| 67651-05011J0 |
AT19#,CT190,ST191..UKP DK.BLUE,TRIM8# |
1 | ||
| 67651-21010J0 |
AT190,ST191..UKP DK. BLUE,TRIM8# |
1 | ||
| 67651-20060J1 |
AT190,ST191..UKP DK.BLUE,TRIM8# |
1 | ||
| 67651-05010B0 |
AT190,CT190,ST191..UKP SHADOW GRAY,TRIM1# |
1 | ||
| 67651-05010C0 |
AT190,ST191..UKP BLACK,TRIM2# |
1 | ||
| 67651-05010J0 |
AT190,CT190,ST191..UKP DK. BLUE,TRIM8# |
1 | ||
| 67651-21010C0 |
AT190,ST191..UKP BLACK,TRIM2# |
1 | ||
| 67651-05011B0 |
AT19#,CT190,ST191..UKP SHADOW GRAY,TRIM1# |
1 | ||
| 67652C - GRILLE, SPEAKER DOOR, LH | ||||
| 67652-21020J0 |
AT190,ST191..UKP DK. BLUE,TRIM8# |
1 | ||
| 67652-20050C1 |
AT190,ST191..UKP BLACK,TRIM2# |
1 | ||
| 67652-21020C0 |
AT190,ST191..UKP BLACK,TRIM2# |
1 | ||
| 67652-05011J0 |
AT19#,CT190,ST191..UKP DK.BLUE,TRIM8# |
1 | ||
| 67652-05010C0 |
AT190,ST191..UKP BLACK,TRIM2# |
1 | ||
| 67652-05011B0 |
AT19#,CT190,ST191..UKP SHADOW GRAY,TRIM1# |
1 | ||
| 67652-20050J1 |
AT190,ST191..UKP DK.BLUE,TRIM8# |
1 | ||
| 67652-05010J0 |
AT190,CT190,ST191..UKP DK. BLUE,TRIM8# |
1 | ||
| 67652-05010B0 |
AT190,CT190,ST191..UKP SHADOW GRAY,TRIM1# |
1 | ||
| 67655 - GARNISH, FRONT DOOR TRIM, RH | ||||
| 67655-20040J0 |
AT190,ST191..UKP..RHD DK. BLUE,TRIM8# |
1 | ||
| 67655-20040J0 |
AT190,ST191..UKP..RHD DK. BLUE,TRIM8#,(J) |
1 | ||
| 67655-05010B0 |
AT19#,ST191..UKP..RHD SHADOW GRAY,TRIM1# |
1 | ||
| 67655-05010J0 |
AT19#,ST191..UKP..RHD DK. BLUE,TRIM8# |
1 | ||
| 67655-20040C0 |
AT190,ST191..UKP..RHD BLACK,TRIM2#,(J) |
1 | ||
| 67655-05010J0 |
AT190,ST191..UKP..RHD..GL DK. BLUE,TRIM8#,(L) |
1 | ||
| 67655-05010B0 |
AT190,ST191..UKP..RHD SHADOW GRAY,TRIM1# |
1 | ||
| 67655-05010C0 |
AT190,ST191..UKP..RHD BLACK,TRIM2# |
1 | ||
| 67655-20040C0 |
AT190,ST191..UKP..RHD BLACK,TRIM2# |
1 | ||
| 67655-05020J0 |
AT19#,CT190,ST191..UKP DK.BLUE,TRIM8# |
1 | ||
| 67655-05010J0 |
AT190,ST191..UKP..RHD DK. BLUE,TRIM8# |
1 | ||
| 67655-05020B0 |
AT19#,CT190,ST191..UKP SHADOW GRAY,TRIM1# |
1 | ||
| 67656 - GARNISH, DOOR TRIM, LH | ||||
| 67656-05020B0 |
AT19#,CT190,ST191..UKP SHADOW GRAY,TRIM1# |
1 | ||
| 67656-05020J0 |
AT19#,CT190,ST191..UKP DK.BLUE,TRIM8# |
1 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67777-20190C0 |
AT190,ST191..UKP BLACK,TRIM2# |
1 | ||
| 67777-05010C0 |
AT190,ST191..UKP BLACK,TRIM2# |
1 | ||
| 67777-05010B0 |
AT19#,CT190,ST191..UKP SHADOW GRAY,TRIM1# |
1 | ||
| 67777-05020B0 |
AT19#,CT190,ST191..UKP SHADOW GRAY,TRIM1# |
1 | ||
| 67777-05020J0 |
AT19#,CT190,ST191..UKP DK.BLUE,TRIM8# |
1 | ||
| 67777-20190J0 |
AT190,ST191..UKP DK.BLUE,TRIM8# |
1 | ||
| 67777-05010J0 |
AT19#,CT190,ST191..UKP DK. BLUE,TRIM8# |
1 | ||
| 67778 - POCKET, FRONT DOOR TRIM, LH | ||||
| 67778-05010C0 |
AT190,ST191..UKP BLACK,TRIM2# |
1 | ||
| 67778-05010B0 |
AT19#,CT190,ST191..UKP SHADOW GRAY,TRIM1# |
1 | ||
| 67778-05020J0 |
AT19#,CT190,ST191..UKP DK.BLUE,TRIM8# |
1 | ||
| 67778-20120J0 |
AT190,ST191..UKP DK.BLUE,TRIM8# |
1 | ||
| 67778-20120C0 |
AT190,ST191..UKP BLACK,TRIM2# |
1 | ||
| 67778-05020B0 |
AT19#,CT190,ST191..UKP SHADOW GRAY,TRIM1# |
1 | ||
| 67778-05010J0 |
AT19#,CT190,ST191..UKP DK. BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 67771-22040 | ||||
| 90159-40206 | ||||
| 90159-50326 | ||||
| 90159-60370 | ||||
| 90168-40068 | ||||
| 90183-03092 | ||||
| 90189-04102 | ||||
| 90189-05003 | ||||
| 90189-05150 | ||||
| 90467-10151 | ||||
| 90468-05047 | ||||
| 93560-15016 | ||||
| 93560-55016 | ||||
| Linked diagrams | ||||
| 7401 | ||||
ILLUST NO. 3 OF 3(9601- )UKP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Linked diagrams | ||||
| 6701 | ||||
| 6705 | ||||
| 7101 | ||||
| 7102 | ||||
