AT191R-BEMNKW (1994)
Toyota Carina E (Ukp)

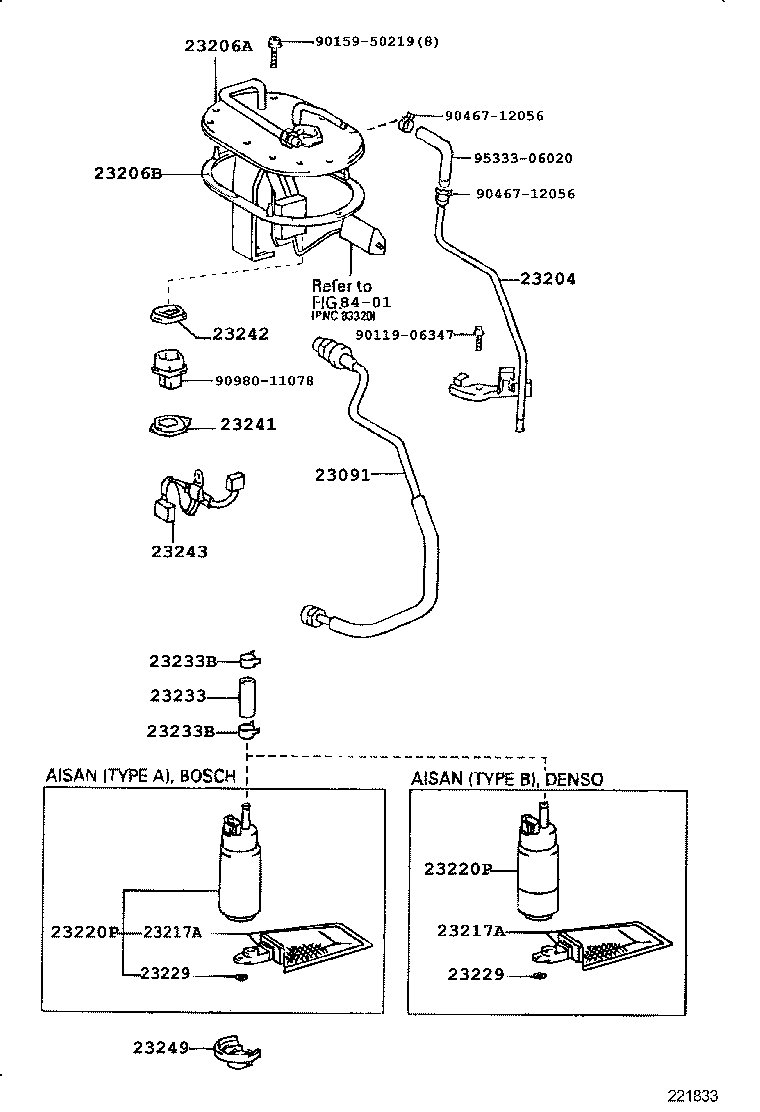

ILLUST NO. 2 OF 2(9601- )4AFE,7AFE..UKP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23091 - TUBE SUB-ASSY, FUEL PUMP | ||||
| 77209-05010 |
4AFE,7AFE..AT19#..UKP |
1 | ||
| 23091-02030 |
4AFE,7AFE..AT19#..UKP VDO |
1 | ||
| 23091-74211 |
4AFE,7AFE..AT19#..UKP HORIE |
1 | ||
| 23204 - TUBE SUB-ASSY, FUEL PUMP RETURN | ||||
| 23204-02020 |
4AFE,7AFE..AT19#..UKP VDO |
1 | ||
| 77204-05020 |
4AFE,7AFE..AT19#..UKP |
1 | ||
| 23204-74650 |
4AFE,7AFE..AT19#..UKP HORIE |
1 | ||
| 23206A - BRACKET, FUEL PUMP | ||||
| 77203-05020 |
4AFE,7AFE..AT19#..UKP |
1 | ||
| 23206-02040 |
4AFE,7AFE..AT19#..UKP VDO |
1 | ||
| 23206-74660 |
4AFE,7AFE..AT19#..UKP HORIE |
1 | ||
| 23206B - GASKET, FUEL PUMP BRACKET | ||||
| 77169-05010 |
4AFE,7AFE..AT19#..UKP VDO |
1 | ||
| 77169-60010 |
4AFE,7AFE..AT19#..UKP HORIE |
1 | ||
| 77169-05010 |
4AFE,7AFE..AT19#..UKP |
1 | ||
| 23217A - FILTER, FUEL PUMP | ||||
| 23217-46090 |
4AFE,7AFE..AT19#..UKP NIPPONDENSO |
1 | ||
| 23217-74021 |
4AFE,7AFE..AT19#..UKP AISAN |
1 | ||
| 23217A - FILTER, FUEL PUMP | ||||
| 23217-46090 |
4AFE,7AFE..AT19#..UKP NIPPONDENSO |
1 | ||
| 23217-74021 |
4AFE,7AFE..AT19#..UKP AISAN |
1 | ||
| 23220P - PUMP ASSY, FUEL | ||||
| 23220-74021 |
4AFE,7AFE..AT19#..UKP AISAN |
1 | ||
| 23221-46010 |
4AFE,7AFE..AT19#..UKP NIPPONDENSO |
1 | ||
| 23220-02040 |
4AFE,7AFE..AT19#..UKP BOSCH |
1 | ||
| 23220P - PUMP ASSY, FUEL | ||||
| 23220-74021 |
4AFE,7AFE..AT19#..UKP AISAN |
1 | ||
| 23221-46010 |
4AFE,7AFE..AT19#..UKP NIPPONDENSO |
1 | ||
| 23220-02040 |
4AFE,7AFE..AT19#..UKP BOSCH |
1 | ||
| 23229 - CLIP(FOR FUEL PUMP FILTER) | ||||
| 23229-16010 |
4AFE,7AFE..AT19#..UKP |
1 | ||
| 23229 - CLIP(FOR FUEL PUMP FILTER) | ||||
| 23229-16010 |
4AFE,7AFE..AT19#..UKP |
1 | ||
| 23233 - HOSE, FUEL PUMP | ||||
| 23239-63010 |
4AFE,7AFE..AT19#..UKP |
1 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-12067 |
4AFE,7AFE..AT19#..UKP HORIE |
2 | ||
| 90467-13054 |
4AFE,7AFE..AT19#..UKP VDO |
2 | ||
| 90467-13054 |
4AFE,7AFE..AT19#..UKP |
1 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-12067 |
4AFE,7AFE..AT19#..UKP HORIE |
2 | ||
| 90467-13054 |
4AFE,7AFE..AT19#..UKP VDO |
2 | ||
| 90467-13054 |
4AFE,7AFE..AT19#..UKP |
1 | ||
| 23241 - SUPPORT, FUEL PUMP CONNECTOR | ||||
| 23241-16010 |
4AFE,7AFE..AT19#..UKP |
1 | ||
| 23241-16010 |
4AFE,7AFE..AT19#..UKP |
1 | ||
| 23242 - GASKET, FUEL PUMP CONNECTOR | ||||
| 23242-16010 |
4AFE,7AFE..AT19#..UKP |
1 | ||
| 23242-16010 |
4AFE,7AFE..AT19#..UKP |
1 | ||
| 23243 - WIRE, FUEL PUMP MOTOR | ||||
| 23243-16010 |
4AFE,7AFE..AT19#..UKP |
1 | ||
| 23243-16010 |
4AFE,7AFE..AT19#..UKP |
1 | ||
| 23249 - RUBBER, CUSHION(FOR FUEL PUMP) | ||||
| 23249-74610 |
4AFE,7AFE..AT19#..UKP |
1 | ||
| Common parts | ||||
| 90119-06347 | ||||
| 90159-50219 | ||||
| 90467-12056 | ||||
| 90980-11078 | ||||
| 95333-06020 | ||||
| Linked diagrams | ||||
| 8401 | ||||
