AT191R-BEMDKW (1996)

Toyota Carina E (Ukp)

Production Jan 1996 - Oct 1997
Engine 7AFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )UKP

Click highlighted areas on diagram

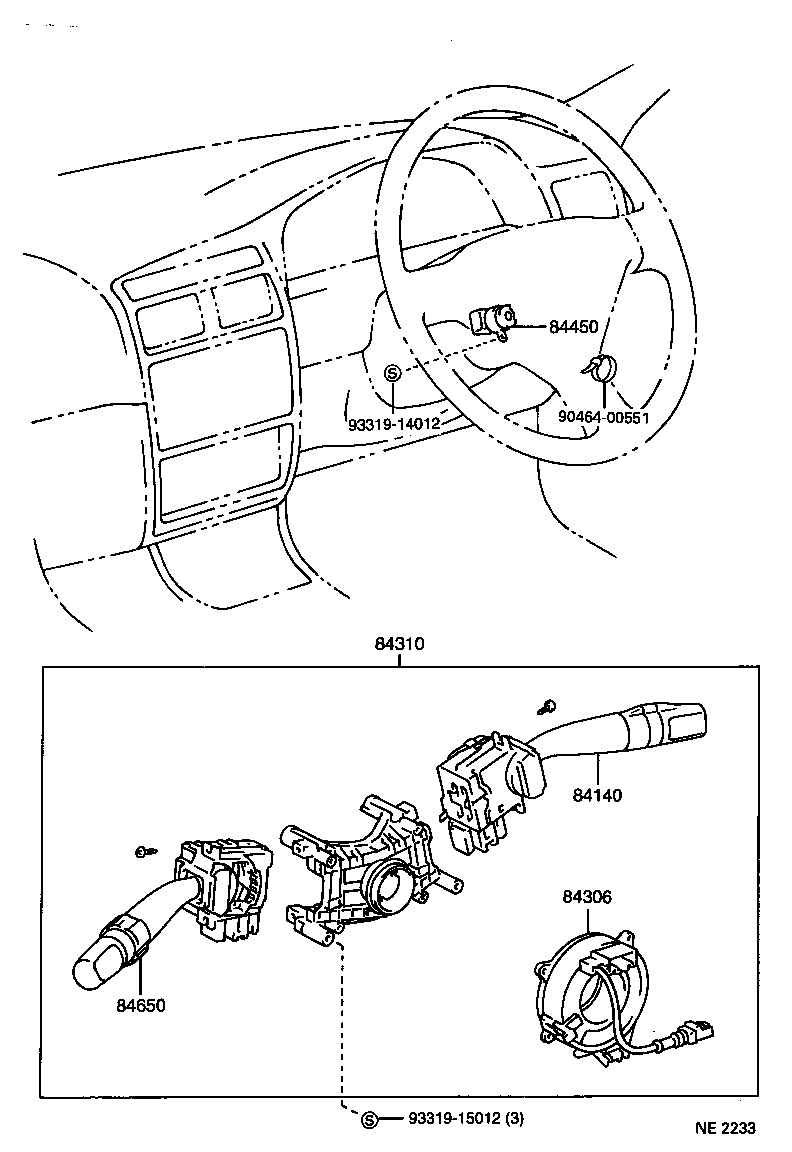

COMBINATION SWITCH

diagram 84140 84306 84310 84450 84650 9046400551 9331914012 9331915012
Part # Description Qty Price
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-05030

AT19#,CT190,ST191..UKP

 1
84306 - CABLE SUB-ASSY, SPIRAL
84306-05010

AT19#,CT190,ST191..UKP

 1
84310 - SWITCH ASSY, TURN SIGNAL
84310-05120

AT19#,CT190,ST191..UKP..SED

W/O(AIR BAG) OR W(M-TYPE DOP KIT AIR BAG)

 1
84310-05110

AT19#,CT190,ST191..UKP..SED

 1
84450 - SWITCH ASSY, IGNITION OR STARTER
84450-05020

AT19#,CT190,ST191..UKP

 1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-05100

AT19#,CT190,ST191..UKP..SED

 1
Common parts
90464-00551
93319-14012
93319-15012

(9601- )UKP

Click highlighted areas on diagram

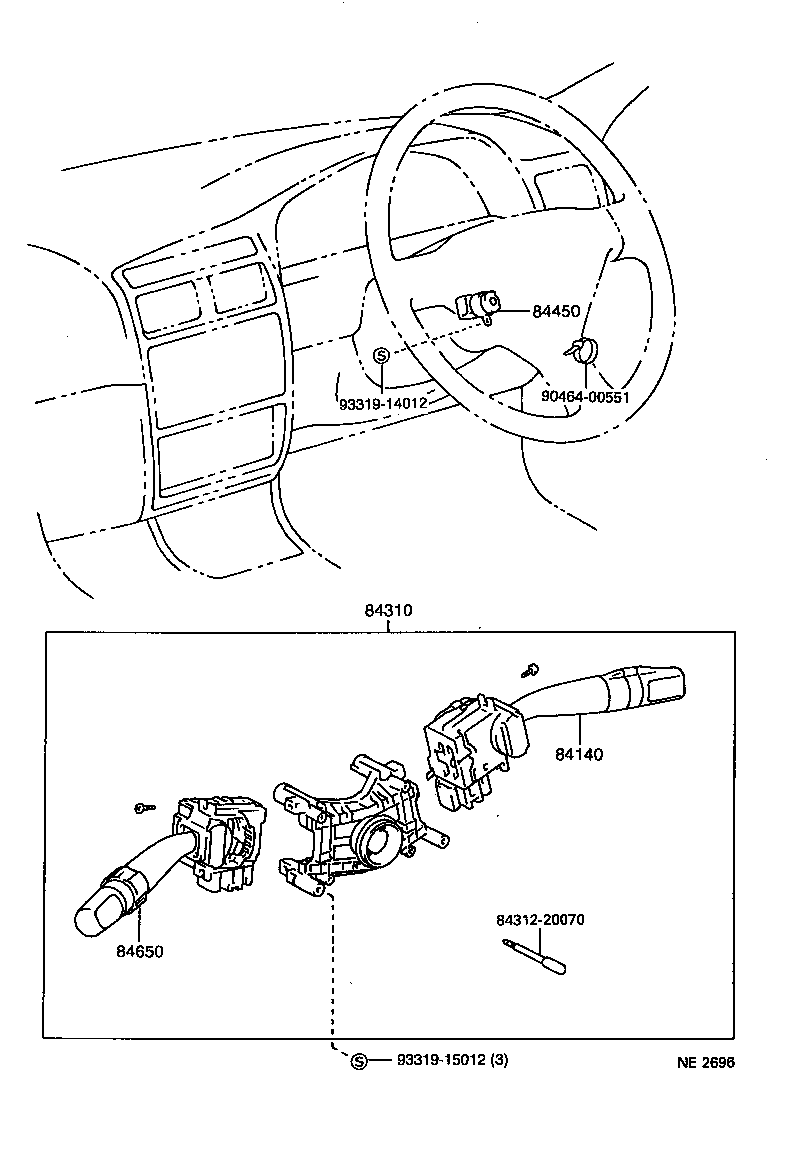

COMBINATION SWTICH

diagram 84140 84310 8431220070 84450 84650 9046400551 9331914012 9331915012
Part # Description Qty Price
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-05030

AT19#,CT190,ST191..UKP

 1
84310 - SWITCH ASSY, TURN SIGNAL
84310-05120

AT19#,CT190,ST191..UKP..SED

W/O(AIR BAG) OR W(M-TYPE DOP KIT AIR BAG)

 1
84310-05110

AT19#,CT190,ST191..UKP..SED

 1
84450 - SWITCH ASSY, IGNITION OR STARTER
84450-05020

AT19#,CT190,ST191..UKP

 1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-05100

AT19#,CT190,ST191..UKP..SED

 1
Common parts
84312-20070
90464-00551
93319-14012
93319-15012
