AT191L-BLPNKW (1996)

Toyota Carina E (Ukp)

Production Jan 1996 - Oct 1997
Engine 7AFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )AT19#..UKP

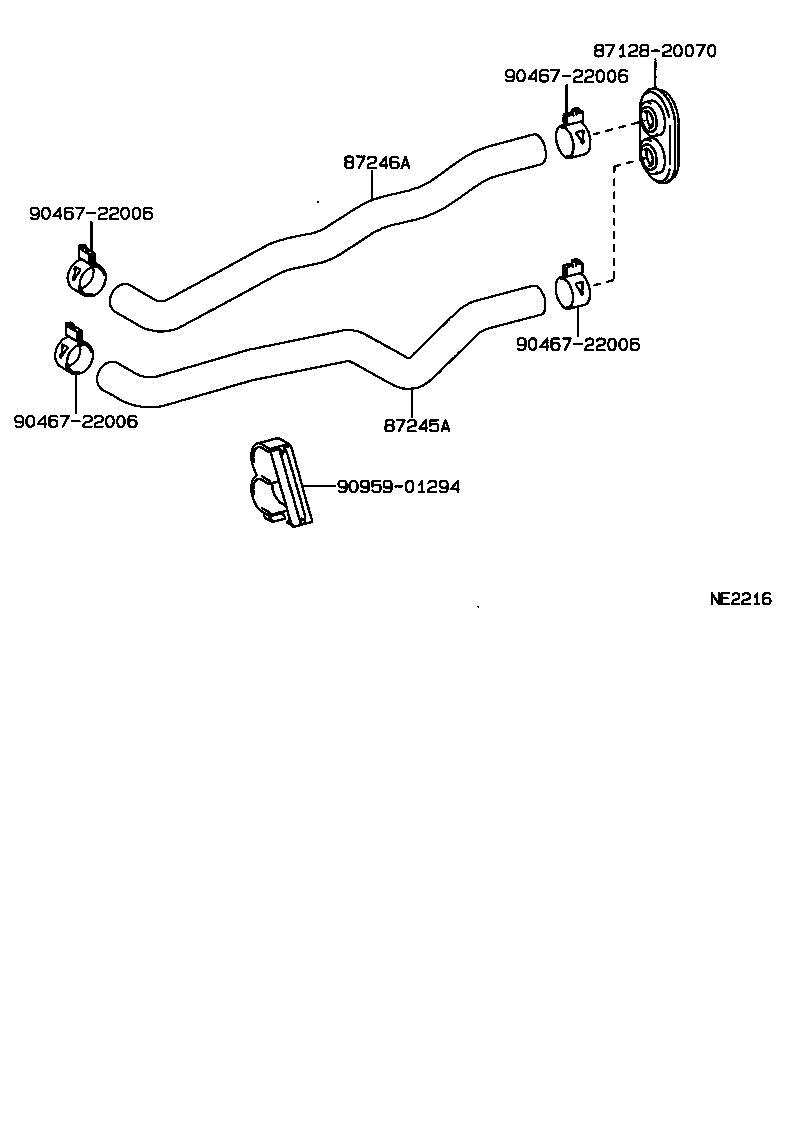

Click highlighted areas on diagram

diagram 8712820070 87245A 87246A 9046722006 9046722006 9046722006 9046722006 9095901294
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
87245-2B710

AT19#..UKP..LHD

 1
87245-2B860

AT19#..UKP..LHD

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-2B890

AT19#..UKP..LHD

 1
87245-2B720

AT19#..UKP..LHD

 1
Common parts
87128-20070
90467-22006
90959-01294
