AT190R-BWMDKW (1995)
Toyota Carina E (Ukp)

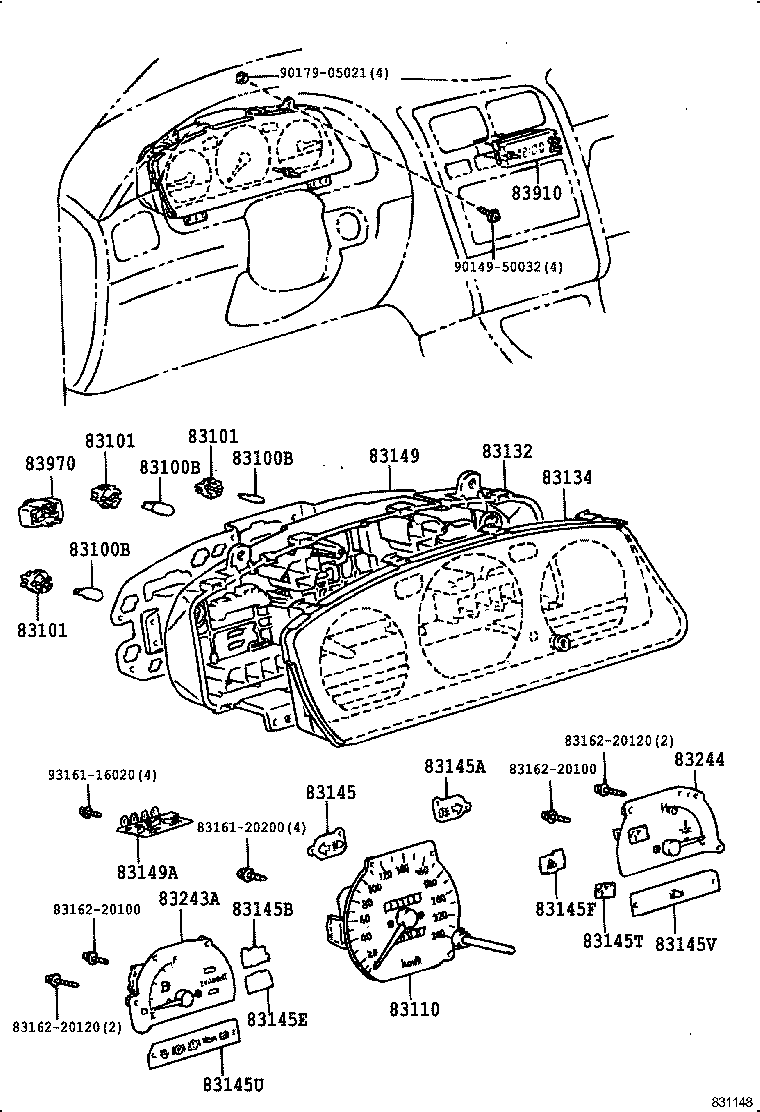

ILLUST NO. 1 OF 2(9212-9601)UKP
W/0(TACHOMETER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
AT190..UKP..RHD..MTM 12V 1.2W W/O SOCKET |
10 | ||
| 99132-12034 |
AT190,ST191..UKP 12V 3.4W,YAZAKI |
3 | ||
| 83120-05010 |
AT19#,CT190,ST191..UKP..MTM 12V 1.2W |
1 | ||
| 83120-05020 |
AT19#,CT190,ST191..UKP 12V 3.4W |
1 | ||
| 83120-05030 |
AT19#,CT190,ST191..UKP 12V 3.4W,GREEN CAP |
4 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
AT190..UKP..RHD..MTM 12V 1.2W W/O SOCKET |
10 | ||
| 99132-12034 |
AT190,ST191..UKP 12V 3.4W,YAZAKI |
3 | ||
| 83120-05010 |
AT19#,CT190,ST191..UKP..MTM 12V 1.2W |
1 | ||
| 83120-05020 |
AT19#,CT190,ST191..UKP 12V 3.4W |
1 | ||
| 83120-05030 |
AT19#,CT190,ST191..UKP 12V 3.4W,GREEN CAP |
4 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
AT190..UKP..RHD..MTM 12V 1.2W W/O SOCKET |
10 | ||
| 99132-12034 |
AT190,ST191..UKP 12V 3.4W,YAZAKI |
3 | ||
| 83120-05010 |
AT19#,CT190,ST191..UKP..MTM 12V 1.2W |
1 | ||
| 83120-05020 |
AT19#,CT190,ST191..UKP 12V 3.4W |
1 | ||
| 83120-05030 |
AT19#,CT190,ST191..UKP 12V 3.4W,GREEN CAP |
4 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
AT19#..UKP..RHD..MTM BULB:12V 1.4W |
10 | ||
| 83101-20070 |
CT190..UKP;AT190..UKP..RHD..XL BULB:12V 3.4W,G.CAP |
1 | ||
| 83101-20040 |
AT19#,CT190,ST191..UKP BULB:12V 3.4W |
3 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
AT19#..UKP..RHD..MTM BULB:12V 1.4W |
10 | ||
| 83101-20070 |
CT190..UKP;AT190..UKP..RHD..XL BULB:12V 3.4W,G.CAP |
1 | ||
| 83101-20040 |
AT19#,CT190,ST191..UKP BULB:12V 3.4W |
3 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
AT19#..UKP..RHD..MTM BULB:12V 1.4W |
10 | ||
| 83101-20070 |
CT190..UKP;AT190..UKP..RHD..XL BULB:12V 3.4W,G.CAP |
1 | ||
| 83101-20040 |
AT19#,CT190,ST191..UKP BULB:12V 3.4W |
3 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-2D290 |
AT190..UKP..RHD..XL |
1 | ||
| 83110-2D340 |
AT190..UKP..RHD..XL MILE/KM,W(TACHOMETER) |
1 | ||
| 83110-05042 |
AT19#..UKP..RHD..XL MILE/KM,W(TACHOMETER) |
1 | ||
| 83110-05032 |
AT19#..UKP..RHD..XL |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-20620 |
AT190..UKP..XL W(TACHOMETER) |
1 | ||
| 83132-20660 |
AT190..UKP..RHD..XL MPH/KM,W(TACHOMETER) |
1 | ||
| 83841-05010 |
AT19#,CT190..UKP..XL |
1 | ||
| 83841-05060 |
AT190..UKP..RHD..WG;AT191..UKP..RHD..(LB,SED)..XL MPH/KM,W(TACHOMETER) |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-20180 |
AT190..UKP..RHD..XL;AT190..UKP..ATM..XL W(TACHOMETER) |
1 | ||
| 83134-20240 |
AT190..UKP..RHD..XL MPH/KM,W(TACHOMETER) |
1 | ||
| 83138-05010 |
AT19#,CT190..UKP..XL |
1 | ||
| 83138-05020 |
AT190..UKP..RHD..WG;AT191..UKP..RHD..(LB,SED)..XL MPH/KM,W(TACHOMETER) |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83146-20520 |
AT190,ST191..UKP |
1 | ||
| 83145-05010 |
AT19#,CT190,ST191..UKP |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83146-20700 |
AT190,ST191..UKP |
1 | ||
| 83145-05020 |
AT19#,CT190,ST191..UKP |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83831-05060 |
AT19#,CT190,ST191..UKP |
1 | ||
| 83145F - LENS, METER, NO.7 | ||||
| 83146-20360 |
AT190,CT190..UKP..XL |
1 | ||
| 83145U - LENS, METER, NO.9 | ||||
| 83146-20320 |
AT190..UKP..XL |
1 | ||
| 83145-05030 |
AT19#,CT190..UKP..XL |
1 | ||
| 83145V - LENS, METER, NO.10 | ||||
| 83146-20340 |
AT190..UKP..RHD..XL |
1 | ||
| 83831-05010 |
AT19#..UKP..XL |
1 | ||
| 83149 - PLATE, METER CIRCUIT | ||||
| 83149-20160 |
AT190..UKP..RHD..XL |
1 | ||
| 83149-20380 |
AT190..UKP..RHD..XL MPH/KM,W(TACHOMETER) |
1 | ||
| 83861-05060 |
AT190..UKP..RHD..WG;AT191..UKP..RHD..(LB,SED)..XL MPH/KM,W(TACHOMETER) |
1 | ||
| 83861-05010 |
AT19#..UKP..XL |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-20620 |
AT190..UKP..RHD..XL |
1 | ||
| 83243-20840 |
AT190..UKP..RHD..XL MPH/KM,W(TACHOMETER) |
1 | ||
| 83882-05010 |
AT19#..UKP..XL |
1 | ||
| 83882-05060 |
AT190..UKP..RHD..WG;AT191..UKP..RHD..(LB,SED)..XL MPH/KM,W(TACHOMETER) |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-20540 |
AT190..UKP..MTM..XL |
1 | ||
| 83244-05010 |
AT19#..UKP..RHD..MTM..XL |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-20640 |
AT190,ST191..UKP |
1 | ||
| 83910-05020 |
AT19#,CT190,ST191..UKP |
1 | ||
| Common parts | ||||
| 83161-20200 | ||||
| 83162-20100 | ||||
| 83162-20120 | ||||
| 90149-50032 | ||||
| 90179-05021 | ||||
| 93161-16020 | ||||
ILLUST NO. 1 OF 2(9212-9601)UKP
W(TACHOMETER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
AT190..UKP..RHD..MTM 12V 1.2W W/O SOCKET |
10 | ||
| 99132-12034 |
AT190,ST191..UKP 12V 3.4W,YAZAKI |
3 | ||
| 83120-05010 |
AT19#,CT190,ST191..UKP..MTM 12V 1.2W |
1 | ||
| 83120-05020 |
AT19#,CT190,ST191..UKP 12V 3.4W |
1 | ||
| 83120-05030 |
AT19#,CT190,ST191..UKP 12V 3.4W,GREEN CAP |
4 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
AT190..UKP..RHD..MTM 12V 1.2W W/O SOCKET |
10 | ||
| 99132-12034 |
AT190,ST191..UKP 12V 3.4W,YAZAKI |
3 | ||
| 83120-05010 |
AT19#,CT190,ST191..UKP..MTM 12V 1.2W |
1 | ||
| 83120-05020 |
AT19#,CT190,ST191..UKP 12V 3.4W |
1 | ||
| 83120-05030 |
AT19#,CT190,ST191..UKP 12V 3.4W,GREEN CAP |
4 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
AT190..UKP..RHD..MTM 12V 1.2W W/O SOCKET |
10 | ||
| 99132-12034 |
AT190,ST191..UKP 12V 3.4W,YAZAKI |
3 | ||
| 83120-05010 |
AT19#,CT190,ST191..UKP..MTM 12V 1.2W |
1 | ||
| 83120-05020 |
AT19#,CT190,ST191..UKP 12V 3.4W |
1 | ||
| 83120-05030 |
AT19#,CT190,ST191..UKP 12V 3.4W,GREEN CAP |
4 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
AT19#..UKP..RHD..MTM BULB:12V 1.4W |
10 | ||
| 83101-20070 |
CT190..UKP;AT190..UKP..RHD..XL BULB:12V 3.4W,G.CAP |
1 | ||
| 83101-20040 |
AT19#,CT190,ST191..UKP BULB:12V 3.4W |
3 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
AT19#..UKP..RHD..MTM BULB:12V 1.4W |
10 | ||
| 83101-20070 |
CT190..UKP;AT190..UKP..RHD..XL BULB:12V 3.4W,G.CAP |
1 | ||
| 83101-20040 |
AT19#,CT190,ST191..UKP BULB:12V 3.4W |
3 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
AT19#..UKP..RHD..MTM BULB:12V 1.4W |
10 | ||
| 83101-20070 |
CT190..UKP;AT190..UKP..RHD..XL BULB:12V 3.4W,G.CAP |
1 | ||
| 83101-20040 |
AT19#,CT190,ST191..UKP BULB:12V 3.4W |
3 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-2D290 |
AT190..UKP..RHD..XL |
1 | ||
| 83110-2D340 |
AT190..UKP..RHD..XL MILE/KM,W(TACHOMETER) |
1 | ||
| 83110-05042 |
AT19#..UKP..RHD..XL MILE/KM,W(TACHOMETER) |
1 | ||
| 83110-05032 |
AT19#..UKP..RHD..XL |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-20620 |
AT190..UKP..XL W(TACHOMETER) |
1 | ||
| 83132-20660 |
AT190..UKP..RHD..XL MPH/KM,W(TACHOMETER) |
1 | ||
| 83841-05010 |
AT19#,CT190..UKP..XL |
1 | ||
| 83841-05060 |
AT190..UKP..RHD..WG;AT191..UKP..RHD..(LB,SED)..XL MPH/KM,W(TACHOMETER) |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-20180 |
AT190..UKP..RHD..XL;AT190..UKP..ATM..XL W(TACHOMETER) |
1 | ||
| 83134-20240 |
AT190..UKP..RHD..XL MPH/KM,W(TACHOMETER) |
1 | ||
| 83138-05010 |
AT19#,CT190..UKP..XL |
1 | ||
| 83138-05020 |
AT190..UKP..RHD..WG;AT191..UKP..RHD..(LB,SED)..XL MPH/KM,W(TACHOMETER) |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83146-20520 |
AT190,ST191..UKP |
1 | ||
| 83145-05010 |
AT19#,CT190,ST191..UKP |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83146-20700 |
AT190,ST191..UKP |
1 | ||
| 83145-05020 |
AT19#,CT190,ST191..UKP |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83831-05060 |
AT19#,CT190,ST191..UKP |
1 | ||
| 83147 - LAMP, METER NO.1 | ||||
| 83147-20040 |
AT19#,CT190,ST191..UKP |
1 | ||
| 83149 - PLATE, METER CIRCUIT | ||||
| 83149-20160 |
AT190..UKP..RHD..XL |
1 | ||
| 83149-20380 |
AT190..UKP..RHD..XL MPH/KM,W(TACHOMETER) |
1 | ||
| 83861-05060 |
AT190..UKP..RHD..WG;AT191..UKP..RHD..(LB,SED)..XL MPH/KM,W(TACHOMETER) |
1 | ||
| 83861-05010 |
AT19#..UKP..XL |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83242-20740 |
AT190..UKP..RHD..MTM |
1 | ||
| 83881-05060 |
AT19#..UKP..MTM |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-20620 |
AT190..UKP..RHD..XL |
1 | ||
| 83243-20840 |
AT190..UKP..RHD..XL MPH/KM,W(TACHOMETER) |
1 | ||
| 83882-05010 |
AT19#..UKP..XL |
1 | ||
| 83882-05060 |
AT190..UKP..RHD..WG;AT191..UKP..RHD..(LB,SED)..XL MPH/KM,W(TACHOMETER) |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-20640 |
AT190,ST191..UKP |
1 | ||
| 83910-05020 |
AT19#,CT190,ST191..UKP |
1 | ||
| Common parts | ||||
| 83161-16020 | ||||
| 83161-20240 | ||||
| 83161-2D020 | ||||
| 83161-2D040 | ||||
| 83161-2D060 | ||||
| 83162-20120 | ||||
| 83162-20140 | ||||
| 83162-20200 | ||||
| 90149-50032 | ||||
| 90179-05021 | ||||
