AT190R-BLMNKW (1993)

Toyota Carina E (Ukp)

Production Dec 1993 - Oct 1997
Engine 4AFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9411- )4AFE..UKP

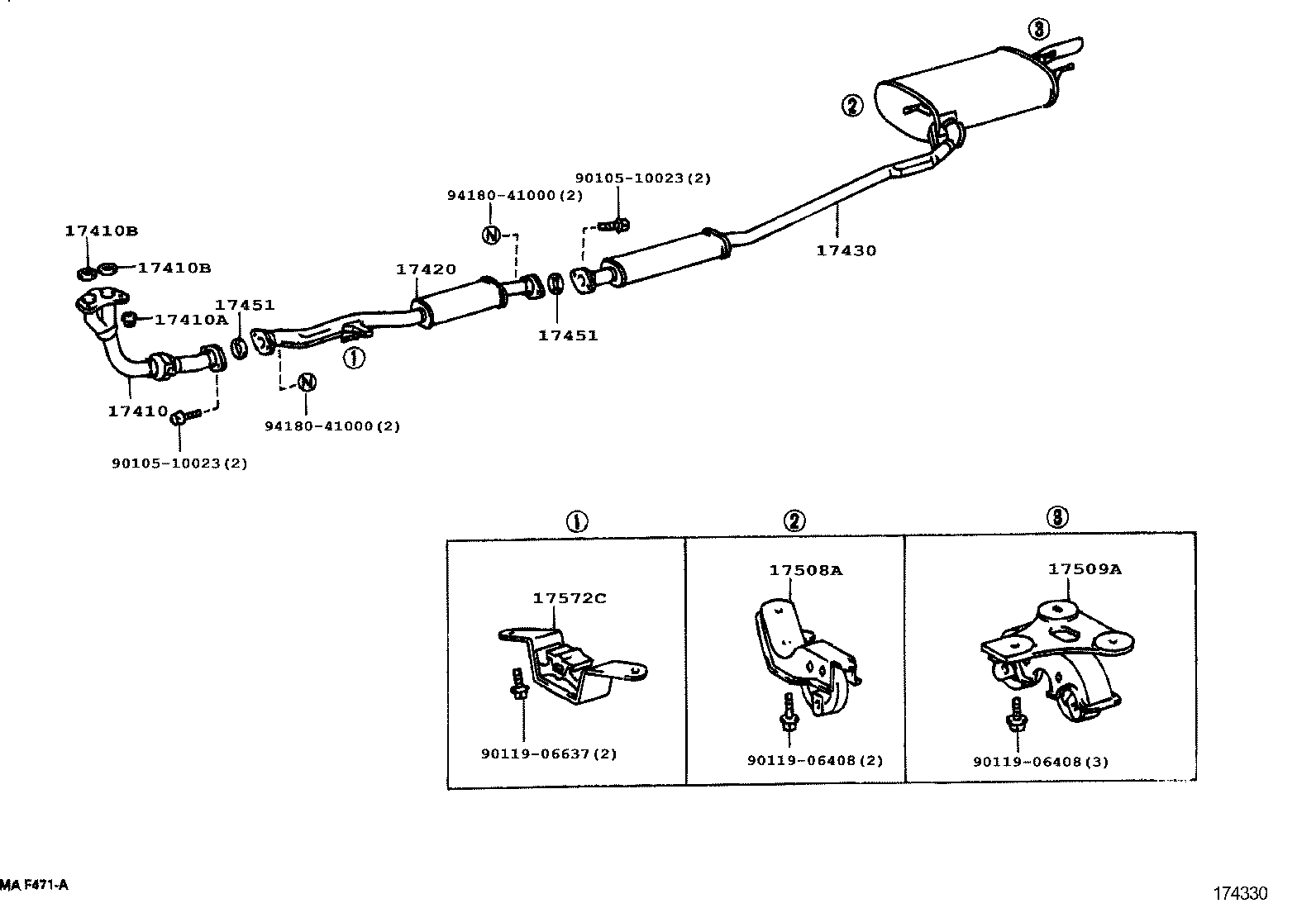

Click highlighted areas on diagram

CIS

diagram 17410 17410A 17410B 17410B 17420 17430 17451 17451 17508A 17509A 17572C 9010510023 9010510023 9011906408 9011906408 9011906637 9418041000 9418041000
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-02260

4AFE..AT190..UKP..LHD..WG;4AFE..AT190..UKP..RHD..MTM

 1
17410-02140

4AFE..AT190..UKP..RHD..MTM

 1
17410-02300

4AFE..AT190..UKP..RHD;4AFE..AT190..UKP..LHD..WG

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

7AFE,2C..AT191,CT190..UKP;4AFE..AT190..UKP..LHD..WG;4AFE..AT190..UKP..RHD..MTM

 2
90179-10070

4AFE,7AFE,3SFE..AT19#,ST191..UKP

 2
90179-10070

4AFE,3SFE..AT190,ST191..UKP

 3
17410B - GASKET, EXHAUST PIPE
90917-06064

4AFE..AT190..UKP..RHD..MTM

 2
90917-06065

4AFE,7AFE,3SFE..AT19#,ST191..UKP

 1
90917-06065

7AFE..AT191..UKP;4AFE..AT190..UKP..LHD..WG;4AFE..AT190..UKP..RHD..MTM

 1
17410B - GASKET, EXHAUST PIPE
90917-06064

4AFE..AT190..UKP..RHD..MTM

 2
90917-06065

4AFE,7AFE,3SFE..AT19#,ST191..UKP

 1
90917-06065

7AFE..AT191..UKP;4AFE..AT190..UKP..LHD..WG;4AFE..AT190..UKP..RHD..MTM

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-02100

4AFE..AT190..UKP..RHD..MTM

 1
17430-02130

4AFE,7AFE..AT19#..UKP

 1
17430-02150

4AFE..AT190..UKP..RHD;4AFE..AT190..UKP..LHD..WG

 1
17451 - GASKET, EXHAUST PIPE
90917-06046

4AFE,7AFE..AT19#..UKP

 2
90917-06046

4AFE,7AFE,3SFE..AT19#,ST191..UKP

 2
17451 - GASKET, EXHAUST PIPE
90917-06046

4AFE,7AFE..AT19#..UKP

 2
90917-06046

4AFE,7AFE,3SFE..AT19#,ST191..UKP

 2
17508A - BRACKET SUB-ASSY, EXHAUST PIPE NO.3 SUPPORT
17508-74030

4AFE,7AFE,2C#,3SFE..AT19#,CT190,ST191..UKP

 1
17509A - BRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT
17509-74110

4AFE,7AFE,2C#,3SFE..AT19#,CT190,ST191..UKP

 1
17572C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-02030

4AFE,7AFE,3SFE..AT19#,ST191..UKP

 1
17571-74331

4AFE,3SFE..AT190,ST191..UKP

 1
Common parts
90105-10023
90119-06408
90119-06637
94180-41000
