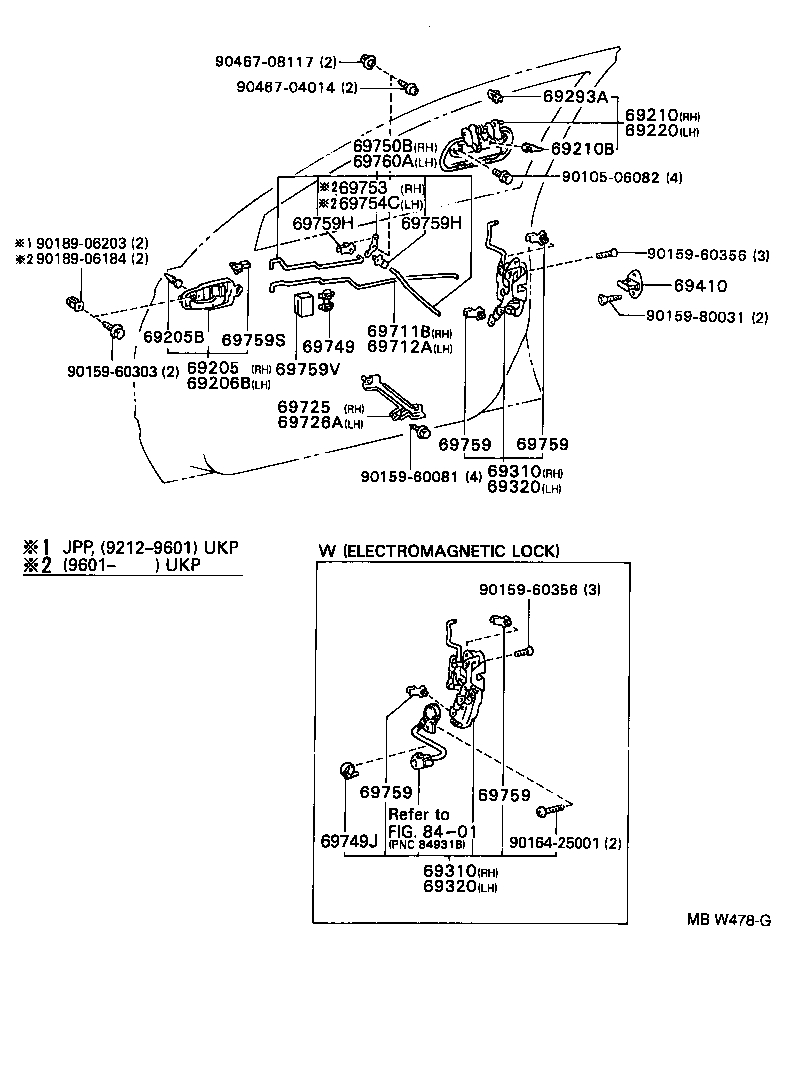

AT190R-BEPNKW (1992)
Toyota Carina E (Ukp)
(9212- )UKP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-20110J0 |
AT190,ST191..UKP DARK BLUE,TRIM8#,(J) |
1 | ||
| 69205-05010J0 |
AT190..UKP..LB..XL;AT190,ST191..UKP..GL DARK BLUE,TRIM8# |
1 | ||
| 69205-05010C0 |
AT190,ST191..UKP BLACK,TRIM2#,(L) |
1 | ||
| 69205-05010C0 |
AT190..UKP..LB..XL;AT190,ST191..UKP..GL BLACK,TRIM2# |
1 | ||
| 69205-05010J0 |
AT190,ST191..UKP DARK BLUE,TRIM8#,(L) |
1 | ||
| 69205-20110B0 |
AT190,ST191..UKP..(LB,SED) SHADOW GRAY,TRIM1#,(J) |
1 | ||
| 69205-20110C0 |
AT190,ST191..UKP BLACK,TRIM2#,(J) |
1 | ||
| 69205-05010J0 |
ST191..UKP;AT190..UKP..RHD;AT190..UKP..LHD..GL;AT190..UKP..LHD..LB..XL DARK BLUE,TRIM8# |
1 | ||
| 69205B - CUSHION(FOR FRONT DOOR INSIDE HANDLE) | ||||
| 90541-04014 |
AT190,ST191..UKP (J) |
2 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-05010C0 |
AT190,ST191..UKP BLACK,TRIM2#,(L) |
1 | ||
| 69206-20110J0 |
AT190,ST191..UKP DARK BLUE,TRIM8#,(J) |
1 | ||
| 69206-20110B0 |
AT190,ST191..UKP..(LB,SED) SHADOW GRAY,TRIM1#,(J) |
1 | ||
| 69206-20110C0 |
AT190,ST191..UKP BLACK,TRIM2#,(J) |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-20270 |
AT190,ST191..UKP NO PAINT REQ. |
1 | ||
| 69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE) | ||||
| 90541-04018 |
AT190,ST191..UKP |
4 | ||
| 90541-04018 |
AT190,ST191..UKP TYPE A |
4 | ||
| 90080-54017 |
AT19#,CT190,ST191..UKP |
2 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69220-20270 |
AT190,ST191..UKP BLACK |
1 | ||
| 69293A - SNAP, FRONT DOOR OUTSIDE HANDLE | ||||
| 69293-12040 |
AT19#,CT190,ST191..UKP LH |
1 | ||
| 69293-12030 |
AT19#,CT190,ST191..UKP RH |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69030-05031 |
AT190,ST191..UKP..RHD..GL (L) |
1 | ||
| 69030-20471 |
AT190,ST191..UKP..RHD..GL (J) |
1 | ||
| 69030-20471 |
AT190,ST191..UKP..RHD (J) |
1 | ||
| 69030-05020 |
AT190,ST191..UKP..RHD W(POWER WINDOW),(L) |
1 | ||
| 69030-20460 |
AT190,ST191..UKP..RHD W(POWER WINDOW),(J) |
1 | ||
| 69030-05031 |
AT19#,CT190,ST191..UKP..RHD |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69030-05031 |
AT190,ST191..UKP..RHD..GL (L) |
1 | ||
| 69030-20471 |
AT190,ST191..UKP..RHD..GL (J) |
1 | ||
| 69030-20471 |
AT190,ST191..UKP..RHD (J) |
1 | ||
| 69030-05020 |
AT190,ST191..UKP..RHD W(POWER WINDOW),(L) |
1 | ||
| 69030-20460 |
AT190,ST191..UKP..RHD W(POWER WINDOW),(J) |
1 | ||
| 69030-05031 |
AT19#,CT190,ST191..UKP..RHD |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69040-20490 |
AT190,ST191..UKP..RHD..GL (J) |
1 | ||
| 69040-05020 |
AT190,ST191..UKP..RHD (L) |
1 | ||
| 69040-05020 |
AT190,ST191..UKP..RHD..GL (L) |
1 | ||
| 69040-05060 |
AT19#,CT190,ST191..UKP..RHD |
1 | ||
| 69040-20490 |
AT190,ST191..UKP..RHD (J) |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69040-20490 |
AT190,ST191..UKP..RHD..GL (J) |
1 | ||
| 69040-05020 |
AT190,ST191..UKP..RHD (L) |
1 | ||
| 69040-05020 |
AT190,ST191..UKP..RHD..GL (L) |
1 | ||
| 69040-05060 |
AT19#,CT190,ST191..UKP..RHD |
1 | ||
| 69040-20490 |
AT190,ST191..UKP..RHD (J) |
1 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-87001 |
AT19#,CT190,ST191..UKP |
2 | ||
| 69711B - LINK, FRONT DOOR LOCK REMOTE CONTROL, RH | ||||
| 69711-20180 |
AT19#,CT190,ST191..UKP |
1 | ||
| 69712A - LINK, FRONT DOOR LOCK REMOTE CONTROL, LH | ||||
| 69712-20180 |
AT19#,CT190,ST191..UKP |
1 | ||
| 69725 - PROTECTOR, FRONT DOOR INSIDE LOCKING LINK, RH | ||||
| 69725-20010 |
AT19#,CT190,ST191..UKP |
1 | ||
| 69726A - PROTECTER, FRONT DOOR INSIDE LOCKING LINK, LH | ||||
| 69726-20010 |
AT19#,CT190,ST191..UKP |
1 | ||
| 69749 - CLAMP, FRONT DOOR LOCK LINK | ||||
| 69749-20040 |
AT19#,CT190,ST191..UKP |
2 | ||
| 69749J - CLAMP, FRONT DOOR LOCK | ||||
| 69749-32020 |
AT19#,CT190,ST191..UKP |
1 | ||
| 69750B - LINK ASSY, FRONT DOOR INSIDE LOCKING, RH | ||||
| 69750-20050 |
AT19#,CT190,ST191..UKP |
1 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-24020 |
AT190,ST191..UKP RH,BLUE |
1 | ||
| 69759-24010 |
AT190,ST191..UKP LH,NATURAL |
1 | ||
| 69759-24060 |
AT19#,CT190,ST191..UKP RH,GRAY |
2 | ||
| 69759-24050 |
AT19#,CT190,ST191..UKP LH,GREEN |
2 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-24020 |
AT190,ST191..UKP RH,BLUE |
1 | ||
| 69759-24010 |
AT190,ST191..UKP LH,NATURAL |
1 | ||
| 69759-24060 |
AT19#,CT190,ST191..UKP RH,GRAY |
2 | ||
| 69759-24050 |
AT19#,CT190,ST191..UKP LH,GREEN |
2 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-24020 |
AT190,ST191..UKP RH,BLUE |
1 | ||
| 69759-24010 |
AT190,ST191..UKP LH,NATURAL |
1 | ||
| 69759-24060 |
AT19#,CT190,ST191..UKP RH,GRAY |
2 | ||
| 69759-24050 |
AT19#,CT190,ST191..UKP LH,GREEN |
2 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-24020 |
AT190,ST191..UKP RH,BLUE |
1 | ||
| 69759-24010 |
AT190,ST191..UKP LH,NATURAL |
1 | ||
| 69759-24060 |
AT19#,CT190,ST191..UKP RH,GRAY |
2 | ||
| 69759-24050 |
AT19#,CT190,ST191..UKP LH,GREEN |
2 | ||
| 69759H - SNAP, DOOR LOCK CONTROL LINK, NO.2 | ||||
| 69759-20380 |
AT19#,CT190,ST191..UKP BLACK |
2 | ||
| 69759-24030 |
AT19#,CT190,ST191..UKP RED |
2 | ||
| 69759H - SNAP, DOOR LOCK CONTROL LINK, NO.2 | ||||
| 69759-20380 |
AT19#,CT190,ST191..UKP BLACK |
2 | ||
| 69759-24030 |
AT19#,CT190,ST191..UKP RED |
2 | ||
| 69759S - SNAP, FRONT DOOR INSIDE HANDLE | ||||
| 69759-14050 |
AT190,ST191..UKP RH |
2 | ||
| 69759-05010 |
AT19#,CT190,ST191..UKP RH |
2 | ||
| 69759-05020 |
AT19#,CT190,ST191..UKP LH |
2 | ||
| 69759-24070 |
AT190,ST191..UKP LH |
2 | ||
| 69759V - SILENCER, FRONT DOOR LOCK LINK | ||||
| 69759-30021 |
AT19#,CT190,ST191..UKP |
2 | ||
| 69760A - LINK ASSY, FRONT DOOR INSIDE LOCKING, LH | ||||
| 69760-20050 |
AT19#,CT190,ST191..UKP |
1 | ||
| Common parts | ||||
| 90105-06082 | ||||
| 90159-60081 | ||||
| 90159-60303 | ||||
| 90159-60356 | ||||
| 90159-80031 | ||||
| 90164-25001 | ||||
| 90189-06184 | ||||
| 90189-06203 | ||||
| 90467-04014 | ||||
| 90467-08117 | ||||
| Linked diagrams | ||||
| 8401 | ||||
