AT190R-BEMDKW (1992)

Toyota Carina E (Ukp)

Production Dec 1992 - Oct 1997
Engine 4AFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(9412- )UKP

Click highlighted areas on diagram

BOSCH:W(ANTI-LOCK BRAKING SYSTEM)

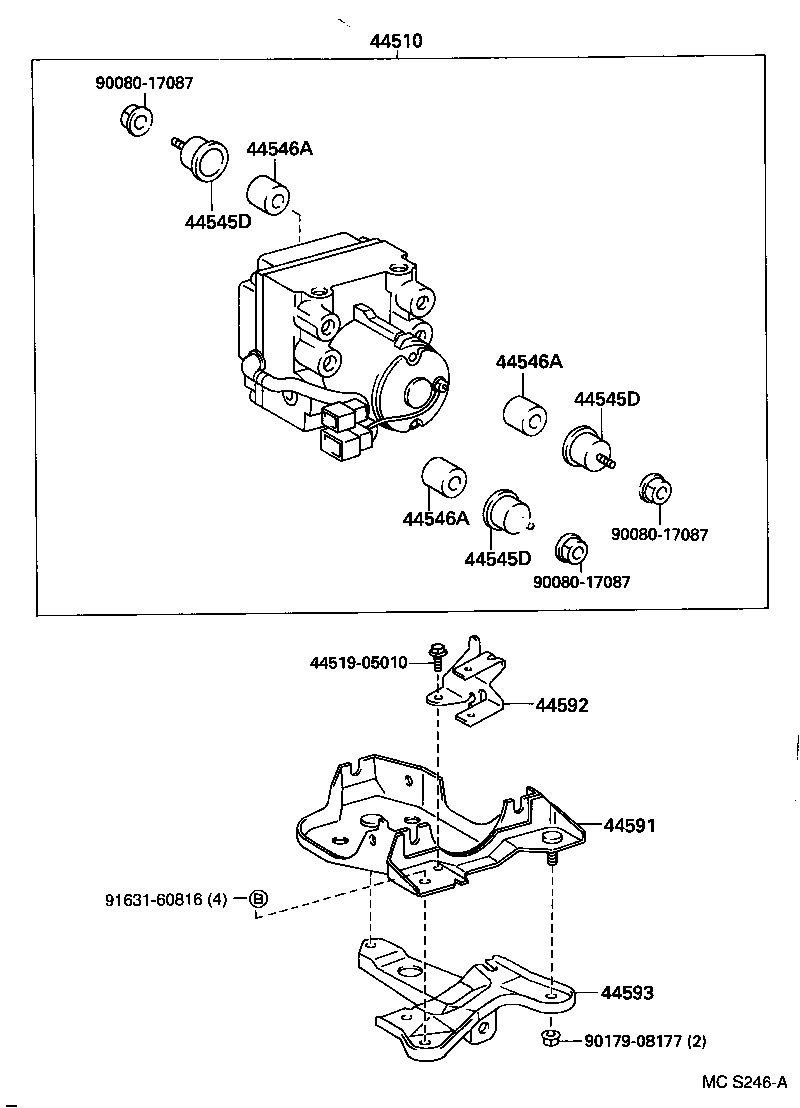

diagram 44510 4451905010 44545D 44545D 44545D 44546A 44546A 44546A 44591 44592 44593 9008017087 9008017087 9008017087 9017908177 9163160816
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44510-20100

AT190,CT190,ST191..UKP

 1
44510-05011

AT19#,CT190,ST191..UKP

 1
44510-05010

AT19#,CT190,ST191..UKP

BOSCH

 1
44510-20100

AT19#,CT190,ST191..UKP

AISIN

 1
44510-05011

AT19#,CT190,ST191..UKP

BOSCH

 1
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-10010

AT190,CT190,ST191..UKP

 3
44545-10010

AT19#,CT190,ST191..UKP

AISIN

 3
44545-12090

AT19#,CT190,ST191..UKP

AISIN

 3
44545-06010

AT19#,CT190,ST191..UKP

BOSCH

 3
44545-06010

AT19#,CT190,ST191..UKP

 3
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-10010

AT190,CT190,ST191..UKP

 3
44545-10010

AT19#,CT190,ST191..UKP

AISIN

 3
44545-12090

AT19#,CT190,ST191..UKP

AISIN

 3
44545-06010

AT19#,CT190,ST191..UKP

BOSCH

 3
44545-06010

AT19#,CT190,ST191..UKP

 3
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-10010

AT190,CT190,ST191..UKP

 3
44545-10010

AT19#,CT190,ST191..UKP

AISIN

 3
44545-12090

AT19#,CT190,ST191..UKP

AISIN

 3
44545-06010

AT19#,CT190,ST191..UKP

BOSCH

 3
44545-06010

AT19#,CT190,ST191..UKP

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-10010

AT190,CT190,ST191..UKP..RHD

 3
44546-06010

AT19#,CT190,ST191..UKP

BOSCH

 3
44546-06010

AT19#,CT190,ST191..UKP

 3
44546-10010

AT19#,CT190,ST191..UKP..RHD

AISIN

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-10010

AT190,CT190,ST191..UKP..RHD

 3
44546-06010

AT19#,CT190,ST191..UKP

BOSCH

 3
44546-06010

AT19#,CT190,ST191..UKP

 3
44546-10010

AT19#,CT190,ST191..UKP..RHD

AISIN

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-10010

AT190,CT190,ST191..UKP..RHD

 3
44546-06010

AT19#,CT190,ST191..UKP

BOSCH

 3
44546-06010

AT19#,CT190,ST191..UKP

 3
44546-10010

AT19#,CT190,ST191..UKP..RHD

AISIN

 3
44591 - BRACKET, BRAKE ACTUATOR, NO.1
44591-05010

AT19#,CT190,ST191..UKP

BOSCH

 1
44591-20070

AT19#,CT190,ST191..UKP..RHD

AISIN

 1
44591-05010

AT19#,CT190,ST191..UKP

 1
44591-20070

AT190,CT190,ST191..UKP..RHD

 1
44592 - BRACKET, BRAKE ACTUATOR, NO.2
44592-20040

AT190,CT190,ST191..UKP

 1
44592-05010

AT19#,CT190,ST191..UKP

BOSCH

 1
44592-20040

AT19#,CT190,ST191..UKP

AISIN

 1
44592-05010

AT19#,CT190,ST191..UKP

 1
44593 - BRACKET, BRAKE ACTUATOR, NO.3
44593-20050

AT19#,CT190,ST191..UKP..RHD

AISIN

 1
44593-20050

AT190,CT190,ST191..UKP..RHD

 1
44593-20070

AT19#,CT190,ST191..UKP

BOSCH

 1
44593-20070

AT19#,CT190,ST191..UKP

 1
Common parts
44519-05010
90080-17087
90179-08177
91631-60816
