AT190L-BLMNKW (1993)
Toyota Carina E (Ukp)

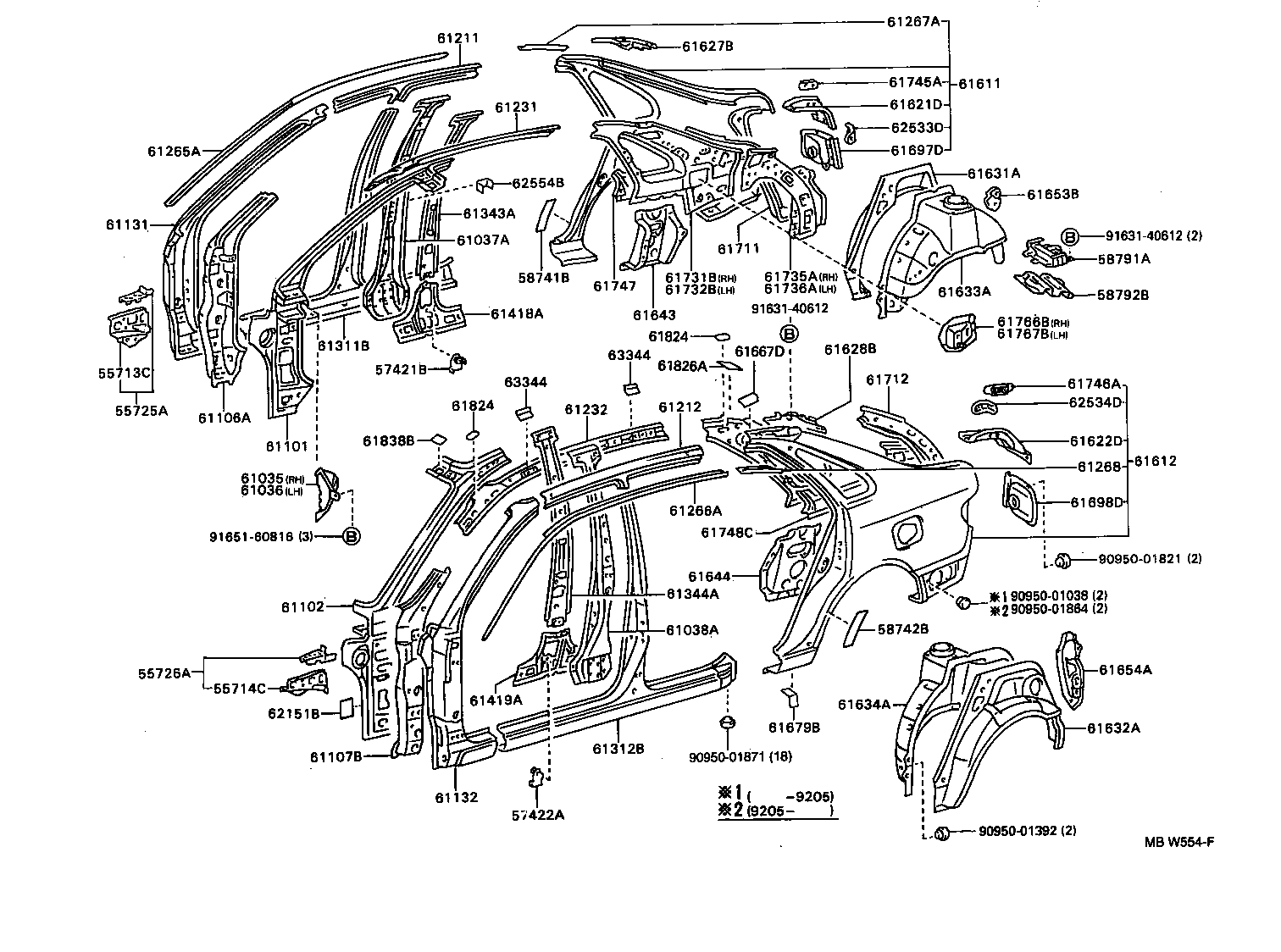

(9312-9601)UKP..LB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55713C - PANEL, COWL TOP SIDE, RH | ||||
| 55713-20130 |
AT19#,CT190,ST191..UKP |
1 | ||
| 55714C - PANEL, COWL TOP SIDE, LH | ||||
| 55714-20140 |
AT19#,CT190,ST191..UKP |
1 | ||
| 55725A - REINFORCEMENT, HOOD HINGE MOUNTING, RH | ||||
| 55725-20900 |
AT19#,CT190,ST191..UKP |
1 | ||
| 55726A - REINFORCEMENT, HOOD HINGE MOUNTING, LH | ||||
| 55726-20900 |
AT19#,CT190,ST191..UKP |
1 | ||
| 57421B - PLATE, FLOOR SIDE RAIL, RH | ||||
| 57421-20040 |
AT190,CT190,ST191..UKP |
1 | ||
| 57422A - PLATE, FLOOR SIDE RAIL, LH | ||||
| 57421-20040 |
AT190,CT190,ST191..UKP |
1 | ||
| 58741B - PROTECTOR, QUARTER PANEL, RH | ||||
| 58741-20120 |
AT190,CT190,ST191..UKP COLD SPEC |
1 | ||
| 58741-05010 |
AT19#,CT190,ST191..UKP COLD SPEC |
1 | ||
| 58742B - PROTECTOR, QUARTER PANEL, LH | ||||
| 58742-05010 |
AT19#,CT190,ST191..UKP COLD SPEC |
1 | ||
| 58742-20110 |
AT190,CT190,ST191..UKP COLD SPEC |
1 | ||
| 58791A - CARRIER, JACK | ||||
| 58791-20100 |
AT19#,CT190,ST191..UKP..(LB,WG) |
1 | ||
| 58792B - SUPPORT, JACK CARRIER | ||||
| 58792-20040 |
AT19#,CT190,ST191..UKP..(LB,WG) |
1 | ||
| 61035 - BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, RH | ||||
| 55774-20090 |
AT19#,CT190,ST191..UKP |
1 | ||
| 61036 - BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, LH | ||||
| 55775-20070 |
AT19#,CT190,ST191..UKP |
1 | ||
| 61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH | ||||
| 61037-05010 |
AT19#,CT190,ST191..UKP |
1 | ||
| 61037-05020 |
AT19#,CT190,ST191..UKP |
1 | ||
| 61037-05030 |
AT19#,CT190,ST191..UKP |
1 | ||
| 61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH | ||||
| 61038-05010 |
AT19#,CT190,ST191..UKP |
1 | ||
| 61038-05020 |
AT19#,CT190,ST191..UKP |
1 | ||
| 61038-05030 |
AT19#,CT190,ST191..UKP |
1 | ||
| 61101 - PANEL SUB-ASSY, COWL SIDE, RH | ||||
| 61101-05901 |
AT19#,CT190,ST191..UKP..LHD |
1 | ||
| 61102 - PANEL SUB-ASSY, COWL SIDE, LH | ||||
| 61102-05901 |
AT19#,CT190,ST191..UKP..LHD |
1 | ||
| 61106A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH | ||||
| 61106-20150 |
AT190,ST191..UKP |
1 | ||
| 61106-20240 |
AT19#,CT190,ST191..UKP |
1 | ||
| 61107B - REINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER LH | ||||
| 61107-20150 |
AT190,ST191..UKP |
1 | ||
| 61107-20230 |
AT19#,CT190,ST191..UKP |
1 | ||
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61131-20420 |
AT19#,CT190,ST191..UKP..LHD |
1 | ||
| 61132 - PILLAR, FRONT BODY, UPPER OUTER LH | ||||
| 61132-20370 |
AT19#,CT190,ST191..UKP..LHD W/O(ANTENNA HOLE) |
1 | ||
| 61132-20360 |
AT19#,CT190,ST191..UKP..LHD W(ANTENNA HOLE) |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-20240 |
AT19#,CT190,ST191..UKP |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-20240 |
AT19#,CT190,ST191..UKP |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-20410 |
AT19#,CT190,ST191..UKP..(LB,SED) |
1 | ||
| 61231-20430 |
AT19#,CT190,ST191..UKP..(LB,SED) |
1 | ||
| 61231-20350 |
AT190,ST191..UKP |
1 | ||
| 61231-20350 |
AT190,ST191..UKP W(MOON ROOF) |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-20340 |
AT190,ST191..UKP |
1 | ||
| 61232-20340 |
AT190,ST191..UKP W(MOON ROOF) |
1 | ||
| 61232-20400 |
AT19#,CT190,ST191..UKP..(LB,SED) |
1 | ||
| 61232-20420 |
AT19#,CT190,ST191..UKP..(LB,SED) |
1 | ||
| 61265A - CHANNEL, ROOF DRIP SIDE, CENTER RH | ||||
| 61265-20070 |
AT190,ST191..UKP |
1 | ||
| 61266A - CHANNEL, ROOF DRIP SIDE, CENTER LH | ||||
| 61266-20070 |
AT190,ST191..UKP |
1 | ||
| 61267A - CHANNEL, ROOF DRIP SIDE, REAR RH | ||||
| 61267-05020 |
AT19#,CT190,ST191..UKP..LB |
1 | ||
| 61267-20060 |
AT190,ST191..UKP |
1 | ||
| 61268 - CHANNEL, ROOF DRIP SIDE, REAR LH | ||||
| 61268-20060 |
AT190,ST191..UKP |
1 | ||
| 61268-05020 |
AT19#,CT190,ST191..UKP..LB |
1 | ||
| 61311B - PILLAR, CENTER BODY, OUTER RH | ||||
| 61311-20240 |
AT19#,CT190,ST191..UKP |
1 | ||
| 61312B - PILLAR, CENTER BODY, OUTER LH | ||||
| 61312-20310 |
AT19#,CT190,ST191..UKP |
1 | ||
| 61343A - PILLAR, CENTER BODY, INNER RH | ||||
| 61343-20150 |
AT19#,CT190,ST191..UKP |
1 | ||
| 61343-20111 |
AT19#,CT190,ST191..UKP |
1 | ||
| 61343-20110 |
AT190,ST191..UKP |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61344-20110 |
AT190,ST191..UKP |
1 | ||
| 61344-20111 |
AT19#,CT190,ST191..UKP |
1 | ||
| 61344-20150 |
AT19#,CT190,ST191..UKP |
1 | ||
| 61418A - REINFORCEMENT, ROCKER PANEL, RH | ||||
| 61418-20130 |
AT190,ST191..UKP |
1 | ||
| 61418-05020 |
AT19#,CT190,ST191..UKP |
1 | ||
| 61418-05010 |
AT190,ST191..UKP |
1 | ||
| 61419A - REINFORCEMENT, ROCKER PANEL, LH | ||||
| 61419-05010 |
AT190,ST191..UKP |
1 | ||
| 61419-20110 |
AT190,ST191..UKP |
1 | ||
| 61419-05020 |
AT19#,CT190,ST191..UKP |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-05903 |
AT190,ST191..UKP..LB..GL W(REAR SPOILER) |
1 | ||
| 61601-05907 |
AT190..UKP..LB..GL;AT191,CT190,ST191..UKP..LB W(REAR SPOILER) |
1 | ||
| 61601-05906 |
AT19#,CT190,ST191..UKP..LB |
1 | ||
| 61601-05902 |
AT190,ST191..UKP..LB |
1 | ||
| 61601-05907 |
AT190..UKP..LHD..LB..GL;AT191,ST191..UKP..LB..GL W(HIGH MOUNT STOP LAMP) |
1 | ||
| 61601-05907 |
AT19#,CT190,ST191..UKP..LB..GL W(HIGH MOUNT STOP LAMP) |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-05907 |
AT190..UKP..LHD..LB..GL;AT191,ST191..UKP..LB..GL W(HIGH MOUNT STOP LAMP & MOTER ANTENNA) |
1 | ||
| 61602-05906 |
AT19#,CT190,ST191..UKP..LB W(MOTOR ANTENNA) |
1 | ||
| 61602-05904 |
AT19#,CT190,ST191..UKP..LB |
1 | ||
| 61602-05905 |
AT190..UKP..LB..GL;AT191,CT190,ST191..UKP..LB W(REAR SPOILER) |
1 | ||
| 61602-05907 |
AT190..UKP..LB..GL;AT191,CT190,ST191..UKP..LB W(REAR SPOILER & MOTOR ANTENNA) |
1 | ||
| 61602-05907 |
AT19#,CT190,ST191..UKP..LB..GL W(HIGH MOUNT STOP LAMP & MOTER ANTENNA) |
1 | ||
| 61602-05905 |
AT190..UKP..LHD..LB..GL;AT191,ST191..UKP..LB..GL W(HIGH MOUNT STOP LAMP) |
1 | ||
| 61602-05905 |
AT19#,CT190,ST191..UKP..LB..GL W(HIGH MOUNT STOP LAMP) |
1 | ||
| 61621D - TROUGH, BACK DOOR OPENING, RH | ||||
| 61621-20180 |
AT19#,CT190,ST191..UKP..LB |
1 | ||
| 61622D - TROUGH, BACK DOOR OPENING, LH | ||||
| 61622-20180 |
AT19#,CT190,ST191..UKP..LB |
1 | ||
| 61627B - EXTENSION, QUARTER PANEL, UPPER REAR RH | ||||
| 61627-20110 |
AT19#,CT190,ST191..UKP..LB |
1 | ||
| 61628B - EXTENSION, QUARTER PANEL, UPPER REAR LH | ||||
| 61628-20130 |
AT19#,CT190,ST191..UKP..LB |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-20260 |
AT19#,CT190,ST191..UKP |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-20240 |
AT19#,CT190,ST191..UKP |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61603-05902 |
AT19#,CT190,ST191..UKP..(LB,WG) |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61604-05902 |
AT19#,CT190,ST191..UKP..LB |
1 | ||
| 61643 - GUSSET, QUARTER WHEEL HOUSE CENTER, RH | ||||
| 61643-20060 |
AT19#,CT190,ST191..UKP..(LB,WG) |
1 | ||
| 61644 - GUSSET, QUARTER WHEEL HOUSE, CENTER LH | ||||
| 61644-20050 |
AT19#,CT190,ST191..UKP..(LB,WG) |
1 | ||
| 61653B - BRACKET, DECK SIDE TRIM | ||||
| 61653-20080 |
AT19#,CT190,ST191..UKP..(LB,WG) |
1 | ||
| 61654A - BRACKET, DECK SIDE TRIM, NO.2 | ||||
| 61654-20070 |
AT19#,CT190,ST191..UKP..LB |
1 | ||
| 61667D - SEAL, QUARTER PANEL | ||||
| 61668-05020 |
AT19#,CT190,ST191..UKP..LB |
1 | ||
| 61697D - HOUSING, QUARTER PANEL END, RH | ||||
| 61697-20040 |
AT19#,CT190,ST191..UKP..LB |
1 | ||
| 61698D - HOUSING, QUARTER PANEL END, LH | ||||
| 61698-20040 |
AT19#,CT190,ST191..UKP..LB |
1 | ||
| 61711 - PANEL, ROOF SIDE, OUTER RH | ||||
| 61711-20140 |
AT19#,CT190,ST191..UKP..LB |
1 | ||
| 61712 - PANEL, ROOF SIDE, OUTER LH | ||||
| 61712-20140 |
AT19#,CT190,ST191..UKP..LB |
1 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61731-20280 |
AT19#,CT190,ST191..UKP..LB |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61732-20280 |
AT19#,CT190,ST191..UKP..LB |
1 | ||
| 61735A - PANEL, ROOF SIDE, INNER REAR RH | ||||
| 61735-20190 |
AT19#,CT190,ST191..UKP..LB |
1 | ||
| 61736A - PANEL, ROOF SIDE, INNER REAR LH | ||||
| 61736-20180 |
AT19#,CT190,ST191..UKP..LB |
1 | ||
| 61745A - REINFORCEMENT, BACK DOOR OPENING, LOWER RH | ||||
| 61745-32010 |
AT19#,CT190,ST191..UKP..LB |
1 | ||
| 61746A - REINFORCEMENT, BACK DOOR OPENING, LOWER LH | ||||
| 61745-32010 |
AT19#,CT190,ST191..UKP..LB |
1 | ||
| 61747 - BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH | ||||
| 61747-20140 |
AT19#,CT190,ST191..UKP..LB |
1 | ||
| 61748C - BRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH | ||||
| 61748-20130 |
AT19#,CT190,ST191..UKP..LB |
1 | ||
| 61766B - REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH | ||||
| 61766-20150 |
AT19#,CT190,ST191..UKP..LB |
1 | ||
| 61767B - REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER LH | ||||
| 61767-20130 |
AT19#,CT190,ST191..UKP..LB |
1 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-05020 |
AT190,ST191..UKP |
6 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-05020 |
AT190,ST191..UKP |
6 | ||
| 61826A - PLATE, NOISE CONTROL, NO.3 | ||||
| 61826-05010 |
AT19#,CT190,ST191..UKP..LB |
2 | ||
| 61838B - PLATE, NOISE CONTROL, NO.5 | ||||
| 61838-05010 |
AT19#,CT190,ST191..UKP..(LB,WG) |
2 | ||
| 62151B - PAD, COWL SIDE SILENCER | ||||
| 62151-05010 |
AT19#,CT190,ST191..UKP |
2 | ||
| 62533D - BRACKET, QUARTER TRIM, NO.1, RH | ||||
| 62533-20110 |
AT19#,CT190,ST191..UKP..LB |
2 | ||
| 62534D - BRACKET, QUARTER TRIM, NO.1, LH | ||||
| 62533-20110 |
AT19#,CT190,ST191..UKP..LB |
2 | ||
| 63344 - PAD, ROOF SILENCER, NO.4 | ||||
| 63344-32020 |
AT190,ST191..UKP |
4 | ||
| 63344 - PAD, ROOF SILENCER, NO.4 | ||||
| 63344-32020 |
AT190,ST191..UKP |
4 | ||
| Common parts | ||||
| 90950-01038 | ||||
| 90950-01392 | ||||
| 90950-01821 | ||||
| 90950-01864 | ||||
| 90950-01871 | ||||
| 91631-40612 | ||||
| 91651-60816 | ||||

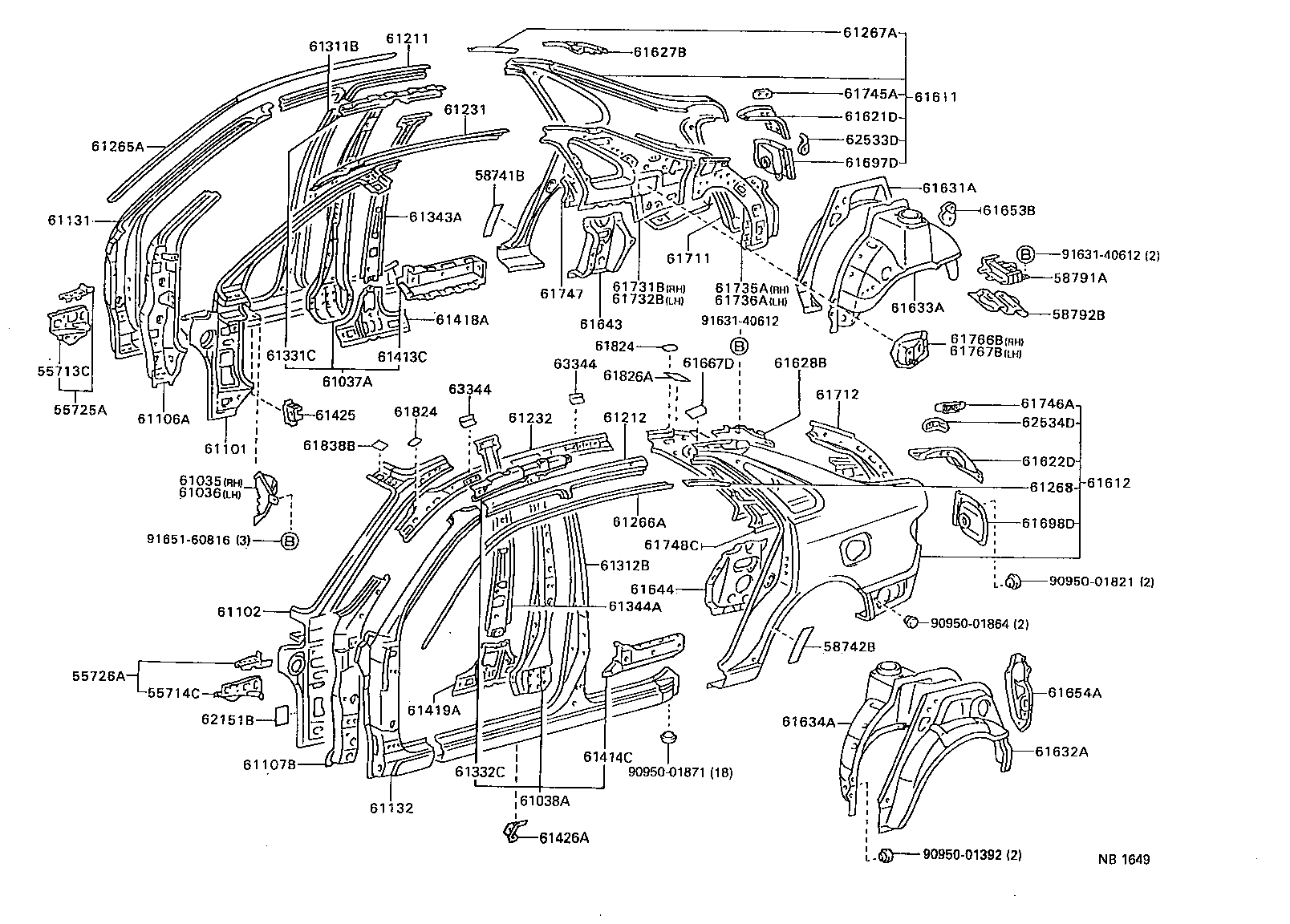

(9601- )UKP..LB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55713C - PANEL, COWL TOP SIDE, RH | ||||
| 55713-20130 |
AT19#,CT190,ST191..UKP |
1 | ||
| 55714C - PANEL, COWL TOP SIDE, LH | ||||
| 55714-20140 |
AT19#,CT190,ST191..UKP |
1 | ||
| 55725A - REINFORCEMENT, HOOD HINGE MOUNTING, RH | ||||
| 55725-20900 |
AT19#,CT190,ST191..UKP |
1 | ||
| 55726A - REINFORCEMENT, HOOD HINGE MOUNTING, LH | ||||
| 55726-20900 |
AT19#,CT190,ST191..UKP |
1 | ||
| 58741B - PROTECTOR, QUARTER PANEL, RH | ||||
| 58741-20120 |
AT190,CT190,ST191..UKP COLD SPEC |
1 | ||
| 58741-05010 |
AT19#,CT190,ST191..UKP COLD SPEC |
1 | ||
| 58742B - PROTECTOR, QUARTER PANEL, LH | ||||
| 58742-05010 |
AT19#,CT190,ST191..UKP COLD SPEC |
1 | ||
| 58742-20110 |
AT190,CT190,ST191..UKP COLD SPEC |
1 | ||
| 58791A - CARRIER, JACK | ||||
| 58791-20100 |
AT19#,CT190,ST191..UKP..(LB,WG) |
1 | ||
| 58792B - SUPPORT, JACK CARRIER | ||||
| 58792-20040 |
AT19#,CT190,ST191..UKP..(LB,WG) |
1 | ||
| 61035 - BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, RH | ||||
| 55774-20090 |
AT19#,CT190,ST191..UKP |
1 | ||
| 61036 - BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, LH | ||||
| 55775-20070 |
AT19#,CT190,ST191..UKP |
1 | ||
| 61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH | ||||
| 61037-05010 |
AT19#,CT190,ST191..UKP |
1 | ||
| 61037-05020 |
AT19#,CT190,ST191..UKP |
1 | ||
| 61037-05030 |
AT19#,CT190,ST191..UKP |
1 | ||
| 61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH | ||||
| 61038-05010 |
AT19#,CT190,ST191..UKP |
1 | ||
| 61038-05020 |
AT19#,CT190,ST191..UKP |
1 | ||
| 61038-05030 |
AT19#,CT190,ST191..UKP |
1 | ||
| 61101 - PANEL SUB-ASSY, COWL SIDE, RH | ||||
| 61101-05901 |
AT19#,CT190,ST191..UKP..LHD |
1 | ||
| 61102 - PANEL SUB-ASSY, COWL SIDE, LH | ||||
| 61102-05901 |
AT19#,CT190,ST191..UKP..LHD |
1 | ||
| 61106A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH | ||||
| 61106-20150 |
AT190,ST191..UKP |
1 | ||
| 61106-20240 |
AT19#,CT190,ST191..UKP |
1 | ||
| 61107B - REINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER LH | ||||
| 61107-20150 |
AT190,ST191..UKP |
1 | ||
| 61107-20230 |
AT19#,CT190,ST191..UKP |
1 | ||
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61131-20420 |
AT19#,CT190,ST191..UKP..LHD |
1 | ||
| 61132 - PILLAR, FRONT BODY, UPPER OUTER LH | ||||
| 61132-20370 |
AT19#,CT190,ST191..UKP..LHD W/O(ANTENNA HOLE) |
1 | ||
| 61132-20360 |
AT19#,CT190,ST191..UKP..LHD W(ANTENNA HOLE) |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-20240 |
AT19#,CT190,ST191..UKP |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-20240 |
AT19#,CT190,ST191..UKP |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-20410 |
AT19#,CT190,ST191..UKP..(LB,SED) |
1 | ||
| 61231-20430 |
AT19#,CT190,ST191..UKP..(LB,SED) |
1 | ||
| 61231-20350 |
AT190,ST191..UKP |
1 | ||
| 61231-20350 |
AT190,ST191..UKP W(MOON ROOF) |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-20340 |
AT190,ST191..UKP |
1 | ||
| 61232-20340 |
AT190,ST191..UKP W(MOON ROOF) |
1 | ||
| 61232-20400 |
AT19#,CT190,ST191..UKP..(LB,SED) |
1 | ||
| 61232-20420 |
AT19#,CT190,ST191..UKP..(LB,SED) |
1 | ||
| 61265A - CHANNEL, ROOF DRIP SIDE, CENTER RH | ||||
| 61265-20070 |
AT190,ST191..UKP |
1 | ||
| 61266A - CHANNEL, ROOF DRIP SIDE, CENTER LH | ||||
| 61266-20070 |
AT190,ST191..UKP |
1 | ||
| 61267A - CHANNEL, ROOF DRIP SIDE, REAR RH | ||||
| 61267-05020 |
AT19#,CT190,ST191..UKP..LB |
1 | ||
| 61267-20060 |
AT190,ST191..UKP |
1 | ||
| 61268 - CHANNEL, ROOF DRIP SIDE, REAR LH | ||||
| 61268-20060 |
AT190,ST191..UKP |
1 | ||
| 61268-05020 |
AT19#,CT190,ST191..UKP..LB |
1 | ||
| 61311B - PILLAR, CENTER BODY, OUTER RH | ||||
| 61311-20240 |
AT19#,CT190,ST191..UKP |
1 | ||
| 61312B - PILLAR, CENTER BODY, OUTER LH | ||||
| 61312-20310 |
AT19#,CT190,ST191..UKP |
1 | ||
| 61331C - REINFORCEMENT, CENTER PILLAR, UPPER OUTER RH | ||||
| 61331-20030 |
AT19#,CT190,ST191..UKP |
1 | ||
| 61332C - REINFORCEMENT, CENTER PILLAR, UPPER OUTER LH | ||||
| 61332-20030 |
AT19#,CT190,ST191..UKP |
1 | ||
| 61343A - PILLAR, CENTER BODY, INNER RH | ||||
| 61343-20150 |
AT19#,CT190,ST191..UKP |
1 | ||
| 61343-20111 |
AT19#,CT190,ST191..UKP |
1 | ||
| 61343-20110 |
AT190,ST191..UKP |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61344-20110 |
AT190,ST191..UKP |
1 | ||
| 61344-20111 |
AT19#,CT190,ST191..UKP |
1 | ||
| 61344-20150 |
AT19#,CT190,ST191..UKP |
1 | ||
| 61413C - REINFORCEMENT, ROCKER PANEL, NO.2 RH | ||||
| 61413-20120 |
AT19#,CT190,ST191..UKP |
1 | ||
| 61414C - REINFORCEMENT, ROCKER PANEL, NO.2 LH | ||||
| 61414-20130 |
AT19#,CT190,ST191..UKP |
1 | ||
| 61418A - REINFORCEMENT, ROCKER PANEL, RH | ||||
| 61418-20130 |
AT190,ST191..UKP |
1 | ||
| 61418-05020 |
AT19#,CT190,ST191..UKP |
1 | ||
| 61418-05010 |
AT190,ST191..UKP |
1 | ||
| 61419A - REINFORCEMENT, ROCKER PANEL, LH | ||||
| 61419-05010 |
AT190,ST191..UKP |
1 | ||
| 61419-20110 |
AT190,ST191..UKP |
1 | ||
| 61419-05020 |
AT19#,CT190,ST191..UKP |
1 | ||
| 61425 - REINFORCEMENT, ROCKER PANEL, NO.4 RH | ||||
| 61425-05010 |
AT19#,CT190,ST191..UKP |
1 | ||
| 61426A - REINFORCEMENT, ROCKER PANEL, NO.4 LH | ||||
| 61426-05010 |
AT19#,CT190,ST191..UKP |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-05903 |
AT190,ST191..UKP..LB..GL W(REAR SPOILER) |
1 | ||
| 61601-05907 |
AT190..UKP..LB..GL;AT191,CT190,ST191..UKP..LB W(REAR SPOILER) |
1 | ||
| 61601-05906 |
AT19#,CT190,ST191..UKP..LB |
1 | ||
| 61601-05902 |
AT190,ST191..UKP..LB |
1 | ||
| 61601-05907 |
AT190..UKP..LHD..LB..GL;AT191,ST191..UKP..LB..GL W(HIGH MOUNT STOP LAMP) |
1 | ||
| 61601-05907 |
AT19#,CT190,ST191..UKP..LB..GL W(HIGH MOUNT STOP LAMP) |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-05907 |
AT190..UKP..LHD..LB..GL;AT191,ST191..UKP..LB..GL W(HIGH MOUNT STOP LAMP & MOTER ANTENNA) |
1 | ||
| 61602-05906 |
AT19#,CT190,ST191..UKP..LB W(MOTOR ANTENNA) |
1 | ||
| 61602-05904 |
AT19#,CT190,ST191..UKP..LB |
1 | ||
| 61602-05905 |
AT190..UKP..LB..GL;AT191,CT190,ST191..UKP..LB W(REAR SPOILER) |
1 | ||
| 61602-05907 |
AT190..UKP..LB..GL;AT191,CT190,ST191..UKP..LB W(REAR SPOILER & MOTOR ANTENNA) |
1 | ||
| 61602-05907 |
AT19#,CT190,ST191..UKP..LB..GL W(HIGH MOUNT STOP LAMP & MOTER ANTENNA) |
1 | ||
| 61602-05905 |
AT190..UKP..LHD..LB..GL;AT191,ST191..UKP..LB..GL W(HIGH MOUNT STOP LAMP) |
1 | ||
| 61602-05905 |
AT19#,CT190,ST191..UKP..LB..GL W(HIGH MOUNT STOP LAMP) |
1 | ||
| 61621D - TROUGH, BACK DOOR OPENING, RH | ||||
| 61621-20180 |
AT19#,CT190,ST191..UKP..LB |
1 | ||
| 61622D - TROUGH, BACK DOOR OPENING, LH | ||||
| 61622-20180 |
AT19#,CT190,ST191..UKP..LB |
1 | ||
| 61627B - EXTENSION, QUARTER PANEL, UPPER REAR RH | ||||
| 61627-20110 |
AT19#,CT190,ST191..UKP..LB |
1 | ||
| 61628B - EXTENSION, QUARTER PANEL, UPPER REAR LH | ||||
| 61628-20130 |
AT19#,CT190,ST191..UKP..LB |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-20260 |
AT19#,CT190,ST191..UKP |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-20240 |
AT19#,CT190,ST191..UKP |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61603-05902 |
AT19#,CT190,ST191..UKP..(LB,WG) |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61604-05902 |
AT19#,CT190,ST191..UKP..LB |
1 | ||
| 61643 - GUSSET, QUARTER WHEEL HOUSE CENTER, RH | ||||
| 61643-20060 |
AT19#,CT190,ST191..UKP..(LB,WG) |
1 | ||
| 61644 - GUSSET, QUARTER WHEEL HOUSE, CENTER LH | ||||
| 61644-20050 |
AT19#,CT190,ST191..UKP..(LB,WG) |
1 | ||
| 61653B - BRACKET, DECK SIDE TRIM | ||||
| 61653-20080 |
AT19#,CT190,ST191..UKP..(LB,WG) |
1 | ||
| 61654A - BRACKET, DECK SIDE TRIM, NO.2 | ||||
| 61654-20070 |
AT19#,CT190,ST191..UKP..LB |
1 | ||
| 61667D - SEAL, QUARTER PANEL | ||||
| 61668-05020 |
AT19#,CT190,ST191..UKP..LB |
1 | ||
| 61697D - HOUSING, QUARTER PANEL END, RH | ||||
| 61697-20040 |
AT19#,CT190,ST191..UKP..LB |
1 | ||
| 61698D - HOUSING, QUARTER PANEL END, LH | ||||
| 61698-20040 |
AT19#,CT190,ST191..UKP..LB |
1 | ||
| 61711 - PANEL, ROOF SIDE, OUTER RH | ||||
| 61711-20140 |
AT19#,CT190,ST191..UKP..LB |
1 | ||
| 61712 - PANEL, ROOF SIDE, OUTER LH | ||||
| 61712-20140 |
AT19#,CT190,ST191..UKP..LB |
1 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61731-20280 |
AT19#,CT190,ST191..UKP..LB |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61732-20280 |
AT19#,CT190,ST191..UKP..LB |
1 | ||
| 61735A - PANEL, ROOF SIDE, INNER REAR RH | ||||
| 61735-20190 |
AT19#,CT190,ST191..UKP..LB |
1 | ||
| 61736A - PANEL, ROOF SIDE, INNER REAR LH | ||||
| 61736-20180 |
AT19#,CT190,ST191..UKP..LB |
1 | ||
| 61745A - REINFORCEMENT, BACK DOOR OPENING, LOWER RH | ||||
| 61745-32010 |
AT19#,CT190,ST191..UKP..LB |
1 | ||
| 61746A - REINFORCEMENT, BACK DOOR OPENING, LOWER LH | ||||
| 61745-32010 |
AT19#,CT190,ST191..UKP..LB |
1 | ||
| 61747 - BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH | ||||
| 61747-20140 |
AT19#,CT190,ST191..UKP..LB |
1 | ||
| 61748C - BRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH | ||||
| 61748-20130 |
AT19#,CT190,ST191..UKP..LB |
1 | ||
| 61766B - REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH | ||||
| 61766-20150 |
AT19#,CT190,ST191..UKP..LB |
1 | ||
| 61767B - REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER LH | ||||
| 61767-20130 |
AT19#,CT190,ST191..UKP..LB |
1 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-05020 |
AT190,ST191..UKP |
6 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-05020 |
AT190,ST191..UKP |
6 | ||
| 61826A - PLATE, NOISE CONTROL, NO.3 | ||||
| 61826-05010 |
AT19#,CT190,ST191..UKP..LB |
2 | ||
| 61838B - PLATE, NOISE CONTROL, NO.5 | ||||
| 61838-05010 |
AT19#,CT190,ST191..UKP..(LB,WG) |
2 | ||
| 62151B - PAD, COWL SIDE SILENCER | ||||
| 62151-05010 |
AT19#,CT190,ST191..UKP |
2 | ||
| 62533D - BRACKET, QUARTER TRIM, NO.1, RH | ||||
| 62533-20110 |
AT19#,CT190,ST191..UKP..LB |
2 | ||
| 62534D - BRACKET, QUARTER TRIM, NO.1, LH | ||||
| 62533-20110 |
AT19#,CT190,ST191..UKP..LB |
2 | ||
| 63344 - PAD, ROOF SILENCER, NO.4 | ||||
| 63344-32020 |
AT190,ST191..UKP |
4 | ||
| 63344 - PAD, ROOF SILENCER, NO.4 | ||||
| 63344-32020 |
AT190,ST191..UKP |
4 | ||
| Common parts | ||||
| 90950-01392 | ||||
| 90950-01821 | ||||
| 90950-01864 | ||||
| 90950-01871 | ||||
| 91631-40612 | ||||
| 91651-60816 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
