8718 - HEATING & AIR CONDITIONING - COOLER PIPING

AT190L-BLMDKW (1993)

Toyota Carina E (Ukp)

Production Dec 1993 - Oct 1997

Engine 4AFE

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

(9601- )AT19#,ST191..UKP..LHD

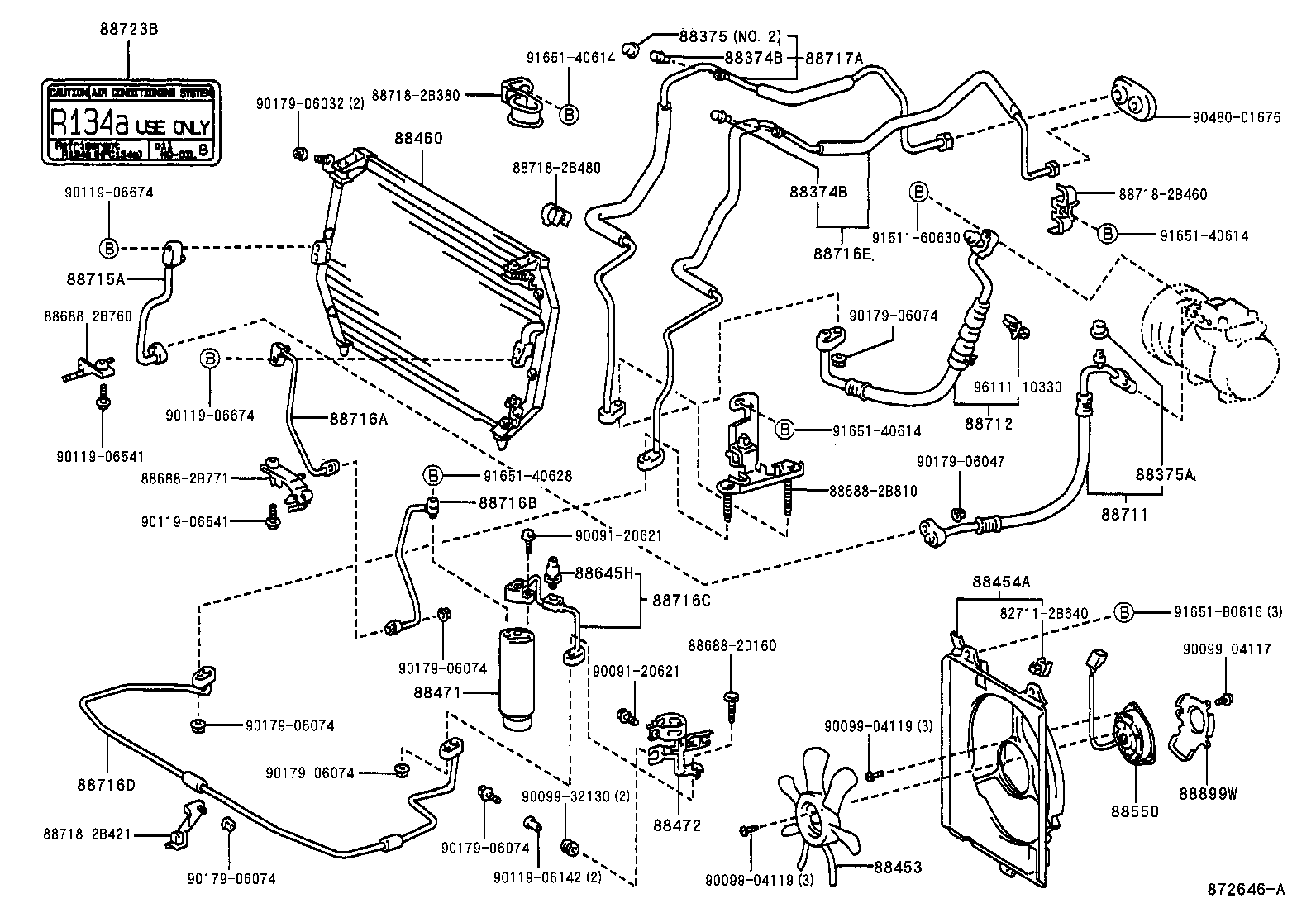

Click highlighted areas on diagram

MAKER OPTION

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	AT191..UKP..LHD;AT190..UKP..LHD..GL;AT190..UKP..LHD..(LB,WG)..XL	01/1996 - 10/1997	1
88374B - VALVE, SERVICE, NO.1
88374-30010	AT191..UKP..LHD;AT190..UKP..LHD..GL;AT190..UKP..LHD..(LB,WG)..XL	01/1996 - 10/1997	1
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280	AT190..UKP NO.1	12/1992 - 06/1994	1
88375-30290	AT191..UKP..LHD;AT190..UKP..LHD..GL;AT190..UKP..LHD..(LB,WG)..XL DEALER OPTION	01/1996 - 10/1997	1
88375-30290	CT190..UKP..RHD;AT19#,ST191..UKP NO.2	12/1992 - 01/1996	1
88375-30290	AT19#..UKP..LHD NO.2	01/1996 - 10/1997	2
88375-30280	CT190..UKP;AT19#,ST191..UKP..LHD	05/1994 - 01/1996	1
88375-30280	AT19#..UKP;CT190,ST191..UKP..RHD NO.1	06/1994 - 01/1996	1
88375-30280	AT19#..UKP..LHD NO.1	01/1996 - 10/1997	1
88453 - FAN, COOLING (FOR CONDENSER)
88453-20080	AT19#,ST191..UKP;CT190..UKP..RHD..DSL	11/1994 - 10/1997	1
88453-20080	AT190,CT190,ST191..UKP	12/1992 - 11/1994	1
88454A - SHROUD, FAN
88454-20020	AT19#,ST191..UKP	12/1992 - 10/1997	1
88460 - CONDENSER ASSY, COOLER
88460-05010	AT19#,ST191..UKP MAKER OPTION	05/1994 - 10/1997	1
88460-20370	AT190,ST191..UKP	12/1992 - 05/1994	1
88460-20370	AT190..UKP..GL;AT191,ST191..UKP;AT190..UKP..RHD..XL;AT190..UKP..LHD..(LB,WG)..XL	01/1996 - 10/1997	1
88460-20370	AT19#,ST191..UKP DEALER OPTION	05/1994 - 01/1996	1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-20050	CT190..UKP..RHD;AT19#,ST191..UKP	11/1994 - 01/1996	1
88471-20050	AT190,CT190,ST191..UKP	12/1992 - 11/1994	1
88471-20050	AT190..UKP..GL;AT190..UKP..RHD..XL;AT191,CT190,ST191..UKP;AT190..UKP..LHD..(LB,WG)..XL	01/1996 - 10/1997	1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-20150	AT190..UKP..LHD..GL;AT191,CT190,ST191..UKP..LHD;AT190..UKP..LHD..(LB,WG)..XL	01/1996 - 10/1997	1
88472-20150	AT19#,ST191..UKP..LHD	11/1994 - 01/1996	1
88472-20150	AT190,CT190,ST191..UKP..LHD	12/1992 - 11/1994	1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-12130	AT190,ST191..UKP	12/1992 - 09/1994	1
88550-12130	AT190..UKP..LHD..(LB,SED)..MTM LEAN BURN ENGINE & DEALER OPTION	12/1994 - 01/1996	1
16363-46030	AT190,ST191..UKP	09/1994 - 12/1994	1
16363-46030	AT19#,ST191..UKP	01/1996 - 10/1997	1
16363-46030	AT191..UKP..WG;AT190..UKP..LHD..MTM	12/1994 - 01/1996	1
88645H - SWITCH, PRESSURE NO.1
88645-20050	CT190..UKP..RHD;AT19#,ST191..UKP	11/1994 - 01/1996	1
88645-20050	AT190,CT190,ST191..UKP	12/1992 - 11/1994	1
88645-20050	AT190..UKP..GL;AT190..UKP..RHD..XL;AT191,CT190,ST191..UKP;AT190..UKP..LHD..(LB,WG)..XL	01/1996 - 10/1997	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-20860	AT190..UKP	12/1992 - 05/1994	1
88711-2B300	AT190..UKP..LHD..(LB,SED)..MTM MAKER OPTION OR LEAN BURN ENGINE & DEALER OPTION	12/1994 - 01/1996	1
88711-2B300	AT190..UKP MAKER OPTION	05/1994 - 12/1994	1
88711-20860	AT19#..UKP..(LB,SED) DEALER OPTION	05/1994 - 01/1996	1
88711-2B300	AT191..UKP;AT190..UKP..GL;AT190..UKP..RHD..XL;AT190..UKP..LHD..(LB,WG)..XL	01/1996 - 10/1997	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-2B250	AT190..UKP..LHD	12/1992 - 05/1994	1
88712-2B251	AT190..UKP..LHD MAKER OPTION	05/1994 - 12/1994	1
88712-2B251	AT190..UKP..LHD..(LB,SED)..MTM MAKER OPTION OR LEAN BURN ENGINE & DEALER OPTION	12/1994 - 01/1996	1
88712-2B251	AT191..UKP..LHD;AT190..UKP..LHD..GL;AT190..UKP..LHD..(LB,WG)..XL	01/1996 - 10/1997	1
88712-2B250	AT19#..UKP..LHD..(LB,SED) DEALER OPTION	05/1994 - 01/1996	1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-20120	CT190..UKP..RHD;AT19#,ST191..UKP	11/1994 - 01/1996	1
88715-20120	AT190..UKP..GL;AT190..UKP..RHD..XL;AT191,CT190,ST191..UKP;AT190..UKP..LHD..(LB,WG)..XL	01/1996 - 10/1997	1
88715-20120	AT190,CT190,ST191..UKP	12/1992 - 11/1994	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-2D140	CT190..UKP..RHD;AT19#,ST191..UKP	11/1994 - 01/1996	1
88716-2D140	AT190,CT190,ST191..UKP	12/1992 - 11/1994	1
88716-2D140	AT190..UKP..GL;AT190..UKP..RHD..XL;AT191,CT190,ST191..UKP;AT190..UKP..LHD..(LB,WG)..XL	01/1996 - 10/1997	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-2D150	ST191..UKP;AT19#..UKP..LHD..(LB,SED) DEALER OPTION	05/1994 - 01/1996	1
88716-2D151	AT190..UKP..LHD..(LB,SED)..MTM MAKER OPTION OR LEAN BURN ENGINE & DEALER OPTION	12/1994 - 01/1996	1
88716-2D151	ST191..UKP;AT190..UKP..LHD MAKER OPTION	05/1994 - 12/1994	1
88716-2D150	ST191..UKP;AT190..UKP..LHD	12/1992 - 12/1993	1
88716-2D150	AT190,ST191..UKP..LHD DEALER OPTION	12/1993 - 05/1994	1
88716-2D151	AT191..UKP..LHD;CT190,ST191..UKP;AT190..UKP..LHD..GL;AT190..UKP..LHD..(LB,WG)..XL	01/1996 - 10/1997	1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-2D160	AT190,CT190,ST191..UKP..LHD	12/1992 - 11/1994	1
88716-2D160	AT19#,ST191..UKP..LHD	11/1994 - 01/1996	1
88716-2D160	AT190..UKP..LHD..GL;AT191,CT190,ST191..UKP..LHD;AT190..UKP..LHD..(LB,WG)..XL	01/1996 - 10/1997	1
88716D - PIPE, COOLER REFRIGERANT LIQUID, D
88716-2D132	AT190,ST191..UKP..LHD MAKER OPTION	05/1994 - 12/1994	1
88716-2D130	AT190,ST191..UKP..LHD	12/1992 - 04/1993	1
88716-2D132	AT190..UKP..LHD..(LB,SED)..MTM MAKER OPTION OR LEAN BURN ENGINE & DEALER OPTION	12/1994 - 01/1996	1
88716-2D132	AT190..UKP..LHD..GL;AT191,CT190,ST191..UKP..LHD;AT190..UKP..LHD..(LB,WG)..XL	01/1996 - 10/1997	1
88716-2D131	ST191..UKP..LHD;AT19#..UKP..LHD..(LB,SED) DEALER OPTION	05/1994 - 01/1996	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-2D200	AT19#..UKP..LHD	12/1992 - 01/1996	1
88716-2D450	AT191..UKP..LHD;AT190..UKP..LHD..GL;AT190..UKP..LHD..(LB,WG)..XL	01/1996 - 10/1997	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-2B260	AT19#..UKP..LHD	12/1992 - 01/1996	1
88717-2B540	AT191..UKP..LHD;AT190..UKP..LHD..GL;AT190..UKP..LHD..(LB,WG)..XL	01/1996 - 10/1997	1
88723B - LABEL, COOLER SERVICE CAUTION
88723-20040	CT190..UKP..RHD;AT19#,ST191..UKP	11/1994 - 01/1996	1
88723-20040	AT190..UKP..GL;AT190..UKP..RHD..XL;AT191,CT190,ST191..UKP;AT190..UKP..LHD..(LB,WG)..XL	01/1996 - 10/1997	1
88723-20040	AT190,CT190,ST191..UKP	12/1992 - 11/1994	1
88899W - SUPPORT SUB-ASSY, B
88899-20270	AT19#,ST191..UKP	12/1992 - 10/1997	1
Common parts
82711-2B640
88688-2B760
88688-2B771
88688-2B810
88688-2D160
88718-2B380
88718-2B421
88718-2B460
88718-2B480
90091-20621
90099-04117
90099-04119
90099-32130
90119-06142
90119-06541
90119-06674
90179-06032
90179-06047
90179-06074
90480-01676
91511-60630
91651-40614
91651-40628
91651-B0616
96111-10330

(9601- )UKP..LHD

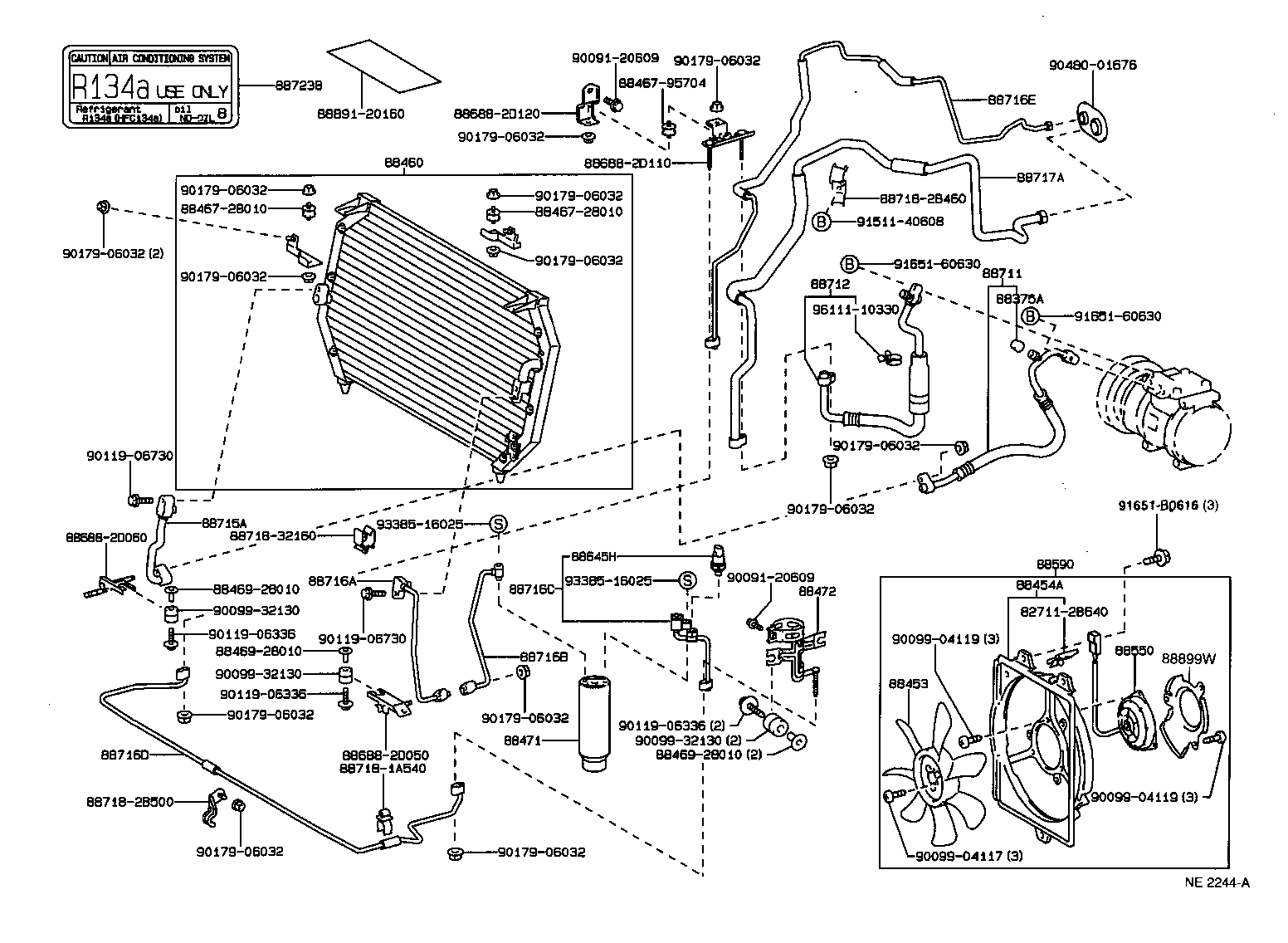

Click highlighted areas on diagram

DEALER OPTION

Part #	Description	Period	Qty
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280	AT190..UKP NO.1	12/1992 - 06/1994	1
88375-30290	AT191..UKP..LHD;AT190..UKP..LHD..GL;AT190..UKP..LHD..(LB,WG)..XL DEALER OPTION	01/1996 - 10/1997	1
88375-30290	CT190..UKP..RHD;AT19#,ST191..UKP NO.2	12/1992 - 01/1996	1
88375-30290	AT19#..UKP..LHD NO.2	01/1996 - 10/1997	2
88375-30280	CT190..UKP;AT19#,ST191..UKP..LHD	05/1994 - 01/1996	1
88375-30280	AT19#..UKP;CT190,ST191..UKP..RHD NO.1	06/1994 - 01/1996	1
88375-30280	AT19#..UKP..LHD NO.1	01/1996 - 10/1997	1
88453 - FAN, COOLING (FOR CONDENSER)
88453-20080	AT19#,ST191..UKP;CT190..UKP..RHD..DSL	11/1994 - 10/1997	1
88453-20080	AT190,CT190,ST191..UKP	12/1992 - 11/1994	1
88454A - SHROUD, FAN
88454-20020	AT19#,ST191..UKP	12/1992 - 10/1997	1
88460 - CONDENSER ASSY, COOLER
88460-05010	AT19#,ST191..UKP MAKER OPTION	05/1994 - 10/1997	1
88460-20370	AT190,ST191..UKP	12/1992 - 05/1994	1
88460-20370	AT190..UKP..GL;AT191,ST191..UKP;AT190..UKP..RHD..XL;AT190..UKP..LHD..(LB,WG)..XL	01/1996 - 10/1997	1
88460-20370	AT19#,ST191..UKP DEALER OPTION	05/1994 - 01/1996	1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-20050	CT190..UKP..RHD;AT19#,ST191..UKP	11/1994 - 01/1996	1
88471-20050	AT190,CT190,ST191..UKP	12/1992 - 11/1994	1
88471-20050	AT190..UKP..GL;AT190..UKP..RHD..XL;AT191,CT190,ST191..UKP;AT190..UKP..LHD..(LB,WG)..XL	01/1996 - 10/1997	1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-20150	AT190..UKP..LHD..GL;AT191,CT190,ST191..UKP..LHD;AT190..UKP..LHD..(LB,WG)..XL	01/1996 - 10/1997	1
88472-20150	AT19#,ST191..UKP..LHD	11/1994 - 01/1996	1
88472-20150	AT190,CT190,ST191..UKP..LHD	12/1992 - 11/1994	1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-12130	AT190,ST191..UKP	12/1992 - 09/1994	1
88550-12130	AT190..UKP..LHD..(LB,SED)..MTM LEAN BURN ENGINE & DEALER OPTION	12/1994 - 01/1996	1
16363-46030	AT190,ST191..UKP	09/1994 - 12/1994	1
16363-46030	AT19#,ST191..UKP	01/1996 - 10/1997	1
16363-46030	AT191..UKP..WG;AT190..UKP..LHD..MTM	12/1994 - 01/1996	1
88590 - BLOWER ASSY, W/SHROUD
88590-20270	AT19#,ST191..UKP	12/1992 - 10/1997	1
88645H - SWITCH, PRESSURE NO.1
88645-20050	CT190..UKP..RHD;AT19#,ST191..UKP	11/1994 - 01/1996	1
88645-20050	AT190,CT190,ST191..UKP	12/1992 - 11/1994	1
88645-20050	AT190..UKP..GL;AT190..UKP..RHD..XL;AT191,CT190,ST191..UKP;AT190..UKP..LHD..(LB,WG)..XL	01/1996 - 10/1997	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-20860	AT190..UKP	12/1992 - 05/1994	1
88711-2B300	AT190..UKP..LHD..(LB,SED)..MTM MAKER OPTION OR LEAN BURN ENGINE & DEALER OPTION	12/1994 - 01/1996	1
88711-2B300	AT190..UKP MAKER OPTION	05/1994 - 12/1994	1
88711-20860	AT19#..UKP..(LB,SED) DEALER OPTION	05/1994 - 01/1996	1
88711-2B300	AT191..UKP;AT190..UKP..GL;AT190..UKP..RHD..XL;AT190..UKP..LHD..(LB,WG)..XL	01/1996 - 10/1997	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-2B250	AT190..UKP..LHD	12/1992 - 05/1994	1
88712-2B251	AT190..UKP..LHD MAKER OPTION	05/1994 - 12/1994	1
88712-2B251	AT190..UKP..LHD..(LB,SED)..MTM MAKER OPTION OR LEAN BURN ENGINE & DEALER OPTION	12/1994 - 01/1996	1
88712-2B251	AT191..UKP..LHD;AT190..UKP..LHD..GL;AT190..UKP..LHD..(LB,WG)..XL	01/1996 - 10/1997	1
88712-2B250	AT19#..UKP..LHD..(LB,SED) DEALER OPTION	05/1994 - 01/1996	1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-20120	CT190..UKP..RHD;AT19#,ST191..UKP	11/1994 - 01/1996	1
88715-20120	AT190..UKP..GL;AT190..UKP..RHD..XL;AT191,CT190,ST191..UKP;AT190..UKP..LHD..(LB,WG)..XL	01/1996 - 10/1997	1
88715-20120	AT190,CT190,ST191..UKP	12/1992 - 11/1994	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-2D140	CT190..UKP..RHD;AT19#,ST191..UKP	11/1994 - 01/1996	1
88716-2D140	AT190,CT190,ST191..UKP	12/1992 - 11/1994	1
88716-2D140	AT190..UKP..GL;AT190..UKP..RHD..XL;AT191,CT190,ST191..UKP;AT190..UKP..LHD..(LB,WG)..XL	01/1996 - 10/1997	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-2D150	ST191..UKP;AT19#..UKP..LHD..(LB,SED) DEALER OPTION	05/1994 - 01/1996	1
88716-2D151	AT190..UKP..LHD..(LB,SED)..MTM MAKER OPTION OR LEAN BURN ENGINE & DEALER OPTION	12/1994 - 01/1996	1
88716-2D151	ST191..UKP;AT190..UKP..LHD MAKER OPTION	05/1994 - 12/1994	1
88716-2D150	ST191..UKP;AT190..UKP..LHD	12/1992 - 12/1993	1
88716-2D150	AT190,ST191..UKP..LHD DEALER OPTION	12/1993 - 05/1994	1
88716-2D151	AT191..UKP..LHD;CT190,ST191..UKP;AT190..UKP..LHD..GL;AT190..UKP..LHD..(LB,WG)..XL	01/1996 - 10/1997	1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-2D160	AT190,CT190,ST191..UKP..LHD	12/1992 - 11/1994	1
88716-2D160	AT19#,ST191..UKP..LHD	11/1994 - 01/1996	1
88716-2D160	AT190..UKP..LHD..GL;AT191,CT190,ST191..UKP..LHD;AT190..UKP..LHD..(LB,WG)..XL	01/1996 - 10/1997	1
88716D - PIPE, COOLER REFRIGERANT LIQUID, D
88716-2D132	AT190,ST191..UKP..LHD MAKER OPTION	05/1994 - 12/1994	1
88716-2D130	AT190,ST191..UKP..LHD	12/1992 - 04/1993	1
88716-2D132	AT190..UKP..LHD..(LB,SED)..MTM MAKER OPTION OR LEAN BURN ENGINE & DEALER OPTION	12/1994 - 01/1996	1
88716-2D132	AT190..UKP..LHD..GL;AT191,CT190,ST191..UKP..LHD;AT190..UKP..LHD..(LB,WG)..XL	01/1996 - 10/1997	1
88716-2D131	ST191..UKP..LHD;AT19#..UKP..LHD..(LB,SED) DEALER OPTION	05/1994 - 01/1996	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-2D200	AT19#..UKP..LHD	12/1992 - 01/1996	1
88716-2D450	AT191..UKP..LHD;AT190..UKP..LHD..GL;AT190..UKP..LHD..(LB,WG)..XL	01/1996 - 10/1997	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-2B260	AT19#..UKP..LHD	12/1992 - 01/1996	1
88717-2B540	AT191..UKP..LHD;AT190..UKP..LHD..GL;AT190..UKP..LHD..(LB,WG)..XL	01/1996 - 10/1997	1
88723B - LABEL, COOLER SERVICE CAUTION
88723-20040	CT190..UKP..RHD;AT19#,ST191..UKP	11/1994 - 01/1996	1
88723-20040	AT190..UKP..GL;AT190..UKP..RHD..XL;AT191,CT190,ST191..UKP;AT190..UKP..LHD..(LB,WG)..XL	01/1996 - 10/1997	1
88723-20040	AT190,CT190,ST191..UKP	12/1992 - 11/1994	1
88899W - SUPPORT SUB-ASSY, B
88899-20270	AT19#,ST191..UKP	12/1992 - 10/1997	1
Common parts
82711-2B640
88467-28010
88467-95704
88469-28010
88688-2D050
88688-2D060
88688-2D110
88688-2D120
88718-1A540
88718-2B460
88718-2B500
88718-32160
88891-20160
90091-20609
90099-04117
90099-04119
90099-32130
90119-06336
90119-06730
90179-06032
90480-01676
91511-40608
91651-60630
91651-B0616
93385-16025
96111-10330

AT190L-BLMDKW (1993)

(9601- )AT19#,ST191..UKP..LHD

(9601- )UKP..LHD

Part Price Details
