AT190L-BEMNKW (1992)
Toyota Carina E (Ukp)

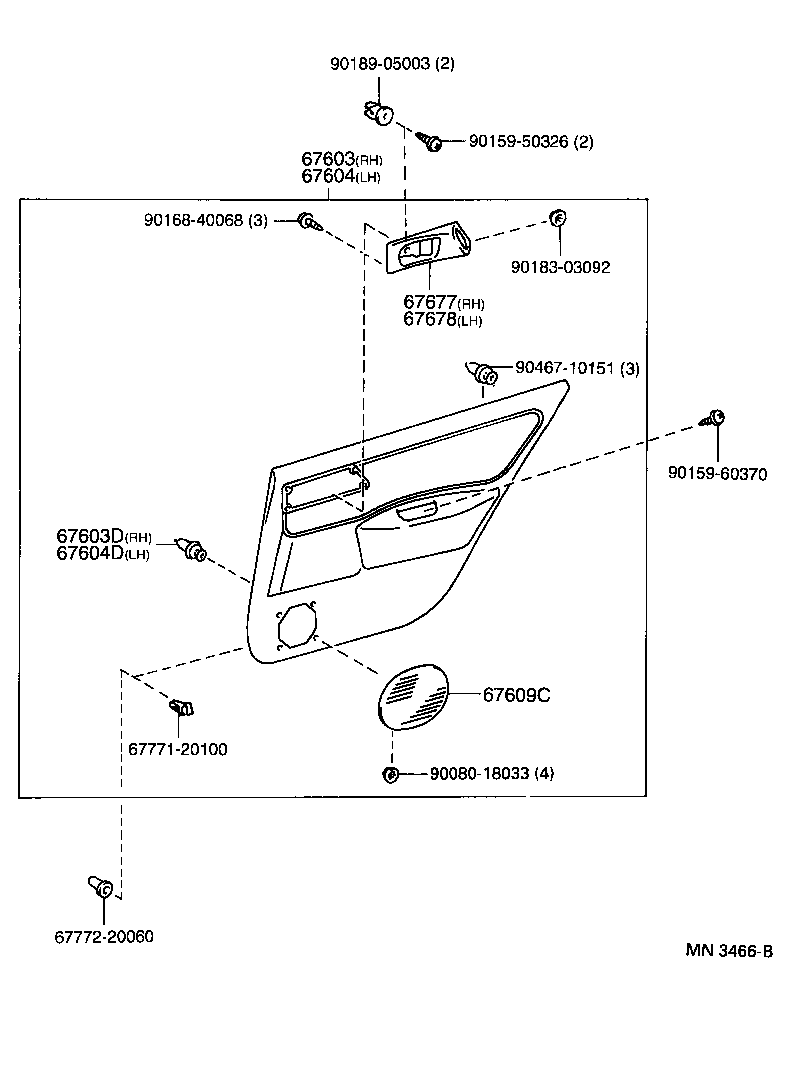

ILLUST NO. 2 OF 2(9212-9601)UKP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-05020C1 |
AT190..UKP..GL;ST191..UKP..RHD W(POWER WINDOW & SPEAKER);DOOR TRIM=TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 67630-05020J1 |
AT190..UKP..GL;ST191..UKP..RHD W(POWER WINDOW & SPEAKER);DOOR TRIM=TYPE B-*104,DK. BLUE,TRIM8# |
1 | ||
| 67630-05090C1 |
AT190..UKP..GL;ST191..UKP..RHD DOOR TRIM=TYPE B-*104;W(SPEAKER),BLACK,TRIM2# |
1 | ||
| 67630-05090J1 |
AT190..UKP..GL;ST191..UKP..RHD DOOR TRIM=TYPE B-*104;W(SPEAKER),DK. BLUE,TRIM8# |
1 | ||
| 67630-05030C1 |
AT190,ST191..UKP..SED..GL DOOR TRIM=TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 67630-05010J1 |
AT190,ST191..UKP..SED..GL W(POWER WINDOW);DOOR TRIM=TYPE B-*104,DK. BLUE,TRIM8# |
1 | ||
| 67630-05010C1 |
AT190,ST191..UKP..SED..GL W(POWER WINDOW);DOOR TRIM=TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 67630-05030J1 |
AT190,ST191..UKP..SED..GL DOOR TRIM=TYPE B-*104,DK. BLUE,TRIM8# |
1 | ||
| 67630-05020C1 |
AT190,ST191..UKP..SED..GL W(POWER WINDOW & SPEAKER);DOOR TRIM=TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 67630-05100C2 |
AT190..UKP..GL;ST191..UKP..RHD DOOR TRIM=TYPE C-*104;W(POWER WINDOW & SPORTS SEAT & SPEAKER),BLACK,TRIM2# |
1 | ||
| 67630-05080C2 |
AT190,ST191..UKP..SED..GL W(POWER WINDOW & SPORTS SEAT);DOOR TRIM=TYPE C-*104,BLACK,TRIM2# |
1 | ||
| 67630-05020J1 |
AT190,ST191..UKP..SED..GL W(POWER WINDOW & SPEAKER);DOOR TRIM=TYPE B-*104,DK. BLUE,TRIM8# |
1 | ||
| 67630-05100C2 |
AT190,ST191..UKP..SED..GL DOOR TRIM=TYPE C-*104;W(POWER WINDOW & SPORTS SEAT & SPEAKER),BLACK,TRIM2# |
1 | ||
| 67630-05090C1 |
AT190,ST191..UKP..SED..GL DOOR TRIM=TYPE B-*104;W(SPEAKER),BLACK,TRIM2# |
1 | ||
| 67630-05090J1 |
AT190,ST191..UKP..SED..GL DOOR TRIM=TYPE B-*104;W(SPEAKER),DK. BLUE,TRIM8# |
1 | ||
| 67630-05210B0 |
AT190..UKP..LHD..SED..GL DOOR TRIM=TYPE B-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-05210J0 |
AT190..UKP..LHD..SED..GL DOOR TRIM=TYPE B-*104,DK. BLUE,TRIM8# |
1 | ||
| 67630-05220B0 |
AT190..UKP..LHD..SED..GL DOOR TRIM=TYPE B-*104;W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67630-05220J0 |
AT190..UKP..LHD..SED..GL DOOR TRIM=TYPE B-*104;W(SPEAKER),DK. BLUE,TRIM8# |
1 | ||
| 67630-05570B0 |
AT190..UKP..SED;CT190,ST191..UKP..LHD..SED DOOR TRIM=TYPE D-*104;EX FABRIC & W(POWER WINDOW),SHADOW GRAY,TRIM1# |
1 | ||
| 67630-05580B0 |
AT190..UKP..SED;CT190,ST191..UKP..LHD..SED DOOR TRIM=TYPE D-*104;EX FABRIC,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-05080B0 |
AT19#..UKP..LHD..SED..GL W(SPORTS SEAT);DOOR TRIM=TYPE C-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-05100B0 |
AT19#..UKP..LHD..SED..GL W(SPORTS SEAT & SPEAKER);DOOR TRIM=TYPE C-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-05210B0 |
AT191..UKP..WG;AT191..UKP..RHD..SED;AT190,ST191..UKP..(SED,WG)..GL W(POWER WINDOW);DOOR TRIM=TYPE B-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-05220J0 |
AT191..UKP..WG;AT191..UKP..RHD..SED;AT190,ST191..UKP..(SED,WG)..GL W(POWER WINDOW & SPEAKER);DOOR TRIM=TYPE B-*104,DK. BLUE,TRIM8# |
1 | ||
| 67630-05210J0 |
AT191..UKP..WG;AT191..UKP..RHD..SED;AT190,ST191..UKP..(SED,WG)..GL W(POWER WINDOW);DOOR TRIM=TYPE B-*104,DK. BLUE,TRIM8# |
1 | ||
| 67630-05230J0 |
AT191..UKP..WG;AT191..UKP..RHD..SED;AT190,ST191..UKP..(SED,WG)..GL DOOR TRIM=TYPE B-*104,DK. BLUE,TRIM8# |
1 | ||
| 67630-05240B0 |
AT191..UKP..WG;AT191..UKP..RHD..SED;AT190,ST191..UKP..(SED,WG)..GL DOOR TRIM=TYPE B-*104;W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67630-05240J0 |
AT191..UKP..WG;AT191..UKP..RHD..SED;AT190,ST191..UKP..(SED,WG)..GL DOOR TRIM=TYPE B-*104;W(SPEAKER),DK. BLUE,TRIM8# |
1 | ||
| 67630-05220B0 |
AT191..UKP..WG;AT191..UKP..RHD..SED;AT190,ST191..UKP..(SED,WG)..GL W(POWER WINDOW & SPEAKER);DOOR TRIM=TYPE B-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-05230B0 |
AT191..UKP..WG;AT191..UKP..RHD..SED;AT190,ST191..UKP..(SED,WG)..GL DOOR TRIM=TYPE B-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-05600B0 |
AT190..UKP..SED..GL;ST191..UKP..LHD..SED EX FABRIC & W(POWER WINDOW & SPEAKER);DOOR TRIM=TYPE D-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-05590B0 |
AT190..UKP..SED..GL;ST191..UKP..LHD..SED EX FABRIC & W(SPEAKER);DOOR TRIM=TYPE D-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-05570B0 |
ST191..UKP..LHD..SED;AT190,CT190..UKP..SED DOOR TRIM=TYPE D-*104;EX FABRIC & W(POWER WINDOW),SHADOW GRAY,TRIM1# |
1 | ||
| 67630-05530B0 |
AT19#,CT190,ST191..UKP..(SED,WG)..GL DOOR TRIM=TYPE D-*104;'97 SPRING CAMPAIGN 0R '97 AUTUMN CAMPAIGN FABRIC,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-05580B0 |
ST191..UKP..LHD..SED;AT190,CT190..UKP..SED DOOR TRIM=TYPE D-*104;EX FABRIC,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-05550B0 |
AT19#,CT190,ST191..UKP..(SED,WG) '97 SPRING CAMPAIGN 0R '97 AUTUMN CAMPAIGN FABRIC & W(P0WER WIND0W);DOOR TRIM=TYPE D-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-05370J1 |
AT19#,CT190,ST191..UKP..(SED,WG)..GL W(POWER WINDOW);DOOR TRIM=TYPE B-*104,DK. BLUE,TRIM8# |
1 | ||
| 67630-05540B0 |
AT19#,CT190,ST191..UKP..(SED,WG)..GL '97 SPRING CAMPAIGN 0R '97 AUTUMN CAMPAIGN FABRIC & W(SPEAKER);DOOR TRIM=TYPE D-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-05370B1 |
AT19#,CT190,ST191..UKP..(SED,WG)..GL W(POWER WINDOW);DOOR TRIM=TYPE B-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-05400J1 |
AT19#,CT190,ST191..UKP..(SED,WG)..GL DOOR TRIM=TYPE B-*104,DK. BLUE,TRIM8# |
1 | ||
| 67630-05410B1 |
AT190..UKP..LHD..SED..GL LATIN AMERICA SPEC;DOOR TRIM=TYPE B-*104;W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67630-05560B0 |
AT19#,CT190,ST191..UKP..(SED,WG)..GL DOOR TRIM=TYPE D-*104;'97 SPRING CAMPAIGN 0R '97 AUTUMN CAMPAIGN FABRIC & W(POWERWINDOW & SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67630-05400B1 |
AT19#,CT190,ST191..UKP..(SED,WG)..GL DOOR TRIM=TYPE B-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-05440J1 |
AT190..UKP..LHD..SED..GL LATIN AMERICA SPEC;W(POWER WINDOW & SPEAKER);DOOR TRIM=TYPE B-*104,DK. BLUE,TRIM8# |
1 | ||
| 67630-05410J1 |
AT190..UKP..LHD..SED..GL LATIN AMERICA SPEC;DOOR TRIM=TYPE B-*104;W(SPEAKER),DK. BLUE,TRIM8# |
1 | ||
| 67630-05440B1 |
AT190..UKP..LHD..SED..GL LATIN AMERICA SPEC;W(POWER WINDOW & SPEAKER);DOOR TRIM=TYPE B-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-05540B0 |
AT19#,CT190,ST191..UKP..SED..GL '97 SPRING CAMPAIGN 0R '97 AUTUMN CAMPAIGN FABRIC & W(SPEAKER);DOOR TRIM=TYPE D-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-05560B0 |
AT19#,CT190,ST191..UKP..SED..GL DOOR TRIM=TYPE D-*104;'97 SPRING CAMPAIGN 0R '97 AUTUMN CAMPAIGN FABRIC & W(POWERWINDOW & SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67630-05530B0 |
AT19#,CT190,ST191..UKP..SED..GL DOOR TRIM=TYPE D-*104;'97 SPRING CAMPAIGN 0R '97 AUTUMN CAMPAIGN FABRIC,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-05550B0 |
AT19#,CT190,ST191..UKP..SED '97 SPRING CAMPAIGN 0R '97 AUTUMN CAMPAIGN FABRIC & W(P0WER WIND0W);DOOR TRIM=TYPE D-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-05810B0 |
AT19#,CT190,ST191..UKP..SED..GL DOOR TRIM=TYPE E-*104;'97 AUTUMN CAMPAIGN FABRIC,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-05830B0 |
AT19#,CT190,ST191..UKP..SED '97 AUTUMN CAMPAIGN FABRIC & W(POWER WINDOW);DOOR TRIM=TYPE E-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-05840B0 |
AT19#,CT190,ST191..UKP..SED..GL DOOR TRIM=TYPE E-*104;'97 AUTUMN CAMPAIGN FABRIC & W(POWER WINDOW & SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67630-05820B0 |
AT19#,CT190,ST191..UKP..SED..GL '97 AUTUMN CAMPAIGN FABRIC & W(SPEAKER);DOOR TRIM=TYPE E-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67603D - RETAINER, REAR DOOR TRIM, RH | ||||
| 67771-20110 |
AT190..UKP..GL;ST191..UKP..RHD GREEN |
7 | ||
| 67771-20110 |
AT19#,CT190,ST191..UKP |
7 | ||
| 67771-20110 |
AT19#,CT190,ST191..UKP..(SED,WG) |
7 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-05020J1 |
AT190..UKP..GL;ST191..UKP..RHD W(POWER WINDOW & SPEAKER);DOOR TRIM=TYPE B-*104,DK. BLUE,TRIM8# |
1 | ||
| 67640-05090J1 |
AT190..UKP..GL;ST191..UKP..RHD DOOR TRIM=TYPE B-*104;W(SPEAKER),DK. BLUE,TRIM8# |
1 | ||
| 67640-05030C1 |
AT190,ST191..UKP..SED..GL DOOR TRIM=TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 67640-05020C1 |
AT190..UKP..GL;ST191..UKP..RHD W(POWER WINDOW & SPEAKER);DOOR TRIM=TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 67640-05090C1 |
AT190..UKP..GL;ST191..UKP..RHD DOOR TRIM=TYPE B-*104;W(SPEAKER),DK. BLUE,TRIM2# |
1 | ||
| 67640-05010J1 |
AT190,ST191..UKP..SED..GL W(POWER WINDOW);DOOR TRIM=TYPE B-*104,DK. BLUE,TRIM8# |
1 | ||
| 67640-05100C2 |
AT190..UKP..GL;ST191..UKP..RHD DOOR TRIM=TYPE C-*104;W(POWER WINDOW & SPORTS SEAT & SPEAKER),BLACK,TRIM2# |
1 | ||
| 67640-05030J1 |
AT190,ST191..UKP..SED..GL DOOR TRIM=TYPE B-*104;W(GL FABRIC),DK. BLUE,TRIM8# |
1 | ||
| 67640-05020C1 |
AT190,ST191..UKP..SED..GL W(POWER WINDOW & SPEAKER);DOOR TRIM=TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 67640-05010C1 |
AT190,ST191..UKP..SED..GL W(POWER WINDOW);DOOR TRIM=TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 67640-05020J1 |
AT190,ST191..UKP..SED..GL W(POWER WINDOW & SPEAKER);DOOR TRIM=TYPE B-*104,DK. BLUE,TRIM8# |
1 | ||
| 67640-05090C1 |
AT190,ST191..UKP..SED..GL DOOR TRIM=TYPE B-*104;W(SPEAKER),BLACK,TRIM2# |
1 | ||
| 67640-05090J1 |
AT190,ST191..UKP..SED..GL DOOR TRIM=TYPE B-*104;W(SPEAKER),DK. BLUE,TRIM8# |
1 | ||
| 67640-05080C2 |
AT190,ST191..UKP..SED..GL W(POWER WINDOW & SPORTS SEAT);DOOR TRIM=TYPE C-*104,BLACK,TRIM2# |
1 | ||
| 67640-05100C2 |
AT190,ST191..UKP..SED..GL DOOR TRIM=TYPE C-*104;W(POWER WINDOW & SPORTS SEAT & SPEAKER),BLACK,TRIM2# |
1 | ||
| 67640-05220B0 |
AT190..UKP..LHD..SED..GL DOOR TRIM=TYPE B-*104;W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-05210J0 |
AT190..UKP..LHD..SED..GL DOOR TRIM=TYPE B-*104,DK. BLUE,TRIM8# |
1 | ||
| 67640-05210B0 |
AT190..UKP..LHD..SED..GL DOOR TRIM=TYPE B-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-05220J0 |
AT190..UKP..LHD..SED..GL DOOR TRIM=TYPE B-*104;W(SPEAKER),DK. BLUE,TRIM8# |
1 | ||
| 67640-05570B0 |
AT190..UKP..SED;CT190,ST191..UKP..LHD..SED DOOR TRIM=TYPE D-*104;EX FABRIC & W(POWER WINDOW),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-05100B0 |
AT19#..UKP..LHD..SED..GL W(SPORTS SEAT & SPEAKER);DOOR TRIM=TYPE C-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-05080B0 |
AT19#..UKP..LHD..SED..GL W(SPORTS SEAT);DOOR TRIM=TYPE C-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-05580B0 |
AT190..UKP..SED;CT190,ST191..UKP..LHD..SED DOOR TRIM=TYPE D-*104;EX FABRIC,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-05210J0 |
AT191..UKP..WG;AT191..UKP..RHD..SED;AT190,ST191..UKP..(SED,WG)..GL W(POWER WINDOW);DOOR TRIM=TYPE B-*104,DK. BLUE,TRIM8# |
1 | ||
| 67640-05220B0 |
AT191..UKP..WG;AT191..UKP..RHD..SED;AT190,ST191..UKP..(SED,WG)..GL W(POWER WINDOW & SPEAKER);DOOR TRIM=TYPE B-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-05230J0 |
AT191..UKP..WG;AT191..UKP..RHD..SED;AT190,ST191..UKP..(SED,WG)..GL DOOR TRIM=TYPE B-*104,DK. BLUE,TRIM8# |
1 | ||
| 67640-05240J0 |
AT191..UKP..WG;AT191..UKP..RHD..SED;AT190,ST191..UKP..(SED,WG)..GL DOOR TRIM=TYPE B-*104;W(SPEAKER),DK. BLUE,TRIM8# |
1 | ||
| 67640-05240B0 |
AT191..UKP..WG;AT191..UKP..RHD..SED;AT190,ST191..UKP..(SED,WG)..GL DOOR TRIM=TYPE B-*104;W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-05210B0 |
AT191..UKP..WG;AT191..UKP..RHD..SED;AT190,ST191..UKP..(SED,WG)..GL W(POWER WINDOW);DOOR TRIM=TYPE B-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-05220J0 |
AT191..UKP..WG;AT191..UKP..RHD..SED;AT190,ST191..UKP..(SED,WG)..GL W(POWER WINDOW & SPEAKER);DOOR TRIM=TYPE B-*104,DK. BLUE,TRIM8# |
1 | ||
| 67640-05230B0 |
AT191..UKP..WG;AT191..UKP..RHD..SED;AT190,ST191..UKP..(SED,WG)..GL DOOR TRIM=TYPE B-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-05600B0 |
AT190..UKP..SED..GL;ST191..UKP..LHD..SED EX FABRIC & W(POWER WINDOW & SPEAKER);DOOR TRIM=TYPE D-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-05590B0 |
AT190..UKP..SED..GL;ST191..UKP..LHD..SED EX FABRIC & W(SPEAKER);DOOR TRIM=TYPE D-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-05570B0 |
ST191..UKP..LHD..SED;AT190,CT190..UKP..SED DOOR TRIM=TYPE D-*104;EX FABRIC & W(POWER WINDOW),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-05580B0 |
ST191..UKP..LHD..SED;AT190,CT190..UKP..SED DOOR TRIM=TYPE D-*104;EX FABRIC,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-05550B0 |
AT19#,CT190,ST191..UKP..(SED,WG) '97 SPRING CAMPAIGN 0R '97 AUTUMN CAMPAIGN FABRIC & W(P0WER WIND0W);DOOR TRIM=TYPE D-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-05540B0 |
AT19#,CT190,ST191..UKP..(SED,WG)..GL '97 SPRING CAMPAIGN 0R '97 AUTUMN CAMPAIGN FABRIC & W(SPEAKER);DOOR TRIM=TYPE D-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-05560B0 |
AT19#,CT190,ST191..UKP..(SED,WG)..GL DOOR TRIM=TYPE D-*104;'97 SPRING CAMPAIGN 0R '97 AUTUMN CAMPAIGN FABRIC & W(POWERWINDOW & SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-05530B0 |
AT19#,CT190,ST191..UKP..(SED,WG)..GL DOOR TRIM=TYPE D-*104;'97 SPRING CAMPAIGN 0R '97 AUTUMN CAMPAIGN FABRIC,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-05370J1 |
AT19#,CT190,ST191..UKP..(SED,WG)..GL W(POWER WINDOW);DOOR TRIM=TYPE B-*104,DK. BLUE,TRIM8# |
1 | ||
| 67640-05370B1 |
AT19#,CT190,ST191..UKP..(SED,WG)..GL W(POWER WINDOW);DOOR TRIM=TYPE B-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-05410B1 |
AT190..UKP..LHD..SED..GL LATIN AMERICA SPEC;DOOR TRIM=TYPE B-*104;W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-05400B1 |
AT19#,CT190,ST191..UKP..(SED,WG)..GL DOOR TRIM=TYPE B-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-05400J1 |
AT19#,CT190,ST191..UKP..(SED,WG)..GL DOOR TRIM=TYPE B-*104,DK. BLUE,TRIM8# |
1 | ||
| 67640-05440B1 |
AT190..UKP..LHD..SED..GL LATIN AMERICA SPEC;W(POWER WINDOW & SPEAKER);DOOR TRIM=TYPE B-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-05410J1 |
AT190..UKP..LHD..SED..GL LATIN AMERICA SPEC;DOOR TRIM=TYPE B-*104;W(SPEAKER),DK. BLUE,TRIM8# |
1 | ||
| 67640-05440J1 |
AT190..UKP..LHD..SED..GL LATIN AMERICA SPEC;W(POWER WINDOW & SPEAKER);DOOR TRIM=TYPE B-*104,DK. BLUE,TRIM8# |
1 | ||
| 67640-05530B0 |
AT19#,CT190,ST191..UKP..SED..GL DOOR TRIM=TYPE D-*104;'97 SPRING CAMPAIGN 0R '97 AUTUMN CAMPAIGN FABRIC,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-05540B0 |
AT19#,CT190,ST191..UKP..SED..GL '97 SPRING CAMPAIGN 0R '97 AUTUMN CAMPAIGN FABRIC & W(SPEAKER);DOOR TRIM=TYPE D-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-05550B0 |
AT19#,CT190,ST191..UKP..SED '97 SPRING CAMPAIGN 0R '97 AUTUMN CAMPAIGN FABRIC & W(P0WER WIND0W);DOOR TRIM=TYPE D-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-05560B0 |
AT19#,CT190,ST191..UKP..SED..GL DOOR TRIM=TYPE D-*104;'97 SPRING CAMPAIGN 0R '97 AUTUMN CAMPAIGN FABRIC & W(POWERWINDOW & SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-05810B0 |
AT19#,CT190,ST191..UKP..SED..GL DOOR TRIM=TYPE E-*104;'97 AUTUMN CAMPAIGN FABRIC,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-05820B0 |
AT19#,CT190,ST191..UKP..SED..GL '97 AUTUMN CAMPAIGN FABRIC & W(SPEAKER);DOOR TRIM=TYPE E-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-05830B0 |
AT19#,CT190,ST191..UKP..SED '97 AUTUMN CAMPAIGN FABRIC & W(POWER WINDOW);DOOR TRIM=TYPE E-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-05840B0 |
AT19#,CT190,ST191..UKP..SED..GL DOOR TRIM=TYPE E-*104;'97 AUTUMN CAMPAIGN FABRIC & W(POWER WINDOW & SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67604D - RETAINER, REAR DOOR TRIM, LH | ||||
| 67771-20110 |
AT190..UKP..GL;ST191..UKP..RHD GREEN |
7 | ||
| 67771-20110 |
AT19#,CT190,ST191..UKP..(SED,WG) |
7 | ||
| 67771-20110 |
AT19#,CT190,ST191..UKP |
7 | ||
| 67609C - GRILLE SUB-ASSY, REAR DOOR SPEAKER | ||||
| 67653-05020B0 |
AT19#,ST191..UKP SHADOW GRAY,TRIM1# |
2 | ||
| 67653-05020C0 |
AT190,ST191..UKP BLACK,TRIM2# |
2 | ||
| 67653-05020J0 |
AT19#,ST191..UKP DK. BLUE,TRIM8# |
2 | ||
| 67653-05020B0 |
AT191..UKP..LHD;AT190,ST191..UKP SHADOW GRAY,TRIM1# |
2 | ||
| 67653-05020J0 |
AT190..UKP..LHD..SED..GL DK. BLUE,TRIM8# |
2 | ||
| 67653-05020J0 |
AT191..UKP..LHD;AT190,ST191..UKP DK. BLUE,TRIM8# |
2 | ||
| 67653-05020B0 |
AT190..UKP..LHD..SED..GL SHADOW GRAY,TRIM1# |
2 | ||
| Common parts | ||||
| 67771-20100 | ||||
| 67772-20060 | ||||
| 90159-50326 | ||||
| 90168-40068 | ||||
| 90183-03026 | ||||
| 90183-03092 | ||||
| 90183-05016 | ||||
| 90189-05003 | ||||
| 90189-06018 | ||||
| 90467-10151 | ||||
| Linked diagrams | ||||
| 7401 | ||||
ILLUST NO. 2 OF 2(9601- )UKP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-05020C1 |
AT190..UKP..GL;ST191..UKP..RHD W(POWER WINDOW & SPEAKER);DOOR TRIM=TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 67630-05020J1 |
AT190..UKP..GL;ST191..UKP..RHD W(POWER WINDOW & SPEAKER);DOOR TRIM=TYPE B-*104,DK. BLUE,TRIM8# |
1 | ||
| 67630-05090C1 |
AT190..UKP..GL;ST191..UKP..RHD DOOR TRIM=TYPE B-*104;W(SPEAKER),BLACK,TRIM2# |
1 | ||
| 67630-05090J1 |
AT190..UKP..GL;ST191..UKP..RHD DOOR TRIM=TYPE B-*104;W(SPEAKER),DK. BLUE,TRIM8# |
1 | ||
| 67630-05030C1 |
AT190,ST191..UKP..SED..GL DOOR TRIM=TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 67630-05010J1 |
AT190,ST191..UKP..SED..GL W(POWER WINDOW);DOOR TRIM=TYPE B-*104,DK. BLUE,TRIM8# |
1 | ||
| 67630-05010C1 |
AT190,ST191..UKP..SED..GL W(POWER WINDOW);DOOR TRIM=TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 67630-05030J1 |
AT190,ST191..UKP..SED..GL DOOR TRIM=TYPE B-*104,DK. BLUE,TRIM8# |
1 | ||
| 67630-05020C1 |
AT190,ST191..UKP..SED..GL W(POWER WINDOW & SPEAKER);DOOR TRIM=TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 67630-05100C2 |
AT190..UKP..GL;ST191..UKP..RHD DOOR TRIM=TYPE C-*104;W(POWER WINDOW & SPORTS SEAT & SPEAKER),BLACK,TRIM2# |
1 | ||
| 67630-05080C2 |
AT190,ST191..UKP..SED..GL W(POWER WINDOW & SPORTS SEAT);DOOR TRIM=TYPE C-*104,BLACK,TRIM2# |
1 | ||
| 67630-05020J1 |
AT190,ST191..UKP..SED..GL W(POWER WINDOW & SPEAKER);DOOR TRIM=TYPE B-*104,DK. BLUE,TRIM8# |
1 | ||
| 67630-05100C2 |
AT190,ST191..UKP..SED..GL DOOR TRIM=TYPE C-*104;W(POWER WINDOW & SPORTS SEAT & SPEAKER),BLACK,TRIM2# |
1 | ||
| 67630-05090C1 |
AT190,ST191..UKP..SED..GL DOOR TRIM=TYPE B-*104;W(SPEAKER),BLACK,TRIM2# |
1 | ||
| 67630-05090J1 |
AT190,ST191..UKP..SED..GL DOOR TRIM=TYPE B-*104;W(SPEAKER),DK. BLUE,TRIM8# |
1 | ||
| 67630-05210B0 |
AT190..UKP..LHD..SED..GL DOOR TRIM=TYPE B-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-05210J0 |
AT190..UKP..LHD..SED..GL DOOR TRIM=TYPE B-*104,DK. BLUE,TRIM8# |
1 | ||
| 67630-05220B0 |
AT190..UKP..LHD..SED..GL DOOR TRIM=TYPE B-*104;W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67630-05220J0 |
AT190..UKP..LHD..SED..GL DOOR TRIM=TYPE B-*104;W(SPEAKER),DK. BLUE,TRIM8# |
1 | ||
| 67630-05570B0 |
AT190..UKP..SED;CT190,ST191..UKP..LHD..SED DOOR TRIM=TYPE D-*104;EX FABRIC & W(POWER WINDOW),SHADOW GRAY,TRIM1# |
1 | ||
| 67630-05580B0 |
AT190..UKP..SED;CT190,ST191..UKP..LHD..SED DOOR TRIM=TYPE D-*104;EX FABRIC,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-05080B0 |
AT19#..UKP..LHD..SED..GL W(SPORTS SEAT);DOOR TRIM=TYPE C-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-05100B0 |
AT19#..UKP..LHD..SED..GL W(SPORTS SEAT & SPEAKER);DOOR TRIM=TYPE C-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-05210B0 |
AT191..UKP..WG;AT191..UKP..RHD..SED;AT190,ST191..UKP..(SED,WG)..GL W(POWER WINDOW);DOOR TRIM=TYPE B-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-05220J0 |
AT191..UKP..WG;AT191..UKP..RHD..SED;AT190,ST191..UKP..(SED,WG)..GL W(POWER WINDOW & SPEAKER);DOOR TRIM=TYPE B-*104,DK. BLUE,TRIM8# |
1 | ||
| 67630-05210J0 |
AT191..UKP..WG;AT191..UKP..RHD..SED;AT190,ST191..UKP..(SED,WG)..GL W(POWER WINDOW);DOOR TRIM=TYPE B-*104,DK. BLUE,TRIM8# |
1 | ||
| 67630-05230J0 |
AT191..UKP..WG;AT191..UKP..RHD..SED;AT190,ST191..UKP..(SED,WG)..GL DOOR TRIM=TYPE B-*104,DK. BLUE,TRIM8# |
1 | ||
| 67630-05240B0 |
AT191..UKP..WG;AT191..UKP..RHD..SED;AT190,ST191..UKP..(SED,WG)..GL DOOR TRIM=TYPE B-*104;W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67630-05240J0 |
AT191..UKP..WG;AT191..UKP..RHD..SED;AT190,ST191..UKP..(SED,WG)..GL DOOR TRIM=TYPE B-*104;W(SPEAKER),DK. BLUE,TRIM8# |
1 | ||
| 67630-05220B0 |
AT191..UKP..WG;AT191..UKP..RHD..SED;AT190,ST191..UKP..(SED,WG)..GL W(POWER WINDOW & SPEAKER);DOOR TRIM=TYPE B-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-05230B0 |
AT191..UKP..WG;AT191..UKP..RHD..SED;AT190,ST191..UKP..(SED,WG)..GL DOOR TRIM=TYPE B-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-05600B0 |
AT190..UKP..SED..GL;ST191..UKP..LHD..SED EX FABRIC & W(POWER WINDOW & SPEAKER);DOOR TRIM=TYPE D-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-05590B0 |
AT190..UKP..SED..GL;ST191..UKP..LHD..SED EX FABRIC & W(SPEAKER);DOOR TRIM=TYPE D-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-05570B0 |
ST191..UKP..LHD..SED;AT190,CT190..UKP..SED DOOR TRIM=TYPE D-*104;EX FABRIC & W(POWER WINDOW),SHADOW GRAY,TRIM1# |
1 | ||
| 67630-05530B0 |
AT19#,CT190,ST191..UKP..(SED,WG)..GL DOOR TRIM=TYPE D-*104;'97 SPRING CAMPAIGN 0R '97 AUTUMN CAMPAIGN FABRIC,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-05580B0 |
ST191..UKP..LHD..SED;AT190,CT190..UKP..SED DOOR TRIM=TYPE D-*104;EX FABRIC,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-05550B0 |
AT19#,CT190,ST191..UKP..(SED,WG) '97 SPRING CAMPAIGN 0R '97 AUTUMN CAMPAIGN FABRIC & W(P0WER WIND0W);DOOR TRIM=TYPE D-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-05370J1 |
AT19#,CT190,ST191..UKP..(SED,WG)..GL W(POWER WINDOW);DOOR TRIM=TYPE B-*104,DK. BLUE,TRIM8# |
1 | ||
| 67630-05540B0 |
AT19#,CT190,ST191..UKP..(SED,WG)..GL '97 SPRING CAMPAIGN 0R '97 AUTUMN CAMPAIGN FABRIC & W(SPEAKER);DOOR TRIM=TYPE D-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-05370B1 |
AT19#,CT190,ST191..UKP..(SED,WG)..GL W(POWER WINDOW);DOOR TRIM=TYPE B-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-05400J1 |
AT19#,CT190,ST191..UKP..(SED,WG)..GL DOOR TRIM=TYPE B-*104,DK. BLUE,TRIM8# |
1 | ||
| 67630-05410B1 |
AT190..UKP..LHD..SED..GL LATIN AMERICA SPEC;DOOR TRIM=TYPE B-*104;W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67630-05560B0 |
AT19#,CT190,ST191..UKP..(SED,WG)..GL DOOR TRIM=TYPE D-*104;'97 SPRING CAMPAIGN 0R '97 AUTUMN CAMPAIGN FABRIC & W(POWERWINDOW & SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67630-05400B1 |
AT19#,CT190,ST191..UKP..(SED,WG)..GL DOOR TRIM=TYPE B-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-05440J1 |
AT190..UKP..LHD..SED..GL LATIN AMERICA SPEC;W(POWER WINDOW & SPEAKER);DOOR TRIM=TYPE B-*104,DK. BLUE,TRIM8# |
1 | ||
| 67630-05410J1 |
AT190..UKP..LHD..SED..GL LATIN AMERICA SPEC;DOOR TRIM=TYPE B-*104;W(SPEAKER),DK. BLUE,TRIM8# |
1 | ||
| 67630-05440B1 |
AT190..UKP..LHD..SED..GL LATIN AMERICA SPEC;W(POWER WINDOW & SPEAKER);DOOR TRIM=TYPE B-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-05540B0 |
AT19#,CT190,ST191..UKP..SED..GL '97 SPRING CAMPAIGN 0R '97 AUTUMN CAMPAIGN FABRIC & W(SPEAKER);DOOR TRIM=TYPE D-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-05560B0 |
AT19#,CT190,ST191..UKP..SED..GL DOOR TRIM=TYPE D-*104;'97 SPRING CAMPAIGN 0R '97 AUTUMN CAMPAIGN FABRIC & W(POWERWINDOW & SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67630-05530B0 |
AT19#,CT190,ST191..UKP..SED..GL DOOR TRIM=TYPE D-*104;'97 SPRING CAMPAIGN 0R '97 AUTUMN CAMPAIGN FABRIC,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-05550B0 |
AT19#,CT190,ST191..UKP..SED '97 SPRING CAMPAIGN 0R '97 AUTUMN CAMPAIGN FABRIC & W(P0WER WIND0W);DOOR TRIM=TYPE D-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-05810B0 |
AT19#,CT190,ST191..UKP..SED..GL DOOR TRIM=TYPE E-*104;'97 AUTUMN CAMPAIGN FABRIC,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-05830B0 |
AT19#,CT190,ST191..UKP..SED '97 AUTUMN CAMPAIGN FABRIC & W(POWER WINDOW);DOOR TRIM=TYPE E-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-05840B0 |
AT19#,CT190,ST191..UKP..SED..GL DOOR TRIM=TYPE E-*104;'97 AUTUMN CAMPAIGN FABRIC & W(POWER WINDOW & SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67630-05820B0 |
AT19#,CT190,ST191..UKP..SED..GL '97 AUTUMN CAMPAIGN FABRIC & W(SPEAKER);DOOR TRIM=TYPE E-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67603D - RETAINER, REAR DOOR TRIM, RH | ||||
| 67771-20110 |
AT190..UKP..GL;ST191..UKP..RHD GREEN |
7 | ||
| 67771-20110 |
AT19#,CT190,ST191..UKP |
7 | ||
| 67771-20110 |
AT19#,CT190,ST191..UKP..(SED,WG) |
7 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-05020J1 |
AT190..UKP..GL;ST191..UKP..RHD W(POWER WINDOW & SPEAKER);DOOR TRIM=TYPE B-*104,DK. BLUE,TRIM8# |
1 | ||
| 67640-05090J1 |
AT190..UKP..GL;ST191..UKP..RHD DOOR TRIM=TYPE B-*104;W(SPEAKER),DK. BLUE,TRIM8# |
1 | ||
| 67640-05030C1 |
AT190,ST191..UKP..SED..GL DOOR TRIM=TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 67640-05020C1 |
AT190..UKP..GL;ST191..UKP..RHD W(POWER WINDOW & SPEAKER);DOOR TRIM=TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 67640-05090C1 |
AT190..UKP..GL;ST191..UKP..RHD DOOR TRIM=TYPE B-*104;W(SPEAKER),DK. BLUE,TRIM2# |
1 | ||
| 67640-05010J1 |
AT190,ST191..UKP..SED..GL W(POWER WINDOW);DOOR TRIM=TYPE B-*104,DK. BLUE,TRIM8# |
1 | ||
| 67640-05100C2 |
AT190..UKP..GL;ST191..UKP..RHD DOOR TRIM=TYPE C-*104;W(POWER WINDOW & SPORTS SEAT & SPEAKER),BLACK,TRIM2# |
1 | ||
| 67640-05030J1 |
AT190,ST191..UKP..SED..GL DOOR TRIM=TYPE B-*104;W(GL FABRIC),DK. BLUE,TRIM8# |
1 | ||
| 67640-05020C1 |
AT190,ST191..UKP..SED..GL W(POWER WINDOW & SPEAKER);DOOR TRIM=TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 67640-05010C1 |
AT190,ST191..UKP..SED..GL W(POWER WINDOW);DOOR TRIM=TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 67640-05020J1 |
AT190,ST191..UKP..SED..GL W(POWER WINDOW & SPEAKER);DOOR TRIM=TYPE B-*104,DK. BLUE,TRIM8# |
1 | ||
| 67640-05090C1 |
AT190,ST191..UKP..SED..GL DOOR TRIM=TYPE B-*104;W(SPEAKER),BLACK,TRIM2# |
1 | ||
| 67640-05090J1 |
AT190,ST191..UKP..SED..GL DOOR TRIM=TYPE B-*104;W(SPEAKER),DK. BLUE,TRIM8# |
1 | ||
| 67640-05080C2 |
AT190,ST191..UKP..SED..GL W(POWER WINDOW & SPORTS SEAT);DOOR TRIM=TYPE C-*104,BLACK,TRIM2# |
1 | ||
| 67640-05100C2 |
AT190,ST191..UKP..SED..GL DOOR TRIM=TYPE C-*104;W(POWER WINDOW & SPORTS SEAT & SPEAKER),BLACK,TRIM2# |
1 | ||
| 67640-05220B0 |
AT190..UKP..LHD..SED..GL DOOR TRIM=TYPE B-*104;W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-05210J0 |
AT190..UKP..LHD..SED..GL DOOR TRIM=TYPE B-*104,DK. BLUE,TRIM8# |
1 | ||
| 67640-05210B0 |
AT190..UKP..LHD..SED..GL DOOR TRIM=TYPE B-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-05220J0 |
AT190..UKP..LHD..SED..GL DOOR TRIM=TYPE B-*104;W(SPEAKER),DK. BLUE,TRIM8# |
1 | ||
| 67640-05570B0 |
AT190..UKP..SED;CT190,ST191..UKP..LHD..SED DOOR TRIM=TYPE D-*104;EX FABRIC & W(POWER WINDOW),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-05100B0 |
AT19#..UKP..LHD..SED..GL W(SPORTS SEAT & SPEAKER);DOOR TRIM=TYPE C-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-05080B0 |
AT19#..UKP..LHD..SED..GL W(SPORTS SEAT);DOOR TRIM=TYPE C-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-05580B0 |
AT190..UKP..SED;CT190,ST191..UKP..LHD..SED DOOR TRIM=TYPE D-*104;EX FABRIC,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-05210J0 |
AT191..UKP..WG;AT191..UKP..RHD..SED;AT190,ST191..UKP..(SED,WG)..GL W(POWER WINDOW);DOOR TRIM=TYPE B-*104,DK. BLUE,TRIM8# |
1 | ||
| 67640-05220B0 |
AT191..UKP..WG;AT191..UKP..RHD..SED;AT190,ST191..UKP..(SED,WG)..GL W(POWER WINDOW & SPEAKER);DOOR TRIM=TYPE B-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-05230J0 |
AT191..UKP..WG;AT191..UKP..RHD..SED;AT190,ST191..UKP..(SED,WG)..GL DOOR TRIM=TYPE B-*104,DK. BLUE,TRIM8# |
1 | ||
| 67640-05240J0 |
AT191..UKP..WG;AT191..UKP..RHD..SED;AT190,ST191..UKP..(SED,WG)..GL DOOR TRIM=TYPE B-*104;W(SPEAKER),DK. BLUE,TRIM8# |
1 | ||
| 67640-05240B0 |
AT191..UKP..WG;AT191..UKP..RHD..SED;AT190,ST191..UKP..(SED,WG)..GL DOOR TRIM=TYPE B-*104;W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-05210B0 |
AT191..UKP..WG;AT191..UKP..RHD..SED;AT190,ST191..UKP..(SED,WG)..GL W(POWER WINDOW);DOOR TRIM=TYPE B-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-05220J0 |
AT191..UKP..WG;AT191..UKP..RHD..SED;AT190,ST191..UKP..(SED,WG)..GL W(POWER WINDOW & SPEAKER);DOOR TRIM=TYPE B-*104,DK. BLUE,TRIM8# |
1 | ||
| 67640-05230B0 |
AT191..UKP..WG;AT191..UKP..RHD..SED;AT190,ST191..UKP..(SED,WG)..GL DOOR TRIM=TYPE B-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-05600B0 |
AT190..UKP..SED..GL;ST191..UKP..LHD..SED EX FABRIC & W(POWER WINDOW & SPEAKER);DOOR TRIM=TYPE D-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-05590B0 |
AT190..UKP..SED..GL;ST191..UKP..LHD..SED EX FABRIC & W(SPEAKER);DOOR TRIM=TYPE D-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-05570B0 |
ST191..UKP..LHD..SED;AT190,CT190..UKP..SED DOOR TRIM=TYPE D-*104;EX FABRIC & W(POWER WINDOW),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-05580B0 |
ST191..UKP..LHD..SED;AT190,CT190..UKP..SED DOOR TRIM=TYPE D-*104;EX FABRIC,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-05550B0 |
AT19#,CT190,ST191..UKP..(SED,WG) '97 SPRING CAMPAIGN 0R '97 AUTUMN CAMPAIGN FABRIC & W(P0WER WIND0W);DOOR TRIM=TYPE D-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-05540B0 |
AT19#,CT190,ST191..UKP..(SED,WG)..GL '97 SPRING CAMPAIGN 0R '97 AUTUMN CAMPAIGN FABRIC & W(SPEAKER);DOOR TRIM=TYPE D-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-05560B0 |
AT19#,CT190,ST191..UKP..(SED,WG)..GL DOOR TRIM=TYPE D-*104;'97 SPRING CAMPAIGN 0R '97 AUTUMN CAMPAIGN FABRIC & W(POWERWINDOW & SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-05530B0 |
AT19#,CT190,ST191..UKP..(SED,WG)..GL DOOR TRIM=TYPE D-*104;'97 SPRING CAMPAIGN 0R '97 AUTUMN CAMPAIGN FABRIC,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-05370J1 |
AT19#,CT190,ST191..UKP..(SED,WG)..GL W(POWER WINDOW);DOOR TRIM=TYPE B-*104,DK. BLUE,TRIM8# |
1 | ||
| 67640-05370B1 |
AT19#,CT190,ST191..UKP..(SED,WG)..GL W(POWER WINDOW);DOOR TRIM=TYPE B-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-05410B1 |
AT190..UKP..LHD..SED..GL LATIN AMERICA SPEC;DOOR TRIM=TYPE B-*104;W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-05400B1 |
AT19#,CT190,ST191..UKP..(SED,WG)..GL DOOR TRIM=TYPE B-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-05400J1 |
AT19#,CT190,ST191..UKP..(SED,WG)..GL DOOR TRIM=TYPE B-*104,DK. BLUE,TRIM8# |
1 | ||
| 67640-05440B1 |
AT190..UKP..LHD..SED..GL LATIN AMERICA SPEC;W(POWER WINDOW & SPEAKER);DOOR TRIM=TYPE B-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-05410J1 |
AT190..UKP..LHD..SED..GL LATIN AMERICA SPEC;DOOR TRIM=TYPE B-*104;W(SPEAKER),DK. BLUE,TRIM8# |
1 | ||
| 67640-05440J1 |
AT190..UKP..LHD..SED..GL LATIN AMERICA SPEC;W(POWER WINDOW & SPEAKER);DOOR TRIM=TYPE B-*104,DK. BLUE,TRIM8# |
1 | ||
| 67640-05530B0 |
AT19#,CT190,ST191..UKP..SED..GL DOOR TRIM=TYPE D-*104;'97 SPRING CAMPAIGN 0R '97 AUTUMN CAMPAIGN FABRIC,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-05540B0 |
AT19#,CT190,ST191..UKP..SED..GL '97 SPRING CAMPAIGN 0R '97 AUTUMN CAMPAIGN FABRIC & W(SPEAKER);DOOR TRIM=TYPE D-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-05550B0 |
AT19#,CT190,ST191..UKP..SED '97 SPRING CAMPAIGN 0R '97 AUTUMN CAMPAIGN FABRIC & W(P0WER WIND0W);DOOR TRIM=TYPE D-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-05560B0 |
AT19#,CT190,ST191..UKP..SED..GL DOOR TRIM=TYPE D-*104;'97 SPRING CAMPAIGN 0R '97 AUTUMN CAMPAIGN FABRIC & W(POWERWINDOW & SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-05810B0 |
AT19#,CT190,ST191..UKP..SED..GL DOOR TRIM=TYPE E-*104;'97 AUTUMN CAMPAIGN FABRIC,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-05820B0 |
AT19#,CT190,ST191..UKP..SED..GL '97 AUTUMN CAMPAIGN FABRIC & W(SPEAKER);DOOR TRIM=TYPE E-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-05830B0 |
AT19#,CT190,ST191..UKP..SED '97 AUTUMN CAMPAIGN FABRIC & W(POWER WINDOW);DOOR TRIM=TYPE E-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-05840B0 |
AT19#,CT190,ST191..UKP..SED..GL DOOR TRIM=TYPE E-*104;'97 AUTUMN CAMPAIGN FABRIC & W(POWER WINDOW & SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67604D - RETAINER, REAR DOOR TRIM, LH | ||||
| 67771-20110 |
AT190..UKP..GL;ST191..UKP..RHD GREEN |
7 | ||
| 67771-20110 |
AT19#,CT190,ST191..UKP..(SED,WG) |
7 | ||
| 67771-20110 |
AT19#,CT190,ST191..UKP |
7 | ||
| 67609C - GRILLE SUB-ASSY, REAR DOOR SPEAKER | ||||
| 67653-05020B0 |
AT19#,ST191..UKP SHADOW GRAY,TRIM1# |
2 | ||
| 67653-05020C0 |
AT190,ST191..UKP BLACK,TRIM2# |
2 | ||
| 67653-05020J0 |
AT19#,ST191..UKP DK. BLUE,TRIM8# |
2 | ||
| 67653-05020B0 |
AT191..UKP..LHD;AT190,ST191..UKP SHADOW GRAY,TRIM1# |
2 | ||
| 67653-05020J0 |
AT190..UKP..LHD..SED..GL DK. BLUE,TRIM8# |
2 | ||
| 67653-05020J0 |
AT191..UKP..LHD;AT190,ST191..UKP DK. BLUE,TRIM8# |
2 | ||
| 67653-05020B0 |
AT190..UKP..LHD..SED..GL SHADOW GRAY,TRIM1# |
2 | ||
| 67677 - COVER, SIDE TRIM BOARD, REAR RH | ||||
| 67677-05020B0 |
AT19#,CT190,ST191..UKP SHADOW GRAY,TRIM1# |
1 | ||
| 67677-05020J0 |
AT19#,CT190,ST191..UKP DK.BLUE,TRIM8# |
1 | ||
| 67678 - COVER, SIDE TRIM BOARD, REAR LH | ||||
| 67678-05020B0 |
AT19#,CT190,ST191..UKP SHADOW GRAY,TRIM1# |
1 | ||
| 67678-05020J0 |
AT19#,CT190,ST191..UKP DK.BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 67771-20100 | ||||
| 67772-20060 | ||||
| 90080-18033 | ||||
| 90159-50326 | ||||
| 90159-60370 | ||||
| 90168-40068 | ||||
| 90183-03092 | ||||
| 90189-05003 | ||||
| 90467-10151 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
