ST171R-ALPNKW (1987)

Toyota Carina 2

Production Dec 1987 - Mar 1992
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8911- )RHD

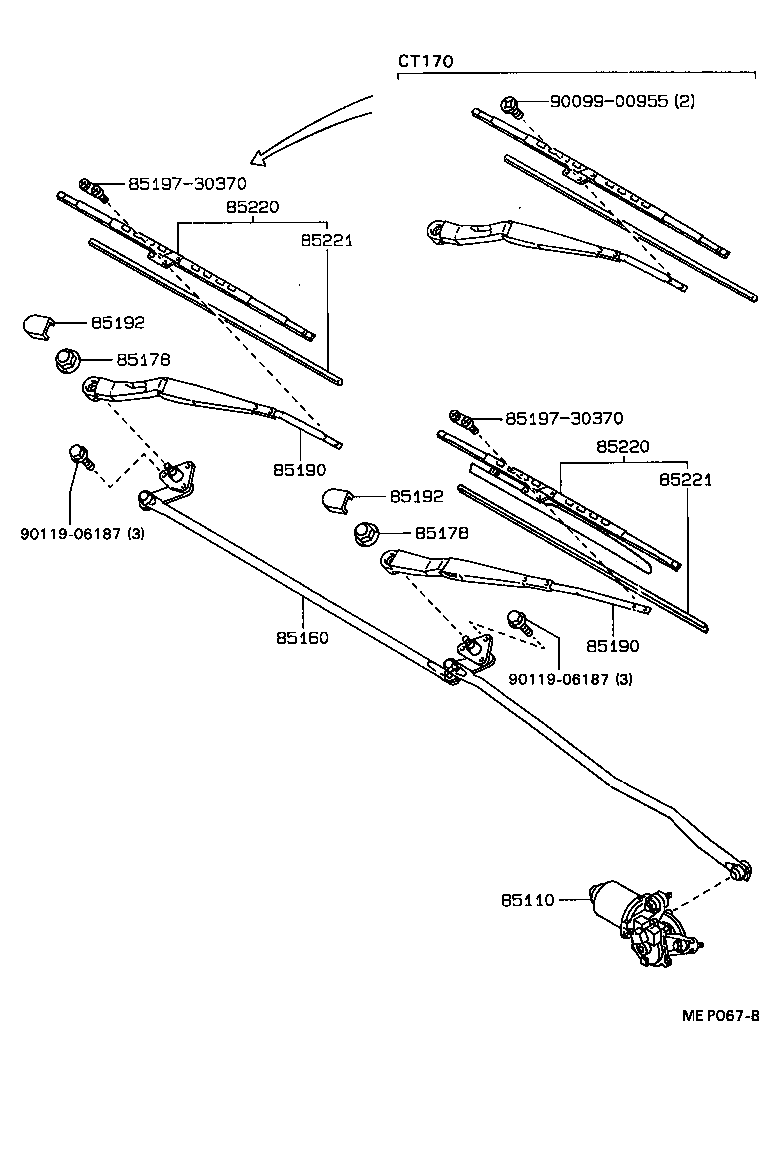

Click highlighted areas on diagram

diagram 85110 85160 85178 85178 85190 85190 85192 85192 8519730370 8519730370 85220 85220 85221 85221 9009900955 9011906187 9011906187
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-20510

AT171,ST171..RHD

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85150-20700

AT171,ST171..RHD

 1
85160-20370

AT171,ST171..RHD

 1
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90179-08113

AT171,CT170,ST171

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90179-08113

AT171,CT170,ST171

 2
85190 - ARM ASSY, WINDSHIELD WIPER
85190-20630

AT171,ST171..RHD

RH

 1
85210-20210

AT171,CT170,ST171..RHD

LH

 1
85190 - ARM ASSY, WINDSHIELD WIPER
85190-20630

AT171,ST171..RHD

RH

 1
85210-20210

AT171,CT170,ST171..RHD

LH

 1
85192 - COVER, WINDSHIELD WIPER ARM
85192-12800

AT171,CT170,ST171

 2
85192 - COVER, WINDSHIELD WIPER ARM
85192-12800

AT171,CT170,ST171

 2
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-16750

AT171,CT170,ST171..RHD

LH

 1
85220-32730

AT171,ST171..RHD

RH

 1
85222-20290

ST171..LB..4FC..G

LH

 1
85220-1A050

ST171..LB..4FC..G

RH

 1
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-16750

AT171,CT170,ST171..RHD

LH

 1
85220-32730

AT171,ST171..RHD

RH

 1
85222-20290

ST171..LB..4FC..G

LH

 1
85220-1A050

ST171..LB..4FC..G

RH

 1
85221 - BLADE, WINDSHIELD WIPER
85221-12240

AT171,CT170,ST171..RHD

LH

 1
85221-20130

AT171,CT170,ST171

RH

 1
85221-20140

AT171,CT170,ST171

LH

 1
85221 - BLADE, WINDSHIELD WIPER
85221-12240

AT171,CT170,ST171..RHD

LH

 1
85221-20130

AT171,CT170,ST171

RH

 1
85221-20140

AT171,CT170,ST171

LH

 1
Common parts
85197-30370
90099-00955
90119-06187

(8712-8911)

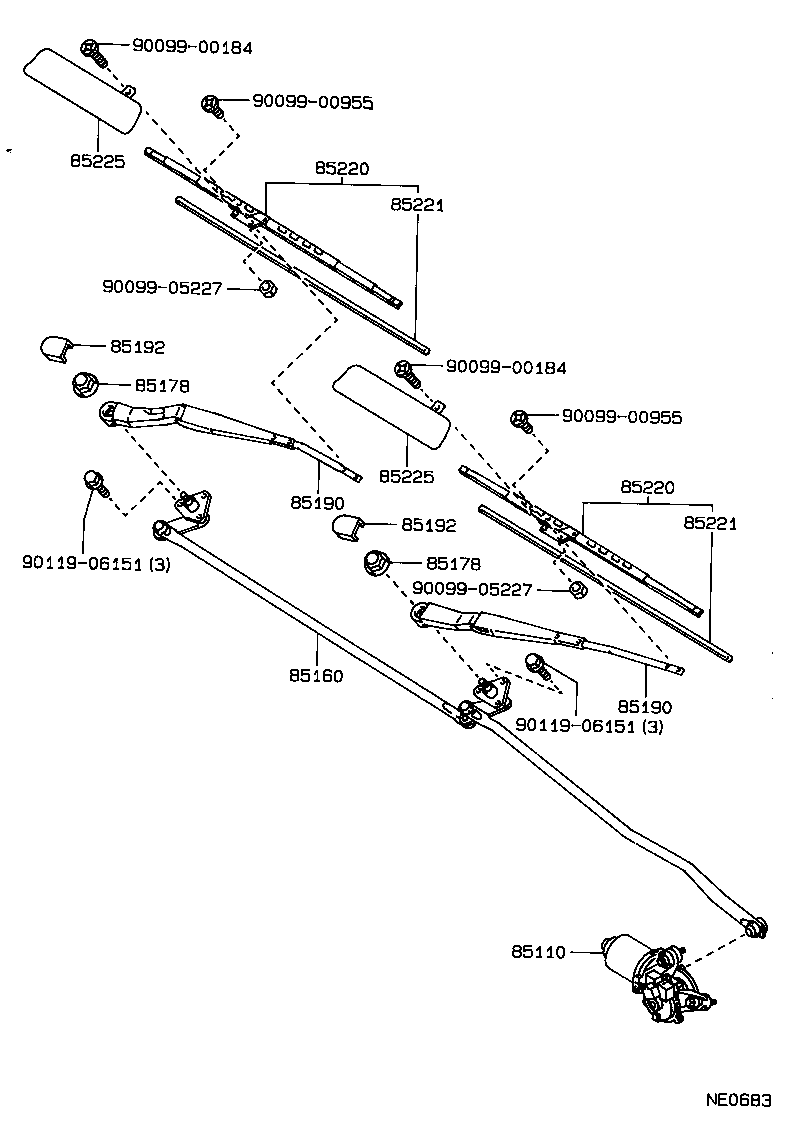

Click highlighted areas on diagram

diagram 85110 85160 85178 85178 85190 85190 85192 85192 85220 85220 85221 85221 85225 85225 9009900184 9009900184 9009900955 9009900955 9009905227 9009905227 9011906151 9011906151
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-20510

AT171,ST171..RHD

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85150-20700

AT171,ST171..RHD

 1
85160-20370

AT171,ST171..RHD

 1
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90179-08113

AT171,CT170,ST171

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90179-08113

AT171,CT170,ST171

 2
85190 - ARM ASSY, WINDSHIELD WIPER
85190-20630

AT171,ST171..RHD

RH

 1
85210-20210

AT171,CT170,ST171..RHD

LH

 1
85190 - ARM ASSY, WINDSHIELD WIPER
85190-20630

AT171,ST171..RHD

RH

 1
85210-20210

AT171,CT170,ST171..RHD

LH

 1
85192 - COVER, WINDSHIELD WIPER ARM
85192-12800

AT171,CT170,ST171

 2
85192 - COVER, WINDSHIELD WIPER ARM
85192-12800

AT171,CT170,ST171

 2
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-16750

AT171,CT170,ST171..RHD

LH

 1
85220-32730

AT171,ST171..RHD

RH

 1
85222-20290

ST171..LB..4FC..G

LH

 1
85220-1A050

ST171..LB..4FC..G

RH

 1
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-16750

AT171,CT170,ST171..RHD

LH

 1
85220-32730

AT171,ST171..RHD

RH

 1
85222-20290

ST171..LB..4FC..G

LH

 1
85220-1A050

ST171..LB..4FC..G

RH

 1
85221 - BLADE, WINDSHIELD WIPER
85221-12240

AT171,CT170,ST171..RHD

LH

 1
85221-20130

AT171,CT170,ST171

RH

 1
85221-20140

AT171,CT170,ST171

LH

 1
85221 - BLADE, WINDSHIELD WIPER
85221-12240

AT171,CT170,ST171..RHD

LH

 1
85221-20130

AT171,CT170,ST171

RH

 1
85221-20140

AT171,CT170,ST171

LH

 1
85225 - WING, WIPER BLADE
85225-20630

AT171,ST171..RHD

 1
85225 - WING, WIPER BLADE
85225-20630

AT171,ST171..RHD

 1
Common parts
90099-00184
90099-00955
90099-05227
90119-06151
