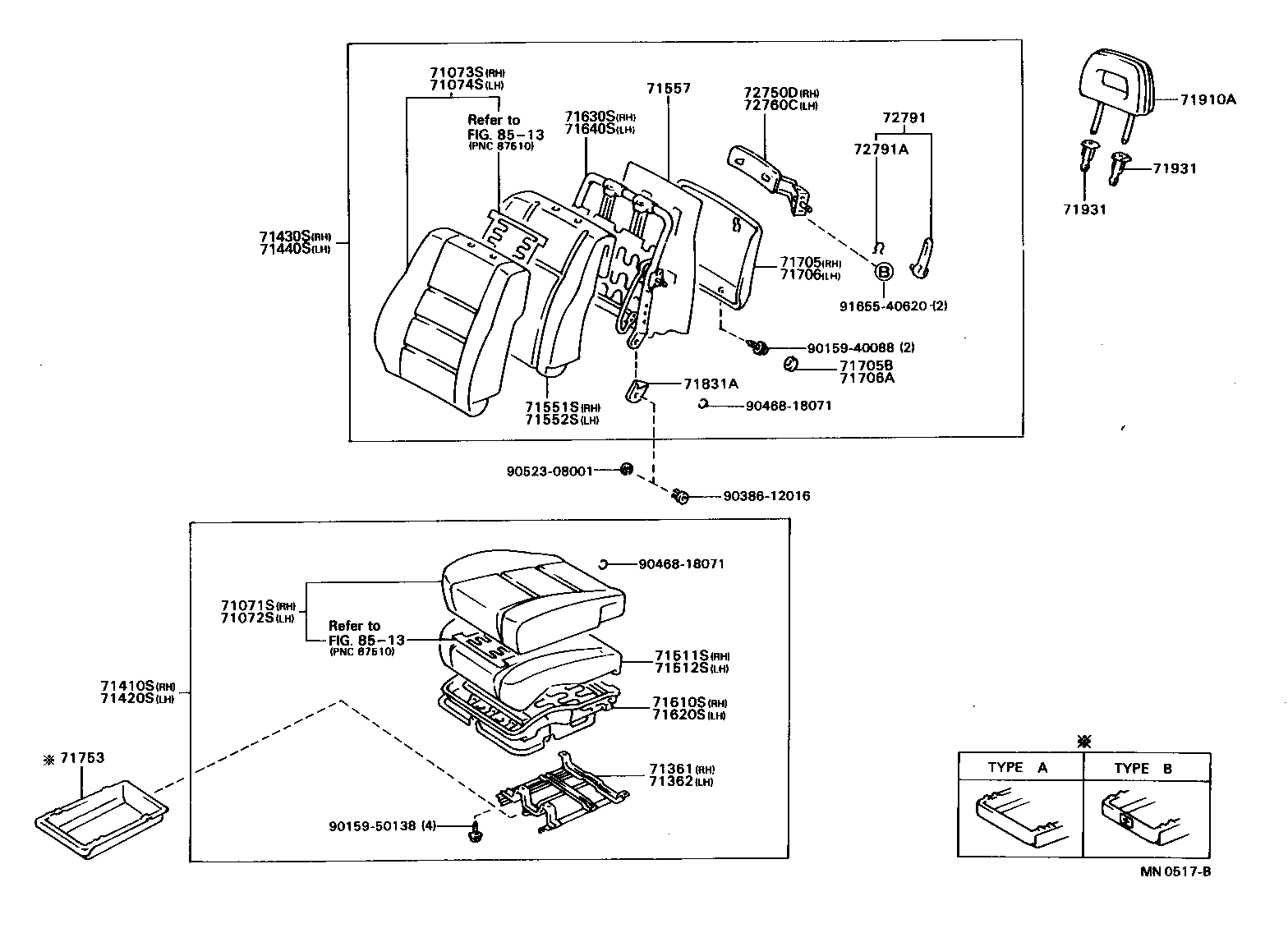

ST171R-ALPNKW (1987)
Toyota Carina 2
(8712- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-2D23006 |
AT171,CT170,ST171..RHD..(LB,SED) SABLE,TRIM4# |
1 | ||
| 71071-2D21003 |
AT171,CT170,ST171..RHD..LB W(SPORT SEAT),GRAY,TRIM1# |
1 | ||
| 71071-2D23003 |
AT171,CT170,ST171..RHD..GL GRAY,TRIM1# |
1 | ||
| 71071-2D23004 |
AT171,CT170,ST171..RHD..GL BLUE,TRIM8# |
1 | ||
| 71071-2D23103 |
ST171..RHD GRAY,TRIM1# |
1 | ||
| 71071-2D23104 |
ST171..RHD DARK BLUE,TRIM8# |
1 | ||
| 71071-2D23106 |
AT171,CT170,ST171..RHD..(LB,SED)..GL SABLE,TRIM4# |
1 | ||
| 71071-2D25103 |
ST171..LB..4FC..G W(SPORT SEAT) & (SEAT HEATER),GARY,TRIM1# |
1 | ||
| 71071-2D88003 |
AT171,CT170,ST171..RHD..LB..GL W(SPORT SEAT),GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-2B78003 |
AT171,CT170,ST171..RHD..GL GRAY,TRIM1# |
1 | ||
| 71072-2B78006 |
AT171,CT170,ST171..RHD..(LB,SED) SABLE,TRIM4# |
1 | ||
| 71072-2B51003 |
AT171,CT170,ST171..RHD..LB W(SPORT SEAT),GRAY,TRIM1# |
1 | ||
| 71072-2B78004 |
AT171,CT170,ST171..RHD..GL BLUE,TRIM8# |
1 | ||
| 71072-2B45103 |
ST171..LB..4FC..G W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71072-2B45104 |
ST171..LB..4FC..G W(SEAT HEATER),DARK BLUE,TRIM8# |
1 | ||
| 71072-2B78106 |
AT171,CT170,ST171..RHD..(LB,SED)..GL SABLE,TRIM4# |
1 | ||
| 71072-2B45106 |
ST171..LB..4FC..G W(SEAT HEATER),SABLE,TRIM4# |
1 | ||
| 71072-2B51103 |
AT171,CT170,ST171..RHD..LB..GL W(SPORT SEAT),GARY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71074-2B69003 |
AT171,CT170,ST171..LB..GL W(SPORT SEAT),GRAY,TRIM1# |
1 | ||
| 71074-2B78006 |
AT171,CT170,ST171..(LB,SED)..GL SABLE,TRIM4# |
1 | ||
| 71074-2B78004 |
AT171,CT170,ST171..GL BLUE,TRIM8# |
1 | ||
| 71074-2B78003 |
AT171,CT170,ST171..GL GRAY,TRIM1# |
1 | ||
| 71074-2B78106 |
AT171,CT170,ST171..(LB,SED)..GL SABLE,TRIM4# |
1 | ||
| 71074-2B69103 |
AT171,CT170,ST171..LB..GL W(SPORT SEAT),GARY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-2D12003 |
AT171,CT170,ST171..LB..GL W(SPORT SEAT),GRAY,TRIM1# |
1 | ||
| 71073-2D21006 |
AT171,CT170,ST171..(LB,SED)..GL SABLE,TRIM4# |
1 | ||
| 71073-2D21003 |
AT171,CT170,ST171..GL GRAY,TRIM1# |
1 | ||
| 71073-2D21004 |
AT171,CT170,ST171..GL BLUE,TRIM8# |
1 | ||
| 71073-2D21103 |
ST171..RHD GRAY,TRIM1# |
1 | ||
| 71073-2D12103 |
AT171,CT170,ST171..LB..GL W(SPORT SEAT),GRAY,TRIM1# |
1 | ||
| 71073-2D21103 |
ST171..4FC..G GRAY,TRIM1# |
1 | ||
| 71073-2D21104 |
ST171..RHD DARK BLUE,TRIM8# |
1 | ||
| 71073-2D21104 |
ST171..4FC..G DARK BLUE,TRIM8# |
1 | ||
| 71074-2B63103 |
ST171..LB..4FC..G W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71074-2B63104 |
ST171..LB..4FC..G W(SEAT HEATER),DARK BLUE,TRIM8# |
1 | ||
| 71073-2D21106 |
ST171..RHD..4FC SABLE,TRIM4# |
1 | ||
| 71073-2D21106 |
ST171..4FC..G SABLE,TRIM4# |
1 | ||
| 71074-2B63106 |
ST171..LB..4FC..G W(SEAT HEATER),SABLE,TRIM4# |
1 | ||
| 71362 - BRACKET, FRONT SEAT SET, NO.2 | ||||
| 71362-20080 |
AT171,CT170,ST171..RHD..GL |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-2D20003 |
AT171,CT170,ST171..RHD..(LB,SED) ***,W(HEATER REAR DUCT),GRAY,TRIM1# |
1 | ||
| 71410-2D20004 |
AT171,CT170,ST171..RHD..(LB,SED) ***,W(HEATER REAR DUCT),BLUE,TRIM8# |
1 | ||
| 71410-2D20006 |
AT171,CT170,ST171..RHD..(LB,SED) ***,W(HEATER REAR DUCT),SABLE,TRIM4# |
1 | ||
| 71410-2D34003 |
AT171,CT170,ST171..RHD..LB ***,W(SPORT SEAT & HEATER REAR DUCT),GRAY,TRIM1# |
1 | ||
| 71410-2D53006 |
AT171,CT170,ST171..RHD..(LB,SED) ***,SABLE,TRIM4# |
1 | ||
| 71410-2D53004 |
AT171,CT170,ST171..RHD..GL ***,BLUE,TRIM8# |
1 | ||
| 71410-2D53003 |
AT171,CT170,ST171..RHD..GL ***,GRAY,TRIM1# |
1 | ||
| 71410-2D54003 |
AT171,CT170,ST171..RHD..LB ***,W(SPORT SEAT),GRAY,TRIM1# |
1 | ||
| 71410-2D20106 |
AT171,CT170,ST171..RHD..(LB,SED)..GL ***,W(HEATER REAR DUCT),SABLE,TRIM4# |
1 | ||
| 71410-2D80003 |
AT171,CT170,ST171..RHD..LB..GL ***,W(SPORT SEAT),GRAY,TRIM1# |
1 | ||
| 71410-2D73003 |
AT171,CT170,ST171..RHD..LB..GL ***,W(SPORT SEAT & HEATER REAR DUCT),GRAY,TRIM1# |
1 | ||
| 71410-2D53106 |
AT171,CT170,ST171..RHD..(LB,SED)..GL ***,SABLE,TRIM4# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-2B73006 |
AT171,CT170,ST171..RHD..(LB,SED) ***,W(HEATER REAR DUCT),SABLE,TRIM4# |
1 | ||
| 71420-2D05003 |
AT171,CT170,ST171..RHD..GL ***,GRAY,TRIM1# |
1 | ||
| 71420-2D04003 |
AT171,CT170,ST171..RHD..LB ***,W(SPORT SEAT),GRAY,TRIM1# |
1 | ||
| 71420-2B66003 |
AT171,CT170,ST171..RHD..LB ***,W(SPORT SEAT & HEATER REAR DUCT),GRAY,TRIM1# |
1 | ||
| 71420-2D05004 |
AT171,CT170,ST171..RHD..GL ***,BLUE,TRIM8# |
1 | ||
| 71420-2B73004 |
AT171,CT170,ST171..RHD..(LB,SED) ***,W(HEATER REAR DUCT),BLUE,TRIM8# |
1 | ||
| 71420-2B73003 |
AT171,CT170,ST171..RHD..(LB,SED) ***,W(HEATER REAR DUCT),GRAY,TRIM1# |
1 | ||
| 71420-2D05006 |
AT171,CT170,ST171..RHD..(LB,SED) ***,SABLE,TRIM4# |
1 | ||
| 71420-2D05106 |
AT171,CT170,ST171..RHD..(LB,SED)..GL ***,SABLE,TRIM4# |
1 | ||
| 71420-2B66103 |
AT171,CT170,ST171..RHD..LB..GL ***,W(SPORT SEAT & HEATER REAR DUCT),GARY,TRIM1# |
1 | ||
| 71420-2B73106 |
AT171,CT170,ST171..RHD..(LB,SED)..GL ***,W(HEATER REAR DUCT),SABLE,TRIM4# |
1 | ||
| 71420-2D04103 |
AT171,CT170,ST171..RHD..LB..GL ***,W(SPORT SEAT),GARY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71440-2B82003 |
AT171,CT170,ST171..RHD..GL ***,GRAY,TRIM1# |
1 | ||
| 71440-2B82006 |
AT171,CT170,ST171..RHD..(LB,SED) ***,SABLE,TRIM4# |
1 | ||
| 71440-2B82004 |
AT171,CT170,ST171..RHD..GL ***,BLUE,TRIM8# |
1 | ||
| 71440-2D28003 |
AT171,CT170,ST171..RHD..LB ***,W(SPORT SEAT),GRAY,TRIM1# |
1 | ||
| 71440-2B82106 |
AT171,CT170,ST171..RHD..(LB,SED)..GL ***,SABLE,TRIM4# |
1 | ||
| 71440-2D28103 |
AT171,CT170,ST171..RHD..LB..GL ***,W(SPORT SEAT),GARY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71430-2D21003 |
AT171,CT170,ST171..RHD..LB ***,W(SPORT SEAT),GRAY,TRIM1# |
1 | ||
| 71430-2D27004 |
AT171,CT170,ST171..RHD..GL ***,BLUE,TRIM8# |
1 | ||
| 71430-2D27006 |
AT171,CT170,ST171..RHD..(LB,SED) ***,SABLE,TRIM4# |
1 | ||
| 71430-2D27003 |
AT171,CT170,ST171..RHD..GL ***,GRAY,TRIM1# |
1 | ||
| 71430-2D21103 |
AT171,CT170,ST171..RHD..LB..GL ***,W(SPORT SEAT),GARY,TRIM1# |
1 | ||
| 71430-2D27106 |
AT171,CT170,ST171..RHD..(LB,SED)..GL ***,SABLE,TRIM4# |
1 | ||
| 71505 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, RH | ||||
| 71506-20100 |
AT171,CT170,ST171..RHD..GL |
1 | ||
| 71506 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, LH | ||||
| 71505-20060 |
CT170;AT171,ST171..XL;AT171,ST171..RHD..GL |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-20520 |
AT171,CT170,ST171..LB..GL W(SPORT SEAT) |
1 | ||
| 71511-20510 |
AT171,CT170,ST171 |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-20520 |
AT171,CT170,ST171..LB..GL W(SPORT SEAT) |
1 | ||
| 71511-20510 |
AT171,CT170,ST171 |
1 | ||
| 71553B - PAD, FRONT SEAT BACK, B | ||||
| 71553-20160 |
AT171,CT170,ST171..RHD..GL |
1 | ||
| 71553-20150 |
CT170;AT171,ST171..XL;AT171,ST171..RHD..GL W(SPORTS SEAT) |
1 | ||
| 71554 - PAD, FRONT SEAT BACK, C | ||||
| 71553-20150 |
CT170;AT171,ST171..XL;AT171,ST171..RHD..GL |
1 | ||
| 71553-20160 |
AT171,CT170,ST171..RHD..GL |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-20430 |
AT171,CT170,ST171..RHD..(LB,SED) W(HEATER REAR DUCT) |
1 | ||
| 71610-20430 |
AT171,CT170,ST171..RHD..GL |
2 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-20230 |
CT170;AT171,ST171..WG;AT171..(LB,SED)..XL;AT171,ST171..RHD..(LB,SED) |
2 | ||
| 71753 - TRAY, FRONT SEAT UNDER | ||||
| 71753-20070 |
AT171,CT170,ST171..GL TYPE B |
1 | ||
| 71753-20050 |
AT171,CT170,ST171..GL TYPE A |
1 | ||
| 71831A - COVER, FRONT SEAT HINGE | ||||
| 71831-10010 |
AT171,CT170,ST171 |
2 | ||
| 71831-12010 |
AT171,CT170,ST171 |
2 | ||
| 71831-12010 |
ST171;AT171..WG;AT171..LB..GL;CT170..LHD..WG;CT170..RHD..(LB,WG);AT171..LHD..SED..GL |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2B05003 |
AT171,CT170,ST171..LB..GL W(SPORT SEAT),GRAY,TRIM1# |
2 | ||
| 71910-2B10004 |
AT171,CT170,ST171..LB..GL BLUE,TRIM8# |
2 | ||
| 71910-2B10006 |
AT171,CT170,ST171..LB..GL SABLE,TRIM4# |
2 | ||
| 71910-2B10003 |
AT171,CT170,ST171..LB..GL GRAY,TRIM1# |
2 | ||
| 71910-2B10103 |
AT171,CT170,ST171..LB..GL GRAY,TRIM1# |
2 | ||
| 71910-2B10106 |
AT171,CT170,ST171..LB..GL SABLE,TRIM4# |
2 | ||
| 71910-2B05103 |
AT171,CT170,ST171..LB..GL W(SPORT SEAT),GARY,TRIM1# |
2 | ||
| 71910-2B10104 |
AT171,CT170,ST171..LB..GL DARK BLUE,TRIM8# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2B05003 |
AT171,CT170,ST171..LB..GL W(SPORT SEAT),GRAY,TRIM1# |
2 | ||
| 71910-2B10004 |
AT171,CT170,ST171..LB..GL BLUE,TRIM8# |
2 | ||
| 71910-2B10006 |
AT171,CT170,ST171..LB..GL SABLE,TRIM4# |
2 | ||
| 71910-2B10003 |
AT171,CT170,ST171..LB..GL GRAY,TRIM1# |
2 | ||
| 71910-2B10103 |
AT171,CT170,ST171..LB..GL GRAY,TRIM1# |
2 | ||
| 71910-2B10106 |
AT171,CT170,ST171..LB..GL SABLE,TRIM4# |
2 | ||
| 71910-2B05103 |
AT171,CT170,ST171..LB..GL W(SPORT SEAT),GARY,TRIM1# |
2 | ||
| 71910-2B10104 |
AT171,CT170,ST171..LB..GL DARK BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1205004 |
AT171,CT170,ST171..LB,SED W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-1201003 |
AT171,CT170,ST171..LB,SED W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-1205003 |
AT171,CT170,ST171..LB,SED W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201004 |
AT171,CT170,ST171..LB,SED W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-1201006 |
AT171,CT170,ST171..LB,SED W/O(LOCK),SABLE,TRIM4# |
2 | ||
| 71930-1205006 |
AT171,CT170,ST171..LB,SED W(LOCK),SABLE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1205004 |
AT171,CT170,ST171..LB,SED W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-1201003 |
AT171,CT170,ST171..LB,SED W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-1205003 |
AT171,CT170,ST171..LB,SED W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201004 |
AT171,CT170,ST171..LB,SED W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-1201006 |
AT171,CT170,ST171..LB,SED W/O(LOCK),SABLE,TRIM4# |
2 | ||
| 71930-1205006 |
AT171,CT170,ST171..LB,SED W(LOCK),SABLE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1205004 |
AT171,CT170,ST171..LB,SED W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-1201003 |
AT171,CT170,ST171..LB,SED W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-1205003 |
AT171,CT170,ST171..LB,SED W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201004 |
AT171,CT170,ST171..LB,SED W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-1201006 |
AT171,CT170,ST171..LB,SED W/O(LOCK),SABLE,TRIM4# |
2 | ||
| 71930-1205006 |
AT171,CT170,ST171..LB,SED W(LOCK),SABLE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1205004 |
AT171,CT170,ST171..LB,SED W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-1201003 |
AT171,CT170,ST171..LB,SED W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-1205003 |
AT171,CT170,ST171..LB,SED W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201004 |
AT171,CT170,ST171..LB,SED W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-1201006 |
AT171,CT170,ST171..LB,SED W/O(LOCK),SABLE,TRIM4# |
2 | ||
| 71930-1205006 |
AT171,CT170,ST171..LB,SED W(LOCK),SABLE,TRIM4# |
2 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-20030 |
AT171,CT170,ST171..RHD |
1 | ||
| 72774 - PROTECTOR, LUMBAR SUPPORT SPRING | ||||
| 72774-20030 |
CT170..RHD;AT171..RHD..XL;AT171,ST171..GL;AT171,CT170..(LB,SED)..XL |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-2003016 |
AT171,CT170..LB..XL;AT171,CT170,ST171..(LB,SED)..GL SABLE,TRIM4# |
1 | ||
| 72791-2003016 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
1 | ||
| 72791-2003024 |
ST171..RHD DARK BLUE,TRIM8# |
1 | ||
| 72791-2003014 |
CT170..RHD;AT171..RHD..XL;AT171,ST171..GL;AT171,CT170..LB..XL DARK BLUE,TRIM8# |
1 | ||
| 72791-2003003 |
CT170..RHD;AT171..RHD..XL;AT171,ST171..GL;AT171,CT170..(LB,SED)..XL SHADOW GRAY,TRIM1# |
1 | ||
| 72791-2003003 |
CT170..RHD;AT171..RHD..XL;AT171,ST171..GL;AT171,CT170..LB..XL SHADOW GRAY,TRIM1# |
1 | ||
| 72791-2003014 |
CT170..RHD;AT171..RHD..XL;AT171,ST171..GL;AT171,CT170..(LB,SED)..XL DARK BLUE,TRIM8# |
1 | ||
| 72791-2003024 |
ST171..LB..4FC..G DARK BLUE,TRIM8# |
1 | ||
| 72791A - RING, SHAFT SNAP(FOR LUMBER SUPPORT LEVER) | ||||
| 90520-01274 |
CT170..RHD;AT171..RHD..XL;AT171,ST171..GL;AT171,CT170..LB..XL |
1 | ||
| 90520-01274 |
CT170..RHD;AT171..RHD..XL;AT171,ST171..GL;AT171,CT170..(LB,SED)..XL |
1 | ||
| Common parts | ||||
| 90159-50138 | ||||
| 90386-12016 | ||||
| 90468-18071 | ||||
| 90523-08001 | ||||
| 91655-40620 | ||||
| Linked diagrams | ||||
| 8513 | ||||
(8712- )LB..GL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-2D23006 |
AT171,CT170,ST171..RHD..(LB,SED) SABLE,TRIM4# |
1 | ||
| 71071-2D21003 |
AT171,CT170,ST171..RHD..LB W(SPORT SEAT),GRAY,TRIM1# |
1 | ||
| 71071-2D23003 |
AT171,CT170,ST171..RHD..GL GRAY,TRIM1# |
1 | ||
| 71071-2D23004 |
AT171,CT170,ST171..RHD..GL BLUE,TRIM8# |
1 | ||
| 71071-2D23103 |
ST171..RHD GRAY,TRIM1# |
1 | ||
| 71071-2D23104 |
ST171..RHD DARK BLUE,TRIM8# |
1 | ||
| 71071-2D23106 |
AT171,CT170,ST171..RHD..(LB,SED)..GL SABLE,TRIM4# |
1 | ||
| 71071-2D25103 |
ST171..LB..4FC..G W(SPORT SEAT) & (SEAT HEATER),GARY,TRIM1# |
1 | ||
| 71071-2D88003 |
AT171,CT170,ST171..RHD..LB..GL W(SPORT SEAT),GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-2B78003 |
AT171,CT170,ST171..RHD..GL GRAY,TRIM1# |
1 | ||
| 71072-2B78006 |
AT171,CT170,ST171..RHD..(LB,SED) SABLE,TRIM4# |
1 | ||
| 71072-2B51003 |
AT171,CT170,ST171..RHD..LB W(SPORT SEAT),GRAY,TRIM1# |
1 | ||
| 71072-2B78004 |
AT171,CT170,ST171..RHD..GL BLUE,TRIM8# |
1 | ||
| 71072-2B45103 |
ST171..LB..4FC..G W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71072-2B45104 |
ST171..LB..4FC..G W(SEAT HEATER),DARK BLUE,TRIM8# |
1 | ||
| 71072-2B78106 |
AT171,CT170,ST171..RHD..(LB,SED)..GL SABLE,TRIM4# |
1 | ||
| 71072-2B45106 |
ST171..LB..4FC..G W(SEAT HEATER),SABLE,TRIM4# |
1 | ||
| 71072-2B51103 |
AT171,CT170,ST171..RHD..LB..GL W(SPORT SEAT),GARY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71074-2B69003 |
AT171,CT170,ST171..LB..GL W(SPORT SEAT),GRAY,TRIM1# |
1 | ||
| 71074-2B78006 |
AT171,CT170,ST171..(LB,SED)..GL SABLE,TRIM4# |
1 | ||
| 71074-2B78004 |
AT171,CT170,ST171..GL BLUE,TRIM8# |
1 | ||
| 71074-2B78003 |
AT171,CT170,ST171..GL GRAY,TRIM1# |
1 | ||
| 71074-2B78106 |
AT171,CT170,ST171..(LB,SED)..GL SABLE,TRIM4# |
1 | ||
| 71074-2B69103 |
AT171,CT170,ST171..LB..GL W(SPORT SEAT),GARY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-2D12003 |
AT171,CT170,ST171..LB..GL W(SPORT SEAT),GRAY,TRIM1# |
1 | ||
| 71073-2D21006 |
AT171,CT170,ST171..(LB,SED)..GL SABLE,TRIM4# |
1 | ||
| 71073-2D21003 |
AT171,CT170,ST171..GL GRAY,TRIM1# |
1 | ||
| 71073-2D21004 |
AT171,CT170,ST171..GL BLUE,TRIM8# |
1 | ||
| 71073-2D21103 |
ST171..RHD GRAY,TRIM1# |
1 | ||
| 71073-2D12103 |
AT171,CT170,ST171..LB..GL W(SPORT SEAT),GRAY,TRIM1# |
1 | ||
| 71073-2D21103 |
ST171..4FC..G GRAY,TRIM1# |
1 | ||
| 71073-2D21104 |
ST171..RHD DARK BLUE,TRIM8# |
1 | ||
| 71073-2D21104 |
ST171..4FC..G DARK BLUE,TRIM8# |
1 | ||
| 71074-2B63103 |
ST171..LB..4FC..G W(SEAT HEATER),GRAY,TRIM1# |
1 | ||
| 71074-2B63104 |
ST171..LB..4FC..G W(SEAT HEATER),DARK BLUE,TRIM8# |
1 | ||
| 71073-2D21106 |
ST171..RHD..4FC SABLE,TRIM4# |
1 | ||
| 71073-2D21106 |
ST171..4FC..G SABLE,TRIM4# |
1 | ||
| 71074-2B63106 |
ST171..LB..4FC..G W(SEAT HEATER),SABLE,TRIM4# |
1 | ||
| 71362 - BRACKET, FRONT SEAT SET, NO.2 | ||||
| 71362-20080 |
AT171,CT170,ST171..RHD..GL |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-2D20003 |
AT171,CT170,ST171..RHD..(LB,SED) ***,W(HEATER REAR DUCT),GRAY,TRIM1# |
1 | ||
| 71410-2D20004 |
AT171,CT170,ST171..RHD..(LB,SED) ***,W(HEATER REAR DUCT),BLUE,TRIM8# |
1 | ||
| 71410-2D20006 |
AT171,CT170,ST171..RHD..(LB,SED) ***,W(HEATER REAR DUCT),SABLE,TRIM4# |
1 | ||
| 71410-2D34003 |
AT171,CT170,ST171..RHD..LB ***,W(SPORT SEAT & HEATER REAR DUCT),GRAY,TRIM1# |
1 | ||
| 71410-2D53006 |
AT171,CT170,ST171..RHD..(LB,SED) ***,SABLE,TRIM4# |
1 | ||
| 71410-2D53004 |
AT171,CT170,ST171..RHD..GL ***,BLUE,TRIM8# |
1 | ||
| 71410-2D53003 |
AT171,CT170,ST171..RHD..GL ***,GRAY,TRIM1# |
1 | ||
| 71410-2D54003 |
AT171,CT170,ST171..RHD..LB ***,W(SPORT SEAT),GRAY,TRIM1# |
1 | ||
| 71410-2D20106 |
AT171,CT170,ST171..RHD..(LB,SED)..GL ***,W(HEATER REAR DUCT),SABLE,TRIM4# |
1 | ||
| 71410-2D80003 |
AT171,CT170,ST171..RHD..LB..GL ***,W(SPORT SEAT),GRAY,TRIM1# |
1 | ||
| 71410-2D73003 |
AT171,CT170,ST171..RHD..LB..GL ***,W(SPORT SEAT & HEATER REAR DUCT),GRAY,TRIM1# |
1 | ||
| 71410-2D53106 |
AT171,CT170,ST171..RHD..(LB,SED)..GL ***,SABLE,TRIM4# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-2B73006 |
AT171,CT170,ST171..RHD..(LB,SED) ***,W(HEATER REAR DUCT),SABLE,TRIM4# |
1 | ||
| 71420-2D05003 |
AT171,CT170,ST171..RHD..GL ***,GRAY,TRIM1# |
1 | ||
| 71420-2D04003 |
AT171,CT170,ST171..RHD..LB ***,W(SPORT SEAT),GRAY,TRIM1# |
1 | ||
| 71420-2B66003 |
AT171,CT170,ST171..RHD..LB ***,W(SPORT SEAT & HEATER REAR DUCT),GRAY,TRIM1# |
1 | ||
| 71420-2D05004 |
AT171,CT170,ST171..RHD..GL ***,BLUE,TRIM8# |
1 | ||
| 71420-2B73004 |
AT171,CT170,ST171..RHD..(LB,SED) ***,W(HEATER REAR DUCT),BLUE,TRIM8# |
1 | ||
| 71420-2B73003 |
AT171,CT170,ST171..RHD..(LB,SED) ***,W(HEATER REAR DUCT),GRAY,TRIM1# |
1 | ||
| 71420-2D05006 |
AT171,CT170,ST171..RHD..(LB,SED) ***,SABLE,TRIM4# |
1 | ||
| 71420-2D05106 |
AT171,CT170,ST171..RHD..(LB,SED)..GL ***,SABLE,TRIM4# |
1 | ||
| 71420-2B66103 |
AT171,CT170,ST171..RHD..LB..GL ***,W(SPORT SEAT & HEATER REAR DUCT),GARY,TRIM1# |
1 | ||
| 71420-2B73106 |
AT171,CT170,ST171..RHD..(LB,SED)..GL ***,W(HEATER REAR DUCT),SABLE,TRIM4# |
1 | ||
| 71420-2D04103 |
AT171,CT170,ST171..RHD..LB..GL ***,W(SPORT SEAT),GARY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71440-2B82003 |
AT171,CT170,ST171..RHD..GL ***,GRAY,TRIM1# |
1 | ||
| 71440-2B82006 |
AT171,CT170,ST171..RHD..(LB,SED) ***,SABLE,TRIM4# |
1 | ||
| 71440-2B82004 |
AT171,CT170,ST171..RHD..GL ***,BLUE,TRIM8# |
1 | ||
| 71440-2D28003 |
AT171,CT170,ST171..RHD..LB ***,W(SPORT SEAT),GRAY,TRIM1# |
1 | ||
| 71440-2B82106 |
AT171,CT170,ST171..RHD..(LB,SED)..GL ***,SABLE,TRIM4# |
1 | ||
| 71440-2D28103 |
AT171,CT170,ST171..RHD..LB..GL ***,W(SPORT SEAT),GARY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71430-2D21003 |
AT171,CT170,ST171..RHD..LB ***,W(SPORT SEAT),GRAY,TRIM1# |
1 | ||
| 71430-2D27004 |
AT171,CT170,ST171..RHD..GL ***,BLUE,TRIM8# |
1 | ||
| 71430-2D27006 |
AT171,CT170,ST171..RHD..(LB,SED) ***,SABLE,TRIM4# |
1 | ||
| 71430-2D27003 |
AT171,CT170,ST171..RHD..GL ***,GRAY,TRIM1# |
1 | ||
| 71430-2D21103 |
AT171,CT170,ST171..RHD..LB..GL ***,W(SPORT SEAT),GARY,TRIM1# |
1 | ||
| 71430-2D27106 |
AT171,CT170,ST171..RHD..(LB,SED)..GL ***,SABLE,TRIM4# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-20520 |
AT171,CT170,ST171..LB..GL W(SPORT SEAT) |
1 | ||
| 71511-20510 |
AT171,CT170,ST171 |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-20520 |
AT171,CT170,ST171..LB..GL W(SPORT SEAT) |
1 | ||
| 71511-20510 |
AT171,CT170,ST171 |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-20440 |
AT171,CT170,ST171..LB..GL |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-20440 |
AT171,CT170,ST171..LB..GL |
1 | ||
| 71557 - CLOTH, FRONT SEAT BACK UNDER | ||||
| 71557-20140 |
AT171,CT170,ST171..LB..GL |
2 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-20430 |
AT171,CT170,ST171..RHD..(LB,SED) W(HEATER REAR DUCT) |
1 | ||
| 71610-20430 |
AT171,CT170,ST171..RHD..GL |
2 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-20230 |
CT170;AT171,ST171..WG;AT171..(LB,SED)..XL;AT171,ST171..RHD..(LB,SED) |
2 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71640-20380 |
AT171,CT170,ST171..RHD..LB..GL |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71630-20530 |
AT171,CT170,ST171..RHD..LB..GL |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-2013003 |
AT171,CT170,ST171..RHD..LB W(SPORT SEAT) & W(HRATER REAR DUCT),GRAY,TRIM1# |
1 | ||
| 71706-2005003 |
AT171,CT170,ST171..RHD..LB..GL GRAY,TRIM1# |
1 | ||
| 71706-2005003 |
AT171,CT170,ST171..RHD..LB W(SPORT SEAT),GRAY,TRIM1# |
1 | ||
| 71705B - CAP(FOR FRONT SEAT BACK BOARD) | ||||
| 90339-1000101 |
AT171,CT170,ST171..LB..GL BLACK,TRIM1#,4#,8# |
2 | ||
| 90339-1000124 |
AT171,CT170,ST171..LB..GL DARK BLUE,TRIM8# |
2 | ||
| 90339-1000123 |
AT171,CT170,ST171..LB..GL GRAY,TRIM1# |
2 | ||
| 90339-1000123 |
AT171,CT170,ST171..RHD..LB GRAY,TRIM1# |
2 | ||
| 90339-1000136 |
AT171,CT170,ST171..LB..GL SABLE,TRIM4# |
4 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71705-2013003 |
AT171,CT170,ST171..RHD..LB..GL GRAY,TRIM1# |
1 | ||
| 71706A - CAP, FRONT SEAT BACK BOARD | ||||
| 90339-1000124 |
AT171,CT170,ST171..LB..GL DARK BLUE,TRIM8# |
2 | ||
| 90339-1000101 |
AT171,CT170,ST171..LB..GL BLACK,TRIM1#,4#,8# |
2 | ||
| 90339-1000123 |
AT171,CT170,ST171..LB..GL GRAY,TRIM1# |
2 | ||
| 71753 - TRAY, FRONT SEAT UNDER | ||||
| 71753-20070 |
AT171,CT170,ST171..GL TYPE B |
1 | ||
| 71753-20050 |
AT171,CT170,ST171..GL TYPE A |
1 | ||
| 71831A - COVER, FRONT SEAT HINGE | ||||
| 71831-10010 |
AT171,CT170,ST171 |
2 | ||
| 71831-12010 |
AT171,CT170,ST171 |
2 | ||
| 71831-12010 |
ST171;AT171..WG;AT171..LB..GL;CT170..LHD..WG;CT170..RHD..(LB,WG);AT171..LHD..SED..GL |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2B05003 |
AT171,CT170,ST171..LB..GL W(SPORT SEAT),GRAY,TRIM1# |
2 | ||
| 71910-2B10004 |
AT171,CT170,ST171..LB..GL BLUE,TRIM8# |
2 | ||
| 71910-2B10006 |
AT171,CT170,ST171..LB..GL SABLE,TRIM4# |
2 | ||
| 71910-2B10003 |
AT171,CT170,ST171..LB..GL GRAY,TRIM1# |
2 | ||
| 71910-2B10103 |
AT171,CT170,ST171..LB..GL GRAY,TRIM1# |
2 | ||
| 71910-2B10106 |
AT171,CT170,ST171..LB..GL SABLE,TRIM4# |
2 | ||
| 71910-2B05103 |
AT171,CT170,ST171..LB..GL W(SPORT SEAT),GARY,TRIM1# |
2 | ||
| 71910-2B10104 |
AT171,CT170,ST171..LB..GL DARK BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1205004 |
AT171,CT170,ST171..LB,SED W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-1201003 |
AT171,CT170,ST171..LB,SED W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-1205003 |
AT171,CT170,ST171..LB,SED W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201004 |
AT171,CT170,ST171..LB,SED W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-1201006 |
AT171,CT170,ST171..LB,SED W/O(LOCK),SABLE,TRIM4# |
2 | ||
| 71930-1205006 |
AT171,CT170,ST171..LB,SED W(LOCK),SABLE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1205004 |
AT171,CT170,ST171..LB,SED W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-1201003 |
AT171,CT170,ST171..LB,SED W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-1205003 |
AT171,CT170,ST171..LB,SED W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1201004 |
AT171,CT170,ST171..LB,SED W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-1201006 |
AT171,CT170,ST171..LB,SED W/O(LOCK),SABLE,TRIM4# |
2 | ||
| 71930-1205006 |
AT171,CT170,ST171..LB,SED W(LOCK),SABLE,TRIM4# |
2 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-20030 |
AT171,CT170,ST171..RHD |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-2003016 |
AT171,CT170..LB..XL;AT171,CT170,ST171..(LB,SED)..GL SABLE,TRIM4# |
1 | ||
| 72791-2003016 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
1 | ||
| 72791-2003024 |
ST171..RHD DARK BLUE,TRIM8# |
1 | ||
| 72791-2003014 |
CT170..RHD;AT171..RHD..XL;AT171,ST171..GL;AT171,CT170..LB..XL DARK BLUE,TRIM8# |
1 | ||
| 72791-2003003 |
CT170..RHD;AT171..RHD..XL;AT171,ST171..GL;AT171,CT170..(LB,SED)..XL SHADOW GRAY,TRIM1# |
1 | ||
| 72791-2003003 |
CT170..RHD;AT171..RHD..XL;AT171,ST171..GL;AT171,CT170..LB..XL SHADOW GRAY,TRIM1# |
1 | ||
| 72791-2003014 |
CT170..RHD;AT171..RHD..XL;AT171,ST171..GL;AT171,CT170..(LB,SED)..XL DARK BLUE,TRIM8# |
1 | ||
| 72791-2003024 |
ST171..LB..4FC..G DARK BLUE,TRIM8# |
1 | ||
| 72791A - RING, SHAFT SNAP(FOR LUMBER SUPPORT LEVER) | ||||
| 90520-01274 |
CT170..RHD;AT171..RHD..XL;AT171,ST171..GL;AT171,CT170..LB..XL |
1 | ||
| 90520-01274 |
CT170..RHD;AT171..RHD..XL;AT171,ST171..GL;AT171,CT170..(LB,SED)..XL |
1 | ||
| Common parts | ||||
| 90159-40088 | ||||
| 90159-50138 | ||||
| 90386-12016 | ||||
| 90468-18071 | ||||
| 90523-08001 | ||||
| 91655-40620 | ||||
| Linked diagrams | ||||
| 8513 | ||||
(8712- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-2017004 |
AT171,CT170,ST171 BLUE,TRIM8# |
1 | ||
| 71811-2017003 |
AT171,CT170,ST171 GRAY,TRIM1# |
1 | ||
| 71811-2017006 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-2017004 |
AT171,CT170,ST171 BLUE,TRIM8# |
1 | ||
| 71811-2017003 |
AT171,CT170,ST171 GRAY,TRIM1# |
1 | ||
| 71811-2017006 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-2017004 |
AT171,CT170,ST171 BLUE,TRIM8# |
1 | ||
| 71811-2017003 |
AT171,CT170,ST171 GRAY,TRIM1# |
1 | ||
| 71811-2017006 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-2012003 |
AT171,CT170,ST171 GRAY,TRIM1# |
1 | ||
| 71812-2012004 |
AT171,CT170,ST171 BLUE,TRIM8# |
1 | ||
| 71812-2012006 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-2012003 |
AT171,CT170,ST171 GRAY,TRIM1# |
1 | ||
| 71812-2012004 |
AT171,CT170,ST171 BLUE,TRIM8# |
1 | ||
| 71812-2012006 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-2012003 |
AT171,CT170,ST171 GRAY,TRIM1# |
1 | ||
| 71812-2012004 |
AT171,CT170,ST171 BLUE,TRIM8# |
1 | ||
| 71812-2012006 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-2006003 |
AT171,CT170,ST171 GRAY,TRIM1# |
1 | ||
| 71861-2006004 |
AT171,CT170,ST171 BLUE,TRIM8# |
1 | ||
| 71861-2006006 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-2006003 |
AT171,CT170,ST171 GRAY,TRIM1# |
1 | ||
| 71861-2006004 |
AT171,CT170,ST171 BLUE,TRIM8# |
1 | ||
| 71861-2006006 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-2006003 |
AT171,CT170,ST171 GRAY,TRIM1# |
1 | ||
| 71861-2006004 |
AT171,CT170,ST171 BLUE,TRIM8# |
1 | ||
| 71861-2006006 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-2006003 |
AT171,CT170,ST171 GRAY,TRIM1# |
1 | ||
| 71862-2006006 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
1 | ||
| 71862-2006004 |
AT171,CT170,ST171 BLUE,TRIM8# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-2006003 |
AT171,CT170,ST171 GRAY,TRIM1# |
1 | ||
| 71862-2006006 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
1 | ||
| 71862-2006004 |
AT171,CT170,ST171 BLUE,TRIM8# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-2006003 |
AT171,CT170,ST171 GRAY,TRIM1# |
1 | ||
| 71862-2006006 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
1 | ||
| 71862-2006004 |
AT171,CT170,ST171 BLUE,TRIM8# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-2002004 |
AT171,CT170,ST171..RHD..GL BLUE,TRIM8# |
1 | ||
| 71873-2002006 |
AT171,CT170,ST171..RHD..(LB,SED)..GL SABLE,TRIM4# |
1 | ||
| 71873-2002003 |
AT171,CT170,ST171..RHD..GL GRAY,TRIM1# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-2002004 |
AT171,CT170,ST171..RHD..GL BLUE,TRIM8# |
1 | ||
| 71873-2002006 |
AT171,CT170,ST171..RHD..(LB,SED)..GL SABLE,TRIM4# |
1 | ||
| 71873-2002003 |
AT171,CT170,ST171..RHD..GL GRAY,TRIM1# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-2002004 |
AT171,CT170,ST171..RHD..GL BLUE,TRIM8# |
1 | ||
| 71873-2002006 |
AT171,CT170,ST171..RHD..(LB,SED)..GL SABLE,TRIM4# |
1 | ||
| 71873-2002003 |
AT171,CT170,ST171..RHD..GL GRAY,TRIM1# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-2001006 |
CT170..LB,SED;AT171..LHD..(LB,SED)..XL;AT171,ST171..RHD..(LB,SED) SABLE,TRIM4# |
1 | ||
| 71874-2001004 |
CT170;AT171,ST171..WG;AT171..(LB,SED)..XL;AT171,ST171..RHD..(LB,SED) BLUE,TRIM8# |
1 | ||
| 71874-2001003 |
CT170;AT171,ST171..XL;AT171,ST171..RHD..GL GRAY,TRIM1# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-2001006 |
CT170..LB,SED;AT171..LHD..(LB,SED)..XL;AT171,ST171..RHD..(LB,SED) SABLE,TRIM4# |
1 | ||
| 71874-2001004 |
CT170;AT171,ST171..WG;AT171..(LB,SED)..XL;AT171,ST171..RHD..(LB,SED) BLUE,TRIM8# |
1 | ||
| 71874-2001003 |
CT170;AT171,ST171..XL;AT171,ST171..RHD..GL GRAY,TRIM1# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-2001006 |
CT170..LB,SED;AT171..LHD..(LB,SED)..XL;AT171,ST171..RHD..(LB,SED) SABLE,TRIM4# |
1 | ||
| 71874-2001004 |
CT170;AT171,ST171..WG;AT171..(LB,SED)..XL;AT171,ST171..RHD..(LB,SED) BLUE,TRIM8# |
1 | ||
| 71874-2001003 |
CT170;AT171,ST171..XL;AT171,ST171..RHD..GL GRAY,TRIM1# |
1 | ||
| 72011C - ADJUSTER SUB-ASSY, FRONT SEAT, RH | ||||
| 72010-20260 |
AT171,CT170,ST171..RHD..GL |
1 | ||
| 72010-20260 |
AT171,CT170,ST171..RHD..GL |
1 | ||
| 72011C - ADJUSTER SUB-ASSY, FRONT SEAT, RH | ||||
| 72010-20260 |
AT171,CT170,ST171..RHD..GL |
1 | ||
| 72010-20260 |
AT171,CT170,ST171..RHD..GL |
1 | ||
| 72011C - ADJUSTER SUB-ASSY, FRONT SEAT, RH | ||||
| 72010-20260 |
AT171,CT170,ST171..RHD..GL |
1 | ||
| 72010-20260 |
AT171,CT170,ST171..RHD..GL |
1 | ||
| 72012C - ADJUSTER SUB-ASSY, FRONT SEAT, LH | ||||
| 72020-20240 |
CT170;AT171..XL;AT171,ST171..RHD..GL |
1 | ||
| 72020-20240 |
CT170;AT171,ST171..WG;AT171..(LB,SED)..XL;AT171,ST171..RHD..(LB,SED) |
1 | ||
| 72020-20240 |
CT170;AT171..XL;AT171,ST171..RHD..GL |
1 | ||
| 72012C - ADJUSTER SUB-ASSY, FRONT SEAT, LH | ||||
| 72020-20240 |
CT170;AT171..XL;AT171,ST171..RHD..GL |
1 | ||
| 72020-20240 |
CT170;AT171,ST171..WG;AT171..(LB,SED)..XL;AT171,ST171..RHD..(LB,SED) |
1 | ||
| 72020-20240 |
CT170;AT171..XL;AT171,ST171..RHD..GL |
1 | ||
| 72012C - ADJUSTER SUB-ASSY, FRONT SEAT, LH | ||||
| 72020-20240 |
CT170;AT171..XL;AT171,ST171..RHD..GL |
1 | ||
| 72020-20240 |
CT170;AT171,ST171..WG;AT171..(LB,SED)..XL;AT171,ST171..RHD..(LB,SED) |
1 | ||
| 72020-20240 |
CT170;AT171..XL;AT171,ST171..RHD..GL |
1 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-20480 |
AT171,CT170,ST171..RHD..GL |
1 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-20480 |
AT171,CT170,ST171..RHD..GL |
1 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-20480 |
AT171,CT170,ST171..RHD..GL |
1 | ||
| 72120 - TRACK ASSY, FRONT SEAT, OUTER LH | ||||
| 72120-20470 |
CT170;AT171,ST171..XL;AT171,ST171..RHD..GL |
1 | ||
| 72120 - TRACK ASSY, FRONT SEAT, OUTER LH | ||||
| 72120-20470 |
CT170;AT171,ST171..XL;AT171,ST171..RHD..GL |
1 | ||
| 72120 - TRACK ASSY, FRONT SEAT, OUTER LH | ||||
| 72120-20470 |
CT170;AT171,ST171..XL;AT171,ST171..RHD..GL |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-3201006 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
2 | ||
| 72137-3201014 |
AT171,CT170,ST171 BLUE,TRIM8# |
2 | ||
| 72137-3201003 |
AT171,CT170,ST171 SHADOW GRAY,TRIM1# |
2 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-3201006 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
2 | ||
| 72137-3201014 |
AT171,CT170,ST171 BLUE,TRIM8# |
2 | ||
| 72137-3201003 |
AT171,CT170,ST171 SHADOW GRAY,TRIM1# |
2 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-3201006 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
2 | ||
| 72137-3201014 |
AT171,CT170,ST171 BLUE,TRIM8# |
2 | ||
| 72137-3201003 |
AT171,CT170,ST171 SHADOW GRAY,TRIM1# |
2 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-3201006 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
2 | ||
| 72137-3201014 |
AT171,CT170,ST171 BLUE,TRIM8# |
2 | ||
| 72137-3201003 |
AT171,CT170,ST171 SHADOW GRAY,TRIM1# |
2 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-3201006 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
2 | ||
| 72137-3201014 |
AT171,CT170,ST171 BLUE,TRIM8# |
2 | ||
| 72137-3201003 |
AT171,CT170,ST171 SHADOW GRAY,TRIM1# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72137-3201003 |
AT171,CT170,ST171 SHADOW GRAY,TRIM1# |
2 | ||
| 72137-3201006 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
2 | ||
| 72137-3201014 |
AT171,CT170,ST171 BLUE,TRIM8# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72137-3201003 |
AT171,CT170,ST171 SHADOW GRAY,TRIM1# |
2 | ||
| 72137-3201006 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
2 | ||
| 72137-3201014 |
AT171,CT170,ST171 BLUE,TRIM8# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72137-3201003 |
AT171,CT170,ST171 SHADOW GRAY,TRIM1# |
2 | ||
| 72137-3201006 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
2 | ||
| 72137-3201014 |
AT171,CT170,ST171 BLUE,TRIM8# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72137-3201003 |
AT171,CT170,ST171 SHADOW GRAY,TRIM1# |
2 | ||
| 72137-3201006 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
2 | ||
| 72137-3201014 |
AT171,CT170,ST171 BLUE,TRIM8# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72137-3201003 |
AT171,CT170,ST171 SHADOW GRAY,TRIM1# |
2 | ||
| 72137-3201006 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
2 | ||
| 72137-3201014 |
AT171,CT170,ST171 BLUE,TRIM8# |
2 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-20210 |
AT171,CT170,ST171..RHD |
1 | ||
| 72457B - KNOB, VERTICAL SEAT ADJUSTER, RH | ||||
| 72457-2005003 |
AT171,CT170,ST171..RHD GRAY,TRIM1# |
1 | ||
| 72457-2005006 |
AT171,CT170,ST171..RHD..(LB,SED) SABLE,TRIM4# |
1 | ||
| 72457-2005004 |
AT171,CT170,ST171..RHD BLUE,TRIM8# |
1 | ||
| 72592A - KNOB,RECLINING ADJUSTER, RH | ||||
| 72592-1401024 |
AT171,CT170,ST171 DARK BLUE,TRIM8# |
1 | ||
| 72592-1401016 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
1 | ||
| 72592-1401014 |
AT171,CT170,ST171 DARK BLUE,TRIM8# |
1 | ||
| 72592-1401023 |
AT171,CT170,ST171 GRAY,TRIM1# |
1 | ||
| 72592A - KNOB,RECLINING ADJUSTER, RH | ||||
| 72592-1401024 |
AT171,CT170,ST171 DARK BLUE,TRIM8# |
1 | ||
| 72592-1401016 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
1 | ||
| 72592-1401014 |
AT171,CT170,ST171 DARK BLUE,TRIM8# |
1 | ||
| 72592-1401023 |
AT171,CT170,ST171 GRAY,TRIM1# |
1 | ||
| 72592A - KNOB,RECLINING ADJUSTER, RH | ||||
| 72592-1401024 |
AT171,CT170,ST171 DARK BLUE,TRIM8# |
1 | ||
| 72592-1401016 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
1 | ||
| 72592-1401014 |
AT171,CT170,ST171 DARK BLUE,TRIM8# |
1 | ||
| 72592-1401023 |
AT171,CT170,ST171 GRAY,TRIM1# |
1 | ||
| 72592B - KNOB,RECLINING ADJUSTER, LH | ||||
| 72592-1401024 |
AT171,CT170,ST171 DARK BLUE,TRIM8# |
1 | ||
| 72592-1401014 |
AT171,CT170,ST171 DARK BLUE,TRIM8# |
1 | ||
| 72592-1401016 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
1 | ||
| 72592-1401023 |
AT171,CT170,ST171 GRAY,TRIM1# |
1 | ||
| 72592B - KNOB,RECLINING ADJUSTER, LH | ||||
| 72592-1401024 |
AT171,CT170,ST171 DARK BLUE,TRIM8# |
1 | ||
| 72592-1401014 |
AT171,CT170,ST171 DARK BLUE,TRIM8# |
1 | ||
| 72592-1401016 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
1 | ||
| 72592-1401023 |
AT171,CT170,ST171 GRAY,TRIM1# |
1 | ||
| 72592B - KNOB,RECLINING ADJUSTER, LH | ||||
| 72592-1401024 |
AT171,CT170,ST171 DARK BLUE,TRIM8# |
1 | ||
| 72592-1401014 |
AT171,CT170,ST171 DARK BLUE,TRIM8# |
1 | ||
| 72592-1401016 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
1 | ||
| 72592-1401023 |
AT171,CT170,ST171 GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-08080 | ||||
| 90119-10111 | ||||
| 90119-10349 | ||||
| 90168-40043 | ||||
| 90168-40049 | ||||
| 90520-01002 | ||||
| 90520-01004 | ||||
| 90523-08001 | ||||
| 96160-01200 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
