ST171R-ALPNKW (1987)
Toyota Carina 2

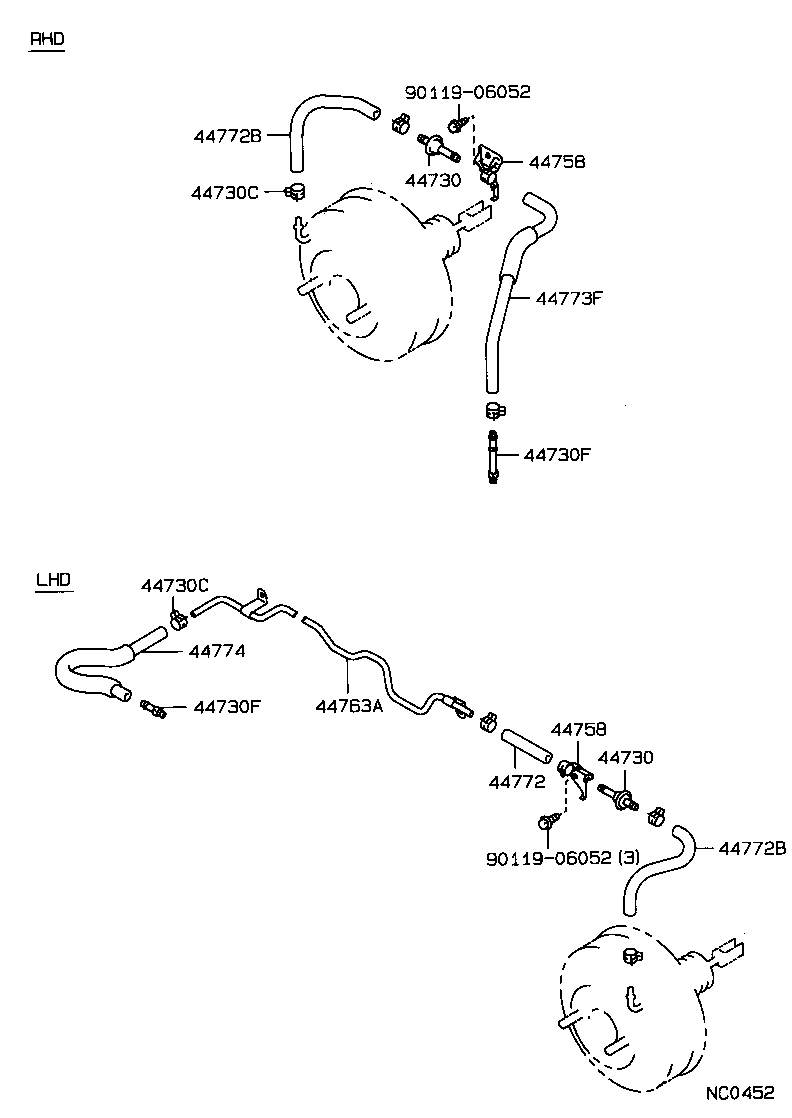

ILLUST NO. 2 OF 2(8712- )ST171
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-10010 |
AT171,ST171 |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-10010 |
AT171,ST171 |
1 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
AT171,ST171..RHD |
3 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
AT171,ST171..RHD |
3 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51319 |
AT171,ST171..EFI |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51319 |
AT171,ST171..EFI |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-20200 |
AT171,ST171..RHD |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-20200 |
AT171,ST171..RHD |
1 | ||
| 44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER | ||||
| 44772-20250 |
ST171..RHD W(*66) |
1 | ||
| 44772-20250 |
ST171..RHD W(*66) |
1 | ||
| 44772-20230 |
AT171,ST171..RHD |
1 | ||
| 44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER | ||||
| 44772-20250 |
ST171..RHD W(*66) |
1 | ||
| 44772-20250 |
ST171..RHD W(*66) |
1 | ||
| 44772-20230 |
AT171,ST171..RHD |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-20550 |
ST171..RHD |
1 | ||
| Common parts | ||||
| 90119-06052 | ||||
ILLUST NO. 1 OF 2(8712- )ST171..GL ; (8808- )AT171..LB,SED..GL
W(ANTI-LOCK BRAKE SYSTEM)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-20710 |
AT171,ST171 AISIN |
1 | ||
| 04443-20640 |
ST171..RHD W(*66 14INCHES DISC WHEEL) |
1 | ||
| 04443-20750 |
AT171,ST171 JKC |
1 | ||
| 04443-20850 |
AT171,ST171..(LB,SED)..GL W(*66 13INCHES DISC WHEEL) |
1 | ||
| 44606E - ROD SUB-ASSY, BRAKE BOOSTER PISTON | ||||
| 44606-20800 |
ST171..RHD W(*66) |
1 | ||
| 44606-12520 |
AT171,CT170,ST171..RHD |
1 | ||
| 44606-20800 |
ST171..RHD W(*66) |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-2B850 |
ST171..RHD W(*66 14INCHES DISC WHEEL) |
1 | ||
| 44610-2B410 |
AT171,ST171..RHD..(LB,SED)..GL AISIN,W(*66 13INCHES DISC WHEEL) |
1 | ||
| 44610-20860 |
ST171..RHD AISIN,W(*66 14INCHES DISC WHEEL) |
1 | ||
| 44610-2B200 |
AT171,CT170,ST171..RHD AISIN |
1 | ||
| 44610-2B860 |
AT171,ST171..RHD..(LB,SED)..GL W(*66 13INCHES DISC WHEEL) |
1 | ||
| 44610-2B270 |
AT171,CT170,ST171..RHD JIDOSHA KIKI |
1 | ||
| 44621V - SEAL, BOOSTER BODY | ||||
| 44621-28120 |
AT171,CT170,ST171..RHD |
1 | ||
| 44621-14030 |
ST171..RHD W(*66) |
1 | ||
| 44621-14030 |
ST171..RHD W(*66) |
1 | ||
| 44626A - RETAINER, BOOSTER BODY SEAL | ||||
| 44626-60010 |
ST171..GL |
1 | ||
| 44626-60010 |
AT171,ST171..(LB,SED)..GL |
1 | ||
| 44629 - RING, CIRCULAR INTERNAL | ||||
| 44628-60010 |
ST171..RHD W(*66) |
1 | ||
| 44628-60010 |
ST171..RHD W(*66) |
1 | ||
| 44628-28120 |
AT171,CT170,ST171..RHD |
1 | ||
| 44635B - KEY, VALVE STOPPER | ||||
| 44635-20800 |
ST171..RHD W(*66) |
1 | ||
| 44635-20800 |
ST171..RHD W(*66) |
1 | ||
| 44635-12630 |
AT171,CT170,ST171..RHD |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-20800 |
ST171..RHD W(*66) |
1 | ||
| 44642-32030 |
AT171,CT170,ST171..RHD |
1 | ||
| 44642-20800 |
ST171..RHD W(*66) |
1 | ||
| 44643 - RETAINER, DIAPHRAGM | ||||
| 44643-20800 |
ST171..GL |
1 | ||
| 44643-20800 |
AT171,ST171..(LB,SED)..GL |
1 | ||
| 44657D - CASE, REACTION DISC | ||||
| 44657-22630 |
ST171..RHD |
1 | ||
| 44657-22630 |
ST171..RHD W(*66 & 14INCHES DISC WHEEL) |
1 | ||
| 44657-30560 |
ST171..GL W(*66 & 13INCHES DISC WHEEL) |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-32010 |
AT171,CT170,ST171 |
1 | ||
| Common parts | ||||
| 90179-08083 | ||||
ILLUST NO. 1 OF 2(8712- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-20710 |
AT171,ST171 AISIN |
1 | ||
| 04443-20640 |
ST171..RHD W(*66 14INCHES DISC WHEEL) |
1 | ||
| 04443-20750 |
AT171,ST171 JKC |
1 | ||
| 04443-20850 |
AT171,ST171..(LB,SED)..GL W(*66 13INCHES DISC WHEEL) |
1 | ||
| 44606E - ROD SUB-ASSY, BRAKE BOOSTER PISTON | ||||
| 44606-20800 |
ST171..RHD W(*66) |
1 | ||
| 44606-12520 |
AT171,CT170,ST171..RHD |
1 | ||
| 44606-20800 |
ST171..RHD W(*66) |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-2B850 |
ST171..RHD W(*66 14INCHES DISC WHEEL) |
1 | ||
| 44610-2B410 |
AT171,ST171..RHD..(LB,SED)..GL AISIN,W(*66 13INCHES DISC WHEEL) |
1 | ||
| 44610-20860 |
ST171..RHD AISIN,W(*66 14INCHES DISC WHEEL) |
1 | ||
| 44610-2B200 |
AT171,CT170,ST171..RHD AISIN |
1 | ||
| 44610-2B860 |
AT171,ST171..RHD..(LB,SED)..GL W(*66 13INCHES DISC WHEEL) |
1 | ||
| 44610-2B270 |
AT171,CT170,ST171..RHD JIDOSHA KIKI |
1 | ||
| 44621V - SEAL, BOOSTER BODY | ||||
| 44621-28120 |
AT171,CT170,ST171..RHD |
1 | ||
| 44621-14030 |
ST171..RHD W(*66) |
1 | ||
| 44621-14030 |
ST171..RHD W(*66) |
1 | ||
| 44629 - RING, CIRCULAR INTERNAL | ||||
| 44628-60010 |
ST171..RHD W(*66) |
1 | ||
| 44628-60010 |
ST171..RHD W(*66) |
1 | ||
| 44628-28120 |
AT171,CT170,ST171..RHD |
1 | ||
| 44635B - KEY, VALVE STOPPER | ||||
| 44635-20800 |
ST171..RHD W(*66) |
1 | ||
| 44635-20800 |
ST171..RHD W(*66) |
1 | ||
| 44635-12630 |
AT171,CT170,ST171..RHD |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-20800 |
ST171..RHD W(*66) |
1 | ||
| 44642-32030 |
AT171,CT170,ST171..RHD |
1 | ||
| 44642-20800 |
ST171..RHD W(*66) |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-32010 |
AT171,CT170,ST171 |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
ILLUST NO. 1 OF 2(8712- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-20710 |
AT171,ST171 AISIN |
1 | ||
| 04443-20640 |
ST171..RHD W(*66 14INCHES DISC WHEEL) |
1 | ||
| 04443-20750 |
AT171,ST171 JKC |
1 | ||
| 04443-20850 |
AT171,ST171..(LB,SED)..GL W(*66 13INCHES DISC WHEEL) |
1 | ||
| 44605 - PLATE & SEAL SUB-ASSY, BOOSTER | ||||
| 44605-10080 |
AT171,CT170,ST171 |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44608-32020 |
AT171,CT170,ST171 |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-2B850 |
ST171..RHD W(*66 14INCHES DISC WHEEL) |
1 | ||
| 44610-2B410 |
AT171,ST171..RHD..(LB,SED)..GL AISIN,W(*66 13INCHES DISC WHEEL) |
1 | ||
| 44610-20860 |
ST171..RHD AISIN,W(*66 14INCHES DISC WHEEL) |
1 | ||
| 44610-2B200 |
AT171,CT170,ST171..RHD AISIN |
1 | ||
| 44610-2B860 |
AT171,ST171..RHD..(LB,SED)..GL W(*66 13INCHES DISC WHEEL) |
1 | ||
| 44610-2B270 |
AT171,CT170,ST171..RHD JIDOSHA KIKI |
1 | ||
| 44633 - KEY, BOOSTER VALVE PLUNGER | ||||
| 44633-28130 |
AT171,CT170,ST171 |
1 | ||
| 44637A - PLATE, BOOSTER DIAPHRAGM | ||||
| 44637-32040 |
AT171,CT170,ST171 |
1 | ||
| 44645 - RETAINER, BOOSTER PUSH ROD SEAL | ||||
| 44645-10080 |
AT171,CT170,ST171 |
1 | ||
| 44673A - BODY, BOOSTER VALVE | ||||
| 44673-32040 |
AT171,CT170,ST171 |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-32010 |
AT171,CT170,ST171 |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
