ST171R-ALPNKW (1987)

Toyota Carina 2

Production Dec 1987 - Mar 1992
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8712- )3SFE

Click highlighted areas on diagram

diagram 9099992002 9099992002 9099992003 9099992004 9099992006 9099992007 9099992008
Part # Description Qty Price
Common parts
90999-92002
90999-92003
90999-92004
90999-92006
90999-92007
90999-92008

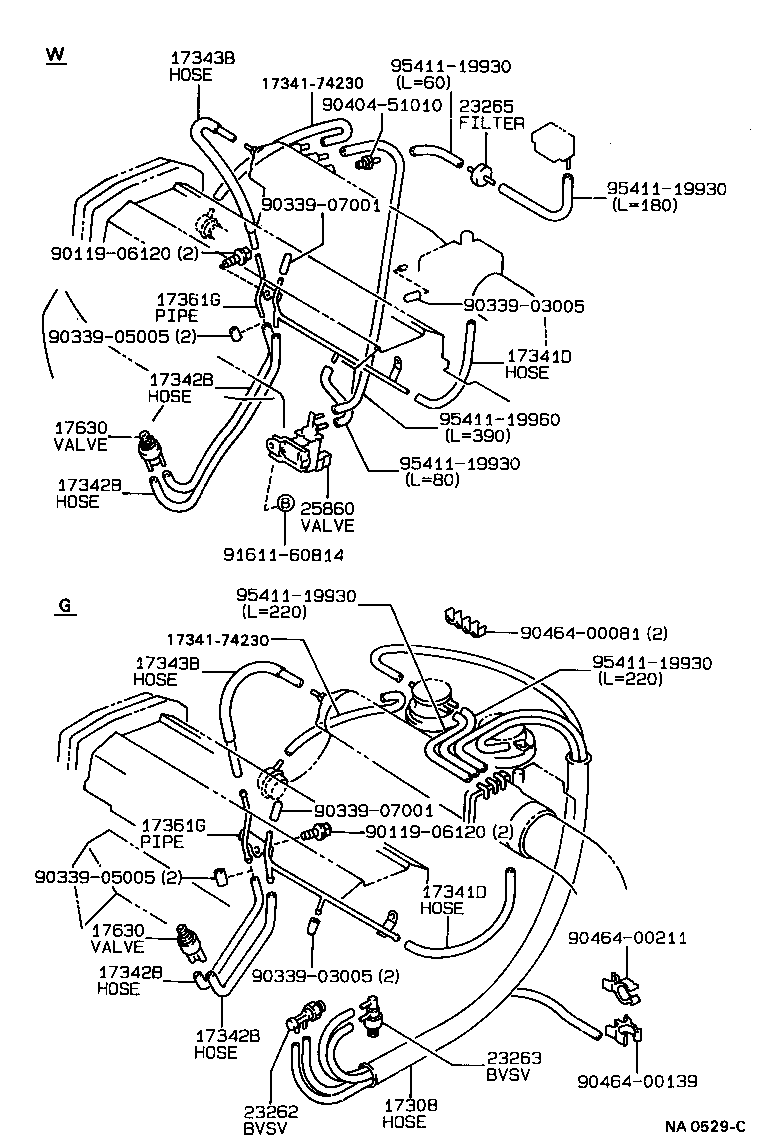

(8712- )3SFE

Click highlighted areas on diagram

diagram 17308 1734174230 1734174230 17341D 17341D 17342B 17342B 17342B 17342B 17343B 17343B 17361G 17361G 17630 17630 23262 23263 23265 25860 9011906120 9011906120 9033903005 9033903005 9033905005 9033905005 9033907001 9033907001 9040451010 9046400081 9046400139 9046400211 9161160814 9541119930 9541119930 9541119930 9541119930 9541119930 9541119960
Part # Description Qty Price
17308 - HOSE SUB-ASSY, VACUUM(FOR IDLE-UP)
17308-74030

3SFE..ST171..G

 1
17341D - HOSE, NO.1(FOR IDLE-UP)
17341-74040

3SFE..ST171

 1
17341-74340

3SFE..ST171

 1
17341D - HOSE, NO.1(FOR IDLE-UP)
17341-74040

3SFE..ST171

 1
17341-74340

3SFE..ST171

 1
17342B - HOSE, NO.2(FOR IDLE-UP)
17343-74011

3SFE..ST171

 2
17343-74040

3SFE..ST171

 1
17342B - HOSE, NO.2(FOR IDLE-UP)
17343-74011

3SFE..ST171

 2
17343-74040

3SFE..ST171

 1
17342B - HOSE, NO.2(FOR IDLE-UP)
17343-74011

3SFE..ST171

 2
17343-74040

3SFE..ST171

 1
17342B - HOSE, NO.2(FOR IDLE-UP)
17343-74011

3SFE..ST171

 2
17343-74040

3SFE..ST171

 1
17343B - HOSE, NO.3(FOR IDLE-UP)
17343-74011

3SFE..ST171

 2
17343-74040

3SFE..ST171

 1
17343B - HOSE, NO.3(FOR IDLE-UP)
17343-74011

3SFE..ST171

 2
17343-74040

3SFE..ST171

 1
17361G - TUBE, AIR(FOR IDLE-UP)
17361-74020

3SFE..ST171..W

 1
17361-74030

3SFE..ST171..G

 1
17361G - TUBE, AIR(FOR IDLE-UP)
17361-74020

3SFE..ST171..W

 1
17361-74030

3SFE..ST171..G

 1
17630 - VALVE ASSY, AIR CONTROL
17630-74010

3SFE..ST171

 1
17630 - VALVE ASSY, AIR CONTROL
17630-74010

3SFE..ST171

 1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
90925-05073

3SFE..ST171..G

 1
23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2
90925-05068

3SFE..ST171..G

 1
23265 - FILTER, GAS, NO.1
90917-11032

3SFE..ST171..W

 1
90917-11021

3SFE..ST171..W

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-74010

3SFE..ST171..W

 1
Common parts
17341-74230
90119-06120
90339-03005
90339-05005
90339-07001
90404-51010
90464-00081
90464-00139
90464-00211
91611-60814
95411-19930
95411-19960
