ST171R-ALMNKW (1987)

Toyota Carina 2

Production Dec 1987 - Mar 1992
Engine 3SFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8712- )5F

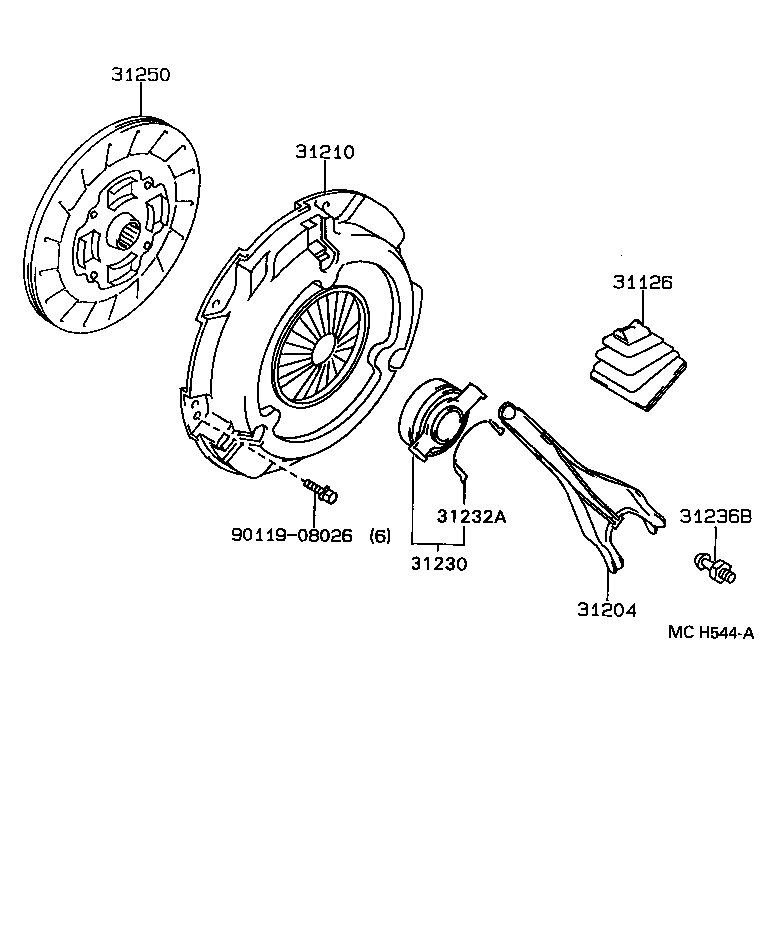

Click highlighted areas on diagram

diagram 31126 31204 31210 31230 31232A 31236B 31250 9011908026
Part # Description Qty Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-32010

CT170,ST171..5F

 1
31204 - FORK SUB-ASSY, CLUTCH RELEASE
31204-32010

CT170,ST171..5F

 1
31210 - COVER ASSY, CLUTCH
31210-32072

ST171..5F

 1
31210-32071

ST171..5F

 1
31210-32073

ST171..5F

 1
31230 - BEARING ASSY, CLUTCH RELEASE
31230-32020

CT170,ST171..5F

 1
31232A - CLIP, RELEASE BEARING HUB
31232-32010

CT170,ST171..5F

TYPE 3

 1
31232-32020

CT170,ST171..5F

TYPE 4

 1
31232-32030

CT170,ST171..5F

TYPE 5

 1
31236B - SUPPORT, RELEASE FORK
31236-30030

CT170,ST171..5F

 1
31250 - DISC ASSY, CLUTCH
31250-32041

ST171..5F

 1
31250-32042

ST171..5F

 1
Common parts
90119-08026

(8712- )5F

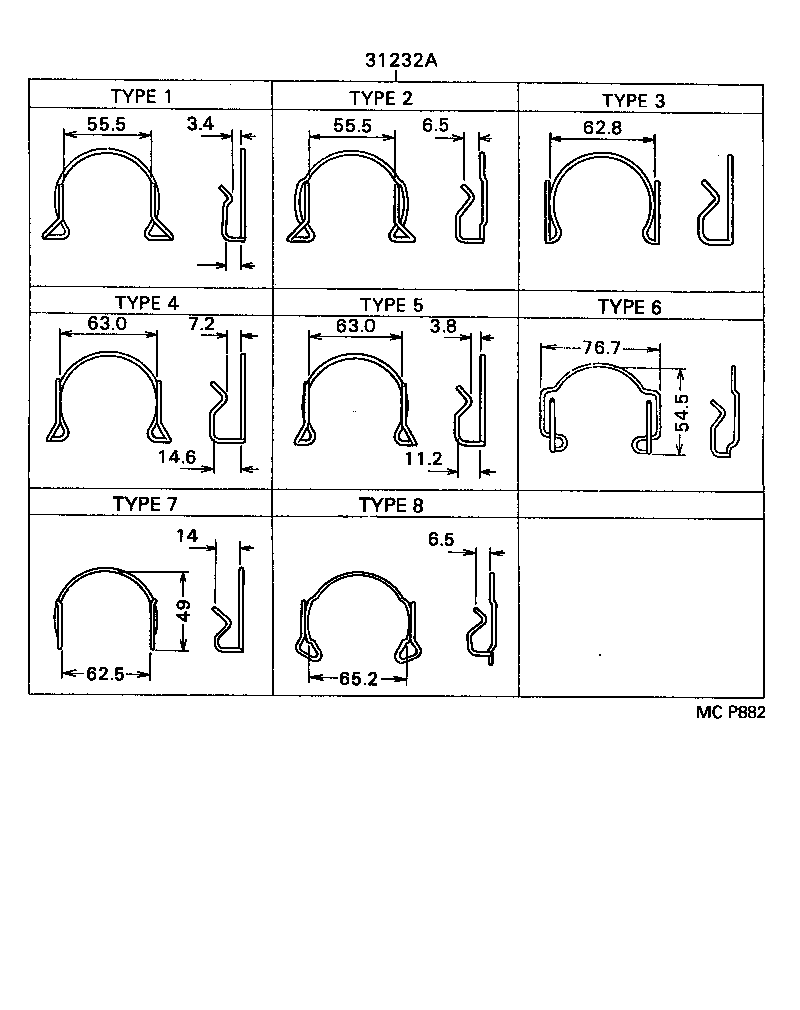

Click highlighted areas on diagram

diagram 31232A
Part # Description Qty Price
31232A - CLIP, RELEASE BEARING HUB
31232-32010

CT170,ST171..5F

TYPE 3

 1
31232-32020

CT170,ST171..5F

TYPE 4

 1
31232-32030

CT170,ST171..5F

TYPE 5

 1
