ST171L-AWPDKG (1987)

Toyota Carina 2

Production Dec 1987 - Nov 1989
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8712- )

Click highlighted areas on diagram

LEVER CONTROL

diagram 55905A 55906A 55907A 55908A 55909A 55910 55917A 55921A 55931A 55931A 81942A 8401 8401 87284 9048013015 9048013020 9356755016 9356814512
Part # Description Qty Price
55905A - KNOB, HEATER CONTROL
55905-12100

AT171,CT170,ST171

*PCM

 4
55905-12130

AT171,CT170,ST171

 4
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-20260

AT171,CT170,ST171

 1
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-20210

AT171,CT170,ST171..LHD

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-20140

AT171,CT170,ST171..LHD

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-20080

AT171,CT170,ST171..LHD

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-20490

AT171,CT170,ST171..LHD

 1
55910-20510

AT171,CT170,ST171..LHD

W(*PCM)

 1
55921A - RETAINER, HEATER CONTROL
55921-20110

AT171,CT170,ST171

 1
55931A - SHAFT, HEATER CONTROL LEVER
55931-20080

AT171,CT170,ST171

LH

 1
55931-20090

AT171,CT170,ST171

RH

 1
55931A - SHAFT, HEATER CONTROL LEVER
55931-20080

AT171,CT170,ST171

LH

 1
55931-20090

AT171,CT170,ST171

RH

 1
81942A - SHEET, HEATER CONTROL NAME, NO.1
81942-20240

AT171,CT170,ST171..LHD

*PCM

 1
81942-20220

AT171,CT170,ST171..LHD

 1
Common parts
90480-13015
90480-13020
93567-55016
93568-14512
Linked diagrams
8401

ILLUST NO. 2 OF 2(8712- )LHD

Click highlighted areas on diagram

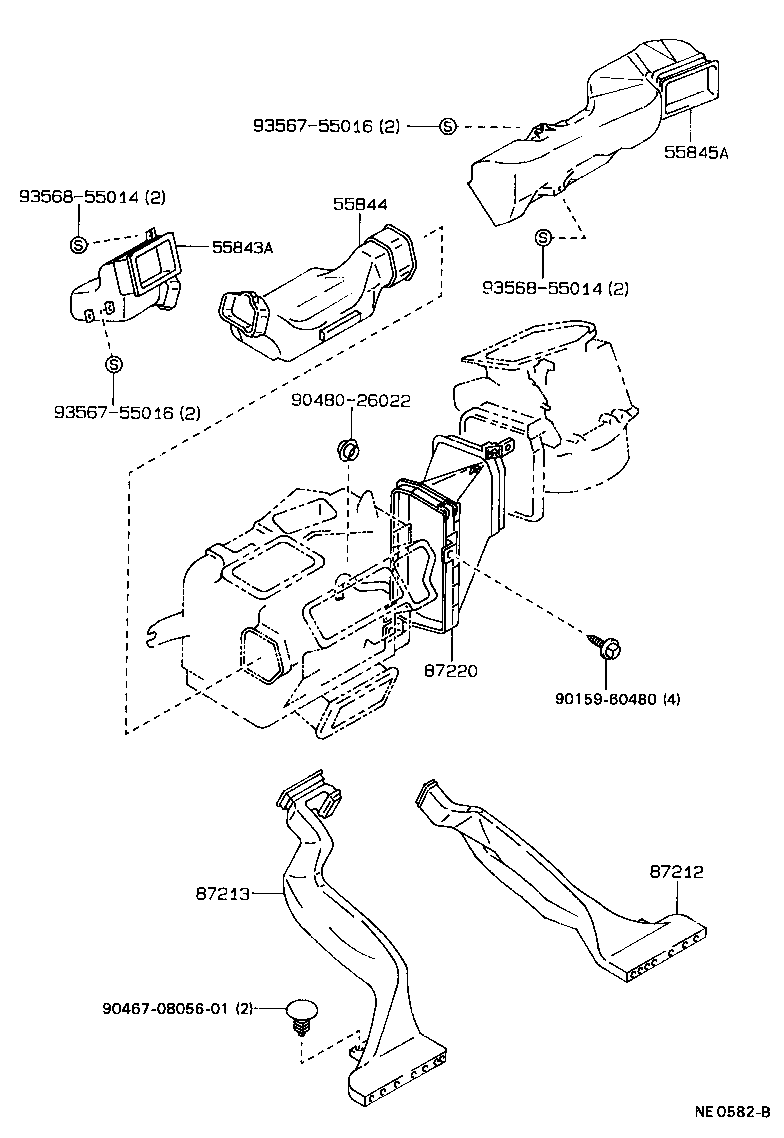

diagram 55843A 55844 55845A 87212 87213 87220 9015960480 904670805601 9048026022 9356755016 9356755016 9356855014 9356855014
Part # Description Qty Price
55843A - DUCT, HEATER TO REGISTER, NO.1
55843-20170

AT171,CT170,ST171..LHD

 1
55844 - DUCT, HEATER TO REGISTER, NO.2
55844-20150

CT170..LHD;AT171,ST171..LHD..W

W(AIR CONDITIONER)

 1
55844-20140

AT171,CT170,ST171..LHD

 1
55845A - DUCT, HEATER TO REGISTER, NO.3
55845-20150

AT171,CT170,ST171..LHD

 1
87212 - DUCT, AIR, REAR NO.1
87212-20070

AT171,CT170,ST171

 1
87213 - DUCT, AIR, REAR NO.2
87213-20040

AT171,CT170,ST171

 1
87220 - DUCT ASSY, AIR
87220-20050

AT171,CT170,ST171..LHD

 1
87220-20060

AT171,CT170,ST171..LHD

COLD SPEC

 1
Common parts
90159-60480
90467-0805601
90480-26022
93567-55016
93568-55014
