ST171L-AWPDKG (1987)

Toyota Carina 2

Production Dec 1987 - Nov 1989
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8712- )

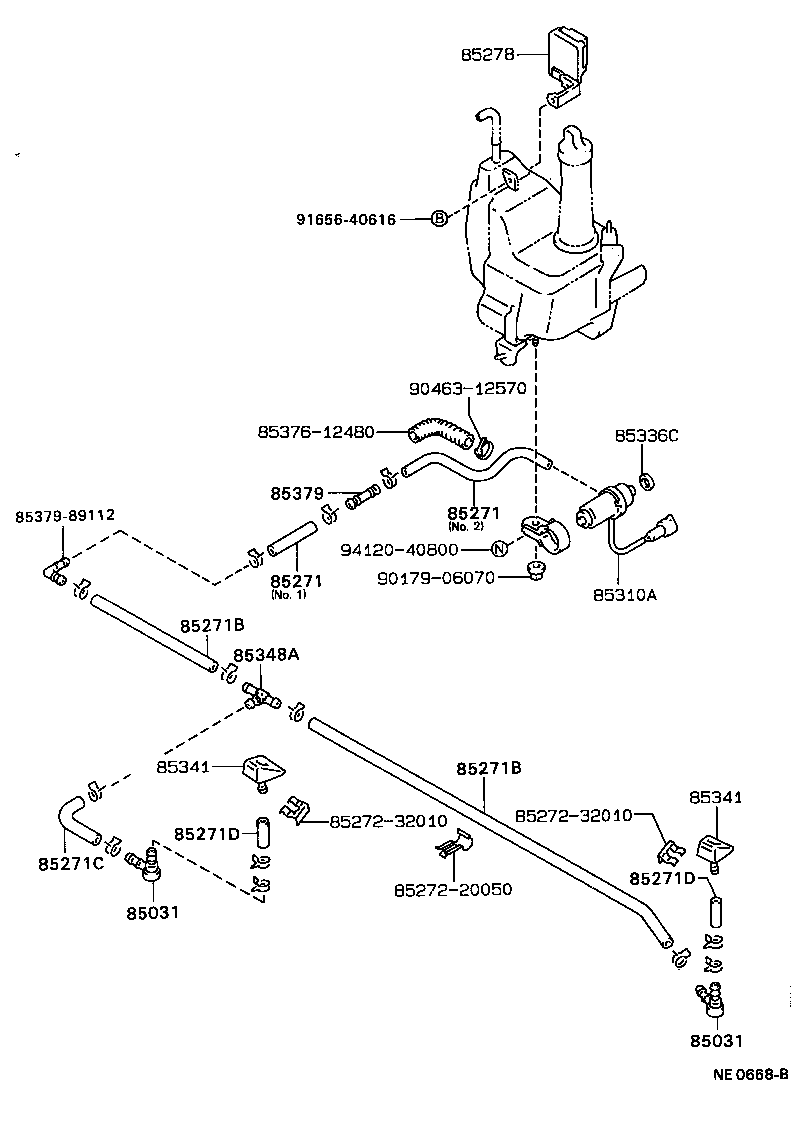

Click highlighted areas on diagram

diagram 85031 85031 85271 85271 85271B 85271B 85271C 85271D 85271D 8527220050 8527232010 8527232010 85278 85310A 85336C 85341 85341 85348A 8537612480 85379 8537989112 9017906070 9046312570 9165640616 9412040800
Part # Description Qty Price
85271 - HOSE, HEADLAMP CLEANER, NO.1
85375-12480

AT171..WG;AT171..(LB,SED)..XL;AT171,CT170,ST171..DSL,EFI

NO.2

 1
85375-20190

AT171..WG;AT171..(LB,SED)..XL;AT171,CT170,ST171..DSL,EFI

L=90,NO.1

 1
85375-20190

AT171,CT170,ST171

L=90,NO.1

 1
85271 - HOSE, HEADLAMP CLEANER, NO.1
85375-12480

AT171..WG;AT171..(LB,SED)..XL;AT171,CT170,ST171..DSL,EFI

NO.2

 1
85375-20190

AT171..WG;AT171..(LB,SED)..XL;AT171,CT170,ST171..DSL,EFI

L=90,NO.1

 1
85375-20190

AT171,CT170,ST171

L=90,NO.1

 1
85271B - HOSE, HEADLAMP CLEANER, NO.3
85375-22061

AT171,CT170,ST171

L=640

 1
90445-14072

AT171,CT170,ST171

L=1320

 1
85271B - HOSE, HEADLAMP CLEANER, NO.3
85375-22061

AT171,CT170,ST171

L=640

 1
90445-14072

AT171,CT170,ST171

L=1320

 1
85278 - RELAY ASSY, HEADLAMP CLEANER CONTROL
85276-20050

AT171..WG;CT170,ST171;AT171..GL..EFI;AT171..(LB,SED)..XL

 1
85310A - MOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER
85310-12190

AT171,CT170,ST171

 1
85336C - PACKING, HEADLAMP CLEANER MOTOR
85336-10010

AT171,CT170,ST171

 1
85341 - NOZZLE, HEADLAMP CLEANER WASHER
85035-20120

AT171,CT170,ST171

 2
85341 - NOZZLE, HEADLAMP CLEANER WASHER
85035-20120

AT171,CT170,ST171

 2
Common parts
85272-20050
85272-32010
85376-12480
85379-89112
90179-06070
90463-12570
91656-40616
94120-40800
