ST171L-AWPDKG (1987)

Toyota Carina 2

Production Dec 1987 - Nov 1989
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8712- )

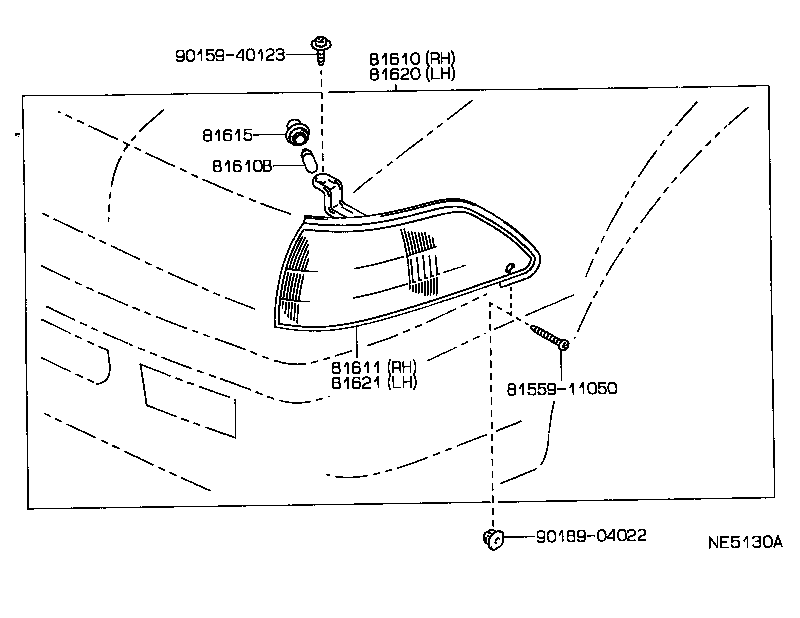

Click highlighted areas on diagram

diagram 8155911050 81610 81610B 81611 81615 81620 81621 9015940123 9018904022
Part # Description Qty Price
81610 - LAMP ASSY, PARKING & CLEARANCE, RH
81610-20310

AT171,CT170,ST171

 1
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
99132-12050

AT171,CT170,ST171

12V 5W

 2
81611 - LENS, PARKING & CLEARANCE LAMP, RH
81611-20310

AT171,CT170,ST171

 1
81615 - SOCKET AND WIRE, CLEARANCE LAMP
81735-12180

AT171,CT170,ST171

 2
81620 - LAMP ASSY, PARKING & CLEARANCE, LH
81620-20310

AT171,CT170,ST171

 1
81621 - LENS, PARKING & CLEARANCE LAMP, LH
81621-20310

AT171,CT170,ST171

 1
Common parts
81559-11050
90159-40123
90189-04022
