ST171L-AWPDKG (1987)

Toyota Carina 2

Production Dec 1987 - Nov 1989
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8712- )ST171..4FC

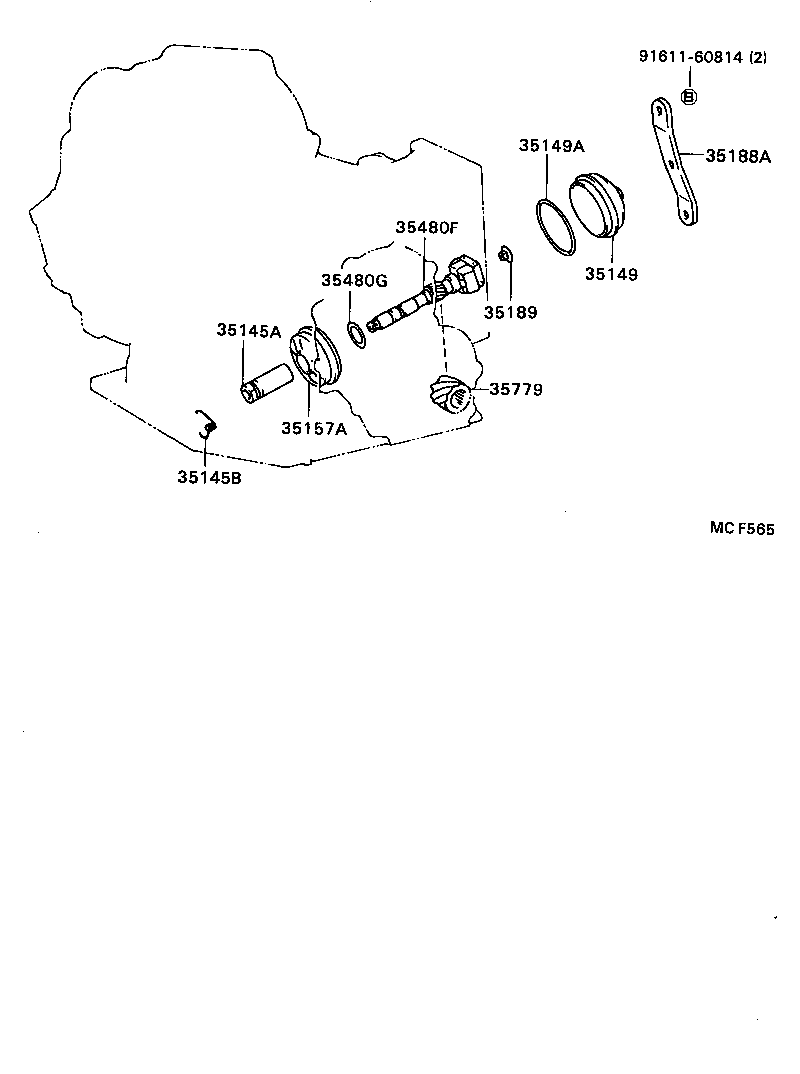

Click highlighted areas on diagram

A140L

diagram 35145A 35145B 35149 35149A 35157A 35188A 35189 35480F 35480G 35779 9161160814
Part # Description Qty Price
35145A - ADAPTER, GOVERNOR PRESSURE
35145-32011

ST171..4FC

 1
35145B - SPRING, TORSION(FOR GOVERNOR PRESSURE ADAPTER)
90508-18034

ST171..4FC

 1
35149 - COVER, GOVERNOR
35149-32010

ST171..4FC

 1
35149A - RING, O (FOR GOVERNOR COVER)
90301-67001

ST171..4FC

 1
35157A - ADAPTER, GOVERNOR BODY
35157-32011

ST171..4FC

 1
35188A - BRACKET, GOVERNOR COVER
35188-32011

ST171..4FC

 1
35189 - WASHER, GOVERNOR THRUST, NO.1
35189-32010

AT171,ST171..4FC

 1
35480F - BODY ASSY, GOVERNOR
35480-32012

ST171..4FC

 1
35480G - WASHER, PLATE (FOR GOVERNOR BODY)
90201-25003

ST171..4FC

 1
35779 - GEAR, GOVERNOR DRIVE
35779-32010

ST171..4FC

 1
Common parts
91611-60814
