ST171L-AWPDKG (1987)

Toyota Carina 2

Production Dec 1987 - Nov 1989
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

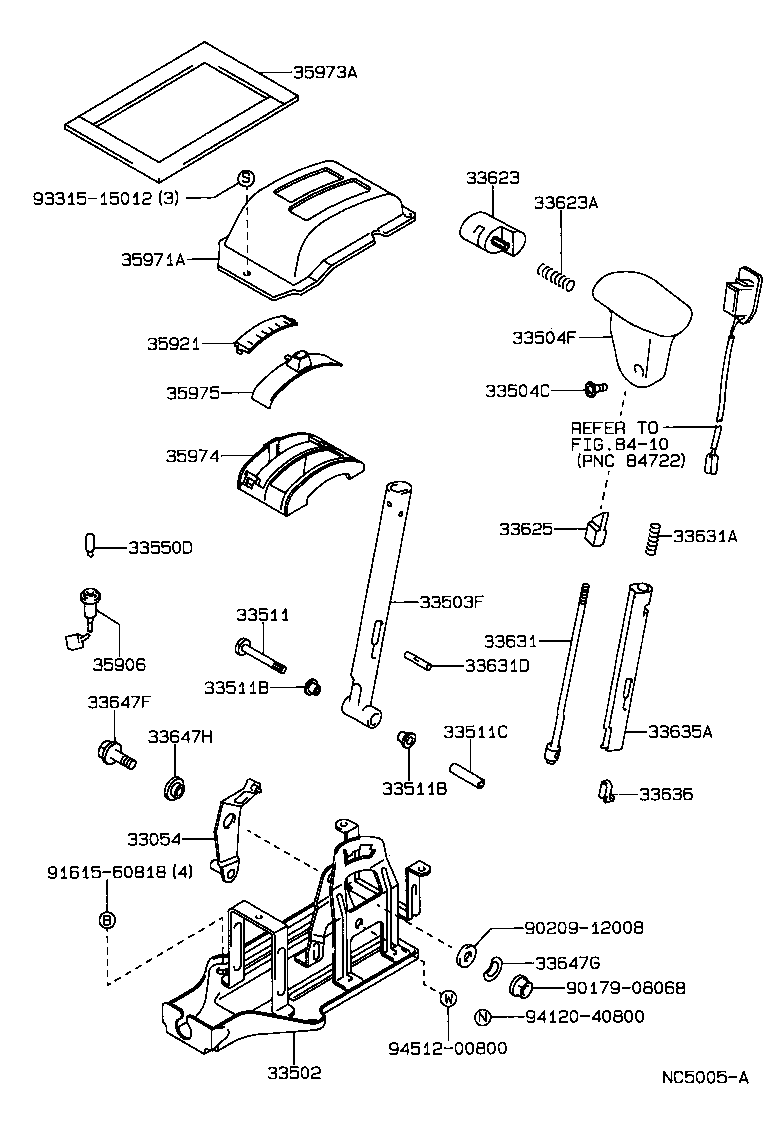

ILLUST NO. 1 OF 2(8712- )4FC

Click highlighted areas on diagram

diagram 33054 33502 33503F 33504C 33504F 33511 33511B 33511B 33511C 33550D 33623 33623A 33625 33631 33631A 33631D 33635A 33636 33647F 33647G 33647H 35906 35921 35971A 35973A 35974 35975 8410 9017908068 9020912008 9161560818 9331515012 9412040800 9451200800
Part # Description Qty Price
33054 - LEVER SUB-ASSY, SHIFT, NO.2(FOR FLOOR SHIFT)
33054-20050

AT171,ST171..LHD..4FC

 1
33502 - PLATE SUB-ASSY, SHIFT LEVER
33502-20250

AT171,ST171..LHD..4FC

 1
33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33503-20460

AT171,ST171..LHD..4FC

 1
33504C - SCREW (FOR SHIFT LEVER KNOB SETTING)
90159-40109

AT171,ST171..4FC

 2
33504F - KNOB SUB-ASSY, SHIFT LEVER
33542-2009004

AT171,ST171..LHD..4FC

BLUE,TRIM8#

 1
33542-2009003

AT171,ST171..LHD..4FC

GRAY,TRIM1#

 1
33511 - SHAFT, CONTROL (FOR FLOOR SHIFT)
33511-32020

AT171,ST171..4FC

 1
33511B - BUSH (FOR CONTROL SHAFT)
90386-11012

AT171,ST171..4FC

 2
33511B - BUSH (FOR CONTROL SHAFT)
90386-11012

AT171,ST171..4FC

 2
33511C - COLLAR (FOR CONTROL SHAFT)
90387-08091

AT171,ST171..4FC

 1
33550D - BULB, POSITION INDICATOR LAMP
99132-12034

AT171,ST171..4FC

12V 3.4W

 1
33623 - BUTTON, SHIFT LEVER KNOB
33623-2003004

AT171,ST171..LHD..4FC

BLUE,TRIM8#

 1
33623-2003003

AT171,ST171..LHD..4FC

GRAY,TRIM1#

 1
33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)
90501-07009

AT171,ST171..4FC

 1
33625 - SLEEVE, SHIFT LEVER KNOB
33625-24010

AT171,ST171..4FC

 1
33631 - ROD, DETENT
33631-20110

AT171,ST171..4FC

 1
33631A - SPRING, COMPRESSION (FOR DETENT ROD)
90501-07005

AT171,ST171..4FC

 1
33631D - PIN, GROOVED (FOR DETENT ROD)
90256-04003

AT171,ST171..4FC

 1
33635A - GUIDE, WIRE, NO.1 (FOR SHIFT LEVER)
33635-20040

AT171,ST171..4FC

 1
33636 - GUIDE, WIRE, NO.2 (FOR SHIFT LEVER)
33636-35010

AT171,ST171..4FC

 1
33647F - SHAFT, CONTROL LINK (FOR FLOOR SHIFT)
90119-08606

AT171,ST171..4FC

 1
33647G - WASHER, WAVE (FOR CONTROL LINK SHAFT)
90206-12002

AT171,ST171..4FC

 1
33647H - BUSH (FOR CONTROL LINK SHAFT)
90386-12029

AT171,ST171..4FC

 1
35906 - WIRE SUB-ASSY, INDICATOR LAMP
35906-20030

AT171,ST171..4FC

 1
35921 - PLATE, CONTROL POSITION INDICATOR
35921-20250

AT171,ST171..LHD..4FC

 1
35971A - HOUSING, POSITION INDICATOR, UPPER
35971-2014004

AT171,ST171..LHD..4FC

BLUE,TRIM8#

 1
35971-2014003

AT171,ST171..LHD..4FC

GRAY,TRIM1#

 1
35971-2014104

AT171,ST171..LHD..4FC

BLUE,TRIM8#

 1
35973A - ATTACHMENT, POSITION INDICATOR HOUSING COVER
35973-20010

AT171,ST171..4FC

 1
35973-20011

AT171,ST171..4FC

 1
35974 - HOUSING, POSITION INDICATOR, LOWER
35974-20100

AT171,ST171..4FC

 1
35975 - COVER, SLIDE (FOR POSITION INDICATOR)
35975-2009004

AT171,ST171..LHD..4FC

BLUE,TRIM8#

 1
35975-2009003

AT171,ST171..LHD..4FC

GRAY,TRIM1#

 1
Common parts
90179-08068
90209-12008
91615-60818
93315-15012
94120-40800
94512-00800
Linked diagrams
8410

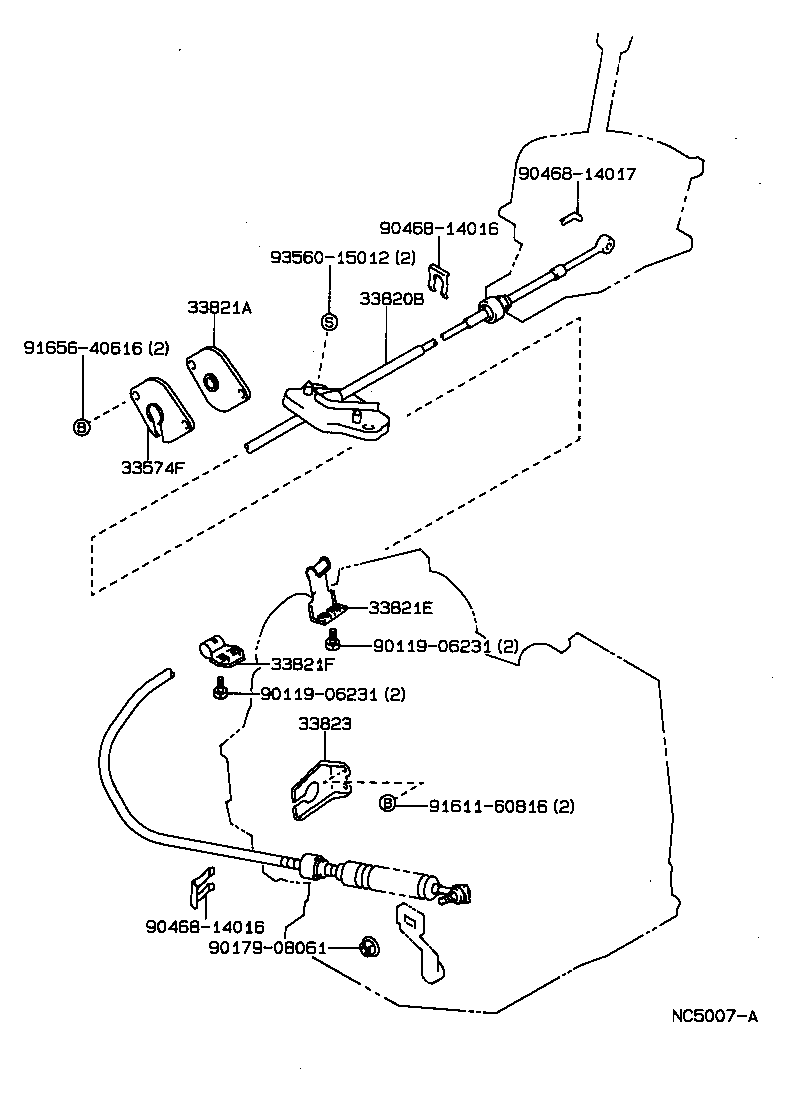

ILLUST NO. 2 OF 2(8712- )ST171..4FC

Click highlighted areas on diagram

diagram 33574F 33820B 33821A 33821E 33821F 33823 9011906231 9011906231 9017908061 9046814016 9046814016 9046814017 9161160816 9165640616 9356015012
Part # Description Qty Price
33574F - RETAINER, DUST SEAL (FOR FLOOR SHIFT)
33574-20260

ST171..4FC

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-20480

ST171..(LB,WG)..4FC;ST171..LHD..SED..4FC

 1
33821A - GROMMET, NO.1 (FOR TRANSMISSION CONTROL CABLE)
90480-01456

ST171..4FC

 1
33821E - CLAMP, NO.1 (FOR TRANSMISSION CONTROL CABLE)
90949-01441

ST171..4FC

 1
33821F - CLAMP, NO.2 (FOR TRANSMISSION CONTROL CABLE)
90949-01442

ST171..4FC

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-32011

ST171..4FC

 1
Common parts
90119-06231
90179-08061
90468-14016
90468-14017
91611-60816
91656-40616
93560-15012
